    The shit box is running again after a rocky start to summer. I finished the link and axle install as well as the gas tank, and had everything done except for the gas tank skid, and was working on the arduous process of breaking in the gears by literally driving in circles to get the miles in, and I picked a poor night to do so in late June. I headed out doing a loop on 470 at 9:30 or so at night putting the miles, it was storming everywhere in Denver but I figured it would be too bad, and I was headed back home when I ran into the worst storm I have ever encountered around Morrison. This was the same storm that sent people to the hospital at Red Rocks, I was pummeled by baseball size hail, cracking my windshield instantly and I feared that the whole thing was going to cave in. So now the hood and roof look like a golf ball and there are two huge impact cracks right at the rearview mirror :annoyed:

  2. Jul 31, 2023 at 8:00 AM
    #1482
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

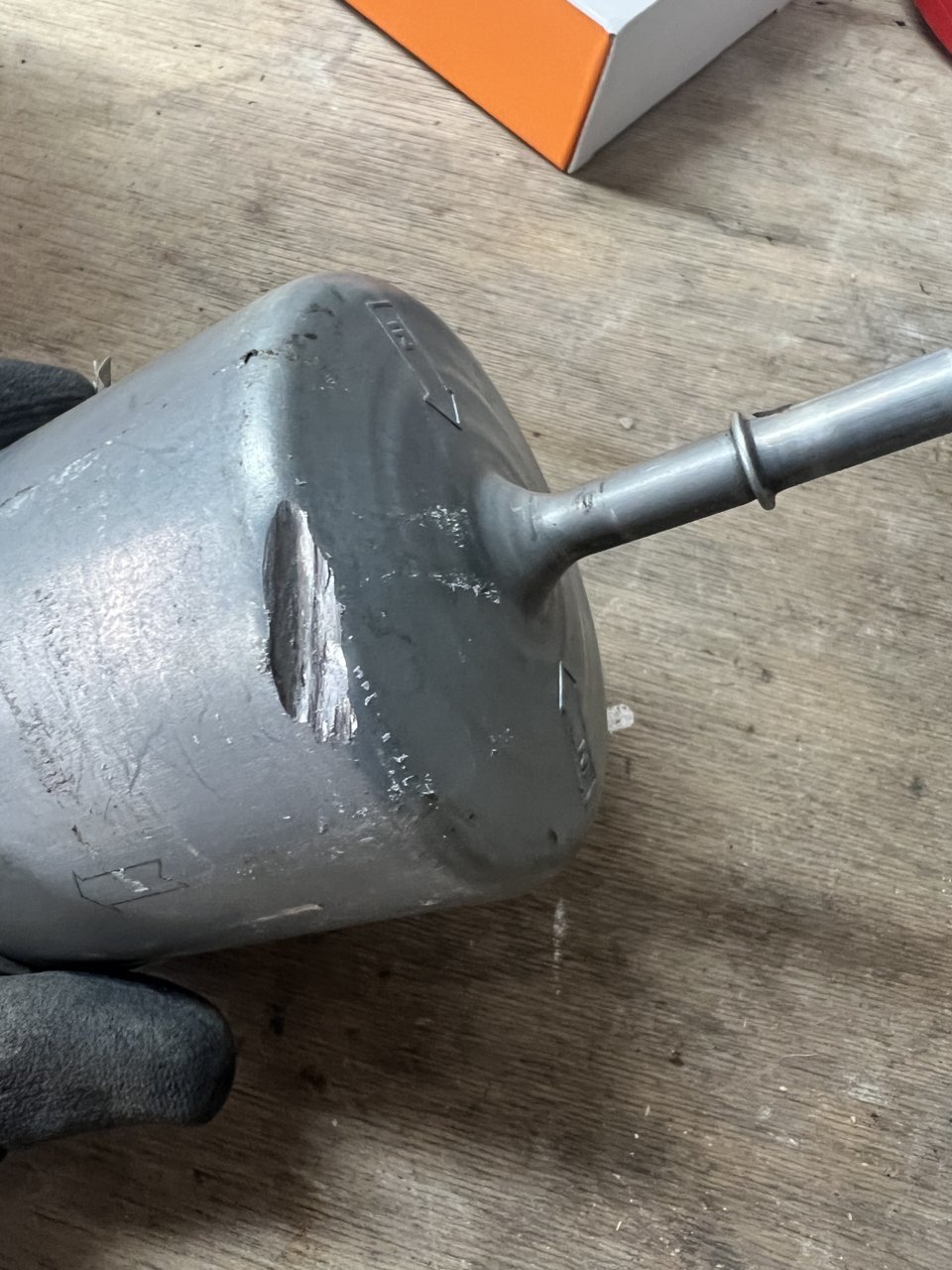

    Then, I finished the 500 miles of gear break in and got an evap CEL, so I was changing the gear oil and doing a check over of things and noticed that I apparently had shifted the gas tank forward a bit and had started to melt the tank at the seam where the exhaust crosses in front of it around the Atlas, which was already a really close clearance :bananadead:

  3. Jul 31, 2023 at 8:00 AM
    #1483
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

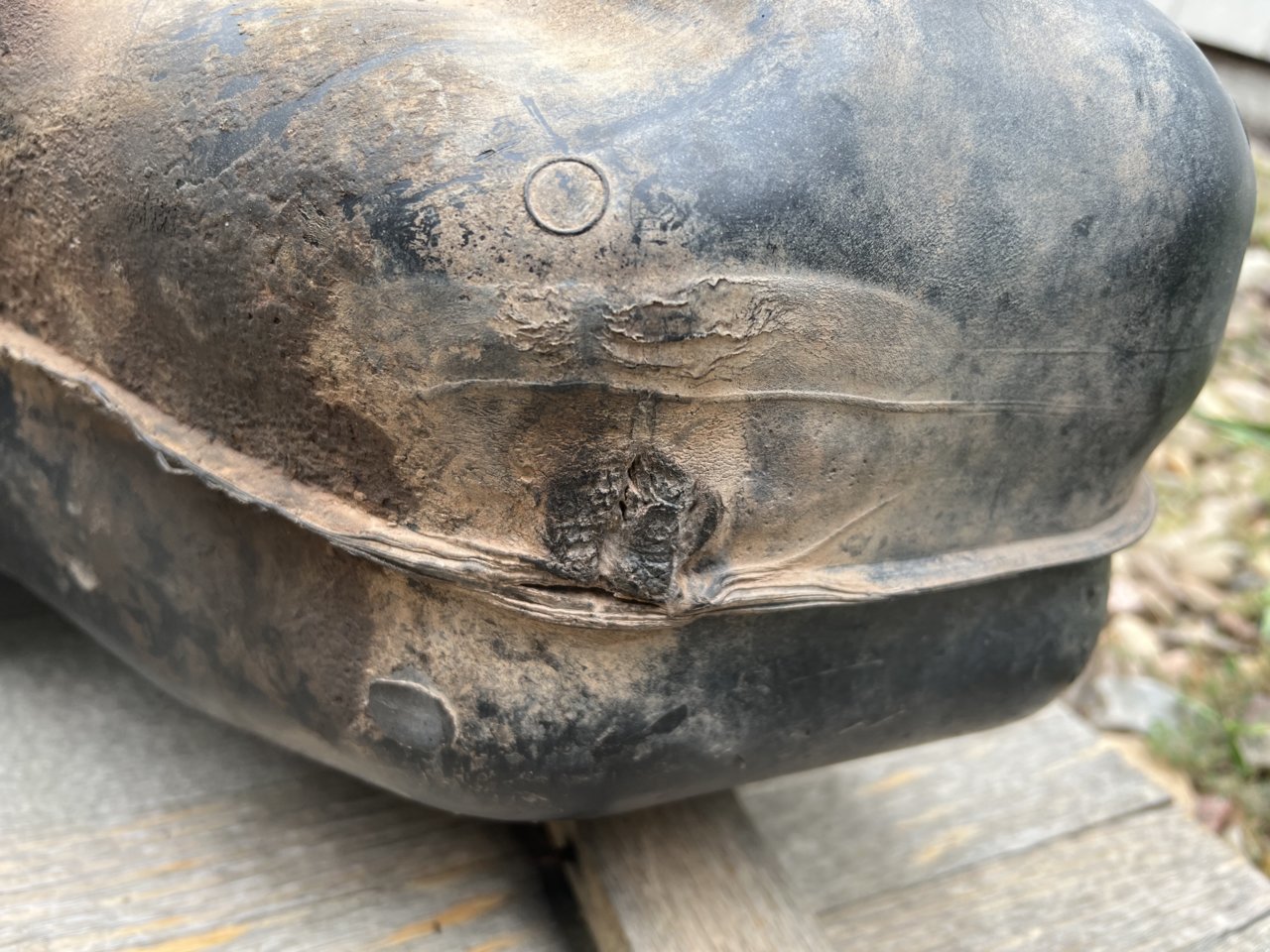

    So, ordered a new used tank, which showed up with the evap vent cracked and unusable, as well as the URD fuel pump @NYCO recommended above since I had to drop the tank again, got another tank ordered, and finally got it all put back together this weekend, as well as finished the gas tank skid. I layered it with some adhesive thermal wrap, and pushed it as far back as I could, hopefully this takes care of the issue.



    Last edited: Jul 31, 2023
    NYCO, Winkle99, TMFF and 2 others like this.
  4. Jul 31, 2023 at 8:05 AM
    #1484
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

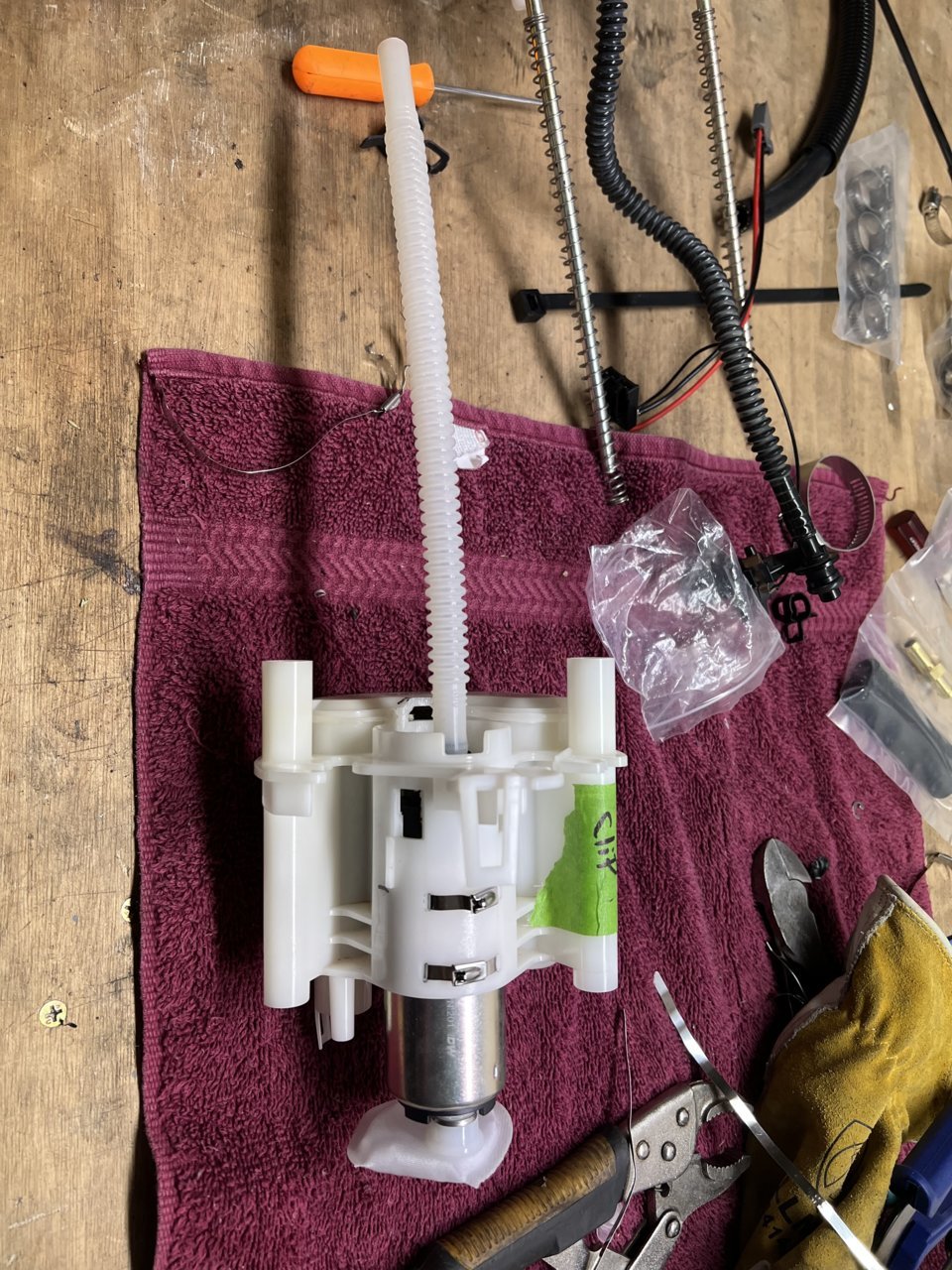

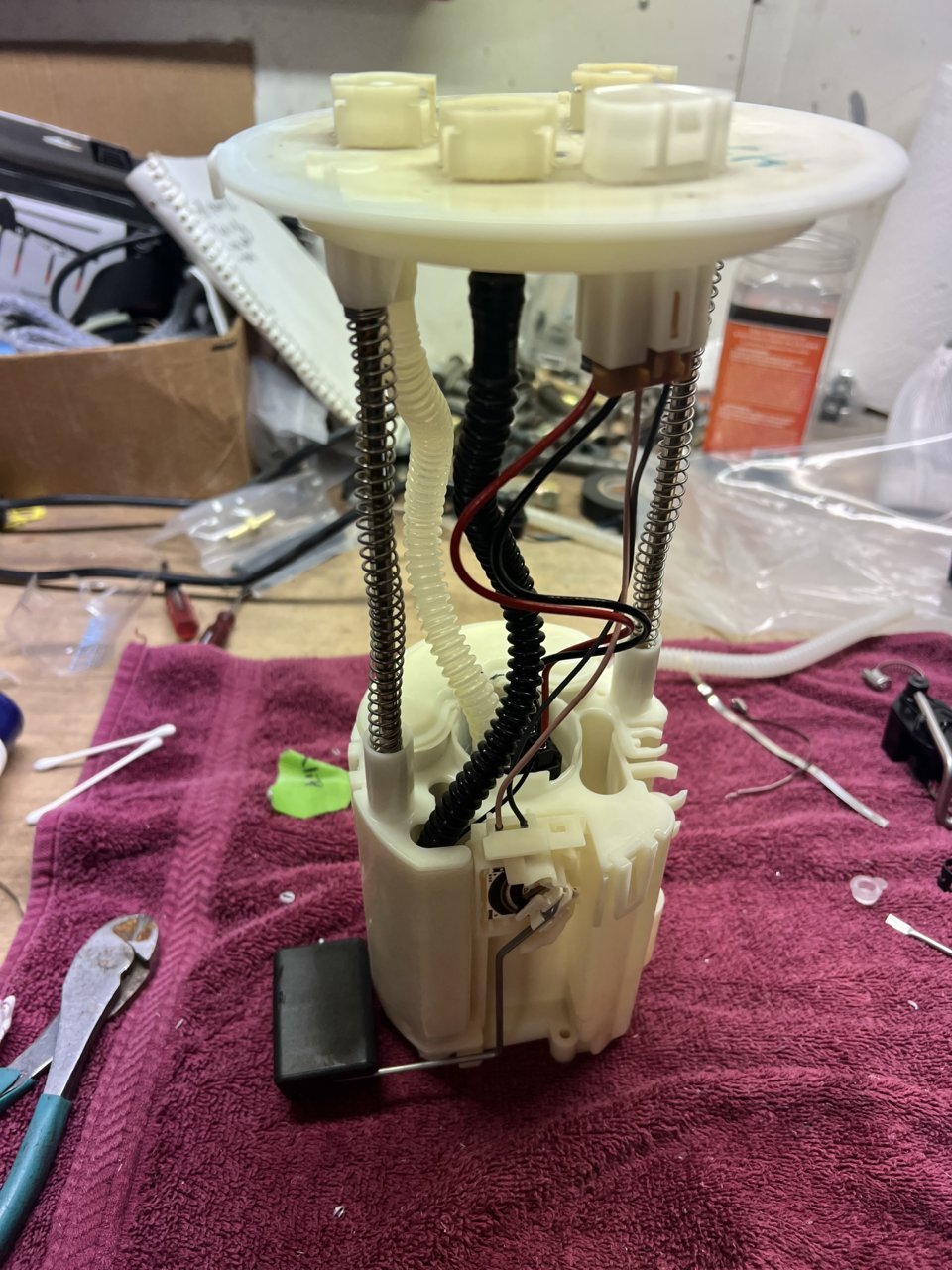

    Made a few upgrades to the URD pump setup as well, used some SS zip ties to hold the pump in place, which for some reason is not specified in the kit for the 4Runner but is for the Tacoma tank. Also swapped out the high pressure line that come with the kit, which are 3/8 and 3/16 fuel line with a union in the middle, with a hard line similar to the OEM setup.



    Last edited: Jul 31, 2023
  5. Jul 31, 2023 at 8:41 AM
    #1485
    xtremewlr

    xtremewlr Well-Known Member

    Joined:
    Oct 25, 2018
    Member:
    #270626
    Messages:
    8,364
    Gender:
    Male
    First Name:
    Todd
    Tucson, AZ
    Vehicle:
    2003 4Runner V8 - 2012 b00sted XRunner
    I have mods
    Something similar to this heat shield might be helpful as well - https://www.amazon.com/Design-Engineering-010450-Titanium-Shield/dp/B00CF2RGHQ

    I have something like that on the header of my built Subie, since the header almost comes into contact with the plastic fan shroud on the radiator. No problems with melting plastic there in over 10k miles since the whole build with that heat shield in place.

  6. Jul 31, 2023 at 9:04 AM
    #1486
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    I have one of those next to the Atlas and was going to add one in this spot as well, but there isn't really enough clearance. I had it wrapped with header wrap prior to moving the tank, and I added an extra layer before I melted it, so I was pretty surprised it happened. In testing it out last night on a test drive, the wrapped section is MUCH cooler than the downstream section, I am wondering if the initial bake off generated a bunch of heat.

    edit: I am going to order one and shove it in there anyways lol, dont want to deal with this issue again.

    Last edited: Jul 31, 2023
    xtremewlr[QUOTED] likes this.
  7. Jul 31, 2023 at 10:18 AM
    #1487
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Also sold the Lexus and added this guy to the shed, 2019 Platinum with 30k on the odo. Came with the TRD pro wheels, TRD rear sway, TRD exhaust, TRD CAI, TRD front skid and Linex. I bought it in Houston and drove it back to CO, 1000 miles straight through the night. The shitty BFGs almost killed me on the drive home, all 4 were separating and about to blow. Upsized to a 33” Cooper AT3 XLT. Also added a soft tonneau and built a 8020 rack to go over the tonneau.

    Broke her in with a 2000 mile trip up to Montana and Wyoming.



    Last edited: Jul 31, 2023
  8. Jul 31, 2023 at 6:51 PM
    #1488
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Butt dyno says the throttle response with the new pump is better, but IDK.

    xtremewlr likes this.
  9. Aug 2, 2023 at 3:44 PM
    #1489
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

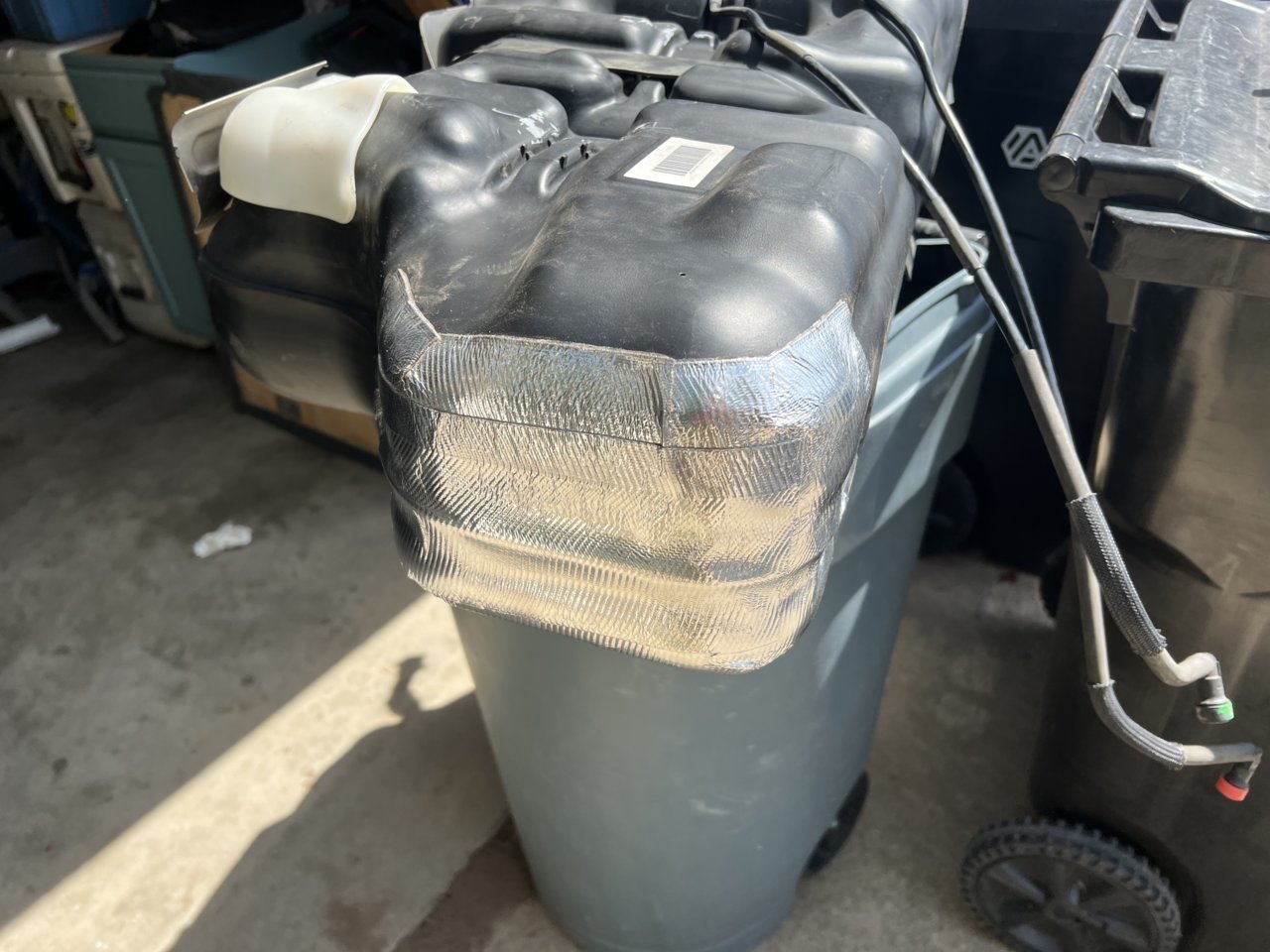

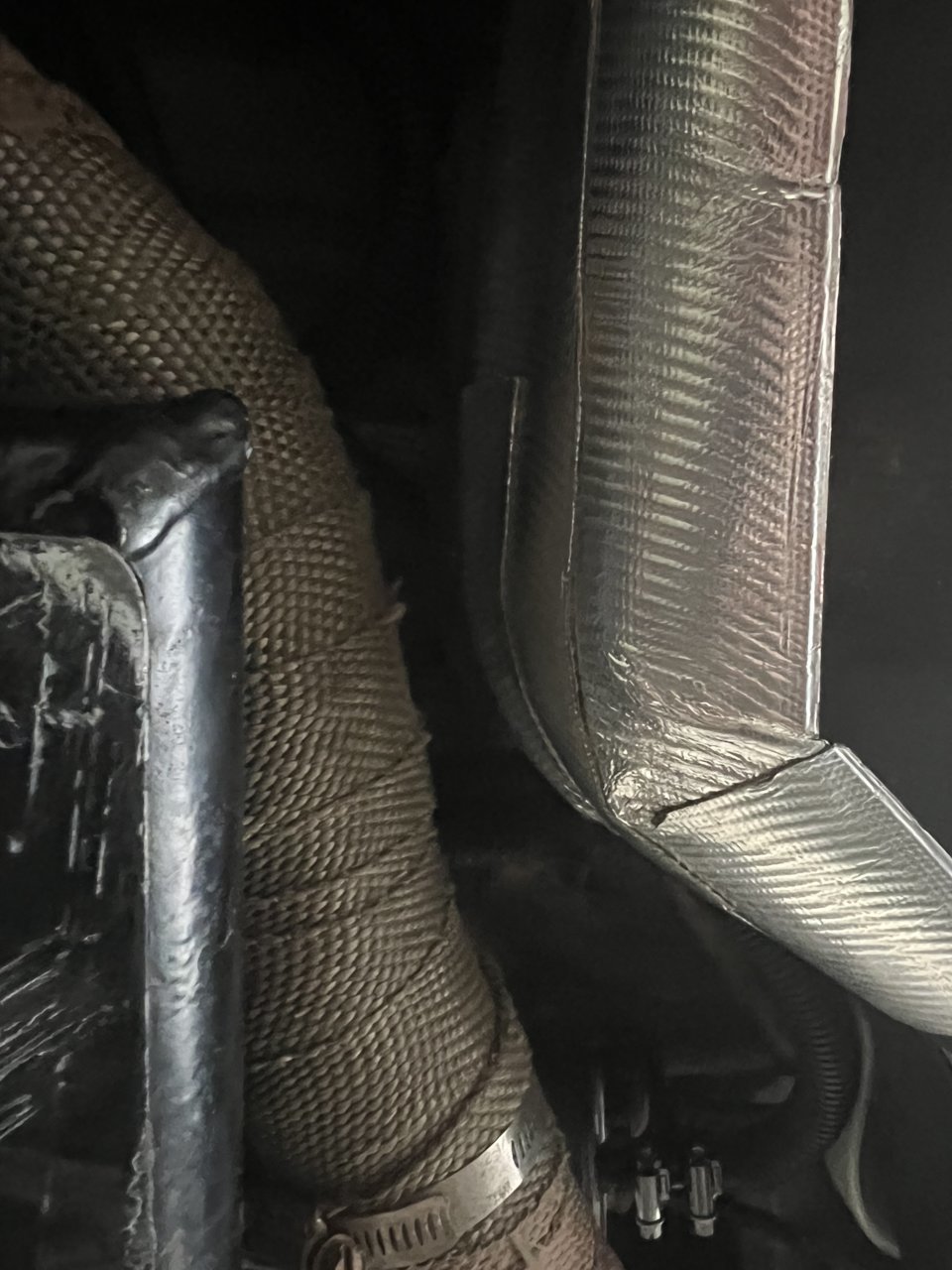

    Added another heat shield, it actually fit pretty perfectly, leaving a 1/4” gap to the tank, should be good now. Threw the gas tank skid on as well, ready to roll.

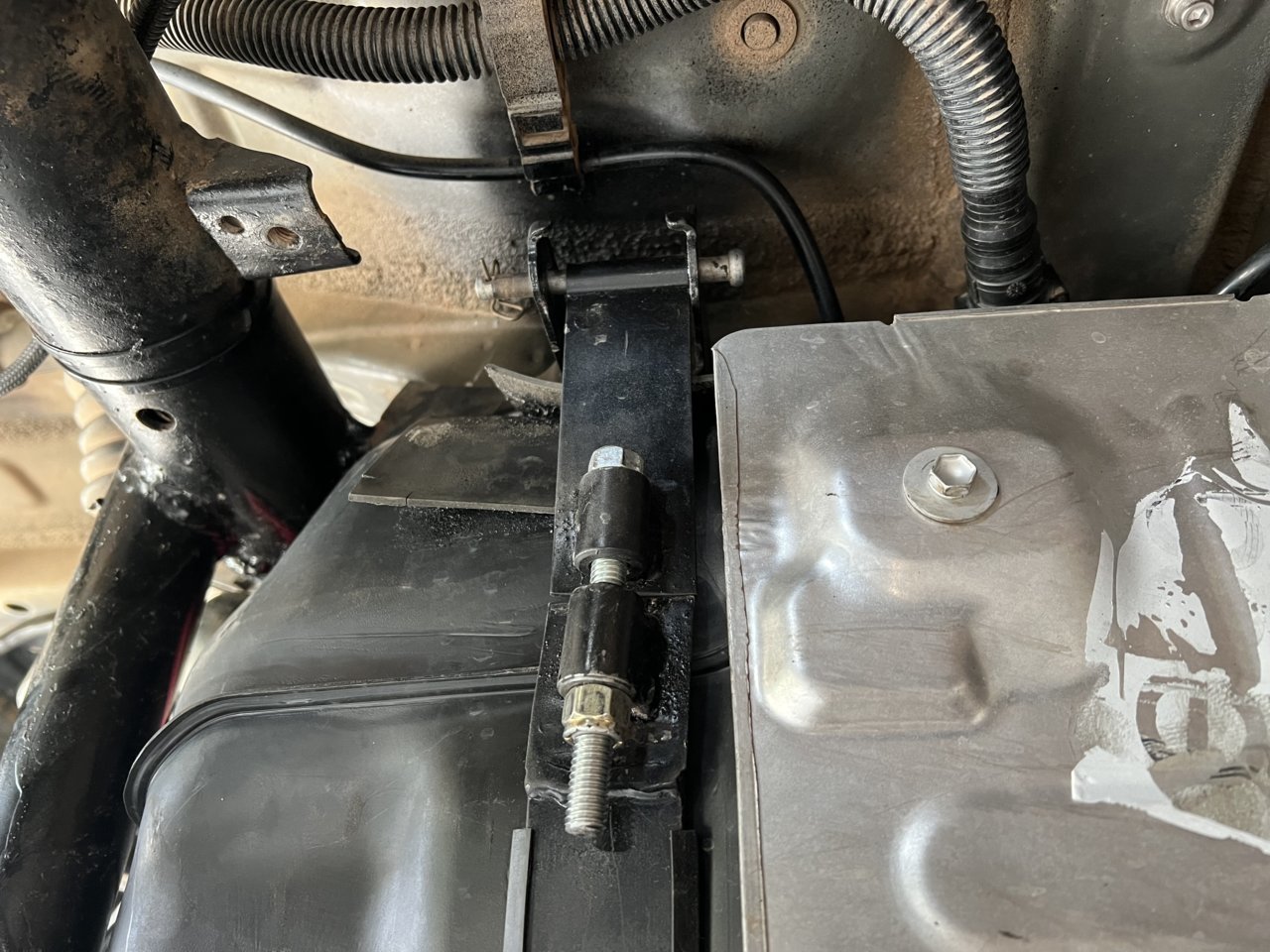

    Here are the modified tank straps to pull the tank right to the raised mounts.

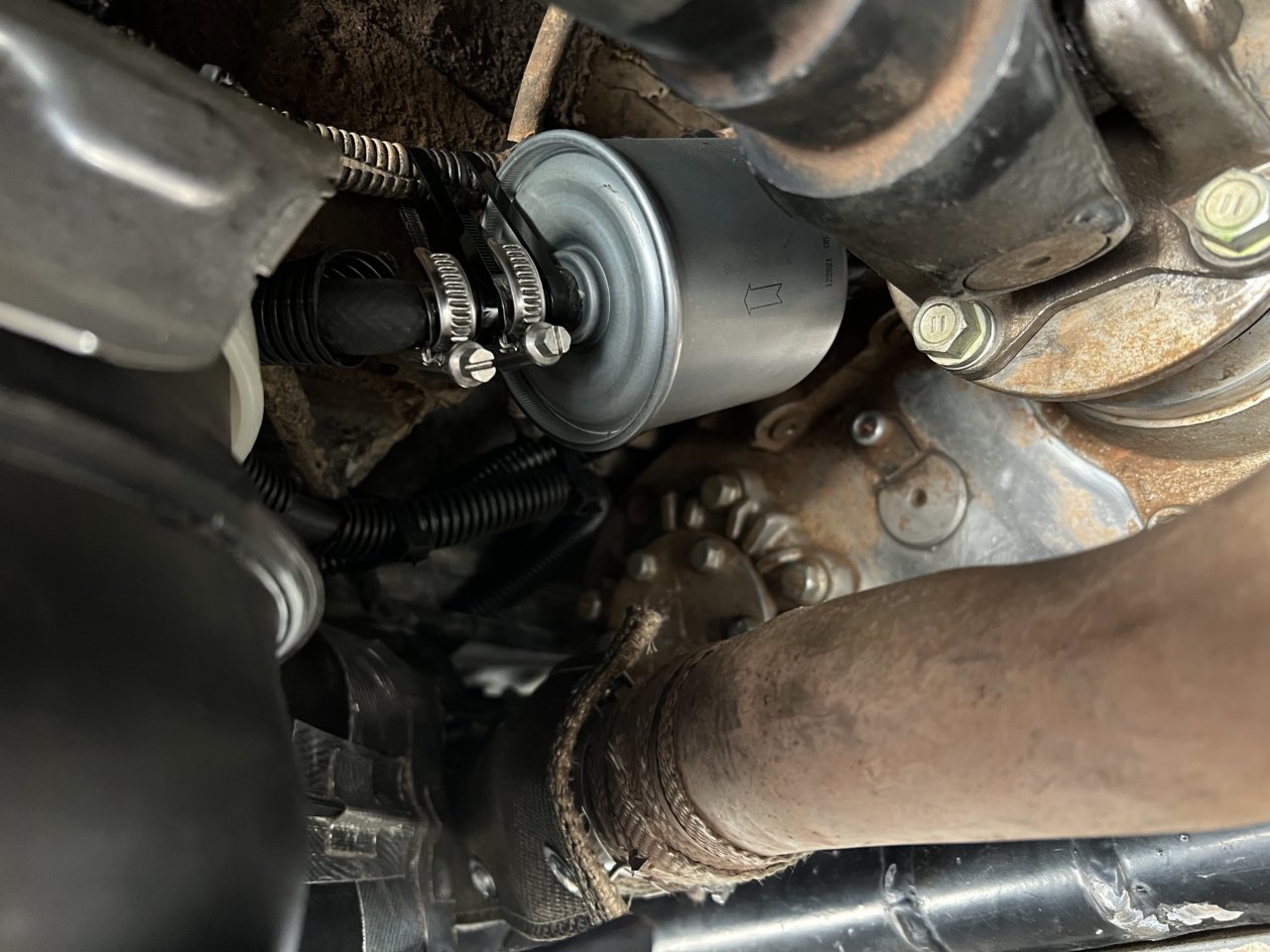

    And here is where the fuel filter landed, kinda janky, but it will do for now. I’d like to find a spot to put it under the hood, a quick look around and it seems like the fuel lines are hard up there and I didn’t find an easy way to tap into them, for another day.


  10. Aug 17, 2023 at 1:11 PM
    #1490
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Took the truck out the past two weekends for a proper shakedown, the first one started off poorly after putting a pin hole in the fuel filter:bananadead: It shifted over and hit the tcase flange, rubbing a hole it it and spitting gas all over the hot exhaust. Luckily smelled it and pulled over right away, pulled the filter and finished out the weekend. Threw a new one in when I got back and secured it with a hose clamp even further away from the flange . . .


    Last edited: Aug 17, 2023
    xtremewlr likes this.
  11. Aug 17, 2023 at 1:15 PM
    #1491
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Took both trucks up to the flattops to explore, scratched the shit out of the Tundra on brush, which sucked, but had a great time exploring the area.


    Last edited: Aug 17, 2023
    RockiesTaco, jubei, NYCO and 6 others like this.
  12. Aug 17, 2023 at 1:19 PM
    #1492
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    The following weekend really got to test out the new rear end, which performed flawlessly, the raised tank made a huge difference in several spots where I would have previously gotten hung up.




    Last edited: Aug 17, 2023
  13. Aug 17, 2023 at 1:22 PM
    #1493
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

    9 years sine my last fish out of the truck, photo credit @Squeaky Penguin


  14. Aug 17, 2023 at 3:15 PM
    #1494
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,976
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    That shot you got before the sun came over the ridge! :101010:

    Wishbone Runner[OP] likes this.
  15. Aug 17, 2023 at 3:43 PM
    #1495
    Built2Ride

    Built2Ride Who wants to ride out?! PM Me.

    Joined:
    Aug 24, 2018
    Member:
    #263915
    Messages:
    9,999
    First Name:
    JB
    Southeast
    Vehicle:
    ‘17 TacoTRDPro, ‘18 T4RTRDPro, ‘12 Tundra, ‘07 FJC
    All my rigs are purpose built. From crawling to camping. I also enjoy a nice stock truck for what that’s worth. Toyota’s are the jam!
    Hells yeah! Good looking rigs! Thanks for sharing :)

    Wishbone Runner[OP] likes this.
  16. Aug 18, 2023 at 7:37 AM
    #1496
    NYCO

    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    In so many ways, FUCK :yes:

    Wishbone Runner[OP] likes this.
  17. Jan 18, 2024 at 8:05 AM
    #1497
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

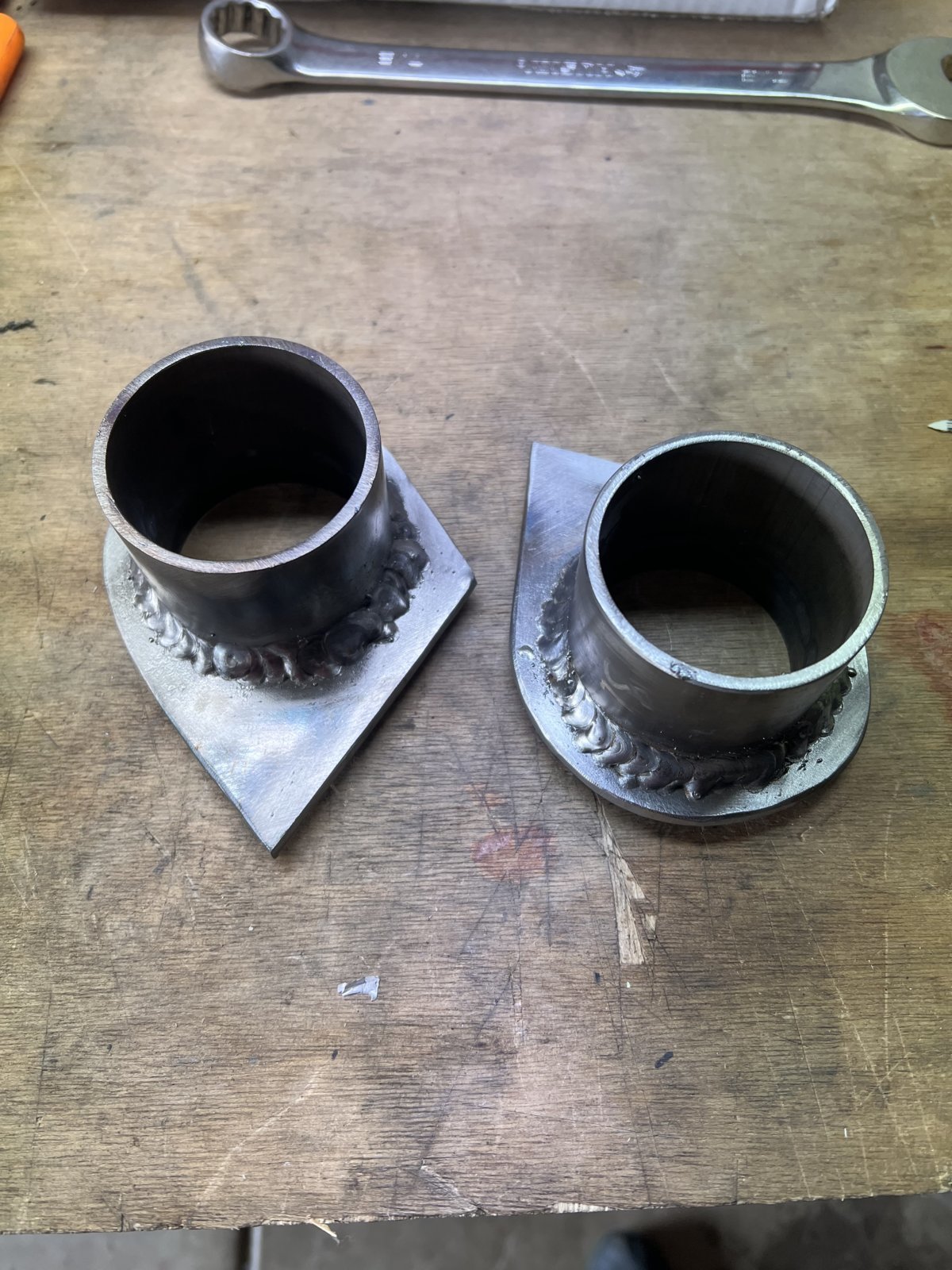

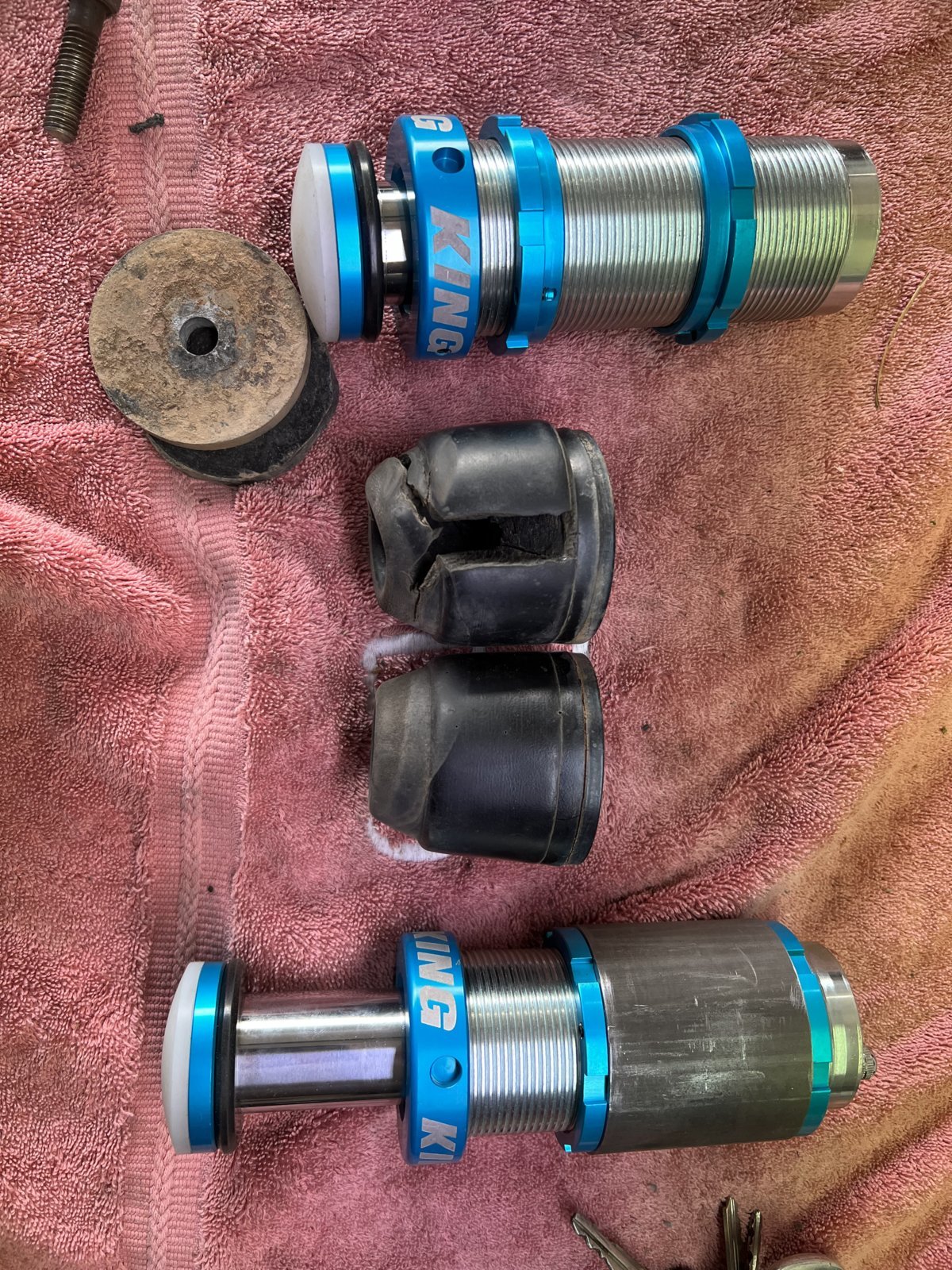

    Winter refresh, blew up yet another set of rubber bumps last fall, so finally pulled the trigger on hydros. Pretty much copied Kings design for the mount, came out great. I added a 1” spacer to destroke them to 1” of travel, so they engage later in travel, 1.25 .120 wall DOM.

  18. Jan 18, 2024 at 8:08 AM
    #1498
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

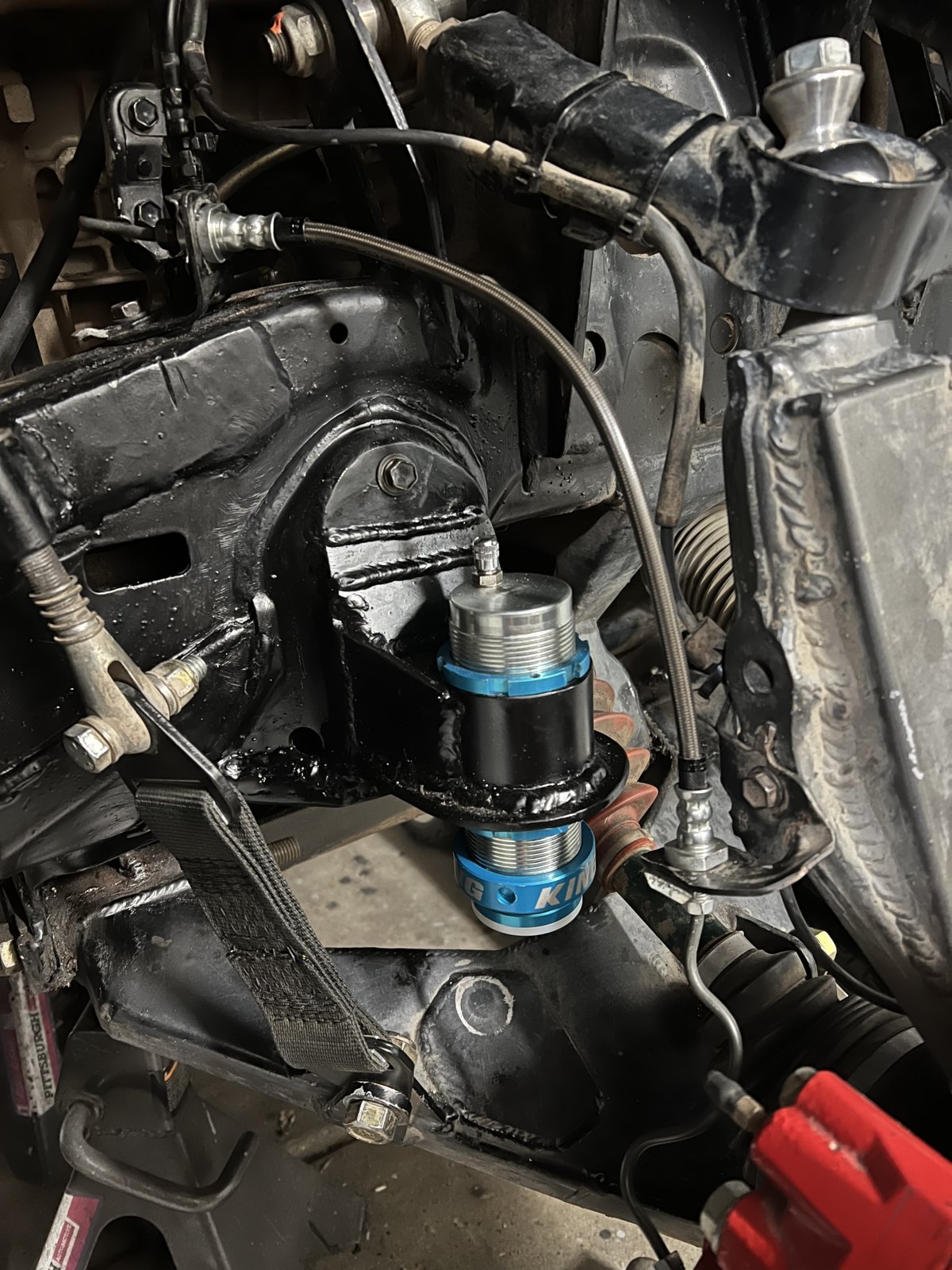

    With brake lines in the stock spot, they rub on the bumps. I tried to make a set of SS lines I had lying around work, by they are too short. Need to take some measurements and order some custom ones from Crown.

  19. Jan 18, 2024 at 8:11 AM
    #1499
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

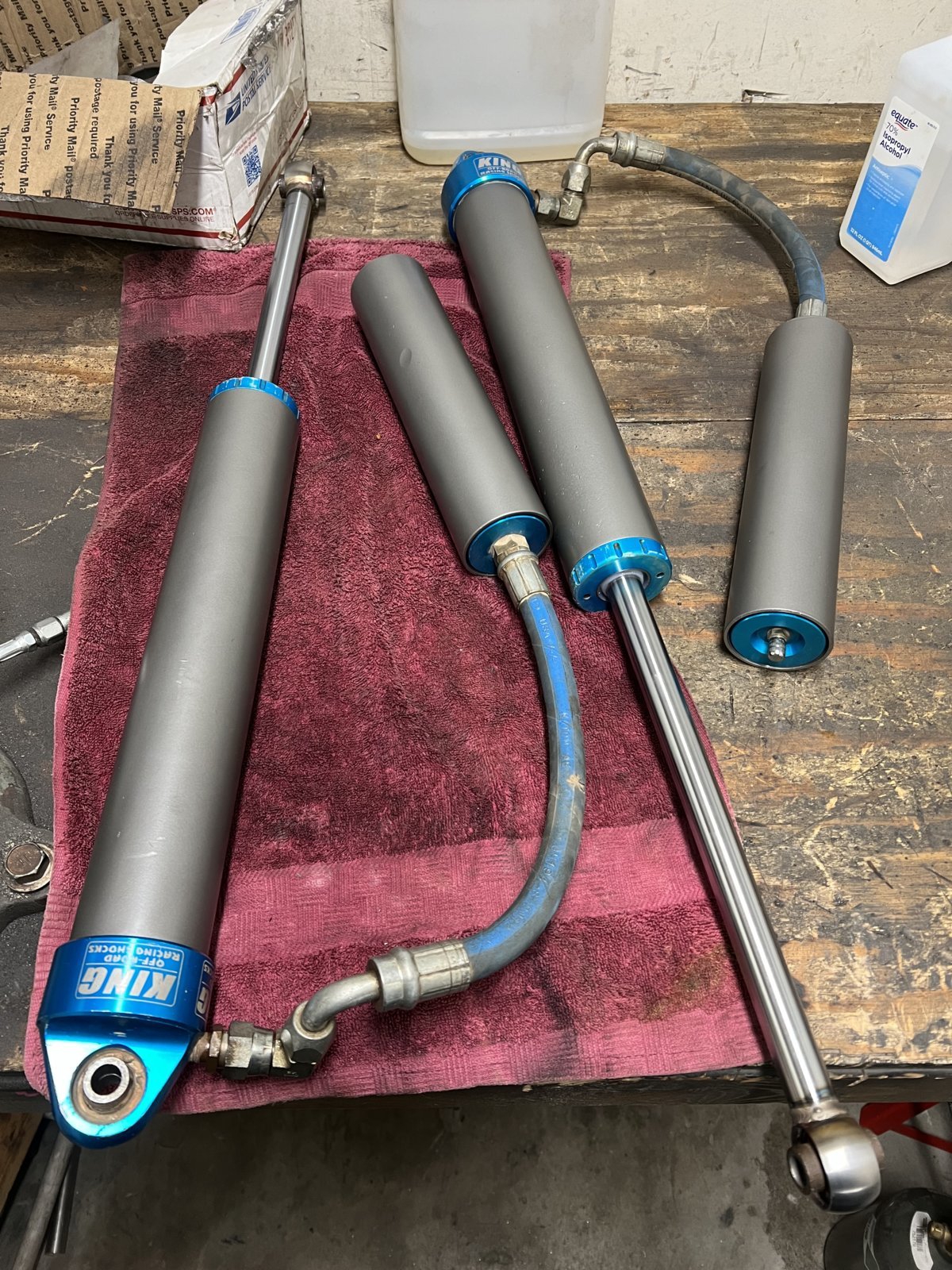

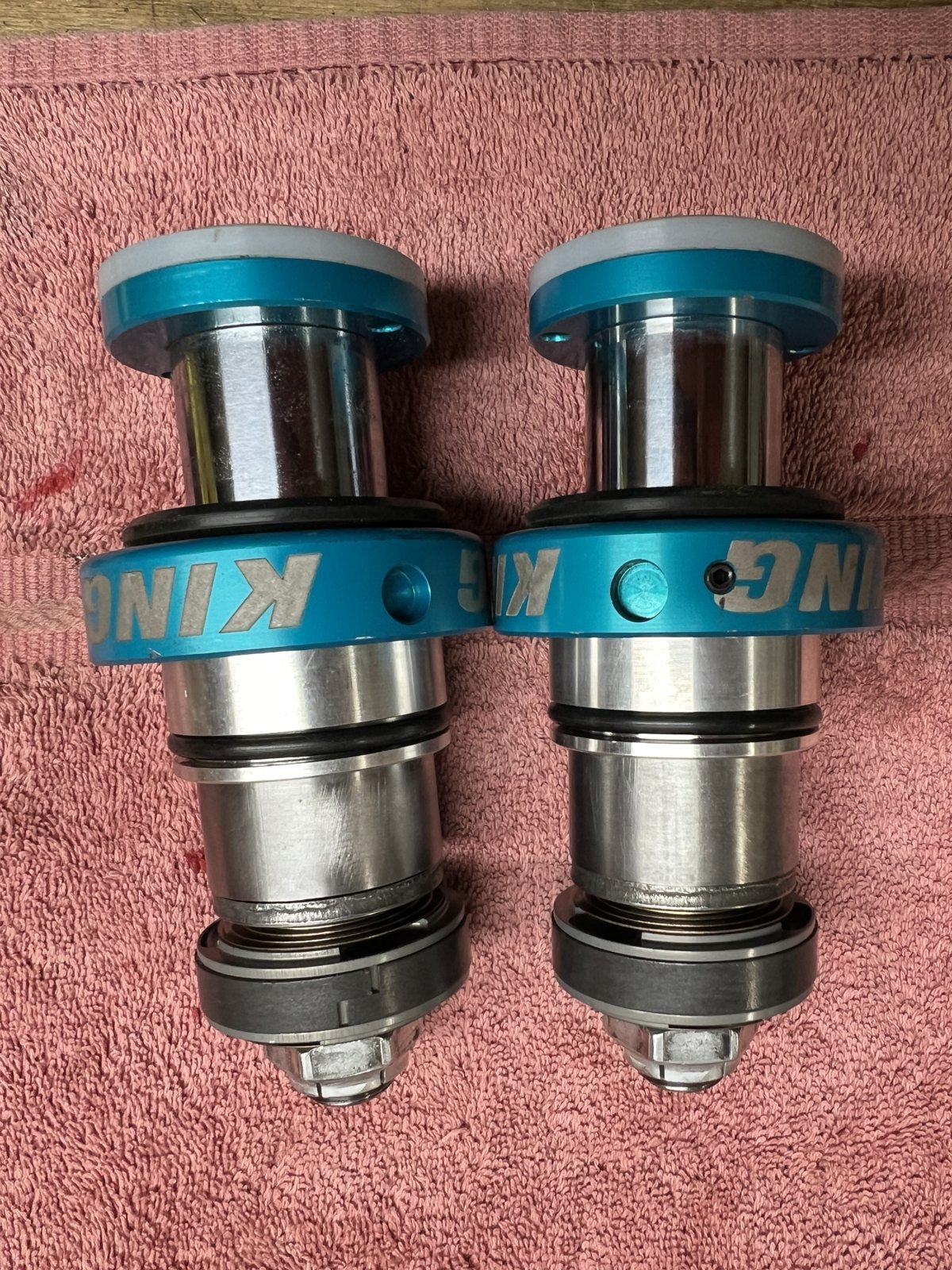

    Also pulled the rear shocks for a rebuild and new shafts, got 10 seasons out of them. While I had them off I cleaned them up and hit them with Steelit, not sure how well it is going to hold up though getting rock blasted.
