Wishbone Runner's Build

Discussion in '4Runners' started by Wishbone Runner, Sep 12, 2012.

  1. Jan 24, 2022 at 8:05 AM
    #1421
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

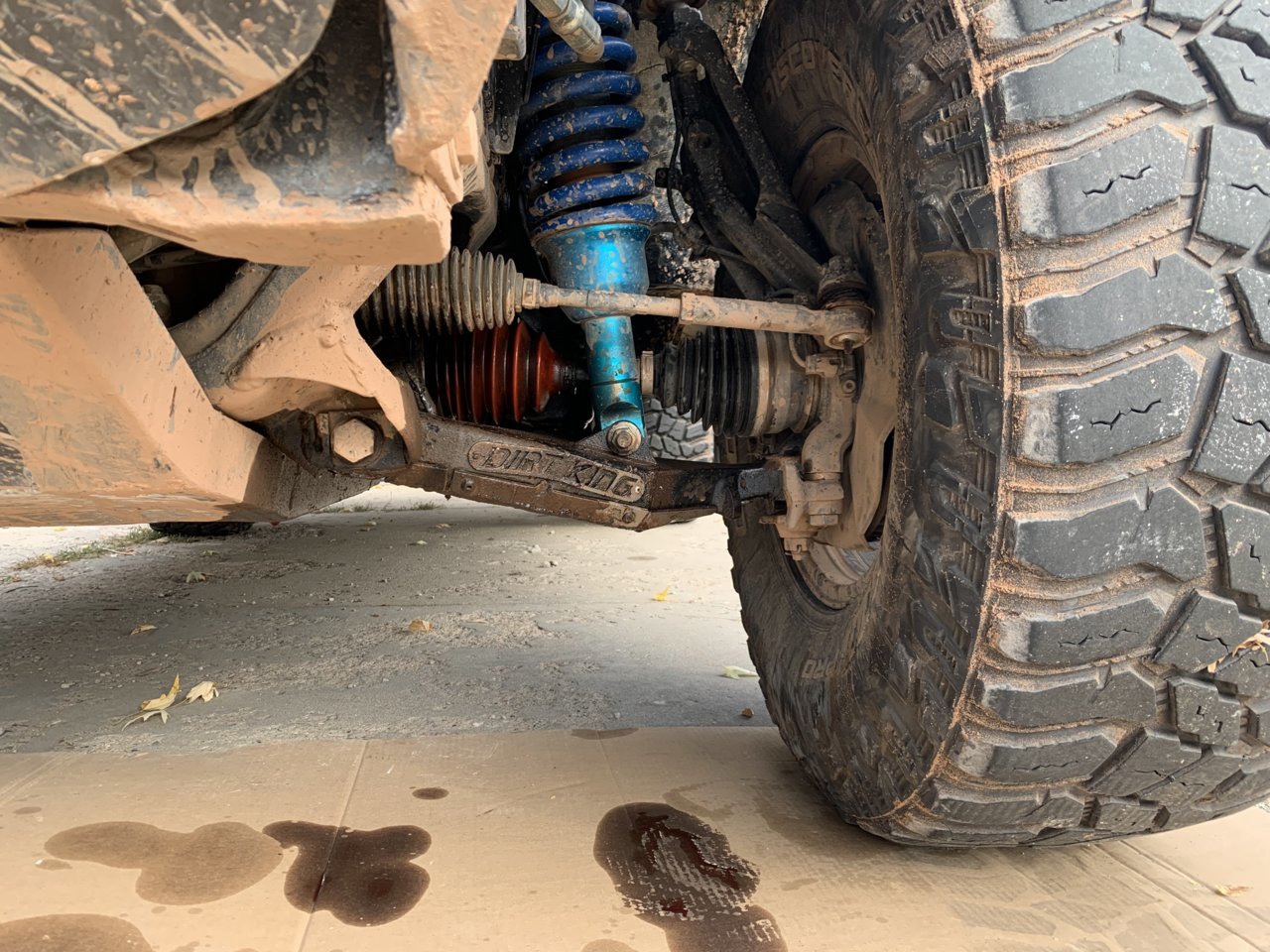

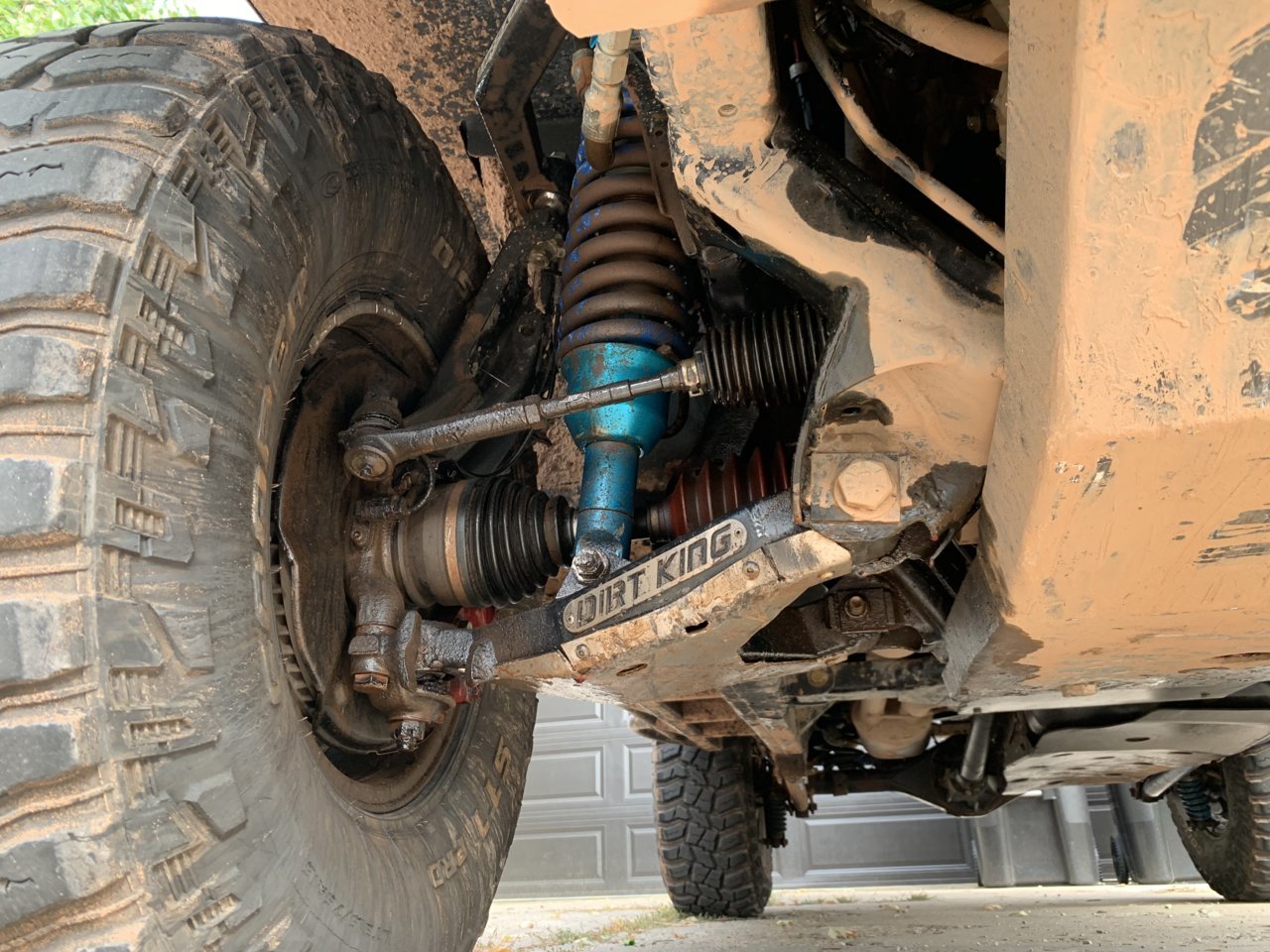

    And subsequent carnage which get us to current projects are underway, rack took a shit right after the crack in Moab, had to put a gallon of ATF in it to get er home.
    38C7CA99-3E63-4411-BEBF-80FC52EF5C1D.jpg D61E58E6-51CF-4757-BFB5-4A2F912F76DF.jpg

  2. Jan 24, 2022 at 8:18 AM
    #1422
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

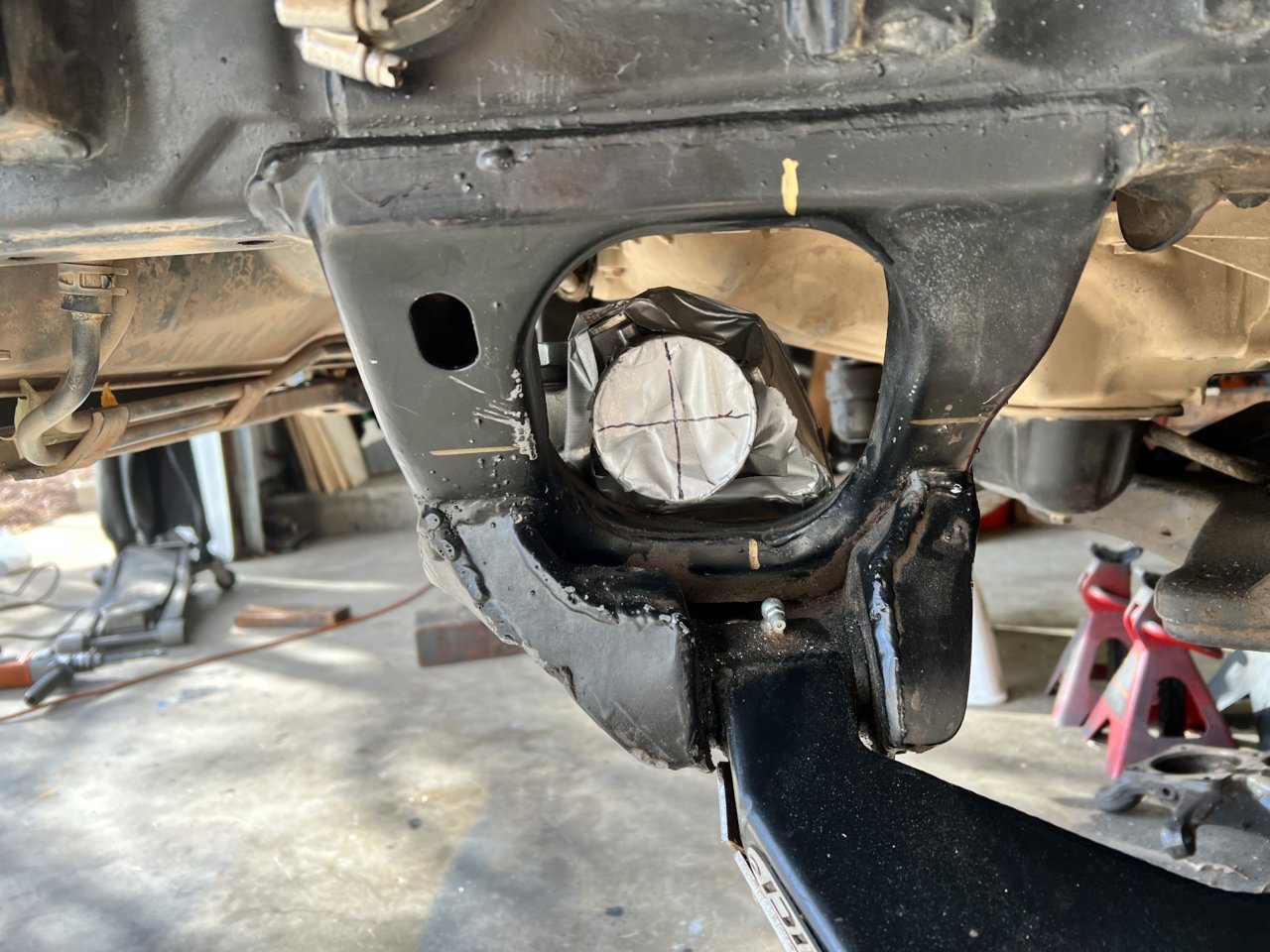

    So, time to cut shit out and bring in the beef, throwing in a tundra rack on a new crossmember to position the rack properly. Started with the @tetten method of filleting the crossmember, but wasn’t happy with the amount of material left and clearances, so chopped it out, plated the ends and put the factory barrels in a 1/4” 2x4.




    This is about where it will land compared to stock, I’m using the pass diff bolt for the rack which moves it forward about an inch. Leaving it on the stock crossmember puts it up quite a bit and too close to the motor.

    I decided to do this, which may have some wonky steering effects, as I plan to do a JD pivot kit in the near future, which will move the spindle forward the same amount and get me back to stockish steering geometry. This will also allow for better tie rod to shock clearance down the road, which can be an issue with the pivot kit it seems.


    Up next is to weld it in then work on the steering shaft which might need some teaks, and maybe some frame clearance, though I am hopeful the frame clearance wont be needed due to dropping the rack down compared to the stock crossmember location.

  3. Jan 24, 2022 at 8:32 AM
    #1423
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

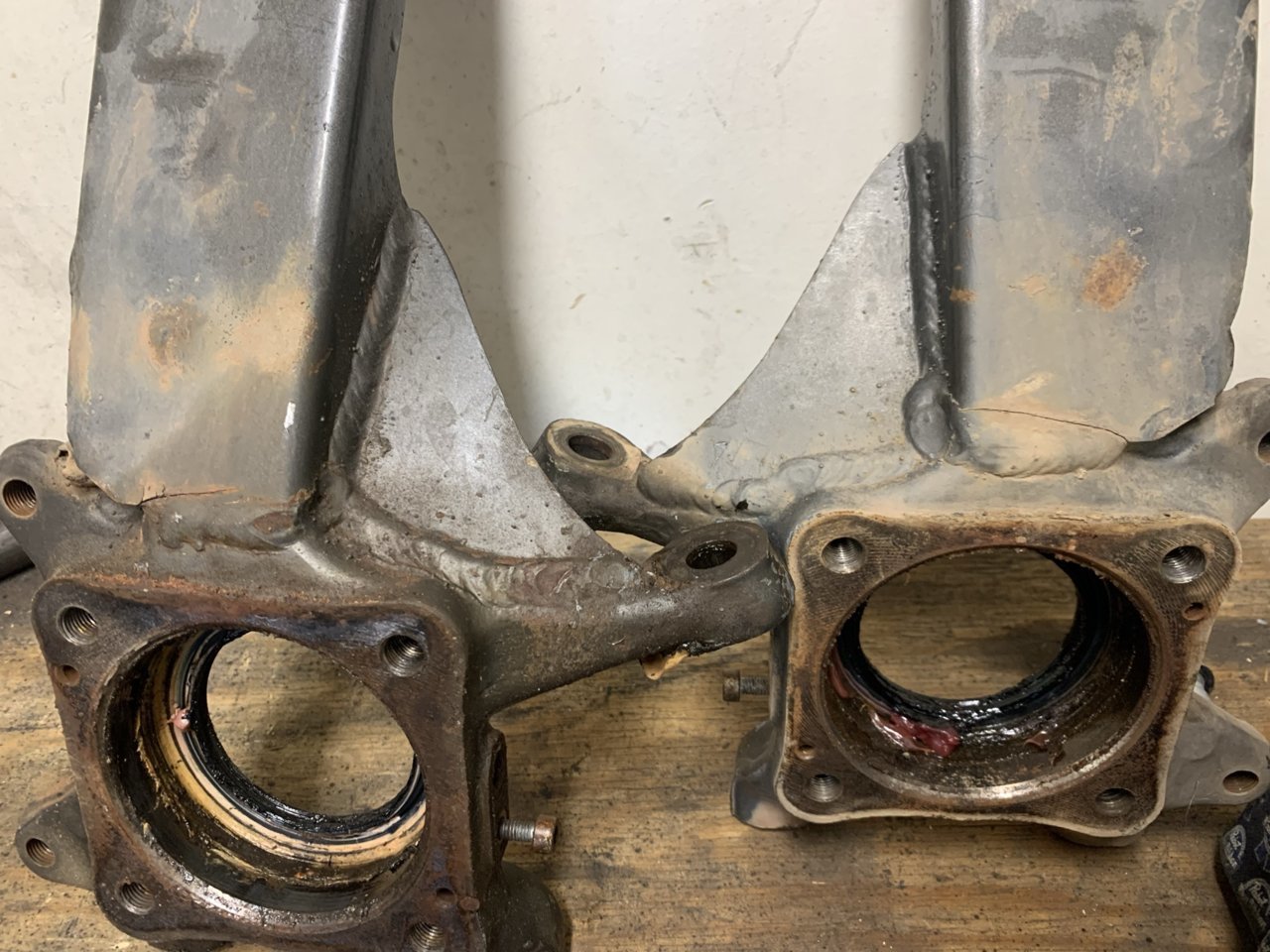

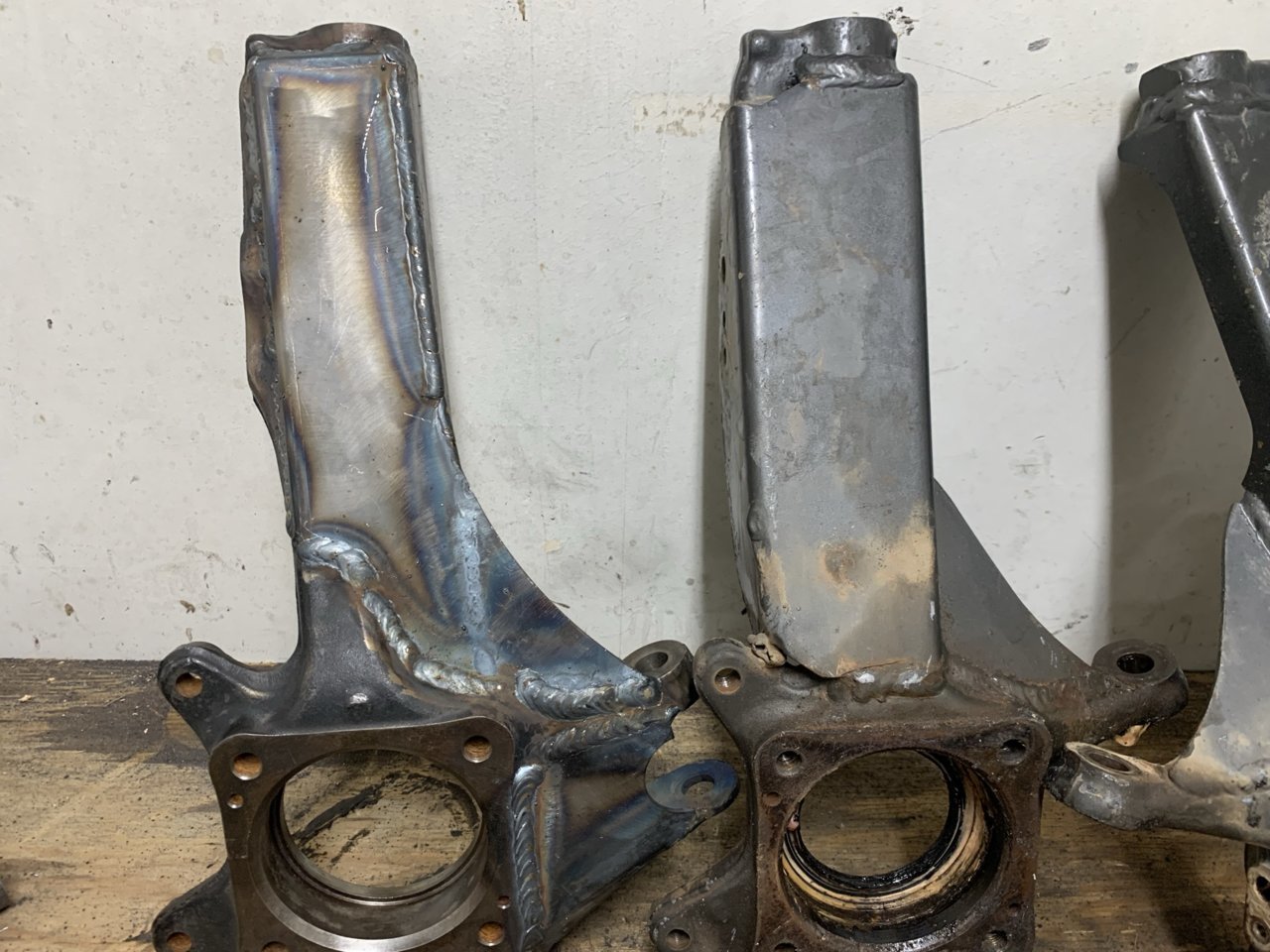

    And my spindles were cracked to shit, so paring the tundy rack with JD double shear and a fresh pair.

    EDB4F9B5-4315-4360-9687-625098AFBBD0.jpg FDF83461-8D6A-4CA9-AF14-0F4185C5F0A6.jpg

    Last edited: Jan 24, 2022
  4. Jan 24, 2022 at 10:48 AM
    #1424
    w.adventures

    w.adventures Adventure is out there

    Joined:
    Nov 28, 2013
    Member:
    #117482
    Messages:
    11,266
    Gender:
    Male
    Nowheresville, SC
    Vehicle:
    2005 Lexus GX470 Family Hauler
    Impressive!

  5. Jan 24, 2022 at 11:01 AM
    #1425
    Reh5108

    Reh5108 Well-Known Member

    Joined:
    Feb 18, 2013
    Member:
    #97832
    Messages:
    5,716
    Gender:
    Male
    First Name:
    Ryan
    Idaho
    Vehicle:
    2004 SR5 4X4 2.7L Extra Cab
    OME lift, 4x sliders, Demello rear bumper, custom front bumper, Engo 9000lb winch
    Can you remove the belt on the 4.0 from the pump and still be good to roll just without power steering?

  6. Jan 24, 2022 at 11:03 AM
    #1426
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,976
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    Only one belt on the 4.0 vs the 3 on our 1st gens. So no.

    Reh5108[QUOTED] likes this.
  7. Jan 24, 2022 at 11:05 AM
    #1427
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Seek and destroy!

    Negative, just one belt, Brett was telling me about your adventure doing that to save the pump. I don't think I ran it dry, but I'm replacing the pump as well for good measure, it does have 225K on it afterall.

  8. Jan 24, 2022 at 11:05 AM
    #1428
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Ninja skills!

  9. Jan 24, 2022 at 11:09 AM
    #1429
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,976
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    And nice working cracking the TC sway gussets. Wish those JD ones were around when I welded mine up last year. We'll see how long they last.

    Probably not worth it for the 1 time you would use it, but I bet you could find a shorter belt to run just the alternator and fan for situations like that.

  10. Jan 24, 2022 at 11:21 AM
    #1430
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    This is the second time they cracked, they cracked closer to the tierod outrigger last time, seem to just move the weak point around.

    Welp, I'm hoping all this work will be the end of steering issues and destruction, FOREVER! I was planning to use the tundra tie rods, but the machining of the rack gear to get it down to stock width doesn't leave enough meat left in the driver side where the rack teeth are to allow the use of the larger sized tie rod. So, the weak link now is the tie rod, which I am actually fine with leaving as a fuse. The 4Runner one is larger than the taco too unfortunately, so I cant use the nice collection of ties that I have around, so need to pick up some taco ones.

  11. Jan 24, 2022 at 12:38 PM
    #1431
    Squeaky Penguin

    Squeaky Penguin Nothing Ventured, Nothing Gained

    Joined:
    Apr 5, 2012
    Member:
    #76340
    Messages:
    9,976
    Gender:
    Male
    First Name:
    Brett
    Steamboat Springs, Colorado
    Vehicle:
    '01 4WD, SR5, TRD & '13 TRDOR AC
    Lots of dust and custom dents, Check Build
    Also, I'm making it up that f'n v-notch on wheeler this year for sure. :rofl:

    NYCO and Wishbone Runner[OP] like this.
  12. Jan 24, 2022 at 2:36 PM
    #1432
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Lets do it, I need redemption too . . .

    NYCO and Squeaky Penguin[QUOTED] like this.
  13. Jan 25, 2022 at 7:19 PM
    #1433
    Night Eagle

    Night Eagle Aka Mountain Goat or mr. Clean

    Joined:
    Mar 22, 2014
    Member:
    #125893
    Messages:
    2,714
    Gender:
    Male
    First Name:
    Leo
    Steamboat Springs, Co
    Vehicle:
    2014 TDR Off Road
    Enough to make it a lot of fun!
    Keep me in the loop. I need to get on the trail a lot more this year.

  14. Jan 26, 2022 at 10:16 PM
    #1434
    vanillion

    vanillion Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104033
    Messages:
    111
    Gender:
    Male
    Canadia
    Vehicle:
    09 trd offroad
    superduty axles swap, custom 3 link front, chevy 63's rear
    Sub'd for updates on the steering rack, awesome build!

    Wishbone Runner[OP] likes this.
  15. Feb 4, 2022 at 8:23 AM
    #1435
    heard4it

    heard4it Well-Known Member

    Joined:
    Oct 15, 2020
    Member:
    #343908
    Messages:
    72
    Gender:
    Male
    Vehicle:
    2006 Toyota Tacoma TRD Sport access cab
    Nice rig!

    Wishbone Runner[OP] likes this.
  16. Feb 6, 2022 at 5:03 PM
    #1436
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

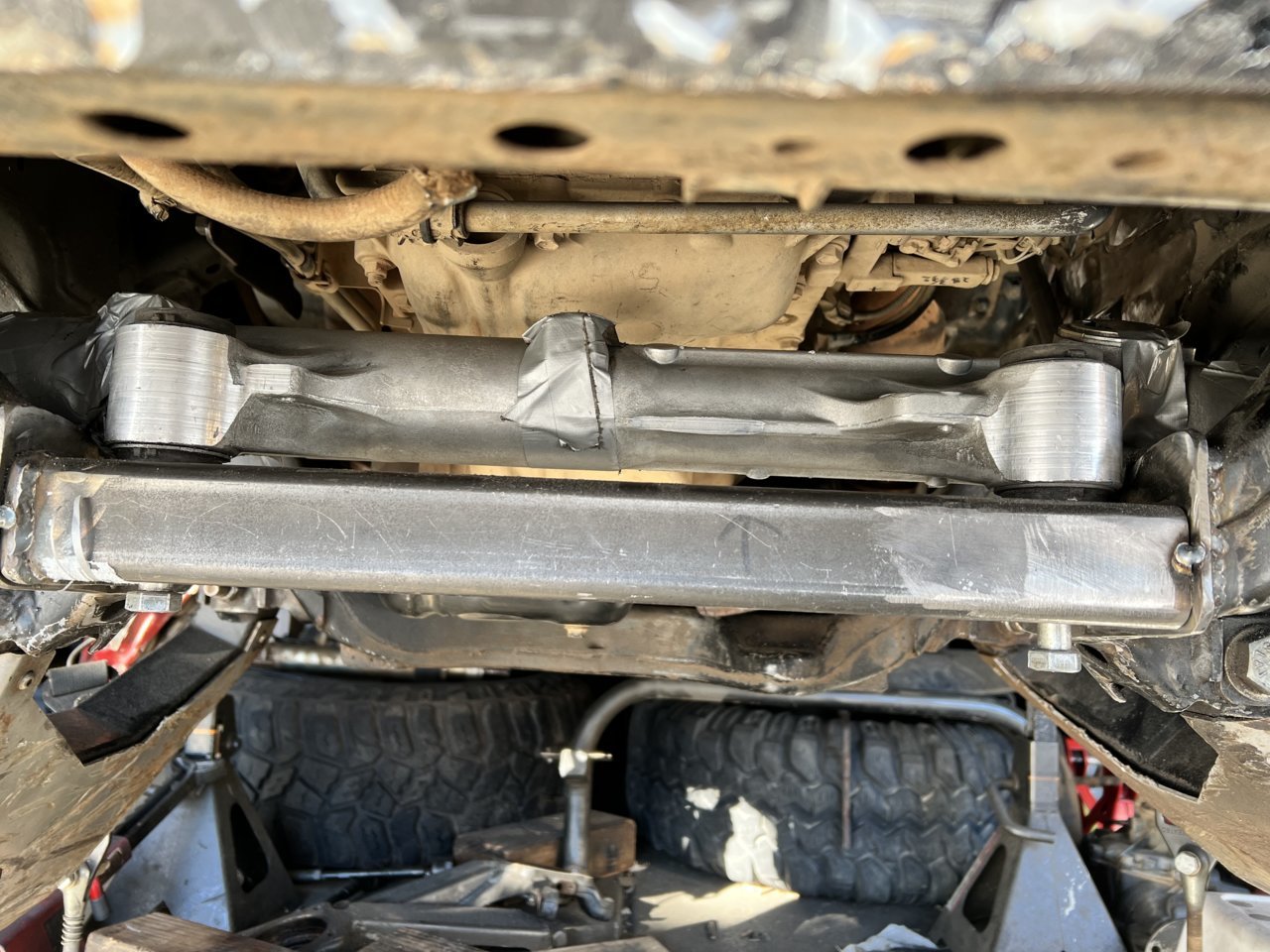

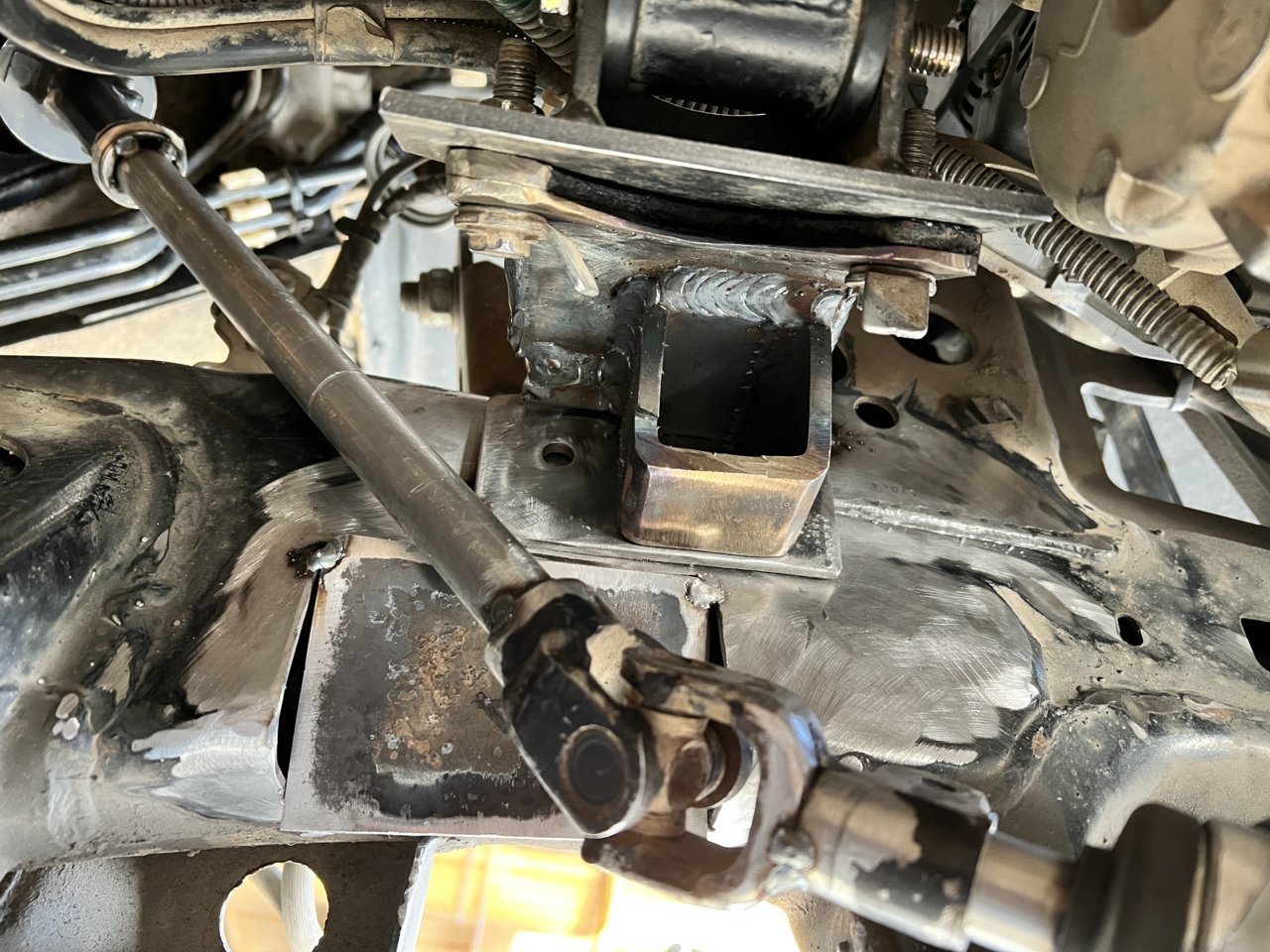

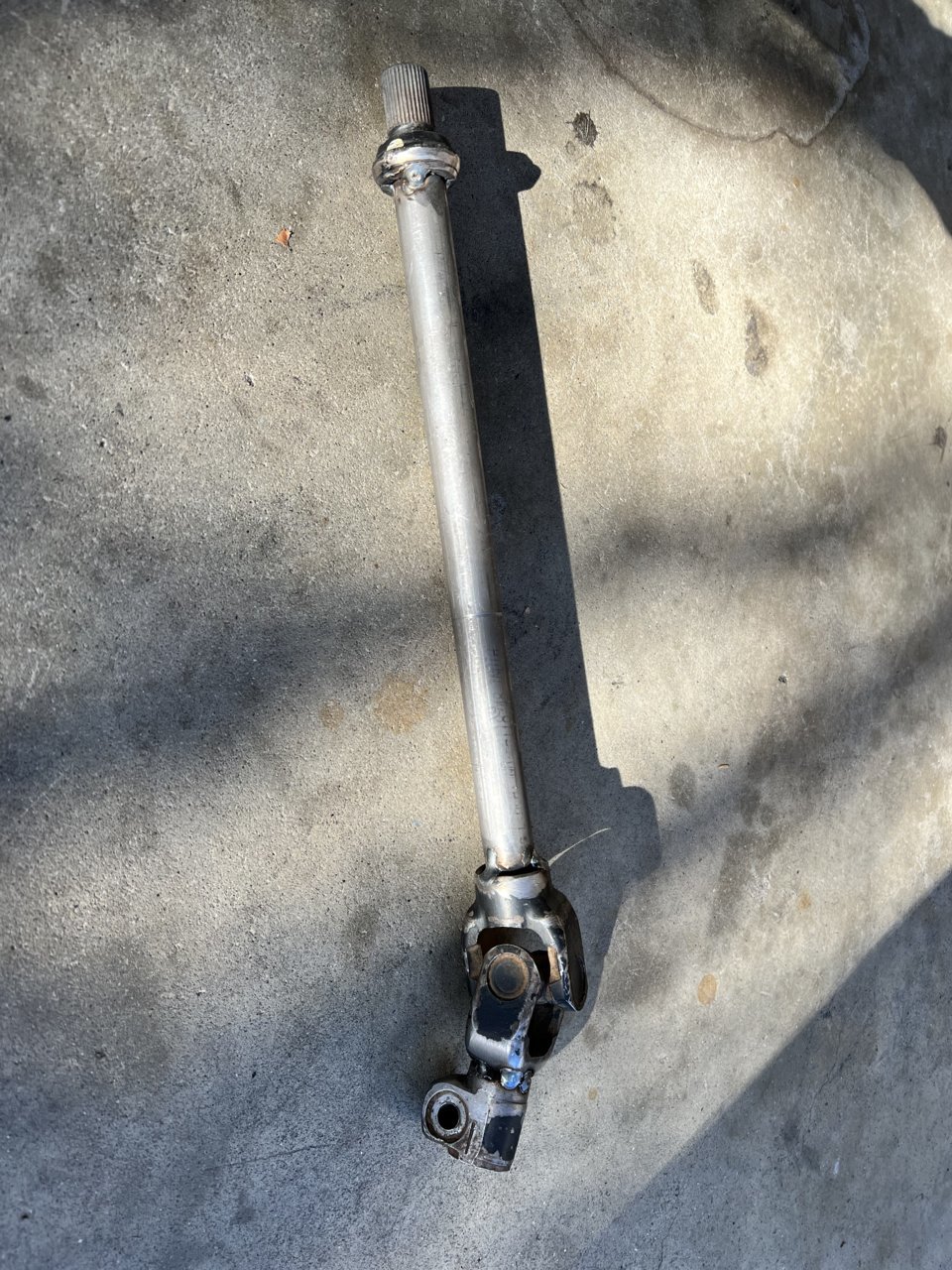

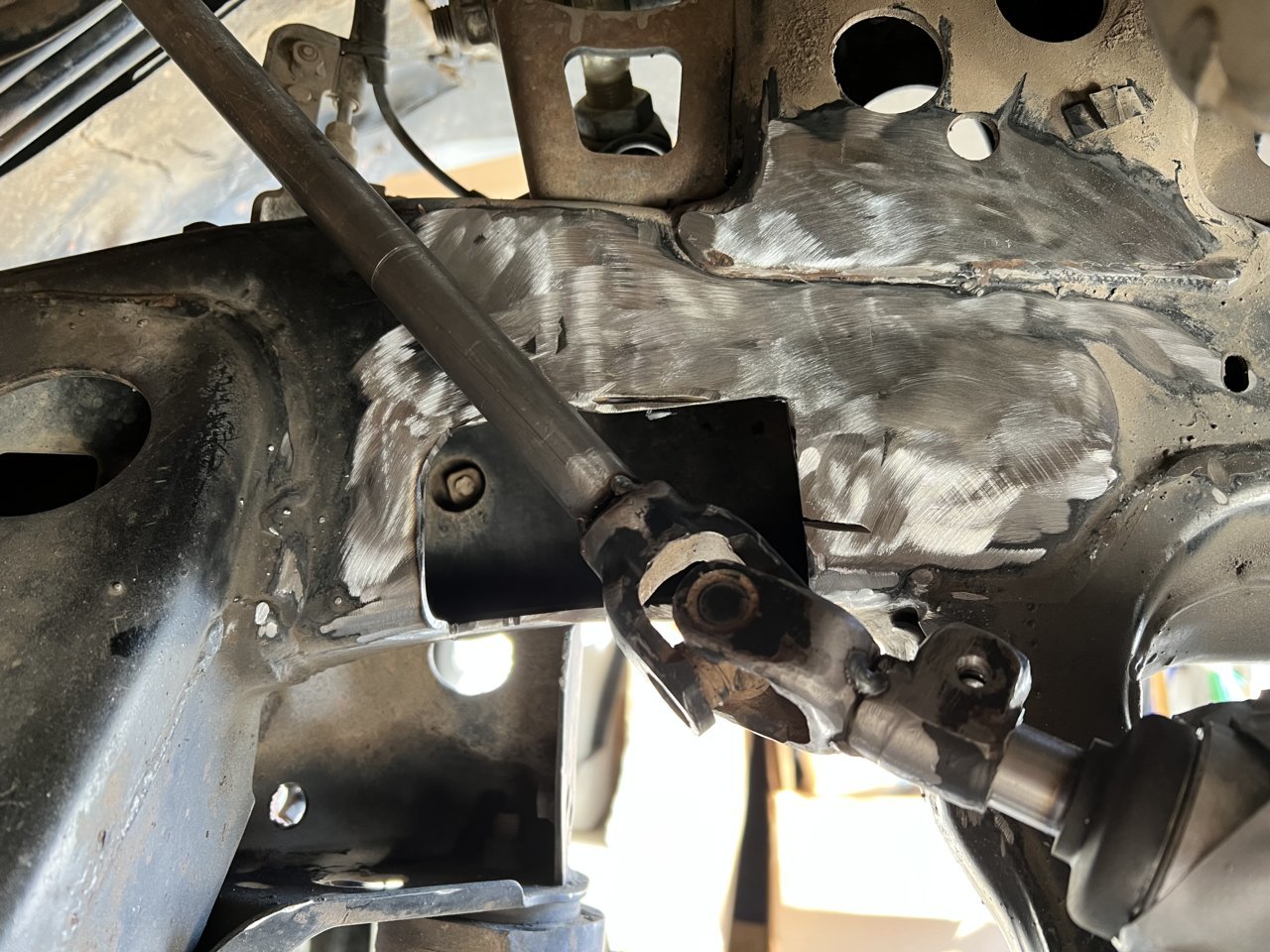

    Got most of the hard work done these past two weekends: crossmember is located and tacked in hopefully is final position, notched the frame for steering shaft clearance, remade the steering shaft out of tube and shortened up the bottom spline section for better clearance, cut the motor perch off and fabbed a new one out of pieces of the old one, plated the frame where the new mount is going and have everything tacked in place ready to get burned in.





    RockiesTaco, TMFF, jubei and 3 others like this.
  17. Feb 6, 2022 at 5:07 PM
    #1437
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

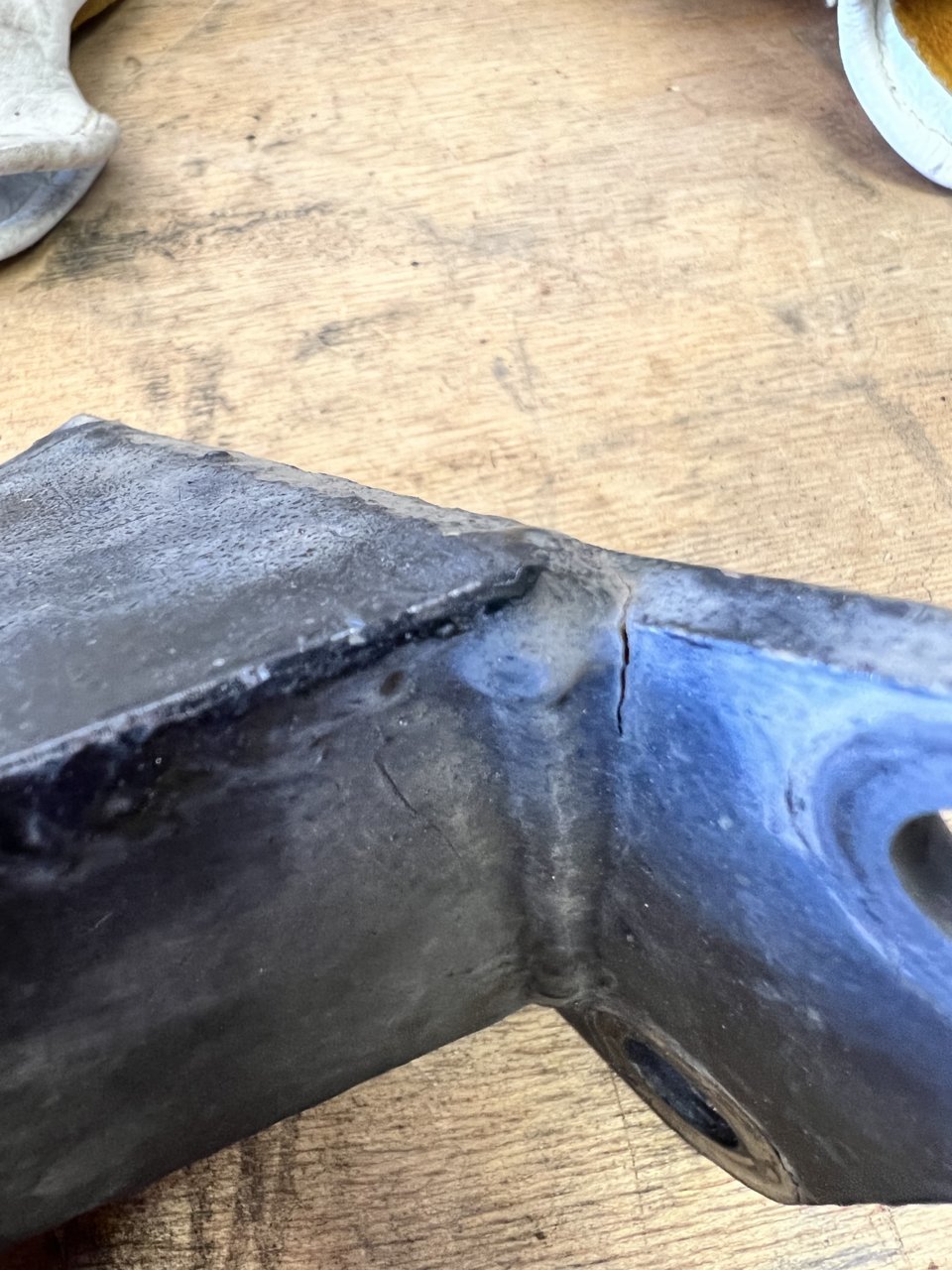

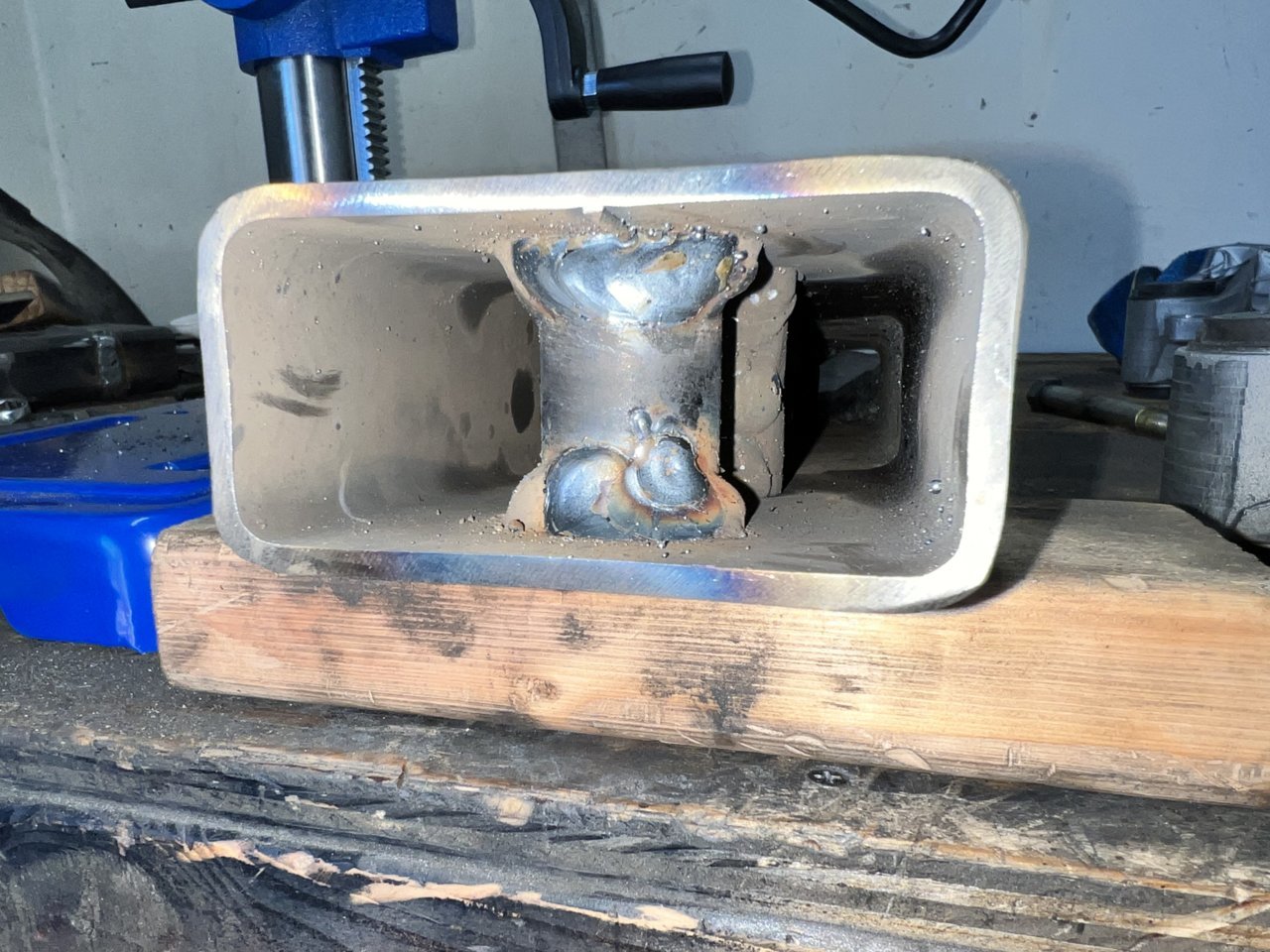

    Also found a crack in my @Bonzen motor mounts, which I attribute to a missing bolt that I noticed before heading out to Moab in the fall, who knows how long it had been missing :anonymous: I was actually missing a bolt on each side.


    TMFF and xtremewlr like this.
  18. Feb 6, 2022 at 9:59 PM
    #1438
    Bonzen

    Bonzen @solid_offroad

    Joined:
    Nov 24, 2014
    Member:
    #142997
    Messages:
    580
    Gender:
    Male
    First Name:
    Ryan
    Lake Havasu City
    Vehicle:
    The Silver Bullet
    Everything.
    In almost 2 decades of making these, their only natural enemy is loose or missing bolts. As soon as any component gets loose in an offroad environment, stuff cracks, ovals out or breaks.

    V-Groove and weld that crack, and remember to use loctite on the new bolt.

  19. Feb 7, 2022 at 7:26 AM
    #1439
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Definitely not blaming you, I already ground it down and welded it up. I did not use loctite, but will this go around!

    Littles and Bonzen[QUOTED] like this.
  20. Feb 7, 2022 at 9:13 AM
    #1440
    Bonzen

    Bonzen @solid_offroad

    Joined:
    Nov 24, 2014
    Member:
    #142997
    Messages:
    580
    Gender:
    Male
    First Name:
    Ryan
    Lake Havasu City
    Vehicle:
    The Silver Bullet
    Everything.
    Right on, just putting that info out there :thumbsup:

    In the instructions I send with the kits, its recommended to use blue thread-locker on the aluminum engine blocks, and red thread-locker on iron blocks/frame perch plate bolts.

    Also to periodically check the bolt tightness of the mounts, and especially after your first off road trip.

    Trust me, I'm even bad at this too. I actually found a few loose motor mount bolts on my own off road truck the other day:eek:
