Wishbone Runner's Build

Discussion in '4Runners' started by Wishbone Runner, Sep 12, 2012.

  1. Mar 2, 2016 at 7:52 AM
    #561
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Thanks, and do it! Moab is hard to beat for a very unique offroad experience and fantastic scenery.

  2. Mar 2, 2016 at 8:47 AM
    #562
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King

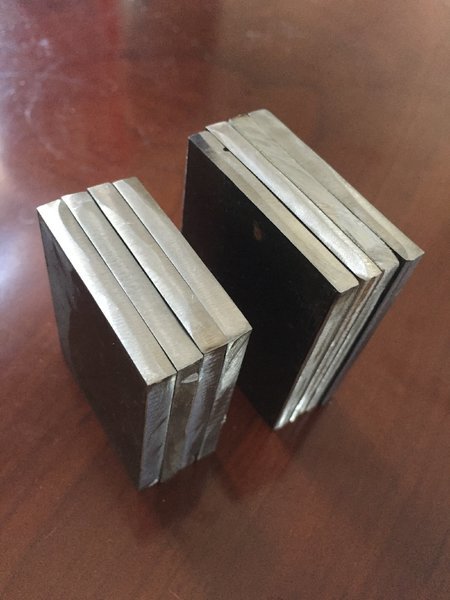

    Cut some tabs for solid mounting my lowers last night, got them to within .01" of each other using just calipers, a cutoff wheel and flap disc. The large ones for the front are 2.12" x 1.6", rears are 1.87" x 1.5", which are the dims I got for the TC tab widths. Just need to decide on the offset for drilling the holes, but I am going to position the rear bushing as far outboard as possible, and the fronts half way from center to fully inboard. That should give good caster, then the camber will be set with new DK heimed uppers which will be ordered this month.

    [​IMG]

    SconnieHailer and SilverGhost like this.
  3. Mar 2, 2016 at 1:12 PM
    #563
    SilverGhost

    SilverGhost Well-Known Member

    Joined:
    Sep 16, 2013
    Member:
    #112635
    Messages:
    8,712
    Gender:
    Male
    First Name:
    RayRay
    Reunion, Co
    Vehicle:
    02,03 some 04, it's complicated
    #junkyardparts

  4. Mar 5, 2016 at 4:42 PM
    #564
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Kings are going on tomorrow (hopefully), at they very least the icons are getting cut off.

    Night Eagle and dtaco06 like this.
  5. Mar 5, 2016 at 4:59 PM
    #565
    TBuzz

    TBuzz Well-Known Member

    Joined:
    Apr 12, 2014
    Member:
    #127532
    Messages:
    862
    Gender:
    Male
    Colorado
    Vehicle:
    00' 4runner, No Longer Stock
    Bumpers, Sliders, 33's, ADS f&r, budbuilt, home built belly and bumper, s/c, urd,4.88, arb's
  6. Mar 6, 2016 at 7:56 AM
    #566
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    VVVV

    Well, they will actually just unbolt, but then the. Mounts the bolt to are being cut off, and new eyelet style mounts welded on.

  7. Mar 6, 2016 at 8:02 AM
    #567
    thefatkid

    thefatkid Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101370
    Messages:
    4,350
    Gender:
    Male
    First Name:
    Brian
    Colorado
    Vehicle:
    2004 thingy
    Are you selling some rear Icons that will bolt in a factory location?

  8. Mar 6, 2016 at 5:36 PM
    #568
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    I am, the Metal Tech speced Icons and Metal Tech springs are coming off, need to used together and I am selling them together. One was rebuilt by Icon last year, the other has a light weep at the seal but otherwise in good, but used shape. $300 for the package if you are interested.

    thefatkid[QUOTED] likes this.
  9. Mar 6, 2016 at 5:39 PM
    #569
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    The rest of the install was much slower than expected, but on par with any custom fab project. Changed the approach for the upper mount halfway through and had to hack more of the OE mount off than I originally planned, but think it will come out pretty sweet. Progress pics tomorrow.

  10. Mar 7, 2016 at 1:17 PM
    #570
    teamhypoxia

    teamhypoxia MichelinMan

    Joined:
    Aug 21, 2012
    Member:
    #85247
    Messages:
    9,655
    Gender:
    Male
    Colorado
    Vehicle:
    '12 DCSB TRD OR
    it's tomorrow...

  11. Mar 7, 2016 at 2:27 PM
    #571
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Yesterday's progress.

    I think I have been playing pre-runner too hard, this crap is getting cut off.



    Next cut off the part of the OEM mount.



    And ended up here, but it wasn't working out.


    So more cutting.


    And ended up here for the day.



    Going to add gussets and box the mount.

  12. Mar 7, 2016 at 2:32 PM
    #572
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    After cycling the suspension a bunch, I am going to change the upper links up, they are bushing mounted on one end and bind quite a bit at full axle drop, but not articulation. Also decided I am going to add a center limit strap to help with the axle swing created by the pan hard at full drop.

    Resi hose is also not working out the way I wanted either, going to need to be changed up to be able to get the resi tucked up and out of the way . . .

  13. Mar 7, 2016 at 2:56 PM
    #573
    NYCO

    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    nice job on those OEM bump stops over the years :laugh:

  14. Mar 7, 2016 at 3:21 PM
    #574
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    9,360
    Gender:
    Male
    First Name:
    Ryan
    Bonaire, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    uh i think your doing it wrong. not sure what it is, but its wrong

  15. Mar 7, 2016 at 4:09 PM
    #575
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Yeah, those were the bump drops that I built, clearly weren't up for the task. New ones will be DOM and superbumps. The actual pad that the drop mounts to is rusty as shit, hopefully not rotten into the frame . . .

  16. Mar 7, 2016 at 5:18 PM
    #576
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Or is it tomorrow's yesterday?

  17. Mar 7, 2016 at 6:08 PM
    #577
    teamhypoxia

    teamhypoxia MichelinMan

    Joined:
    Aug 21, 2012
    Member:
    #85247
    Messages:
    9,655
    Gender:
    Male
    Colorado
    Vehicle:
    '12 DCSB TRD OR
    Only time will tell....

  18. Mar 7, 2016 at 6:54 PM
    #578
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Yeah, I mean the resi will be what rubs, but it is a result of the hose routing and fitting off of the shock. I think if I add another small 90* I will be able to get them on the frame rail between the frame and the body.

  19. Mar 7, 2016 at 8:14 PM
    #579
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    I have a 1" BL so it will fit, but I just thought of another mounting spot, build a crossmember between the frame and the pan hard crossmember at 45* and put the resi on there.

  20. Mar 8, 2016 at 4:11 AM
    #580
    NYCO

    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    oh...well...lesson learned
