Wishbone Runner's Build

Discussion in '4Runners' started by Wishbone Runner, Sep 12, 2012.

  1. Jan 15, 2016 at 9:04 PM
    #521
    RockyMtnTRD

    RockyMtnTRD Wanderlust.

    Joined:
    May 4, 2011
    Member:
    #56088
    Messages:
    6,557
    Gender:
    Male
    First Name:
    Noah
    Colorado
    Vehicle:
    '11 TRD OR
    hack job
    Nice studs James! Haha. I still need to trim my set down with a grinder and fit a set of 1.5" wheel spacers on them for the rear. I'll be interested to see how much you take off

  2. Jan 16, 2016 at 3:22 PM
    #522
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    True story.

    I have discs in the rear, so going to be a different setup, but here is one done on a taco

    https://www.tacomaworld.com/threads/nates-build.346735/page-3#post-9494439

    RockyMtnTRD[QUOTED] likes this.
  3. Jan 17, 2016 at 9:08 PM
    #523
    Tx9812valve

    Tx9812valve Well-Known Member

    Joined:
    Jan 28, 2015
    Member:
    #147390
    Messages:
    120
    Gender:
    Male
    First Name:
    Ryan
    Colorado Springs
    Vehicle:
    04 TRD SC V8 4Runner Icons
    Quick question for you. I'm getting ready to order some heim joints to redo all 4 rear links pretty shortly here. I'm looking at the forged chromoly ballistic joints but I'm torn on going full ballistic joints or doing a poly bushing on the axle side like the metal techs. I keep hearing that full heim joints will ride like crap on a dd truck but don't have any real experience with that. To top it off, its only a few $ difference from the poly joint to the forged joint. What's your opinion after running the links you made for a while now? Any vibrations or any annoying qualities from running full heims?

  4. Jan 18, 2016 at 8:03 AM
    #524
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    So, I have had pretty bad luck with heims in general on my truck. My first set of lower links used the 7/8" Ruffstuff heims on both ends, all 4 were shot by the end of the summer with the teflon liner wearing out, the next set I built last winter used the 1.25" RS heims on the frame end, poly bushings on the axle end, and both heims had worked loose within the summer. The 1.25" ones had the liner separate from heims rather than the liner wearing out like 7/8", so Ruffstuff has offered me a discount on a new set and I will swap them out this spring. If they die quickly though, I will be looking for other options.

    My uniballs have been dying quick deaths as well, replaced my Camburg unis after one year as well, and both my Dirt King and new Camburg unis have some play in them as well, not horrible, but not tight. I have 7/8" heim and bushing on one end for the pan and uppers since last winter and they seem to be doing well, I have not pulled them to see if there is play, but I could hear the lowers flopping around so I think they are still good.

    To answer your question, no issues on the ride quality, I added the bushing on one end so I could offset it to avoid the axle bind, but the durability has been not so good. I found these and may go with these if this next set of heims on the lowers do not last. They have an offset one that you could use with a straight one and possibly work out the same as an offset bushing. Note that you could not use the 1.25" heims as they have a 2 5/8" mounting width, the stock mounts are 2.5ish IIRC, I added new mounts as well.

    http://www.metalcloak.com/2-5-8-OD-x-2-5-8-W-Duroflex-Joint-Angled-Spud-p/7301.htm

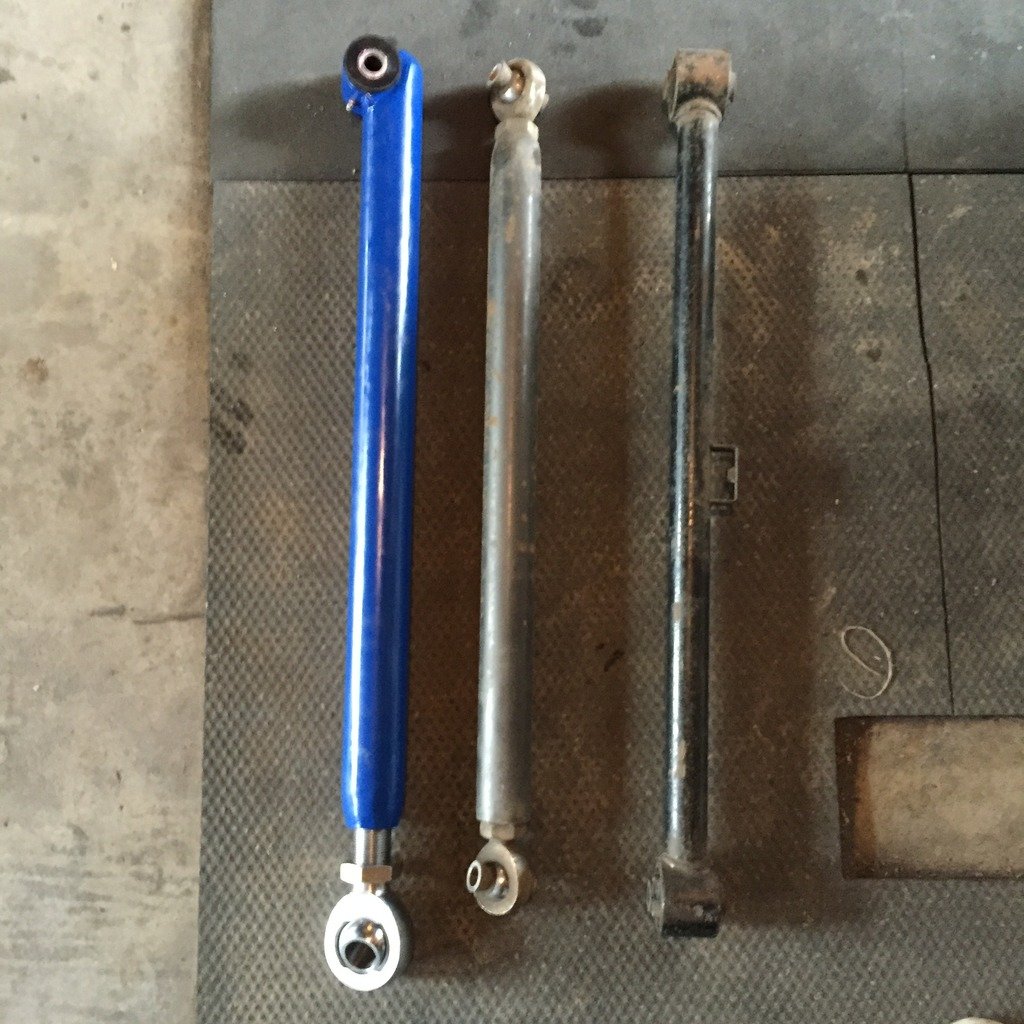

    Here is the progression of my lowers.

    B82241B8-3164-4C6D-9BB8-4968A4E52729_zps_b93400ed4a8a172c22963a765f31cdd443fc4efe.jpg

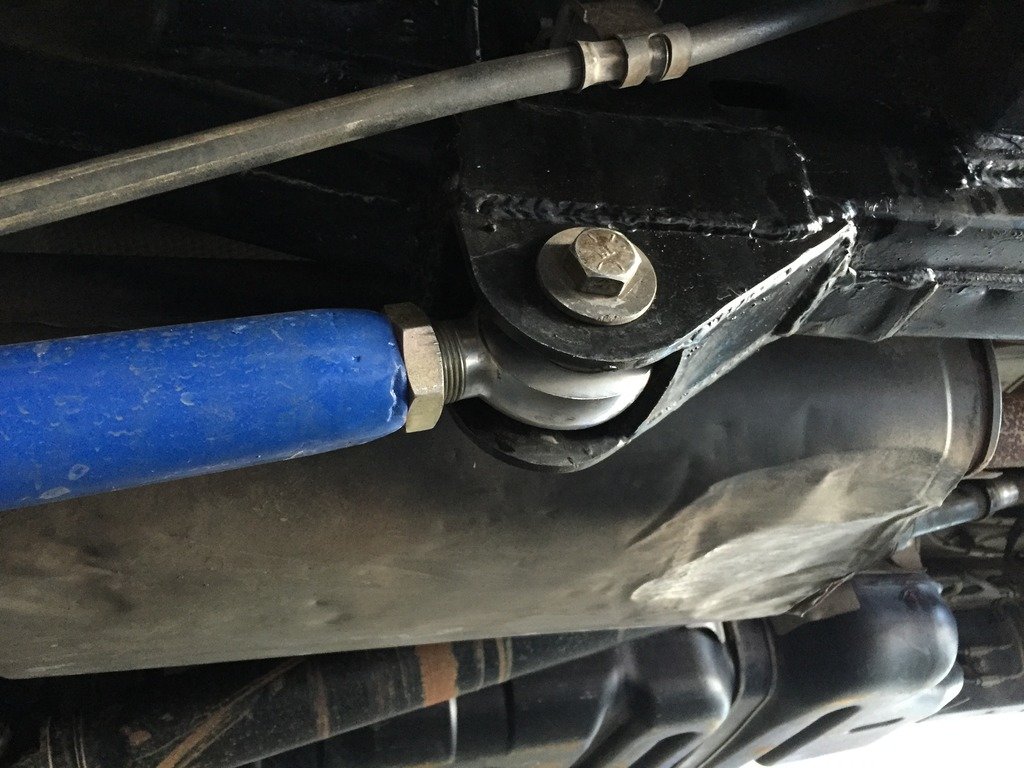

    Mounts

    1F7FE901-CAF0-4CC5-8301-B288AF7401AA_zps_f86b9d17413abb8a8db13042cfdd92813a551a28.jpg

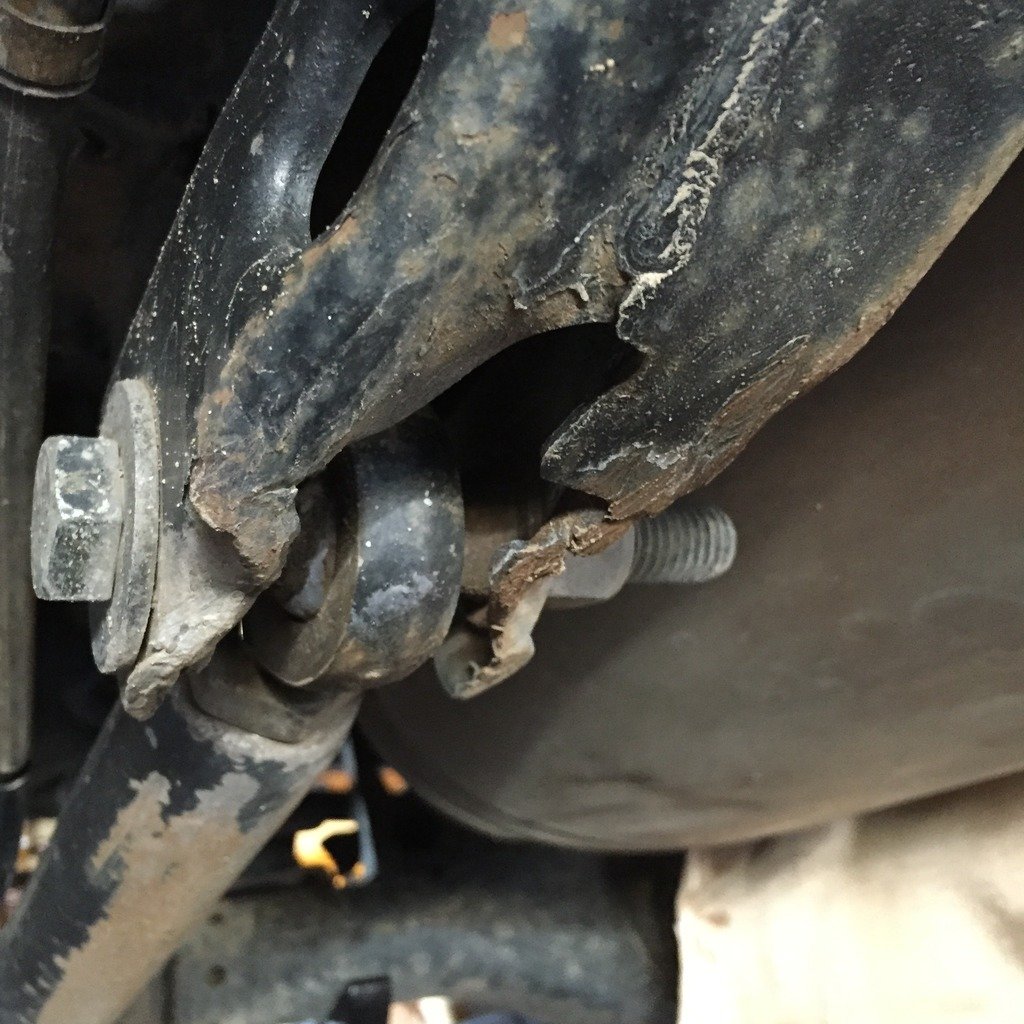

    Any why I needed new mounts

    3C99ECF2-14C8-40E6-9F27-B9DD88F474D2_zps_ec8d59b828762c91149f42f27271f72e35c55aa8.jpg

  5. Jan 18, 2016 at 5:05 PM
    #525
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Got one side done with the studs today, ended up with 2.25" for the rear studs, trimmed ~ .25" off of the ARPs. Wasn't too difficult to do, remove the parking brake adjuster, then slide the new stud in.


  6. Jan 18, 2016 at 6:02 PM
    #526
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    9,360
    Gender:
    Male
    First Name:
    Ryan
    Bonaire, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    U need some paint

  7. Jan 19, 2016 at 7:01 AM
    #527
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Haha, yes, that is about an 7 year old paint job.

  8. Jan 19, 2016 at 7:04 AM
    #528
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    9,360
    Gender:
    Male
    First Name:
    Ryan
    Bonaire, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    Well it ain't gonna paint itself. Get to it :p

  9. Jan 19, 2016 at 7:05 AM
    #529
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Fronts are for sure going to get done when I thrown on my SS lines, rears are less likely.

  10. Jan 19, 2016 at 7:10 AM
    #530
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    9,360
    Gender:
    Male
    First Name:
    Ryan
    Bonaire, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff

    I used that G2 caliper brush on paint the last time and it seems to be holding up well

  11. Jan 19, 2016 at 12:46 PM
    #531
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    SilverGhost likes this.
  12. Jan 25, 2016 at 3:06 PM
    #532
    Tx9812valve

    Tx9812valve Well-Known Member

    Joined:
    Jan 28, 2015
    Member:
    #147390
    Messages:
    120
    Gender:
    Male
    First Name:
    Ryan
    Colorado Springs
    Vehicle:
    04 TRD SC V8 4Runner Icons
    Thanks for the response, that answers a lot. I was kind of worried about having to replace the joints every couple years too, which is why I was looking into the ballistic joints so they could be snugged up after they develop a little play, as well as the ability to rebuild them. The metalcloak joints look like a really good option too though, and might be less susceptible to dirt/dust/water/salt that seem to trash everything around here. I think my mounts are actually 2 5/8 wide also so I'll definitely be looking into those more.

  13. Jan 27, 2016 at 8:16 AM
    #533
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    For reference later, going to solid mount my lowers and get heimd uppers, thanks Marc! Getting CNC's tabs is way too expensive for what you are getting, I was quoted $75-100, so I will just make my own that wont be quite as "square" with the cutoff wheel.


    SconnieHailer[QUOTED] likes this.
  14. Jan 27, 2016 at 3:22 PM
    #534
    SilverGhost

    SilverGhost Well-Known Member

    Joined:
    Sep 16, 2013
    Member:
    #112635
    Messages:
    8,712
    Gender:
    Male
    First Name:
    RayRay
    Reunion, Co
    Vehicle:
    02,03 some 04, it's complicated
    #junkyardparts
    I know you like making things yourself but another option is to hit up insain fab. They can cut anything with that plasma table. That's how I got my skids done. If you have a cardboard cutout and dimensions then it can be done. Just figure I throw this your way.

  15. Jan 27, 2016 at 5:01 PM
    #535
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    That was my plan originally, get them CNC cut, but if his prices are even close to what I have been quoted already, not worth the cost for 8 1x1" squares with a hole in them . . .

  16. Jan 27, 2016 at 5:57 PM
    #536
    SilverGhost

    SilverGhost Well-Known Member

    Joined:
    Sep 16, 2013
    Member:
    #112635
    Messages:
    8,712
    Gender:
    Male
    First Name:
    RayRay
    Reunion, Co
    Vehicle:
    02,03 some 04, it's complicated
    #junkyardparts
    Oh ok 1x1" what size hole? 1/2? Yeah you might be better getting a 1" strip whatever thickness cutting them and drill pressing them. That will save a lot. I thought it was something with cures and angles. Carry on :thumbsup:

  17. Jan 27, 2016 at 6:03 PM
    #537
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    They just fill the space between the cam tabs, with a hole the size of the cam, 3/4" and 1/2" pretty simple design.

  18. Jan 28, 2016 at 8:34 AM
    #538
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    Also for later reference, my bushings on the front diff are toast, 2 options, OEM or Energy Suspension/Whiteline

    OEM PNs: 4165460010 X 2 ($10), 4165360030 X 2 ($15), $50 total
    [​IMG]

    ES/Whiteline PN: W93385 ($100)
    [​IMG]

  19. Jan 30, 2016 at 11:54 AM
    #539
    orbot

    orbot Well-Known Member

    Joined:
    Jun 24, 2011
    Member:
    #58782
    Messages:
    1,105
    Gender:
    Male

    camburg uses fk dont they?? tuff to imagine them wearing out that quick.. although i will agree at some point with you because i replaced my uniballs last may and by december i took the suspension apart and the UCA uniball seemed a bit loose.

    so with the ruffstuff heims did you had suspension knock or were they just loose.

  20. Feb 1, 2016 at 8:49 AM
    #540
    Wishbone Runner

    Wishbone Runner [OP] Because 4R

    Joined:
    Sep 9, 2012
    Member:
    #86546
    Messages:
    6,258
    Gender:
    Male
    First Name:
    James
    CO
    Vehicle:
    04 SR5 4Runner
    King/Dirt King
    They do use FK, and I just replaced the FKs on my Dirt King lowers this weekend after just a year. The ones on the lowers wore much different that I had seen the others wear out, they had slop up and down rather than rotationally, I sut one apart to use as a press and will thrown some pics up when I get a chance.

    On the last set of heims from Ruffstuff, the liners wasn't loose from the inner ball, but rather the liner had separated from the body of the heim and was rocking within the body. Not sure how that happened and Ruffstuff said they had not seem that problem before either, so IDK, but they will be getting replaced this spring.
