Allenfab’s 2008 5-lug SAS and LS swap

Discussion in '2nd Gen. Builds (2005-2015)' started by allenfab, Jun 19, 2022.

Page 1 of 17
  1. Jun 19, 2022 at 5:10 AM
    #1
    allenfab

    #1
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons

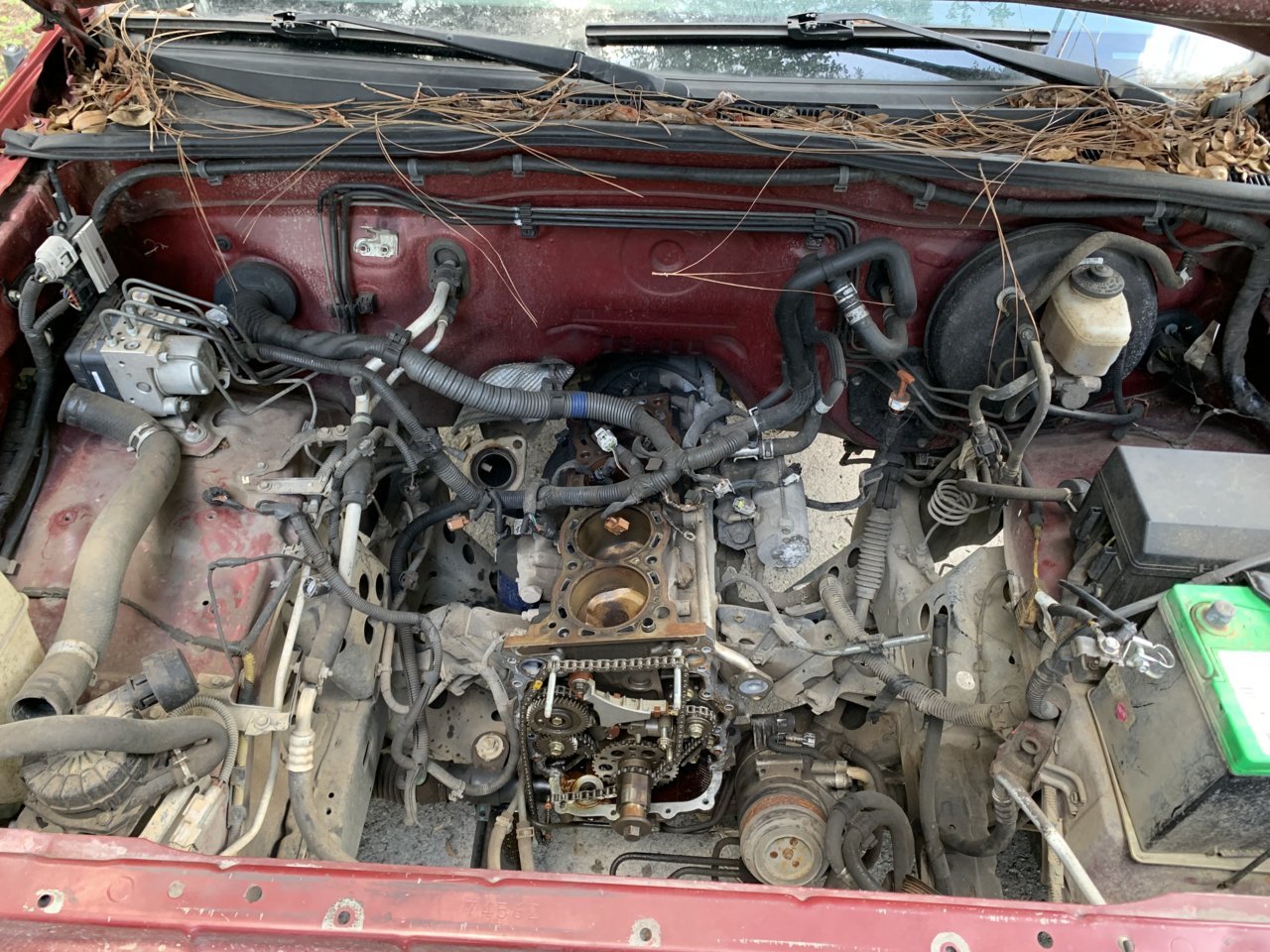

    Picked up a 2008 reg cab 5-lug with a disassembled 2.7 (bad head gasket) for $2k with 277k miles. Decided to part out most of it, keeping the body, frame, and interior for a base build. I'm going to actually keep track of costs on this one in an attempt to keep the price relatively low.

    For the instagram people, I will be keeping track of the build on there as well as many other projects I have. Instagram is allen.fab

    plans, as of now, are:
    5.3 LS, auto trans, manual t-case
    99-04 Super Duty axles
    Leaf springs all around
    Probably 35s, maybe 37s
    As low a frame height as possible

    Actual build:

    22.25" Frame height on 37s

    Powertrain:
    - Gen 4 5.3 LS
    - TSP Stage 3 low lift truck cam
    - 243 heads
    - Summit LS swap SS headers
    - 2.5" SS Y-pipe
    - 3.5" Street Max Stainless 22x11 muffler
    - 4L60E transmission
    - NP241C transfer case
    - Tom Woods slip yoke eliminator
    - Tom Woods Rear 1350 Double Cardon driveshaft
    - True-Cool 40K transmission cooler

    Axle:
    - 99-04 Super Duty Dana 60 front, Sterling 10.5 rear
    - 4.56 Gears
    - Yukon Grizzly lockers
    - Yukon Rear diff cover

    Steering:
    - Toyota IFS box tapped for Hydro-assist
    - Factory GM LS pump
    - Summit Racing 20" heat sink cooler
    - Borgeson Steering shaft and joints
    - Weaver fab machined knuckle and arm for crossover
    - RuffStuff steering links, Chevy 1-ton TRE's
    - Sky flat pitman arm

    Suspension:
    Front:
    - Superlift 2.5" springs SLF-01-232-6
    - 5" length shackles
    - Ruffstuff U-bolt flip kit
    - Bilstein 5125 12" shocks

    Rear:
    - Chevy 63" 3-leaf
    - Ruffstuff swap kit w/5" shackles
    - 14" Bilstein 5125 outboard shocks
    - Ruffstuff U-bolt flip kit

    Wheel/Tire:
    - 37x12.50R17 Toyo
    - 17x8 Black Rock Steel wheels 4.5" BS

    Interior:
    - Autometer Ultra-lite 2 fuel, transmission, oil pressure, and water temp gauges
    - Scangauge III

    Lighting:
    - Factory

    Misc.:
    - Rock Sliders
    - Ultra high clearance rear bumper
    - 08 Tundra Brake Booster
    - 1-5/16" GM master cylinder
    - Trail-Toys GM MC adapter kit
    - 1987 Blazer 25 gal. fuel tank
    - Walbro 255 fuel pump
    - Smittybilt 10K X20 winch w/synthetic rope


    Not going extreme like my last build, just want something reliable and low maintenance (wishful thinking).

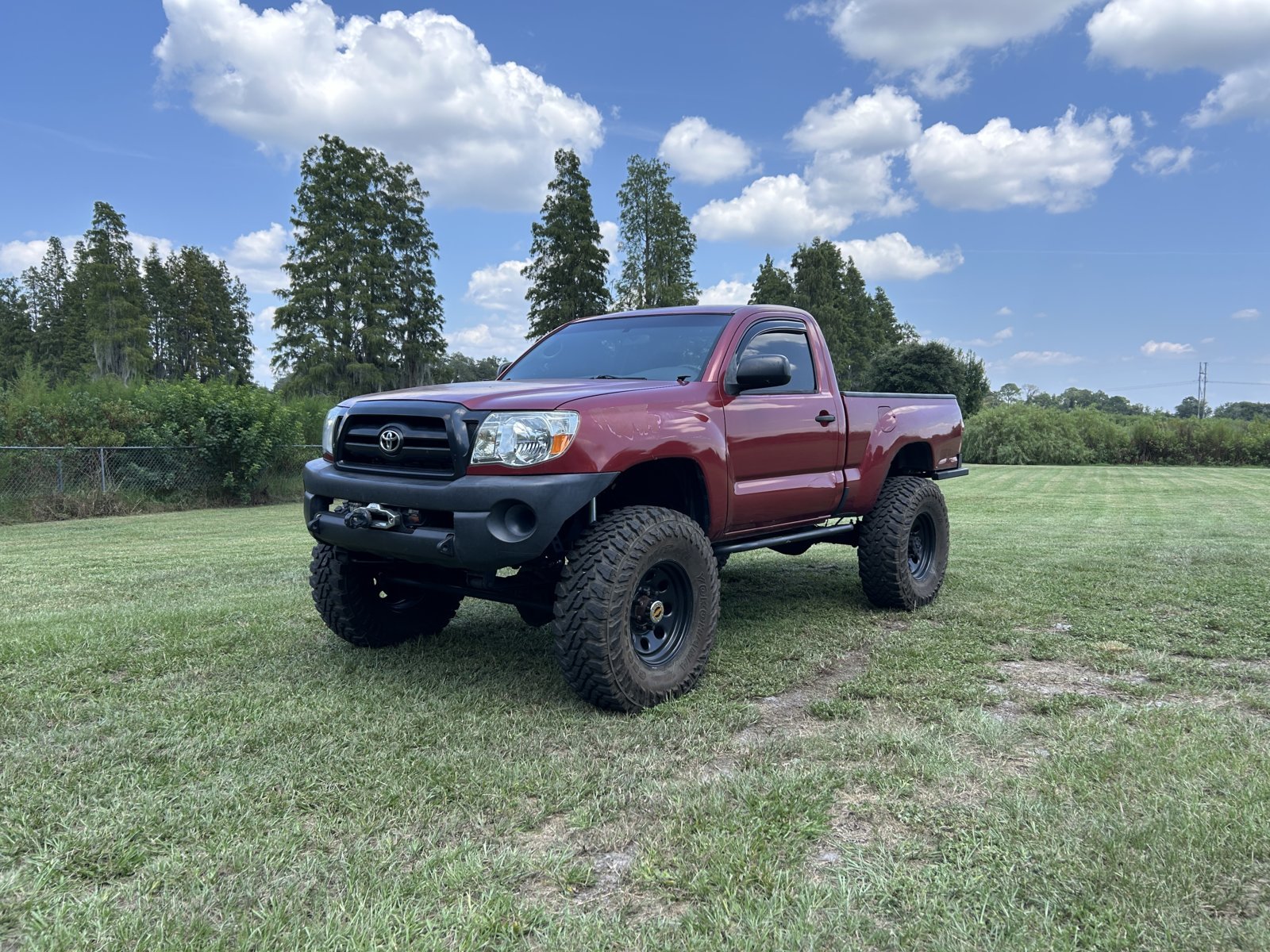

    Current Pic:

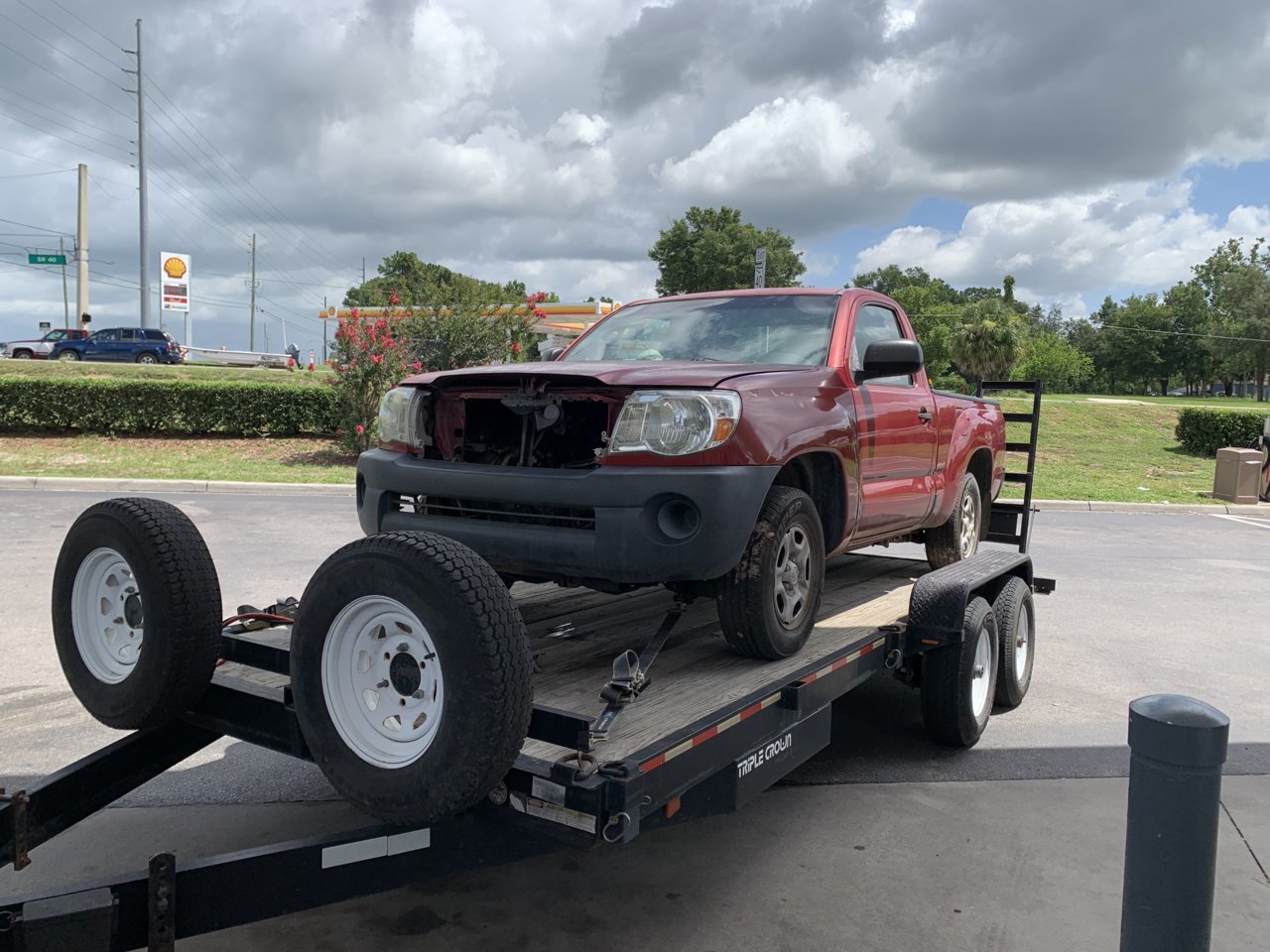

    from the Marketplace ad:

    96A59B9B-B404-4F82-977C-61413DAB0F27.jpg AFE81A6B-4DF5-4079-87BE-DCC6958AF82A.jpg

    Last edited: Apr 26, 2024
    allenfab, Jun 19, 2022
    #1
    LarryDangerfield, Road_Warrior, Squirt and 11 others like this.
  2. Jun 22, 2022 at 6:19 PM
    #2
    allenfab

    #2
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons

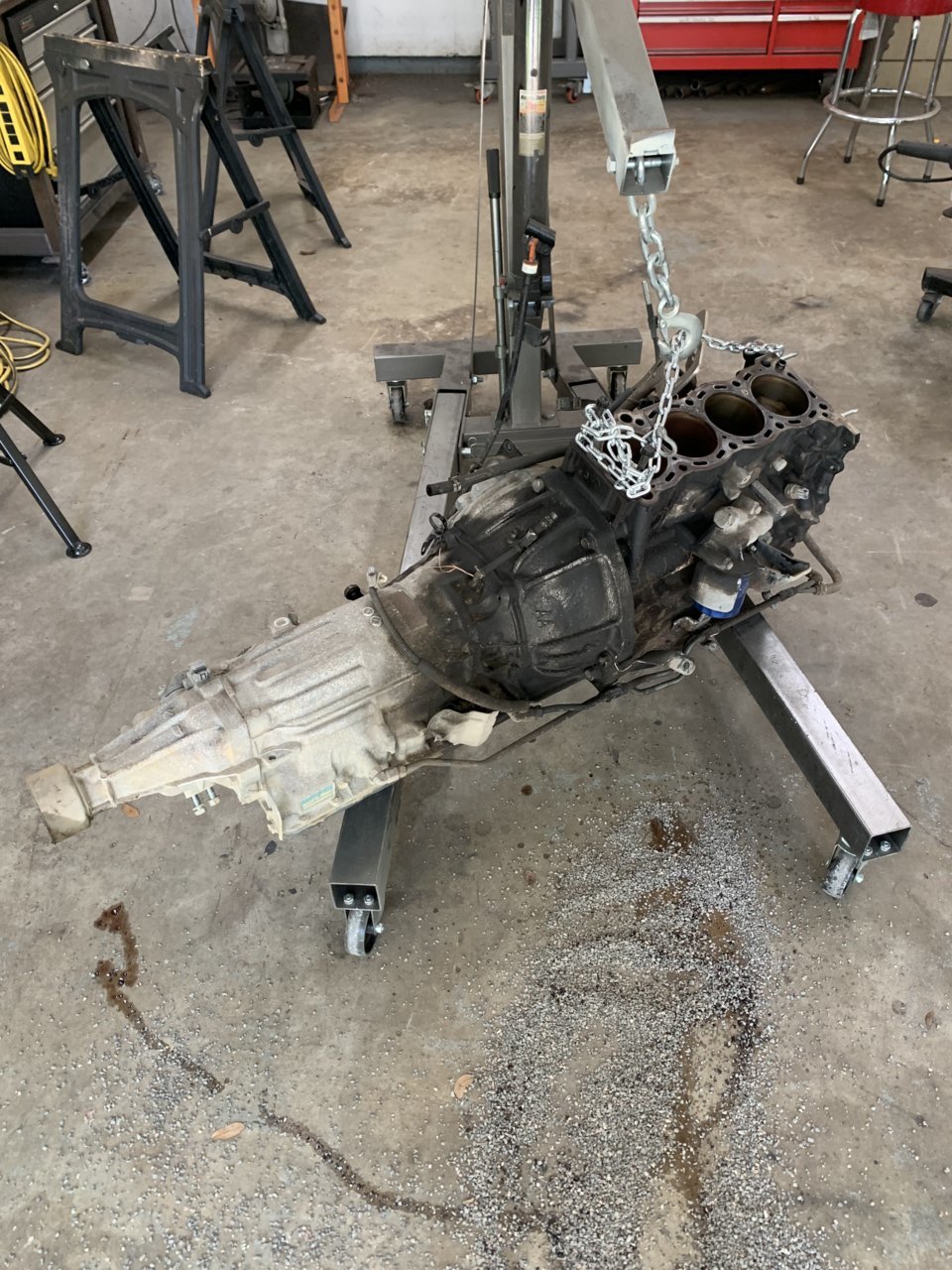

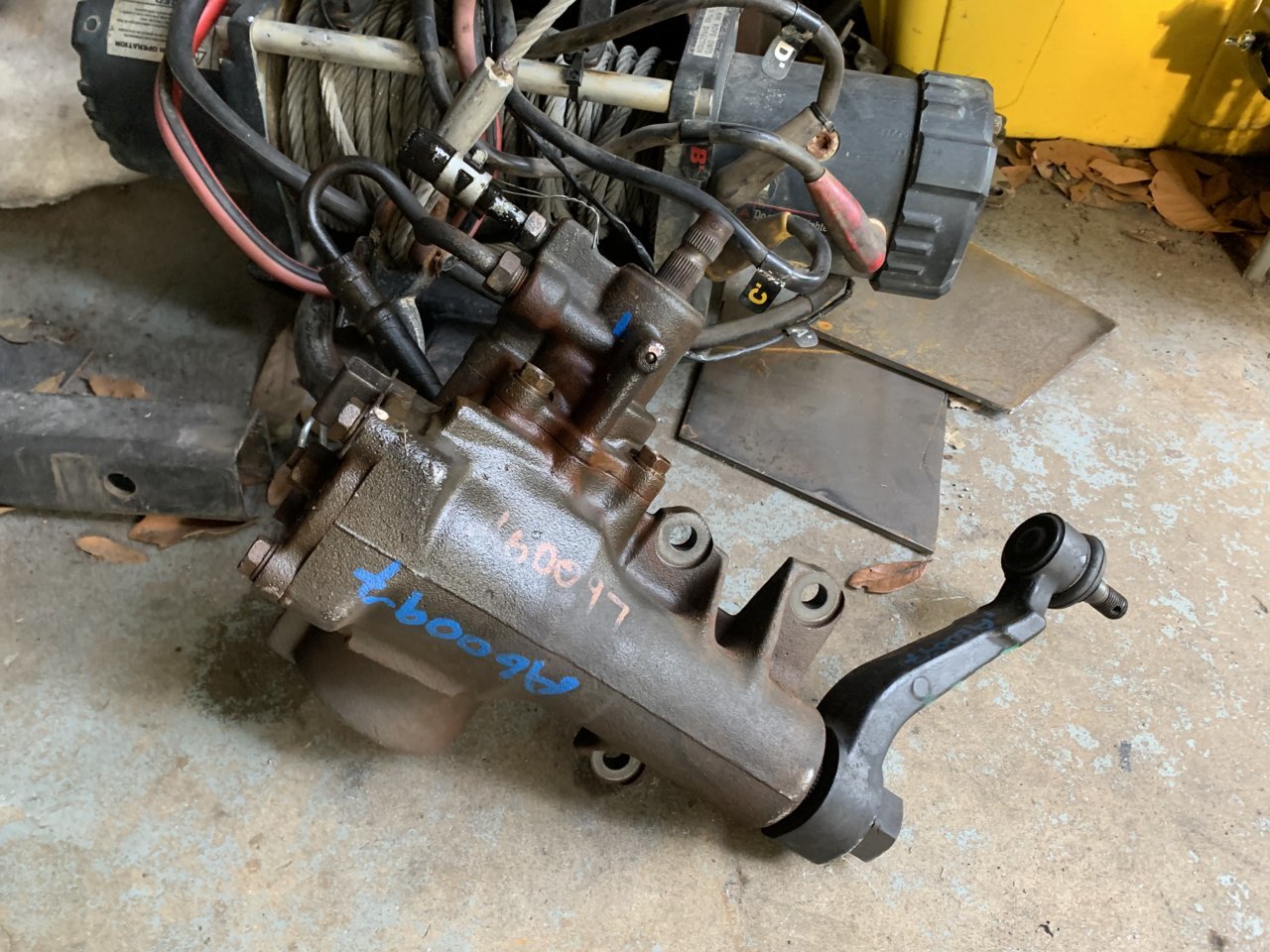

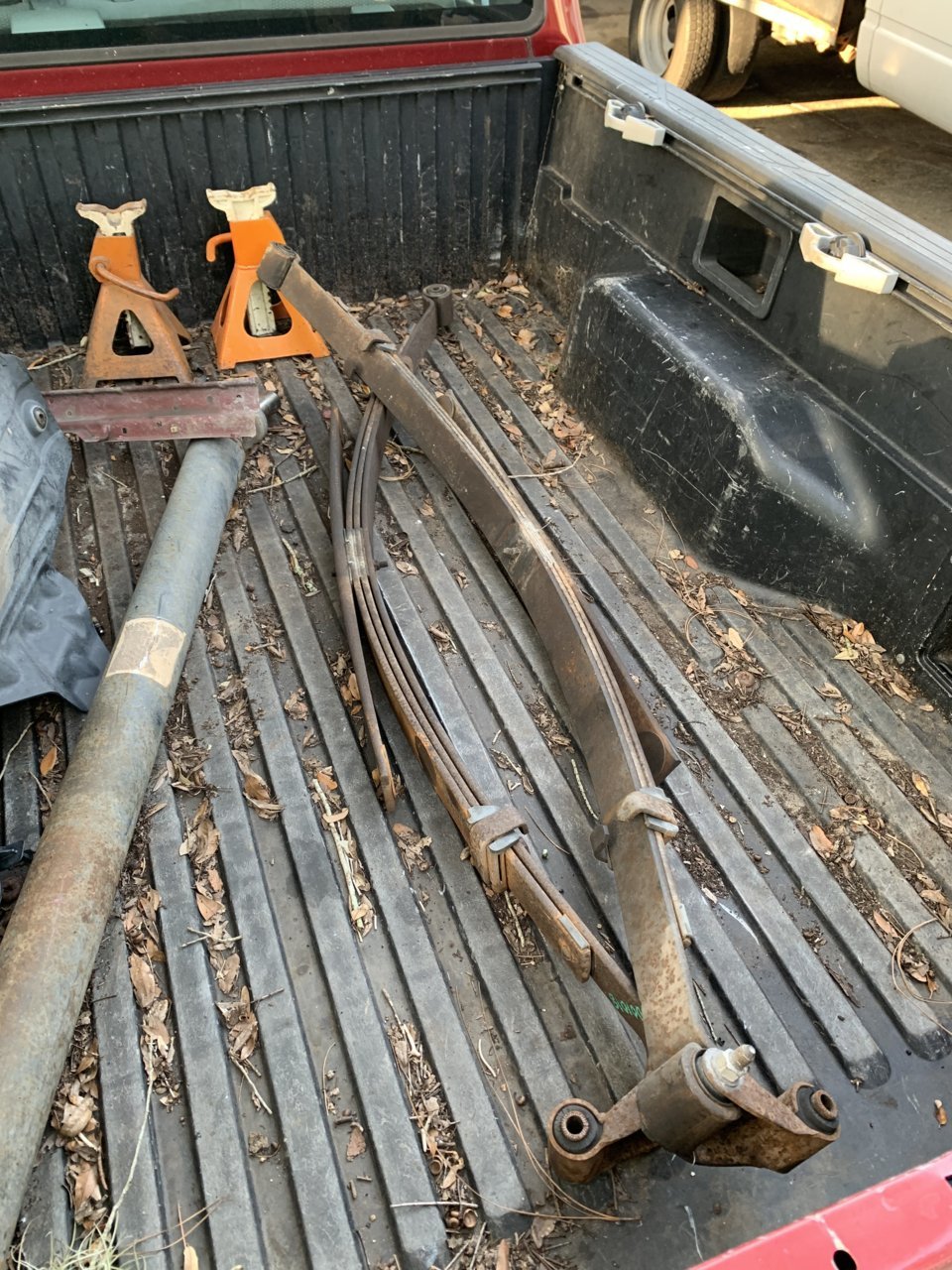

    Good riddance… sold the motor and transmission for $600, and picked up some salvage yard 63s and a IFS box

    C67FDC38-B65C-48BC-AD3A-C9175C513327.jpg 69EFD625-5C0A-469A-AB9E-05B6DC1E4A72.jpg 09892612-7B2B-442E-8353-4909BCC42533.jpg

    allenfab, Jun 22, 2022
    #2
    la0d0g, T.Barn and Coma 13 like this.
  3. Jun 29, 2022 at 4:21 PM
    #3
    allenfab

    #3
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons

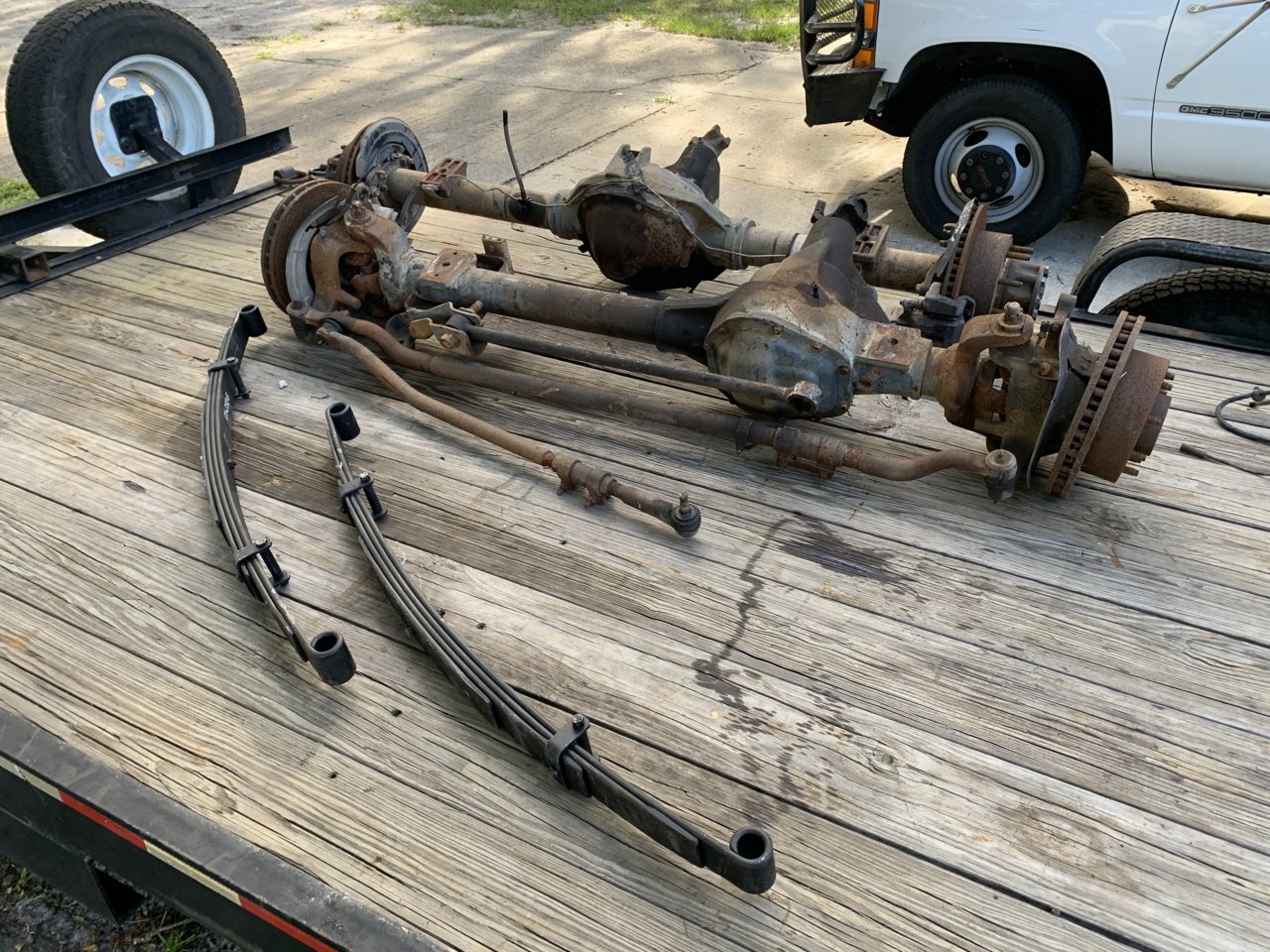

    Picked up some axles today… 60 front, sterling 10.5 rear. Decided to go with a set of superlift 2.5” lift springs for 73-88 Chevy K10’s, they have a lighter spring rate and will allow for a fairy low height.


    allenfab, Jun 29, 2022
    #3
    la0d0g, Wulf and Coma 13 like this.
  4. Jul 10, 2022 at 12:32 PM
    #4
    allenfab

    #4
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons
    Waiting on parts to do the suspension so decided to knock out a rear bumper. I wanted to keep it simple but useful. It’s built out of 4x2 and 2x2 3/16” rectangle and square tube that I had left over from previous jobs. Gained 9” of clearance after cutting up the bed. It’s getting d-ring mounts welded on once I get them, but other than that just needs ends capped, chain hooks, and paint.

    08F20BCD-2953-4151-9119-519F18D47546.jpg 2FEBBE2F-744F-4CE8-BA89-27376F368BF0.jpg EB16D614-44D7-4CBF-96D3-C92DD35193BB.jpg DC4B912E-252C-4EAB-86A9-2F324EEBCBB4.jpg 78EB5EBE-3097-4DDC-AF1B-6310D335DDBE.jpg

    allenfab, Jul 10, 2022
    #4
    skeletron, Juforrest, Soul Surfer and 9 others like this.
  5. Jul 10, 2022 at 12:36 PM
    #5
    bagleboy

    #5
    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    6,893
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Sweet! Now it’s time to flip those hangers.

    bagleboy, Jul 10, 2022
    #5
    allenfab[QUOTED][OP] likes this.
  6. Jul 14, 2022 at 5:16 PM
    #6
    allenfab

    #6
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons
    Soooon. Thinking I will start the suspension at the beginning of August

    allenfab, Jul 14, 2022
    #6
  7. Jul 18, 2022 at 2:47 AM
    #7
    allenfab

    #7
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons

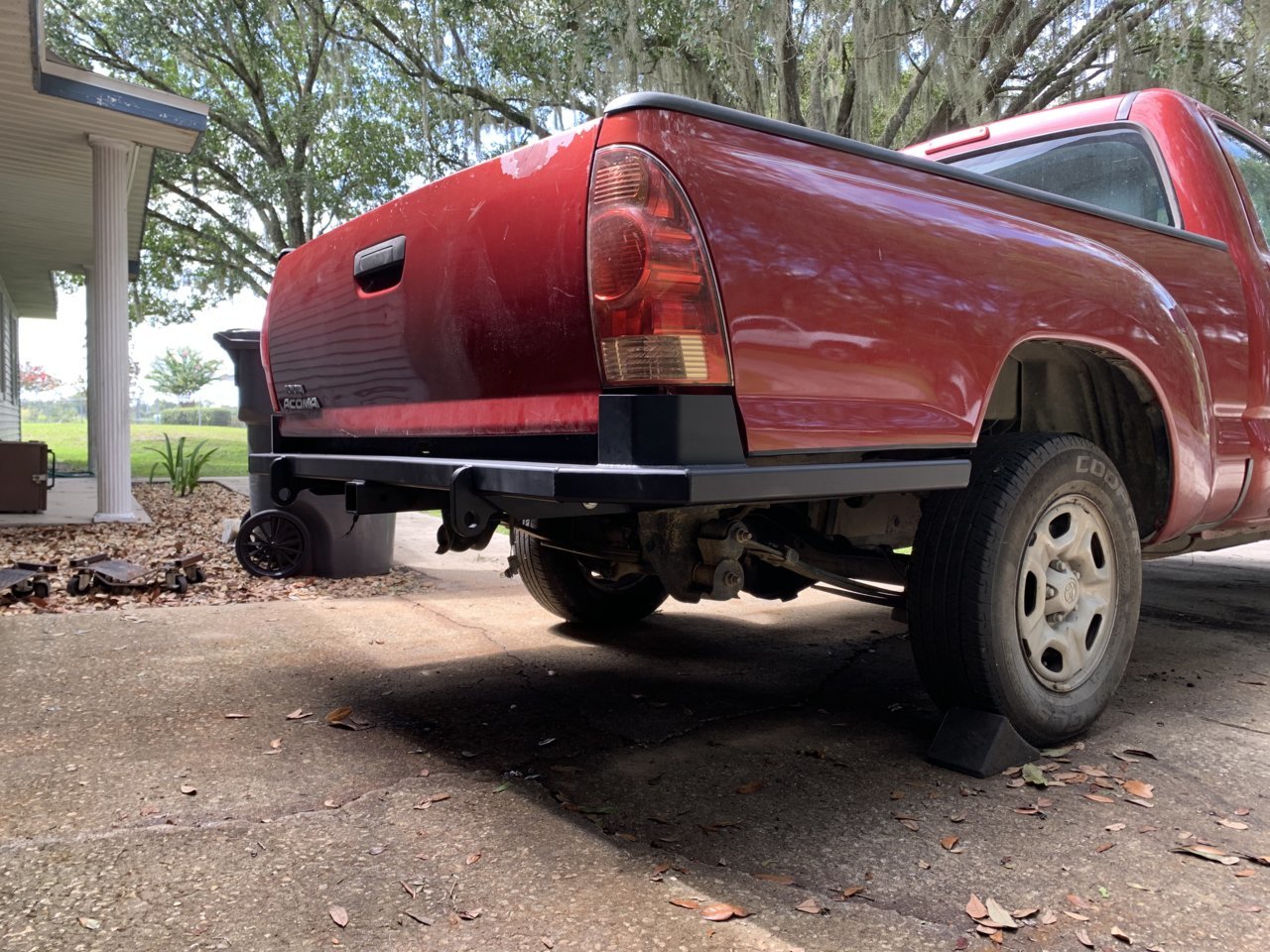

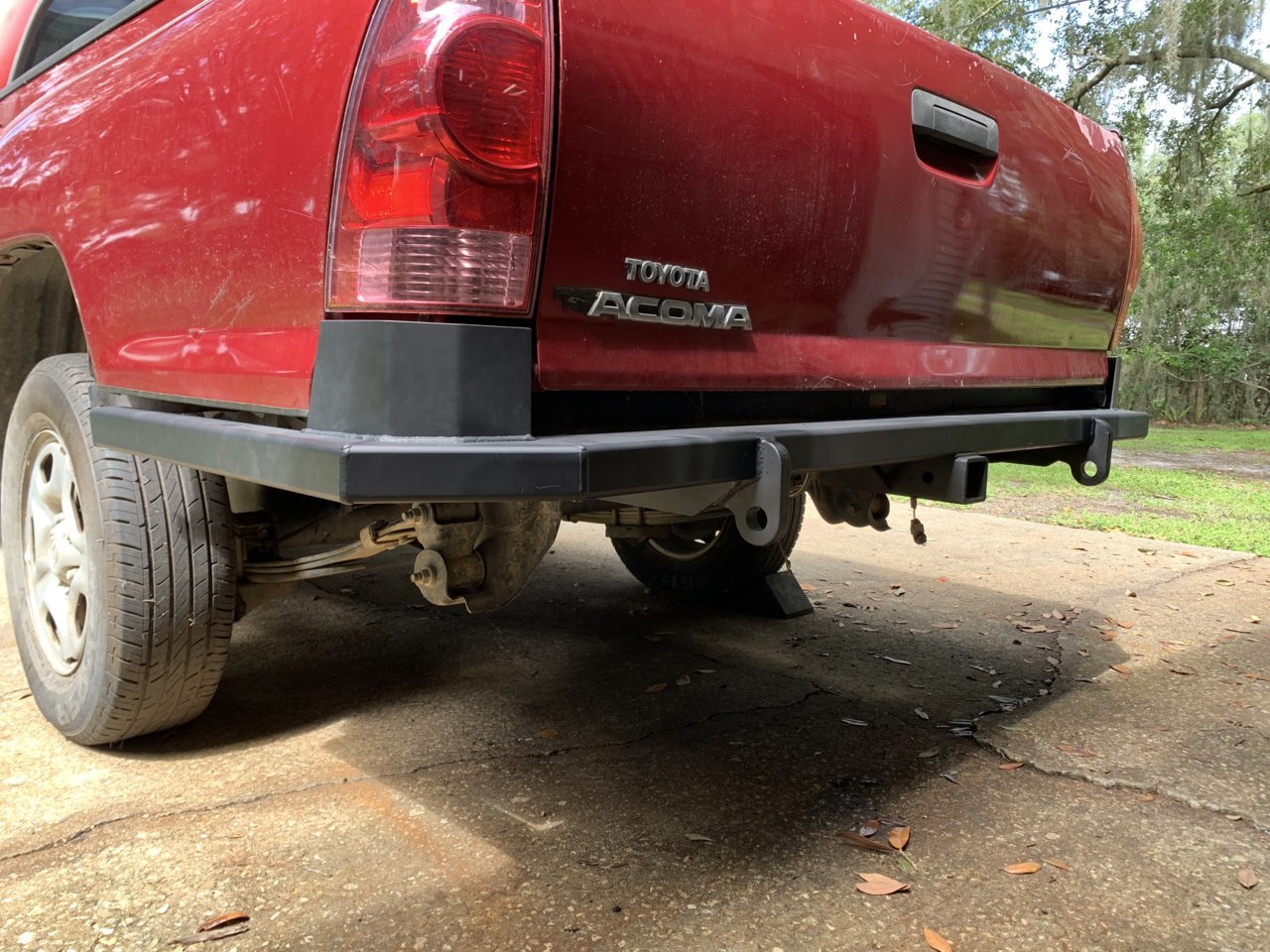

    Rear bumper done and on. I think I ended up with about $35 into it. Next up is starting the axle/suspension swap

    E25806DA-86AF-498C-89EC-2ACFE3BA8153.jpg 411C99ED-38CA-47E3-8550-E3E9C9D0E478.jpg

    allenfab, Jul 18, 2022
    #7
    3pooches, Soul Surfer, BassAckwards and 3 others like this.
  8. Jul 19, 2022 at 3:55 PM
    #8
    slander

    #8
    slander Honorary Crawl Boi

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    8,966
    Gender:
    Male
    Hickory, NC
    Vehicle:
    02 Tacoma, fixed with curse words.
    Awesome!!!

    slander, Jul 19, 2022
    #8
    allenfab[OP] likes this.
  9. Jul 19, 2022 at 4:54 PM
    #9
    allenfab

    #9
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons
    we WILL wheel together once I am done with this one

    allenfab, Jul 19, 2022
    #9
    Key-Rei and slander[QUOTED] like this.
  10. Jul 19, 2022 at 5:29 PM
    #10
    slander

    #10
    slander Honorary Crawl Boi

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    8,966
    Gender:
    Male
    Hickory, NC
    Vehicle:
    02 Tacoma, fixed with curse words.
    Hell yea! Pretty sure I have wheeled more in the past 12months that I have in the prior 5yrs LOL!!

    slander, Jul 19, 2022
    #10
    allenfab[QUOTED][OP] likes this.
  11. Jul 20, 2022 at 3:05 AM
    #11
    allenfab

    #11
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons
    I'm guessing you are enjoying living in North Carolina now :D

    allenfab, Jul 20, 2022
    #11
    slander[QUOTED] likes this.
  12. Jul 21, 2022 at 4:40 AM
    #12
    la0d0g

    #12
    la0d0g Its 4 o’clock somewhere

    Joined:
    Jan 25, 2011
    Member:
    #49903
    Messages:
    19,686
    Gender:
    Male
    First Name:
    Matt
    running for the hills
    Vehicle:
    For crawling not hauling
    :popcorn:

    la0d0g, Jul 21, 2022
    #12
    allenfab[OP] likes this.
  13. Jul 21, 2022 at 4:49 AM
    #13
    suttonkb

    #13
    suttonkb GO TIGERS!

    Joined:
    Sep 25, 2011
    Member:
    #64119
    Messages:
    1,914
    Gender:
    Male
    First Name:
    Kevin
    Clemson, SC
    Vehicle:
    2003 Tacoma SAS incoming

    suttonkb, Jul 21, 2022
    #13
    tacoma16, la0d0g and allenfab[OP] like this.
  14. Jul 21, 2022 at 2:37 PM
    #14
    Timbo's Customs

    #14
    Timbo's Customs Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110078
    Messages:
    7,229
    Gender:
    Male
    First Name:
    Timothy
    Lakeland FL
    Vehicle:
    2019 f250 6”lift 37s deleted 1997 T4r, tons and 4ds
    1997 t4r has super duty axles, 5.13s locked front and rear. 3 link front with 14" kings. Rear 63s.
    :cheers:

    Timbo's Customs, Jul 21, 2022
    #14
    allenfab[OP] likes this.
  15. Jul 24, 2022 at 4:53 PM
    #15
    allenfab

    #15
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons

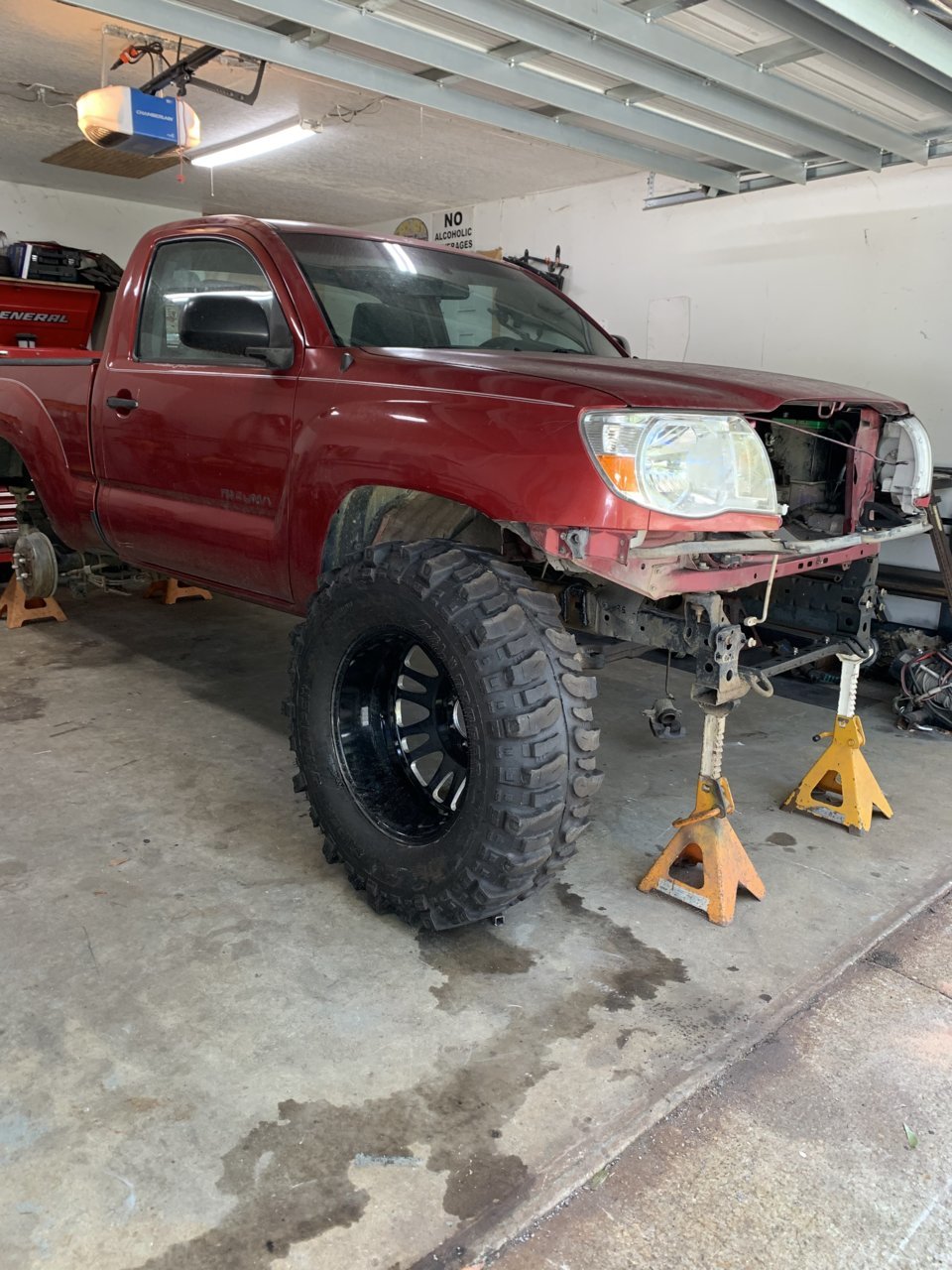

    *not my wheels and tires*

    rolled a 38.5 bogger up to the truck for shits and giggles… and this is at 20” frame height. Still can’t decide between 35s and 37s but I’m leaning 37s…


    allenfab, Jul 24, 2022
    #15
    dk_crew, Soul Surfer, tacoma16 and 2 others like this.
  16. Jul 24, 2022 at 4:57 PM
    #16
    slander

    #16
    slander Honorary Crawl Boi

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    8,966
    Gender:
    Male
    Hickory, NC
    Vehicle:
    02 Tacoma, fixed with curse words.
    That truck will look great with 37s on it!

    slander, Jul 24, 2022
    #16
    allenfab[OP] likes this.
  17. Jul 24, 2022 at 4:59 PM
    #17
    TACORIDER

    #17
    TACORIDER Just another statistic

    Joined:
    Jun 25, 2012
    Member:
    #81357
    Messages:
    5,986
    Gender:
    Male
    First Name:
    JAKE
    EAST TAWAKONI TEXAS
    Vehicle:
    12 TACO and some other Toyota’s
    go 37s

    TACORIDER, Jul 24, 2022
    #17
    Key-Rei and allenfab[OP] like this.
  18. Jul 24, 2022 at 5:18 PM
    #18
    xweslingx

    #18
    xweslingx Well-Known Member

    Joined:
    May 19, 2013
    Member:
    #104486
    Messages:
    3,186
    Gender:
    Male
    First Name:
    Wes
    Durham, NC
    Vehicle:
    09DCSB locked and armored
    Just gussets... everywhere
    Please do 37s at least.

    xweslingx, Jul 24, 2022
    #18
    dk_crew, Key-Rei, allenfab[OP] and 1 other person like this.
  19. Jul 24, 2022 at 7:54 PM
    #19
    allenfab

    #19
    allenfab [OP] I hate everything

    Joined:
    Oct 23, 2014
    Member:
    #140913
    Messages:
    2,589
    Gender:
    Male
    First Name:
    Todd
    Lakeland, FL
    Vehicle:
    08 5-lug on one tons
    At least!? Bihhhhhhhhhhhhhh

    allenfab, Jul 24, 2022
    #19
    Key-Rei likes this.
  20. Jul 24, 2022 at 7:56 PM
    #20
    TACORIDER

    #20
    TACORIDER Just another statistic

    Joined:
    Jun 25, 2012
    Member:
    #81357
    Messages:
    5,986
    Gender:
    Male
    First Name:
    JAKE
    EAST TAWAKONI TEXAS
    Vehicle:
    12 TACO and some other Toyota’s
    What frame height are you shooting for?

    TACORIDER, Jul 24, 2022
    #20
