Wiper Blade Motor / Wiring Diagram

from what i saw only one black and white wire on the 5 pins for the wiper motor



not sure how to test the motor with wires
going to get some auto wire tomorrow



Follow this guide, any insulated wire will work.

Really easy if you have a second set of hands to hold the wires to the battery while you hold them to the motor, just dont mix up positive and negative.

The first figure will test High speed, second figure tests Low speed. The third tests the wiper park function, its a bit more complicated to mock up so I wouldn't worry about it until we actually get the wipers working.



no motor function direct power



There’s your problem



A brand new motor and it's bad.
Parts quality these days are awful.



Did you buy an OEM motor? Just FYI there are two different motors. One came with the "cold weather package" and is a bit beefier to help wipers move through snow/ice. You can find these OEM ones on ebay for pretty cheap.

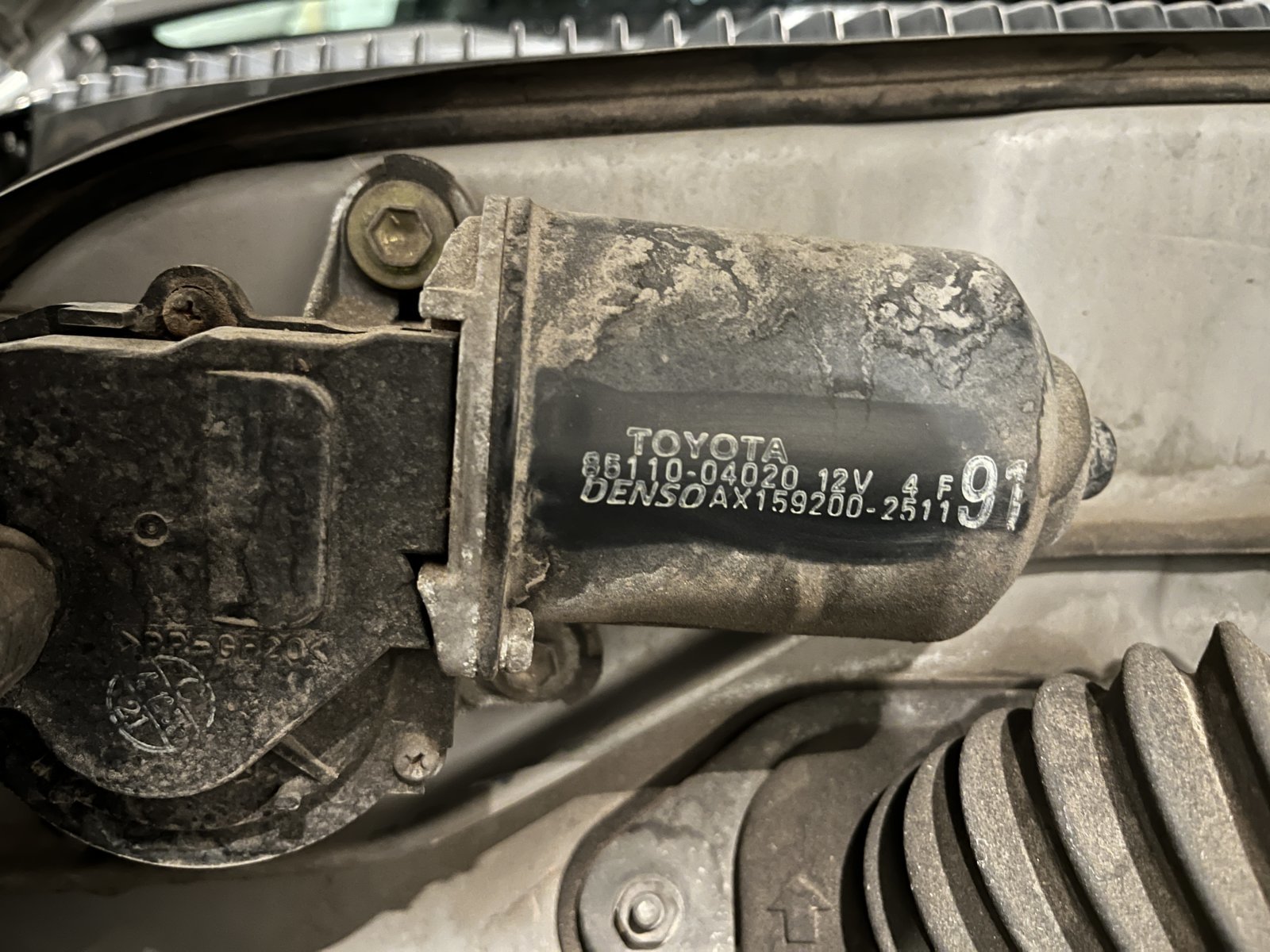

PN 85110-04020 (the non cold weather motor is 85110-04010)



I bought a remanufactured one I just ordered a A1 Cardona auto autoparts.com



maybe I installed the motor wrong because I didn’t take to view the linkage of the transmission for the blades



Ill check the one I took off tomorrow!



https://www.youtube.com/watch?v=YqaWmuM-22E

valid tutorial?



I got it working!!!

Replaced the motor and a bad turn signal bulb



Happy to hear that, new motor fixed it?



not at first changing the bulb got the power back to it for some reason
