Which Wiring Adapters Do I Need For Non-JBL System, Howto Connect To OEM GPS Antenna?

Discussion in 'Audio & Video' started by jboudreaux1965, Feb 1, 2024.

  1. Feb 1, 2024 at 11:38 AM
    #1
    jboudreaux1965

    jboudreaux1965 [OP] Ragin Cajun Fan

    Joined:
    Jun 2, 2014
    Member:
    #131162
    Messages:
    3,747
    Gender:
    Male
    First Name:
    Joseph
    Hub City
    Vehicle:
    2023 TRD Sport
    I just bought a 2023 TRD Sport without the JBL system. I am doing a complete A/V build. So I am not using the factory speaker wires, etc, but I do want to be able to connect to the steering wheel controls, back up camera, etc... so which pigtails do I need to connect to the OEM wiring? Does the OEM headunit use a standard coax plug for the radio antenna or will I need an adapter? The new headunit has built in NAV, how does the OEM headunit connect to the OEM GPS antenna? Can I tap into that connection or will I have to run a separate GPS antenna?

  2. Feb 1, 2024 at 11:57 AM
    #2
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,832
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    You’ll want the Maestro RR and harness for your truck. This will handle all of your steering wheel controls, the camera, and several other features

    For the gps antenna, there are specific adapters depending on the brand and radio. Kenwood and pioneer use different connectors, and nearly every other brand of radio uses one of those two.

    for AM/FM antenna, there is also an adapter you need

    There’s also an adapter for the XM antenna if you’re trying to keep using XM. But that also requires the XM module as well.

  3. Feb 1, 2024 at 12:12 PM
    #3
    jboudreaux1965

    jboudreaux1965 [OP] Ragin Cajun Fan

    Joined:
    Jun 2, 2014
    Member:
    #131162
    Messages:
    3,747
    Gender:
    Male
    First Name:
    Joseph
    Hub City
    Vehicle:
    2023 TRD Sport
    I just need the pigtails to connect to the OEM wiring. I think the only OEM wires I will need to connect to are power, ignition and steering control wires. I'll have 3 sets of RCA's running from the HU to the active x-over, then 3 amps connected to the x-over and the speakers wired directly to the amps.

  4. Feb 1, 2024 at 12:16 PM
    #4
    drizzoh

    drizzoh itsjdmy0

    Joined:
    Jun 29, 2020
    Member:
    #332922
    Messages:
    1,980
    First Name:
    Andrew
    Arizona
    Vehicle:
    2021 Tacoma TRD Off-Road 4x4
  5. Feb 1, 2024 at 12:32 PM
    #5
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,832
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    The steering wheel controls are data, so you typically need an interface for that.

    could you share the head unit you’re installing? That will help

  6. Feb 1, 2024 at 3:28 PM
    #6
    jboudreaux1965

    jboudreaux1965 [OP] Ragin Cajun Fan

    Joined:
    Jun 2, 2014
    Member:
    #131162
    Messages:
    3,747
    Gender:
    Male
    First Name:
    Joseph
    Hub City
    Vehicle:
    2023 TRD Sport
    Fujitsu Ten AVN726e. They make Toyota and Lexus head units so I have had great success with them in the past. The Fujitsu Ten's may be getting old, but still better than most new HU's.


    Attached Files:

  7. Feb 1, 2024 at 3:35 PM
    #7
    jboudreaux1965

    jboudreaux1965 [OP] Ragin Cajun Fan

    Joined:
    Jun 2, 2014
    Member:
    #131162
    Messages:
    3,747
    Gender:
    Male
    First Name:
    Joseph
    Hub City
    Vehicle:
    2023 TRD Sport
    on the 2nd gen

    pin 6 on the Toyota steering wheel harness (white with red stripe) goes to a ground.

    pin 7 on the Toyota steering wheel harness (purple with white stripe) goes to the brown with black stripe wire on the AVN726e

    ping 8 on the Toyota steering wheel harness (yellow with blackish stripe) goes to the brown wire on the AVN726e

  8. Feb 1, 2024 at 3:40 PM
    #8
    jboudreaux1965

    jboudreaux1965 [OP] Ragin Cajun Fan

    Joined:
    Jun 2, 2014
    Member:
    #131162
    Messages:
    3,747
    Gender:
    Male
    First Name:
    Joseph
    Hub City
    Vehicle:
    2023 TRD Sport

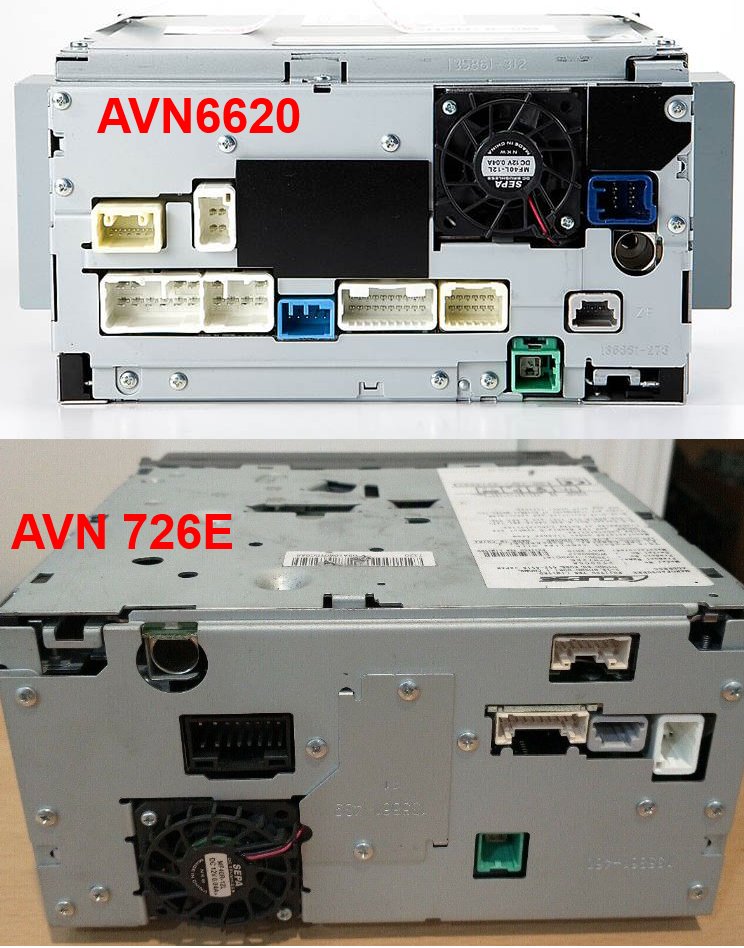

    I also have a AVN6620


    Last edited: Feb 1, 2024
  9. Feb 1, 2024 at 3:51 PM
    #9
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    3,832
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    I haven’t seen an eclipse in a hot minute!

    I am attached at the hip to CarPlay so I couldn’t personally imagine not having that. And I wouldn't expect the nav to be useful because it probably hasn’t had an update since 09, but hopefully I’m wrong on that.
