VLEDS Plug-and-Play Bed Light Kit

Intro
Hello TW! First off thanks again for the continued support on all of the projects I’ve been apart of over the past couple of years! I’d like to announce another collaboration I did with VLEDS that’s been in the works for almost a year. We have come up with the ultimate bed lighting kit that is designed specifically for the Tacoma and Tundra platforms. This kit is fully plug-and-play, comes with 4 custom-made bed lights, seamless wire hiders, and integrates very nicely into the truck bed and the truck’s factory wiring.



Function
The concept for the wiring harness took me quite a bit of time to fully nail-down. The harness plugs into your factory cargo-light switch near the dash and allows the following functionality for controlling the bed lights utilizing the factory switch:

ON Position
When the cargo switch is ON the new bed lights turn on along with the cargo light (this isn’t impressive)

DOOR
When the cargo switch is in DOOR mode the bed lights and the cargo light will turn on when you open any door. BUT WAIT THERES MORE — the bed lights and cargo light will also turn on when you drop the tailgate! This is made possible by a custom-made pin switch that mounts to a factory hole near the tailgate. No drilling. The tailgate control will only work when the switch is in DOOR mode — so essentially your tailgate will now function like one of the doors. Back-feeding the cargo light itself provides a bit of overhead lighting in addition to the lights under the bed rail when you drop the tailgate.

OFF
When the cargo light switch is in the OFF position, the cargo light and bed lights will not function. This includes dropping the tailgate. It took a while for me to figure out how to make this work. What this means is you can remove the tailgate while the switch is OFF and drive around town without lighting up like a Christmas tree.

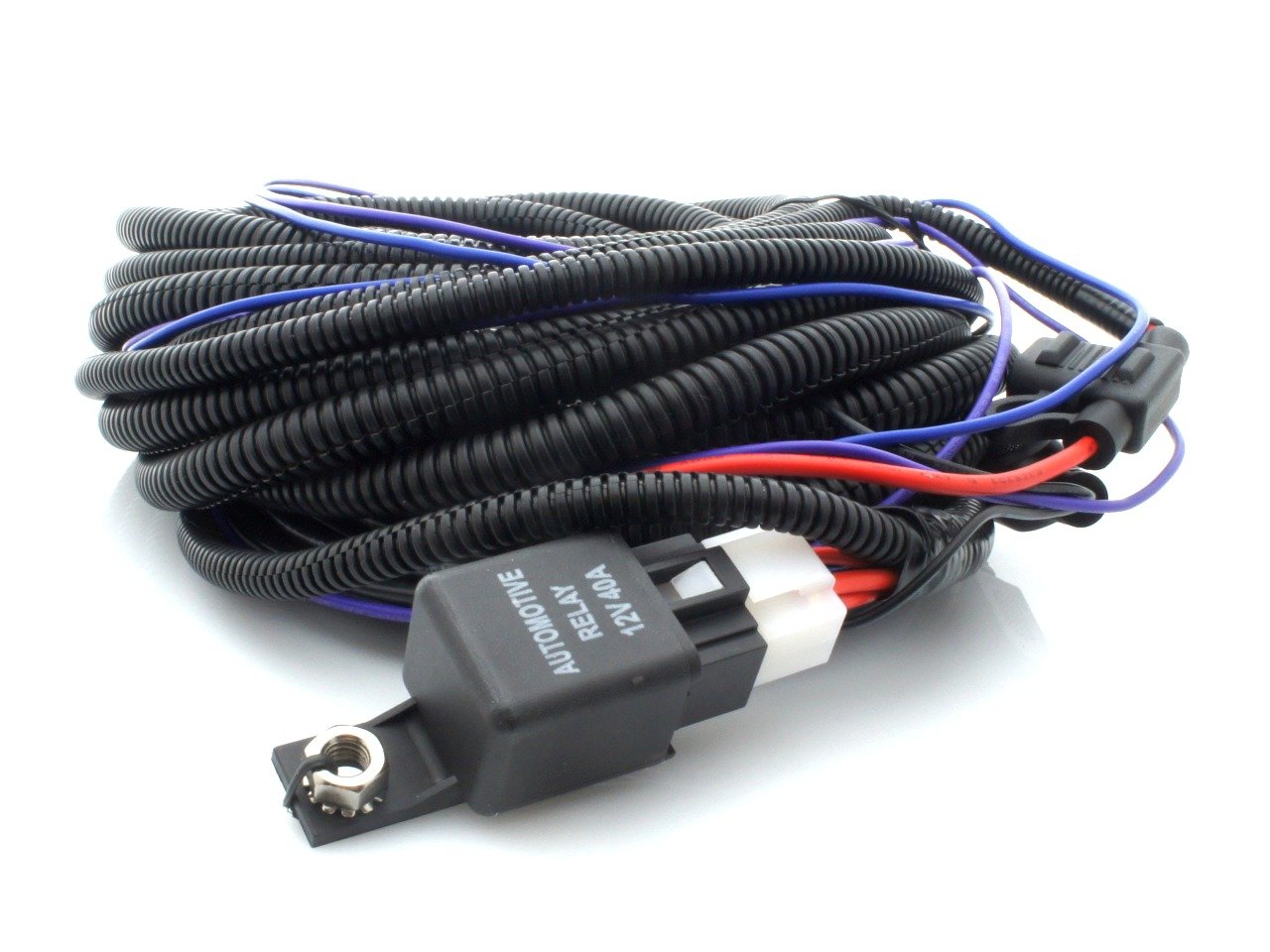

Harness:



Pin switch:


Lights
The lights for this kit were designed from the ground-up and are specifically geared for bed lighting. The aluminum housing is very durable and the LEDs are pitched at an angle to direct light into your bed and not into your fender well. The kit comes with a wire hider that matches the geometry of the light — so that the whole kit just looks like a little beveled piece of moulding running under your bed rail. Note these are prototypes without the final smooth powder coating and premium lens:





Compatibility
The kit works with 3rd Gen DC Tacomas with or without factory bed lighting. If you install this kit without the factory bed lighting kit it’ll function like it should from the factory + some. The kit also works on the previous generation Tundra (2010-2021). I made the harness a little long to accommodate the big boy long bed crew cab. We will make a separate kit for the 4th Gen Tacoma and current Gen Tundra shortly after the 4th Gen drops — I’ve already started dissecting what I can.

Ordering -- Pre-orders are currently live!
Kits will retail for $220. Each kit includes:

• 4x Bed Lights
• 1x Extra-long relay harness that mounts behind the tail light w/ a supplied nut
• 1x Plug-and-Play cargo light harness that plugs into the OEM cargo light switch
• 1x Roll of wire hider with 3M adhesive (roll is long enough to cut as you prefer)
• 1x Pin-switch with factory-style grommet to mount by the tailgate
• 1x Pack of zip-ties

You can now pre-order from these vendors!

• VLEDS (direct)
• Hotshot Offroad
• TacomaBeast (they will have a custom-branded kit released at the same time)

Installed Photos (Prototypes; more coming):


Installation Instructions
Click here



@memario1214
