U-Joint - I'm Confused...

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Knute, Jan 3, 2021.

  1. Jan 3, 2021 at 8:42 AM
    #1
    Knute

    Knute [OP] Well-Known Member

    Joined:
    Aug 13, 2020
    Member:
    #337515
    Messages:
    5,149
    Gender:
    Male
    Vehicle:
    '06 4.0L Tacoma TRD Sport
    Stock, 4WD, Access Cab, White,
    '06 Tacoma, 4WD, Automatic, 110 kmiles, questionable service, PO lived on gravel road.

    Looking to replace ALL U-joints, possibly Carrier Bearing. I believe a total of 5 joints.

    RockAuto lists 2 different DANA/Spicer U-joints. Different fitment dimensions.
    Front shaft 5-1310-1X
    Rear shaft 5-1330-1X

    I have read threads indicating the U-joint is the same part for both shafts.

    Please offer a clue as to correct parts.....

    @gearcruncher .....can you clarify?

  2. Jan 3, 2021 at 8:48 AM
    #2
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    7,170
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    I believe the only difference is where the grease zerk is placed . Some grease zerks are in the u-joint cap and some zerks are on center trunnion .

    Some guys prefer the grease zerk on the trunnion as its hidden and less chance of getting torn off during wheeling

    Some guys prefer the grease zerk on the cap making it easier to grease at every oil change .

    Some guys prefer non greaseable saying they are stronger because there is no hole drilled through the center . We already know from posts here at Tacoma World not to go back to this style of universal joint . They do not last . Even though they are sealed , water finds a way in and you cant force the water out with fresh grease like you can with a flush style joint

    Last edited: Jan 3, 2021
    Gearheadesw likes this.
  3. Jan 3, 2021 at 8:54 AM
    #3
    Knute

    Knute [OP] Well-Known Member

    Joined:
    Aug 13, 2020
    Member:
    #337515
    Messages:
    5,149
    Gender:
    Male
    Vehicle:
    '06 4.0L Tacoma TRD Sport
    Stock, 4WD, Access Cab, White,
    Both parts have the zerk in the end cap.

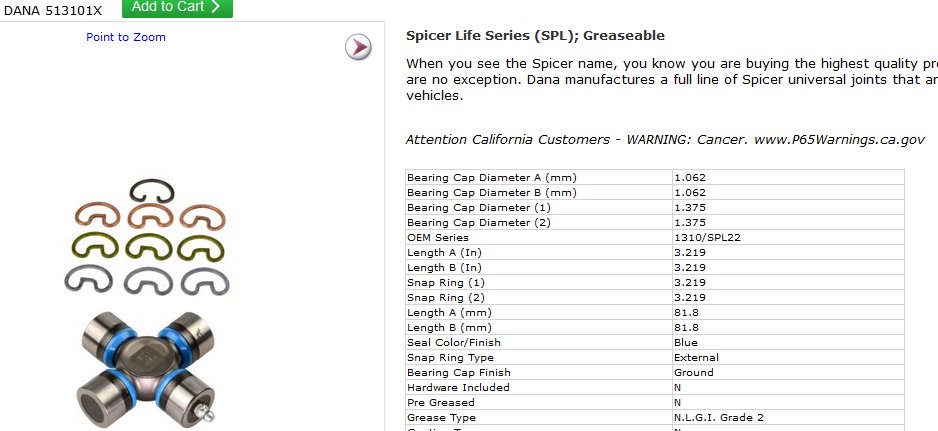

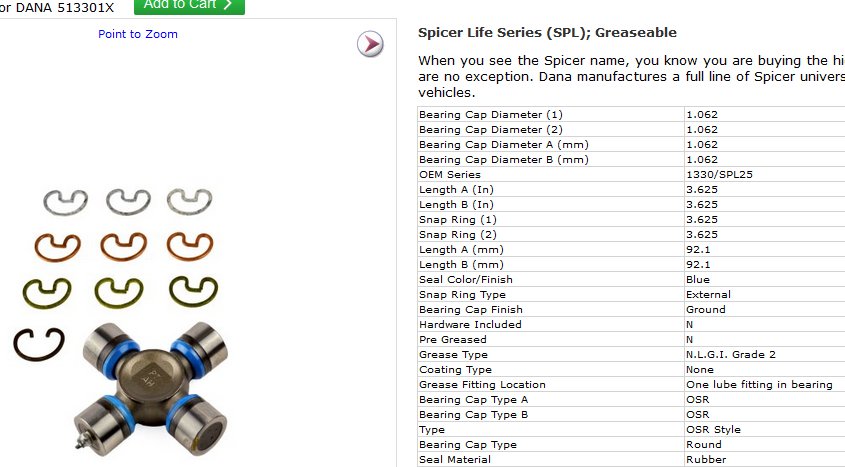

    The fitment dimensions are different between front and rear shaft. Specifically, Bearing Cap Diameter and Length

    Front shaft


    Rear Shaft.

  4. Jan 3, 2021 at 8:55 AM
    #4
    CygnusX191

    CygnusX191 Gangster of Boats

    Joined:
    Nov 29, 2016
    Member:
    #203575
    Messages:
    18,808
    Gender:
    Male
    First Name:
    Timm
    St. Louis, MO
    Vehicle:
    2018 TRD Sport Access Cab M/T, 2017 TRD OR DCSB
    So. Many. Stickers.
    Looks to me like you've already figured out that they're "different".... So what's the issue? Order the specific ones to your application And be done with it.

  5. Jan 3, 2021 at 8:58 AM
    #5
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,489
    The 1330 is bigger than the 1310


    69L46Vert and CygnusX191 like this.
  6. Jan 3, 2021 at 9:04 AM
    #6
    Knute

    Knute [OP] Well-Known Member

    Joined:
    Aug 13, 2020
    Member:
    #337515
    Messages:
    5,149
    Gender:
    Male
    Vehicle:
    '06 4.0L Tacoma TRD Sport
    Stock, 4WD, Access Cab, White,
    @CygnusX191 Yes, I've figured out the parts are different. The doubt comes from other information indicating the same part fits both shafts.

    So is RockAuto info messed up or is the other information messed up?


    If I get 5-1310-1X (5 qty) will it be too short for the rear shaft?
    If I get 5-1330-1X (5 qty) will it be too long for the front shaft?

    Do the shafts require different parts?
    Front 5-1310-1X (2 qty)
    Rear 5-1330-1X (3 qty)

  7. Jan 3, 2021 at 9:05 AM
    #7
    gearcruncher

    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    7,170
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd

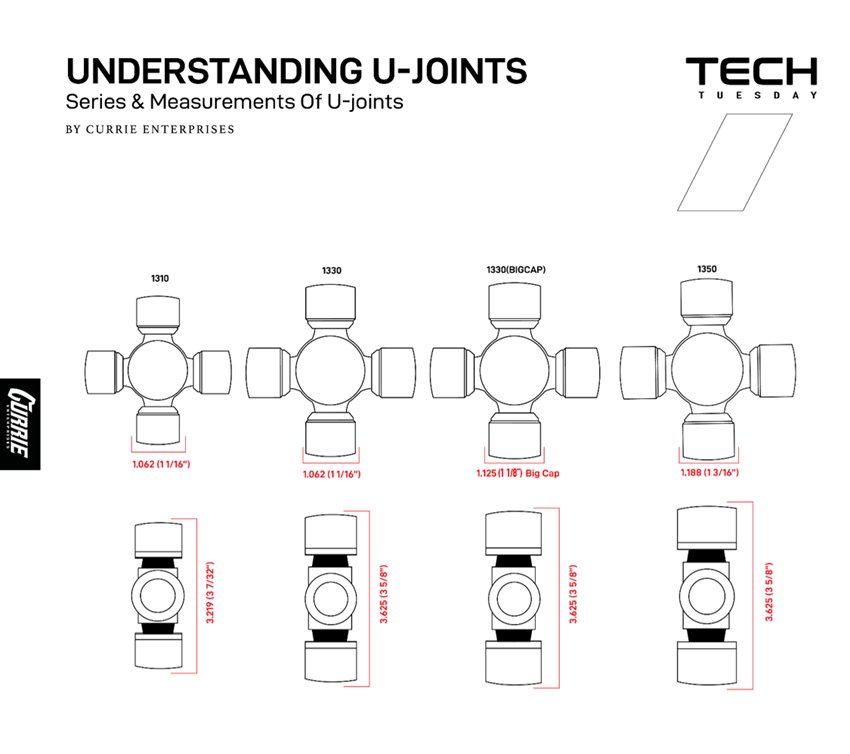

    the 3 on the rear are larger than the 2 on the front

    [​IMG]

    [​IMG]

    Last edited: Jan 3, 2021
    fixnfly and CygnusX191 like this.
  8. Jan 3, 2021 at 9:09 AM
    #8
    Knute

    Knute [OP] Well-Known Member

    Joined:
    Aug 13, 2020
    Member:
    #337515
    Messages:
    5,149
    Gender:
    Male
    Vehicle:
    '06 4.0L Tacoma TRD Sport
    Stock, 4WD, Access Cab, White,
    @gearcruncher

    Ok. Great!! :thumbsup: Thank you. :D:D

    RockAuto has correct information.:woot::woot:


    <edit>
    Interesting......the chart has no information about the joint for the front shaft. The "AU" diagram shows 4 joints only......

    Last edited: Jan 3, 2021
    CygnusX191 and gearcruncher like this.
  9. Jan 3, 2021 at 9:30 AM
    #9
    Rob MacRuger

    Rob MacRuger Well-Known Member

    Joined:
    Apr 22, 2017
    Member:
    #216950
    Messages:
    341
    Gender:
    Male
    Vehicle:
    06 4X4 4.0 AT AC
    There is a TSB replacing the 3 rear U joints.

    CygnusX191 likes this.

Products Discussed in
