TVIP Upgrade to stock RS3200 alarm system (2003-2004)

Discussion in '1st Gen. Tacomas (1995-2004)' started by ThunderOne, Dec 16, 2017.

  1. Dec 16, 2017 at 7:28 AM
    #1
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    EDIT: I’ve decided to just add the OEM glass break sensor to my rs3200 system. It looks like a simple plug and play installation.
    Part number 08586-04820 is basically plug and play for the 03-04 models.
    I paid about $110 for it through @gunny1005 at Camelback in Dec 2017.

    Scroll through thread for more info

    Install PDF
    https://www.parksoffroad.com/tacomamods/miscinfo/taco2003rs3200plus.pdf

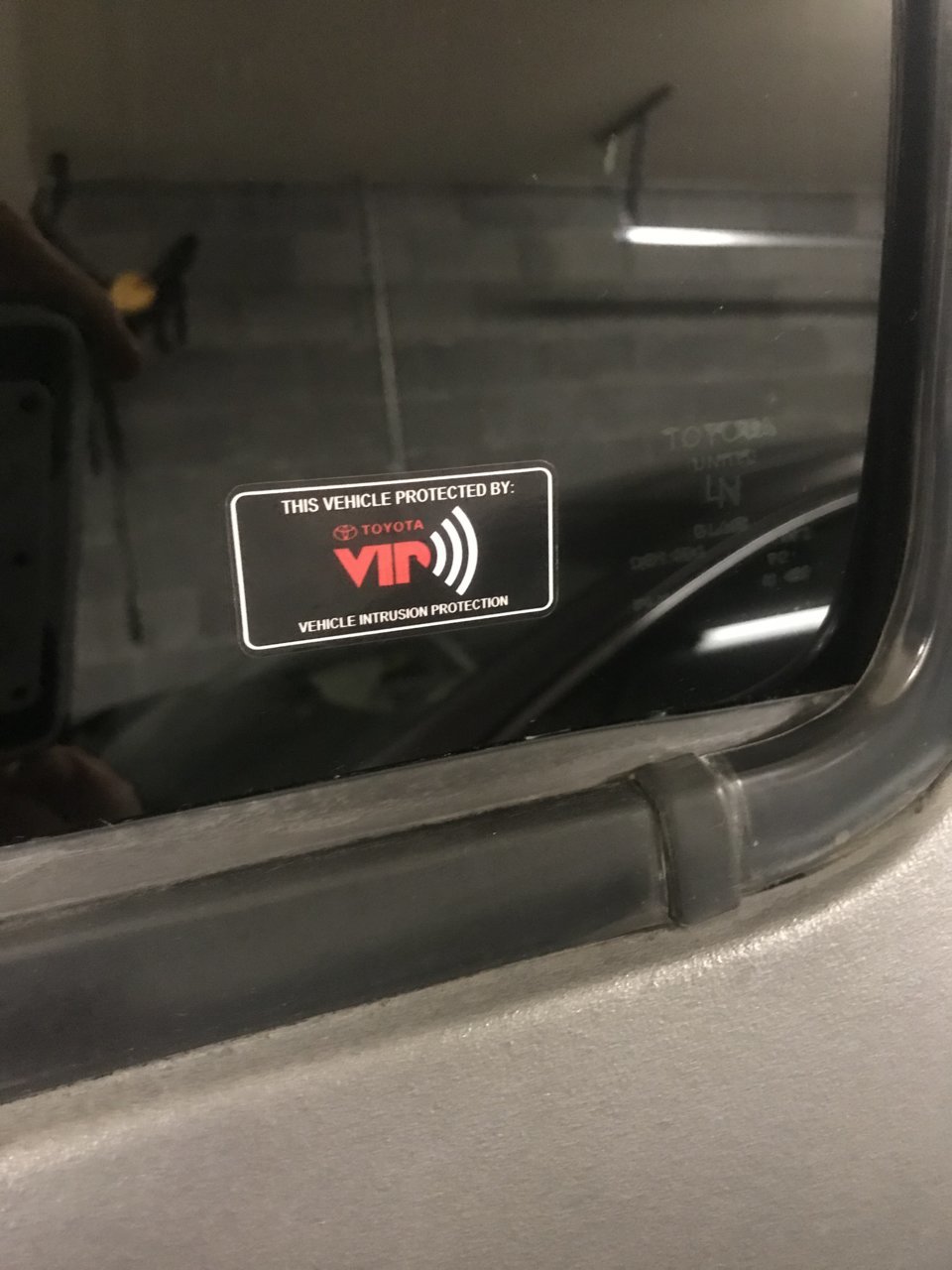

    Here it is installed:


    Stickers made by @CBoy808
    (couldn't use the OEM supplied stickers since they go on the inside and my windows are tinted.)


    Last edited: Feb 25, 2019
  2. Dec 16, 2017 at 11:21 AM
    #2
    DrZ

    DrZ Well-Known Member

    Joined:
    Dec 14, 2014
    Member:
    #144262
    Messages:
    1,459
    Gender:
    Male
    Mesa, AZ
    Vehicle:
    96 2.4L 5-speed
    Did you somehow have the 3200 system installed without a glass break sensor? Was it installed just for the remote lock/unlock feature?

    The sensitivity of the original glass break sensor can be adjusted.

  3. Dec 16, 2017 at 9:08 PM
    #3
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    Yes the 2003-2004 comes from the factory with the RS3200 but only for the keyless entry functions, I.e it is a stripped down unit. You had to add the GBS separately.

    hpidriver and DrZ[QUOTED] like this.
  4. Dec 18, 2017 at 7:38 AM
    #4
    Greensystemsgo

    Greensystemsgo 1 owner with clean car fox.

    Joined:
    Jun 13, 2011
    Member:
    #58216
    Messages:
    3,691
    Gender:
    Male
    First Name:
    Dirty Nickers
    Peoria, AZ
    Vehicle:
    18 year old black taco...
    Bone Stock.
    Factory didn't install the RS3200 afaik, the dealer did. That is why some systems were lacking the GBS, and the majority of them have questionable install methods.

    Even if you do know what pins you put out, it will be a question of what does the original unit report? Just a quick blip of voltage? Or some sort of resistance? Or is it pulse modulation? Might be easiest to just grab a unit from a junkyard. Just my 2cents, good luck.

    cruiserguy likes this.
  5. Dec 18, 2017 at 7:40 AM
    #5
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    The 2003-2004 models did come standard with keyless using a stripped down RS3200 module, I believe pre-2003 they were dealer or port installed. That being said, Gunny can order me the "TVIP Upgrade" kit (08586-04820) which apparently is not discontinued after all, plugs right up to the half-naked RS3200 that I have now to make it a full blown alarm system. I'm going to order and will report back when I begin install.

    cruiserguy likes this.
  6. Dec 18, 2017 at 7:51 AM
    #6
    Greensystemsgo

    Greensystemsgo 1 owner with clean car fox.

    Joined:
    Jun 13, 2011
    Member:
    #58216
    Messages:
    3,691
    Gender:
    Male
    First Name:
    Dirty Nickers
    Peoria, AZ
    Vehicle:
    18 year old black taco...
    Bone Stock.
    Good deal, good luck!

  7. Dec 22, 2017 at 11:02 AM
    #7
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD

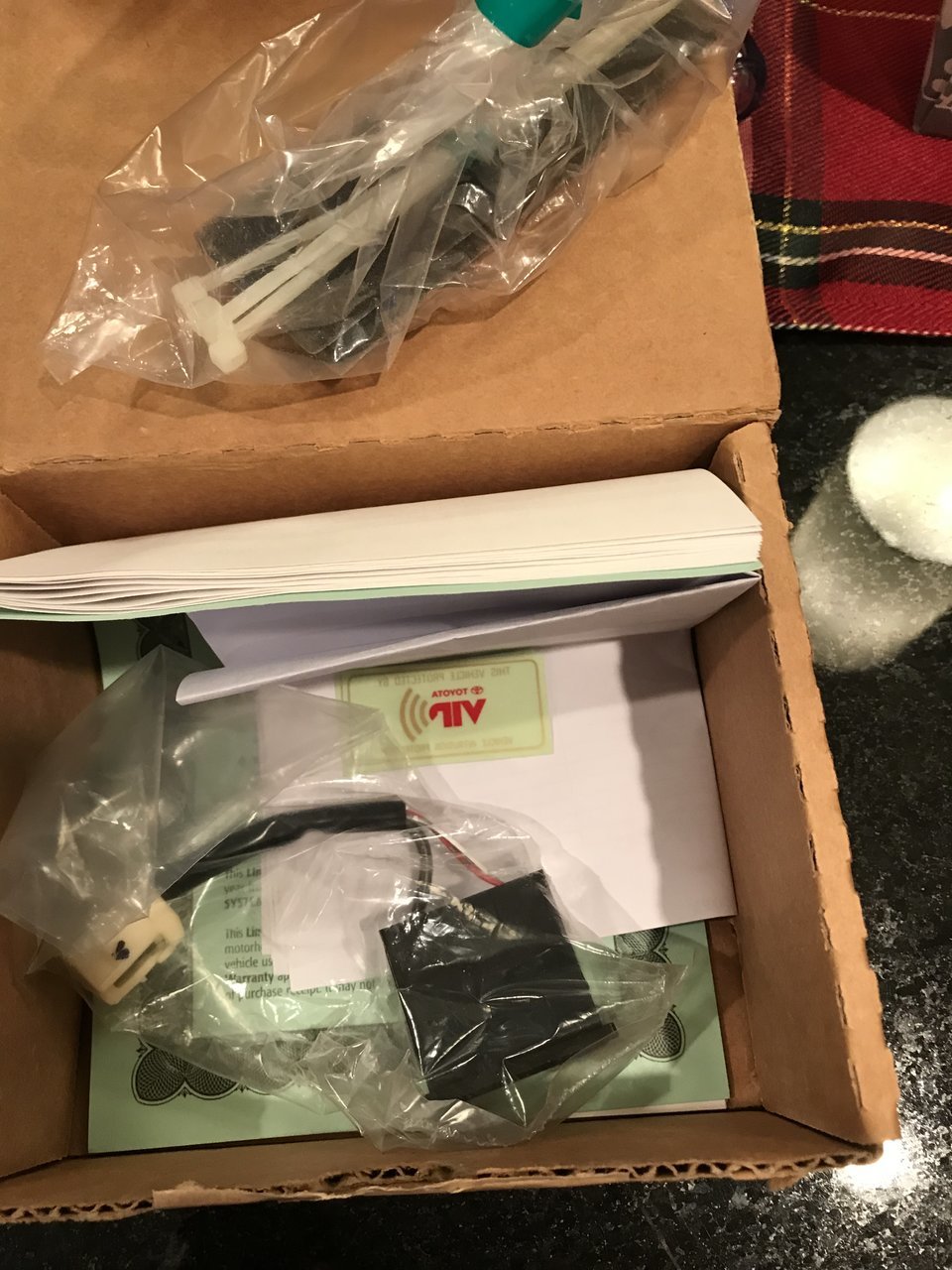

    Got my kit today. It pretty much just has stickers (which I won’t be able to put on due to my tint), a glass break sensor, and some foam sticky and zip ties


    OneWheelPeel likes this.
  8. Dec 22, 2017 at 11:33 AM
    #8
    Greensystemsgo

    Greensystemsgo 1 owner with clean car fox.

    Joined:
    Jun 13, 2011
    Member:
    #58216
    Messages:
    3,691
    Gender:
    Male
    First Name:
    Dirty Nickers
    Peoria, AZ
    Vehicle:
    18 year old black taco...
    Bone Stock.
    Well that is pretty awesome. I used to have the dealer install directions somewhere if you don't. I wish I would of installed mine myself, the dealer in ABQ that did mine for the previous owner used alot of scotch locks.

  9. Dec 22, 2017 at 1:24 PM
    #9
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,288
    Gender:
    Male
    I wish I had the wiring diagrams for mine but I opt to get an alarm with remote start.

    Yeah it should be possible to add aftermarket sensors if you know which are the trigger wires on the rs3200. I've seen this done on factory acura tl cars. They added dual shock sensors and a bunch of other sensors to create a full secured system.

  10. Dec 22, 2017 at 3:02 PM
    #10
    Krazyoakes

    Krazyoakes Well-Known Member

    Joined:
    Jan 7, 2017
    Member:
    #206902
    Messages:
    216
    Gender:
    Male
    First Name:
    Isaac
    Eugene, OR
    Vehicle:
    01 Tacoma 4x4
  11. Jan 2, 2018 at 12:00 PM
    #11
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:

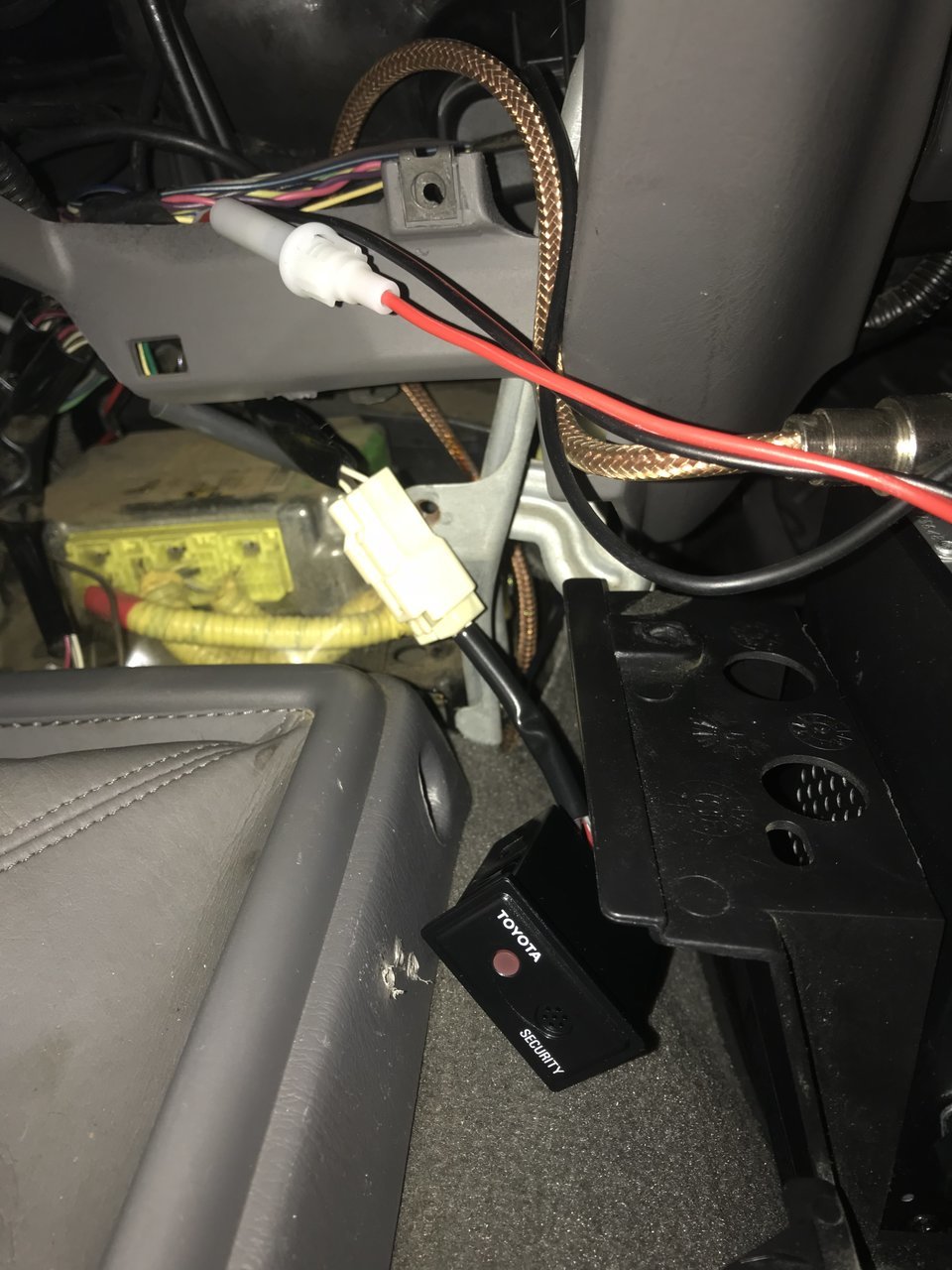

    1ST GEN OR GTFO
    Toyota NERD
    Here it is, installed. However, can't seem to trip it by tapping on glass, shaking keys, anything. Any ideas how to adjust sensitivity?


  12. Jan 2, 2018 at 12:11 PM
    #12
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    Never mind. Adjustment is on the backside of the brain. It looked like it was set on 1. I put it on 7. Testing now.


  13. Jan 2, 2018 at 12:21 PM
    #13
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    Had to max it out all the way to 11 before the key tap test would work.

    Works well enough on 10. I'll leave it there and see if it falses a lot or not.

    Last edited: Jan 2, 2018
  14. Jan 2, 2018 at 1:01 PM
    #14
    License2Ill

    License2Ill Woke like a Coma Toyota Tacoma

    Joined:
    May 20, 2012
    Member:
    #79174
    Messages:
    2,253
    Gender:
    Male
    First Name:
    Ian
    It's a dry heat thou, AZ
    Vehicle:
    2004 SC'd 5VZ DC 5spd 4x4 TRD.GOV
    Bailing wire & Duct tape
    How much did it cost for the upgrade unit?

  15. Jan 2, 2018 at 1:07 PM
    #15
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    $104 and change from Gunny.
    If you plan on doing this, you'll have to unplug a one-pin wire to fully activate the alarm. It's usually under the steering wheel so you'll have to remove the trim under the steering wheel to get to it. You don't even need to have the GBS to do the mod. A lot of people call it the "free alarm mod".

    Last edited: Mar 29, 2018
    License2Ill[QUOTED] likes this.
  16. Jan 2, 2018 at 1:20 PM
    #16
    License2Ill

    License2Ill Woke like a Coma Toyota Tacoma

    Joined:
    May 20, 2012
    Member:
    #79174
    Messages:
    2,253
    Gender:
    Male
    First Name:
    Ian
    It's a dry heat thou, AZ
    Vehicle:
    2004 SC'd 5VZ DC 5spd 4x4 TRD.GOV
    Bailing wire & Duct tape
    Yeah, the free alarm mod was my first mod.

    I'm wanting to get the GBS.

    Well thanks for the thread. Hopefully it'll keep the crackheads from your new radar detector. :)

    ThunderOne[OP] likes this.
  17. Jan 2, 2018 at 1:35 PM
    #17
    tacotime1

    tacotime1 Well-Known Member

    Joined:
    Apr 8, 2010
    Member:
    #34849
    Messages:
    562
    Gender:
    Male
    I’ve got the sensor if you’re interested

    License2Ill[QUOTED] likes this.
  18. Jan 2, 2018 at 2:38 PM
    #18
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    We will see. Truck lives in the garage most of the time. but I'll be less paranoid about parking it outside now.. Only reason it was out front is my gf and I were working on a table project for several weeks :rolleyes:


  19. Jan 3, 2018 at 2:19 PM
    #19
    License2Ill

    License2Ill Woke like a Coma Toyota Tacoma

    Joined:
    May 20, 2012
    Member:
    #79174
    Messages:
    2,253
    Gender:
    Male
    First Name:
    Ian
    It's a dry heat thou, AZ
    Vehicle:
    2004 SC'd 5VZ DC 5spd 4x4 TRD.GOV
    Bailing wire & Duct tape
    I was trying to find the 4p harnes ( the one that plugs into the sensor).

    Where was yours located? Can't seem to find mine.

  20. Jan 3, 2018 at 2:29 PM
    #20
    ThunderOne

    ThunderOne [OP] Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,035
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD

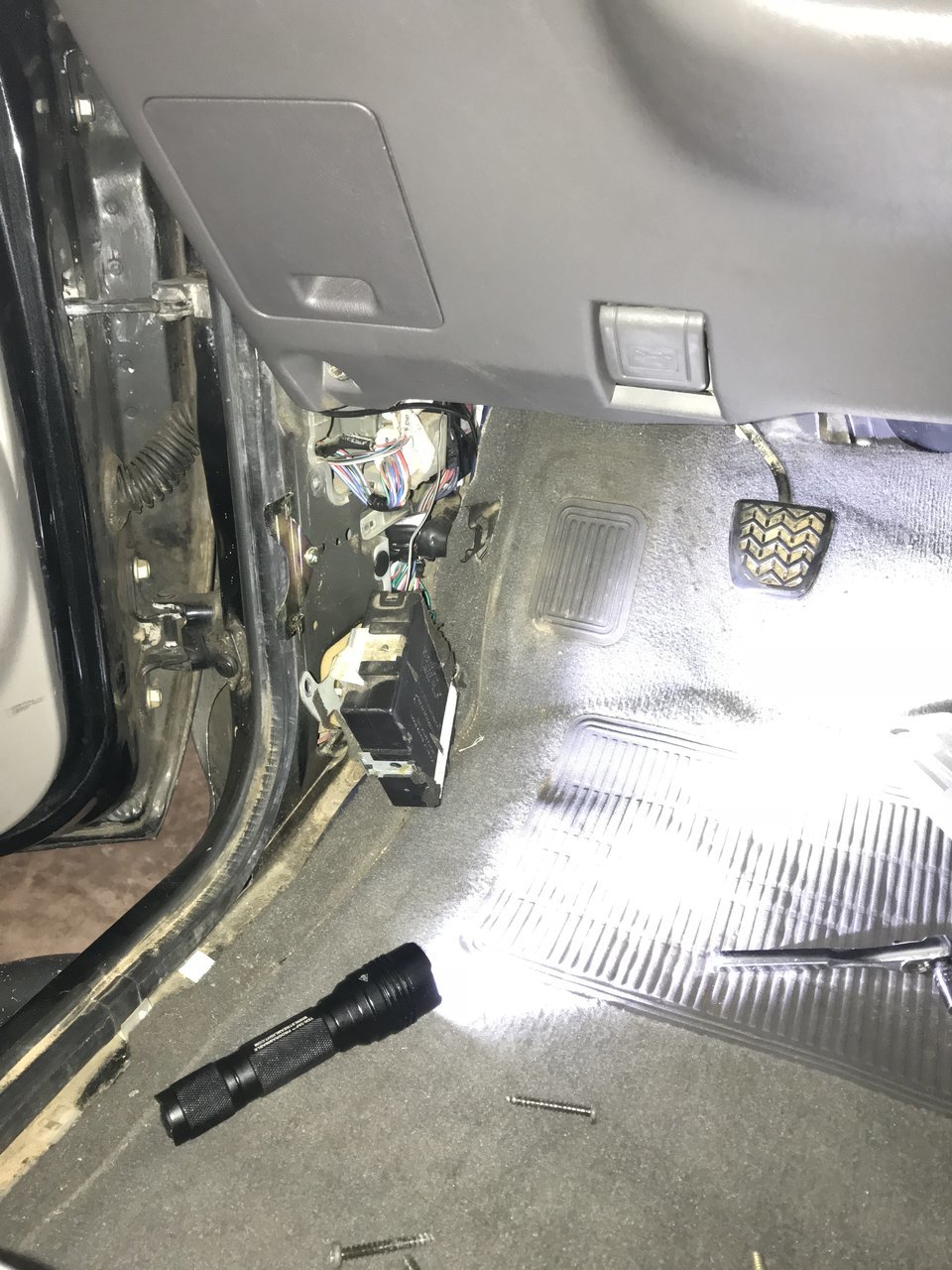

    You will be able to "see" it be removing the lower plastic trim, the one with the two power outlets. For me, it was directly behind the black bracket behind the ash tray.

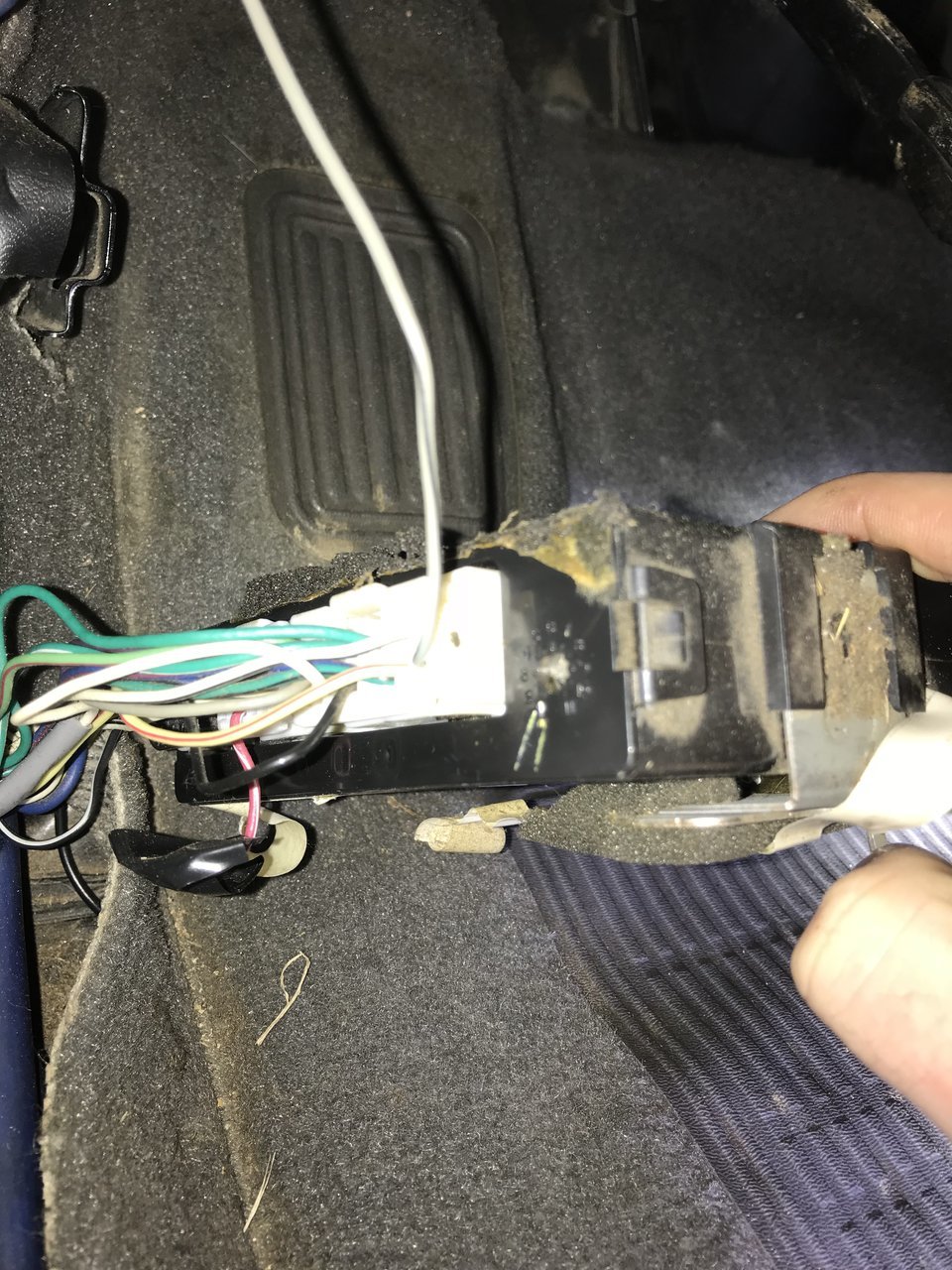

    In order to get enough access to the plug to remove the white tape wrapped around it, I had to remove the whole center trim piece to get to it. Even so, I could barely fit my hands in enough to unwrap the tape to pull the plug out. I was very close to just slicing the tape with an exacto knife, but eventually it played nice.

    License2Ill[QUOTED] likes this.
