    Quick Links: My Build MacToma's DCLB Off-Road RisingWithoutWings - 2016 TRD Off Road-Build Tpp4's SR: Don't Call It a Build RPain's 2016 4x4 TRD Sport that Off-Roads Build ALI3N’s Sporty City Slicker Build, Beer, & BS

Trident904 No Longer Owns a Tacoma so this thread is closed thread

Discussion in '3rd Gen. Builds (2016-2023)' started by Trident904, Jul 14, 2017.

Page 1 of 46
  1. Jul 14, 2017 at 10:11 AM
    #1
    Trident904

    #1
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner
    And so it begins...

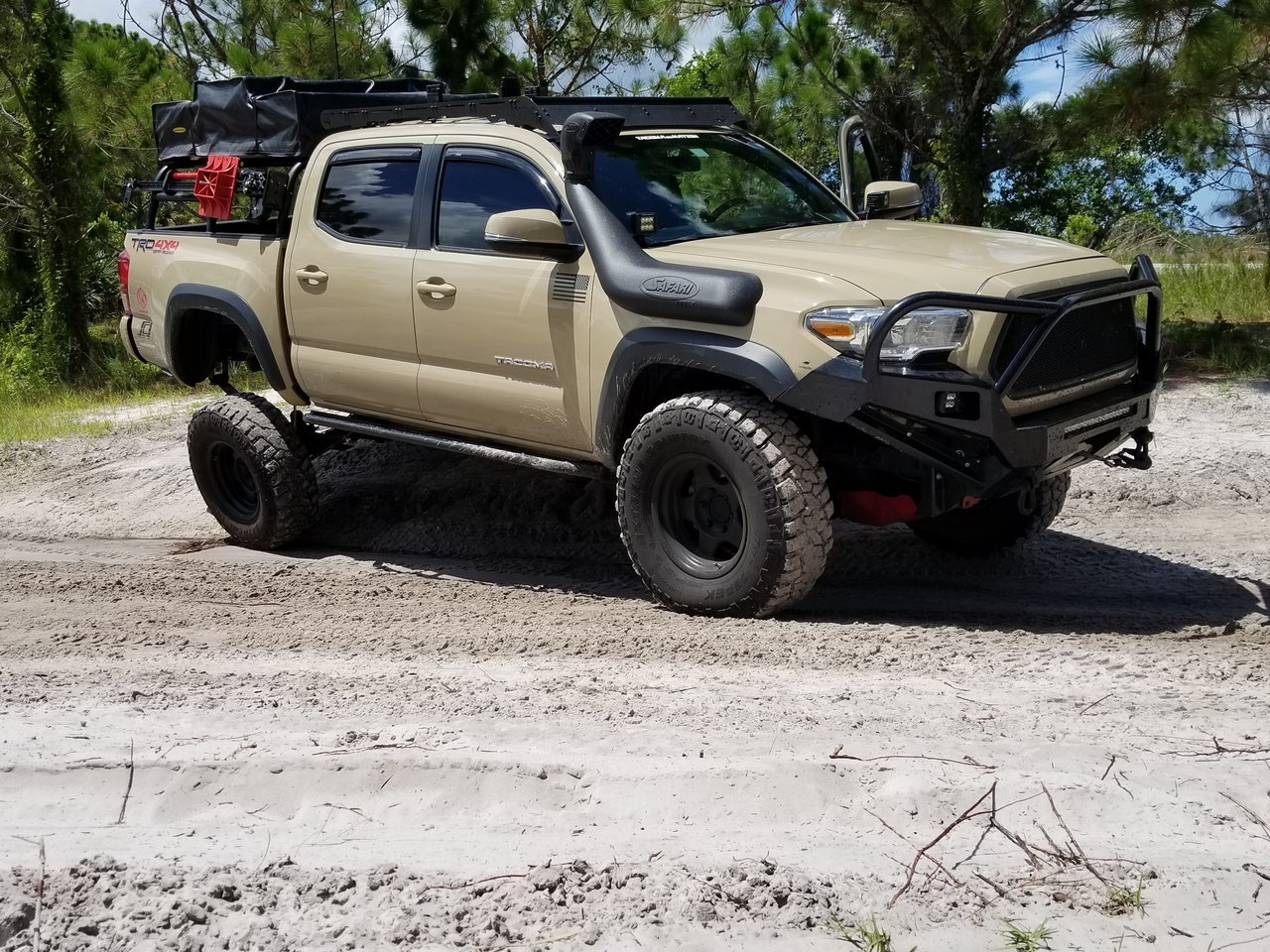

    How she sits today


    Current Parts List:

    Suspension -
    Front: ADS Extended Travel Coilovers with Resi
    Total Chaos UCA's
    Rear: Chevy 63" leaf springs (3+1 pack with overload removed) with shock relocation and Bilstein 5125 14"

    Wheels / Tires -
    SCS SR8’s 16x8
    35s (315/75R16) Dick Cepek Extreme Country

    Grill-
    TRD Pro

    Intake-
    ARB Safari Snorkel
    AFE Dry Filter (Drop in)

    Performance-
    Orange Virus Tune
    4.88s
    URD Stage 2 Clutch
    URD TORQUE-U HD Flywheel

    Armor-
    SFAB sliders (welded on)
    @allenfab custom front bumper
    SOS Offroad HC Rear bumper
    @Mobtown Offroad full skids

    Gear
    Uniden Bearcat 880 CB
    Firestik 4' Antenna
    C4fab antenna mount
    60" Hi-Lift
    Smittybilt X20 w/Synthetic Rope
    Factor55 Flatlink
    Rough Country 20" Light Bar in bumper
    Rough Country LED Pods and CBI Ditch Light brackets
    Instant Air supply 10lb CO2 Bottle

    COMING SOON

    Nothing. Absolutely nothing.


    SAS Parts List


    Parts List for Chevy 63 Swap

    Overall, I spent about $900 in parts and another $400 in labor to do this swap.

    RuffStuff R1653 Long Curved Shock Tabs (PAIR)
    RuffStuff Ideal 63" Chevy Spring Swap Kit
    RuffStuff Frame Outriggers
    Low Range Off Road Ford Upper Front Shock Mount Tower
    63" Chevy Leaf Springs
    Bumpstop Extenders
    Bilstein 5125 (33-185576)

    Traded the 2013 Pyrite Mica Pre-Runner for a 2016 TRD OR 6MT. Good to be back in a 4WD. Couldn't have asked for a better deal on this truck.

    Last edited: Jul 1, 2019
    Trident904, Jul 14, 2017
    #1
    TacoTRD78, mhowe441, 4x4Lunchbox and 26 others like this.
  2. Jul 16, 2017 at 9:13 AM
    #2
    Trident904

    #2
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner
    63 Swap in progress. All stock components were cut off and new spring hangers and shock towers were welded in.

    20170715_092209.jpg 20170715_092220.jpg 20170715_100051.jpg 20170715_112404.jpg
    20170715_160200.jpg 20170715_193330.jpg 20170715_194237.jpg 20170715_194239.jpg

    Last edited: Jul 16, 2017
    Trident904, Jul 16, 2017
    #2
    casper_sgv, rmepilot, Manfred and 19 others like this.
  3. Jul 16, 2017 at 9:33 AM
    #3
    Timbo's Customs

    #3
    Timbo's Customs Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110078
    Messages:
    7,258
    Gender:
    Male
    First Name:
    Timothy
    Lakeland FL
    Vehicle:
    2019 f250 6”lift 37s deleted 1997 T4r, tons and 4ds
    1997 t4r has super duty axles, 5.13s locked front and rear. 3 link front with 14" kings. Rear 63s.
    :hattip: 63 swap and shock relocation done in 13 hours. Also rear brake lines. That's with a hour break to go get a drill bit. Brian we need to go in business man

    Timbo's Customs, Jul 16, 2017
    #3
    Biscuits, Fortunt1, boogie3478 and 9 others like this.
  4. Jul 16, 2017 at 9:43 AM
    #4
    Trident904

    #4
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner
    Hahahahaha, I'm in.

    Trident904, Jul 16, 2017
    #4
    ChadsPride and Timbo's Customs[QUOTED] like this.
  5. Jul 16, 2017 at 9:49 AM
    #5
    AWDDude

    #5
    AWDDude Well-Known Member

    Joined:
    May 2, 2017
    Member:
    #218003
    Messages:
    206
    Vehicle:
    2017 Tacoma TRD Off Road DCSB, QuickSand
    Awesome axle swap!!! what did you do to get the prop shaft on the new axle? why didnt you go to an axle with rear discs?

    AWDDude, Jul 16, 2017
    #5
    ChadsPride likes this.
  6. Jul 16, 2017 at 9:50 AM
    #6
    su.b.rat

    #6
    su.b.rat broken truck

    Joined:
    Jul 30, 2016
    Member:
    #193316
    Messages:
    9,869
    so, road trip to Florida? lol

    su.b.rat, Jul 16, 2017
    #6
    ChadsPride, Timbo's Customs and Trident904[OP] like this.
  7. Jul 16, 2017 at 9:50 AM
    #7
    Trident904

    #7
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner
    Didn't swap the axle. We cut all the stock stuff off and welded new components on.

    Trident904, Jul 16, 2017
    #7
    fatfurious2, boogie3478, ChadsPride and 1 other person like this.
  8. Jul 16, 2017 at 9:59 AM
    #8
    Diablo169

    #8
    Diablo169 ROKRAPR

    Joined:
    Mar 12, 2016
    Member:
    #181079
    Messages:
    2,906
    Gender:
    Male
    First Name:
    Max
    Santa Cruz, CA
    Vehicle:
    99’ Bro-Coma’s Revenge 3RZ 345k+
    Stock
    More pics! More Pics! :bananadance::bananadance::bananadance:

    Diablo169, Jul 16, 2017
    #8
    ChadsPride and Timbo's Customs like this.
  9. Jul 16, 2017 at 10:39 AM
    #9
    Sicyota04

    #9
    Sicyota04 Slowly but surely.

    Joined:
    Jan 9, 2015
    Member:
    #145940
    Messages:
    3,539
    Gender:
    Male
    First Name:
    Morgan
    California
    Vehicle:
    04 DC 4x4
    Sicyota04, Jul 16, 2017
    #9
    ChadsPride and Timbo's Customs like this.
  10. Jul 16, 2017 at 10:51 AM
    #10
    Timbo's Customs

    #10
    Timbo's Customs Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110078
    Messages:
    7,258
    Gender:
    Male
    First Name:
    Timothy
    Lakeland FL
    Vehicle:
    2019 f250 6”lift 37s deleted 1997 T4r, tons and 4ds
    1997 t4r has super duty axles, 5.13s locked front and rear. 3 link front with 14" kings. Rear 63s.
    I've done a few :evil:

    Timbo's Customs, Jul 16, 2017
    #10
    Sandytaco14, ChadsPride and Sicyota04[QUOTED] like this.
  11. Jul 16, 2017 at 12:19 PM
    #11
    Trident904

    #11
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner

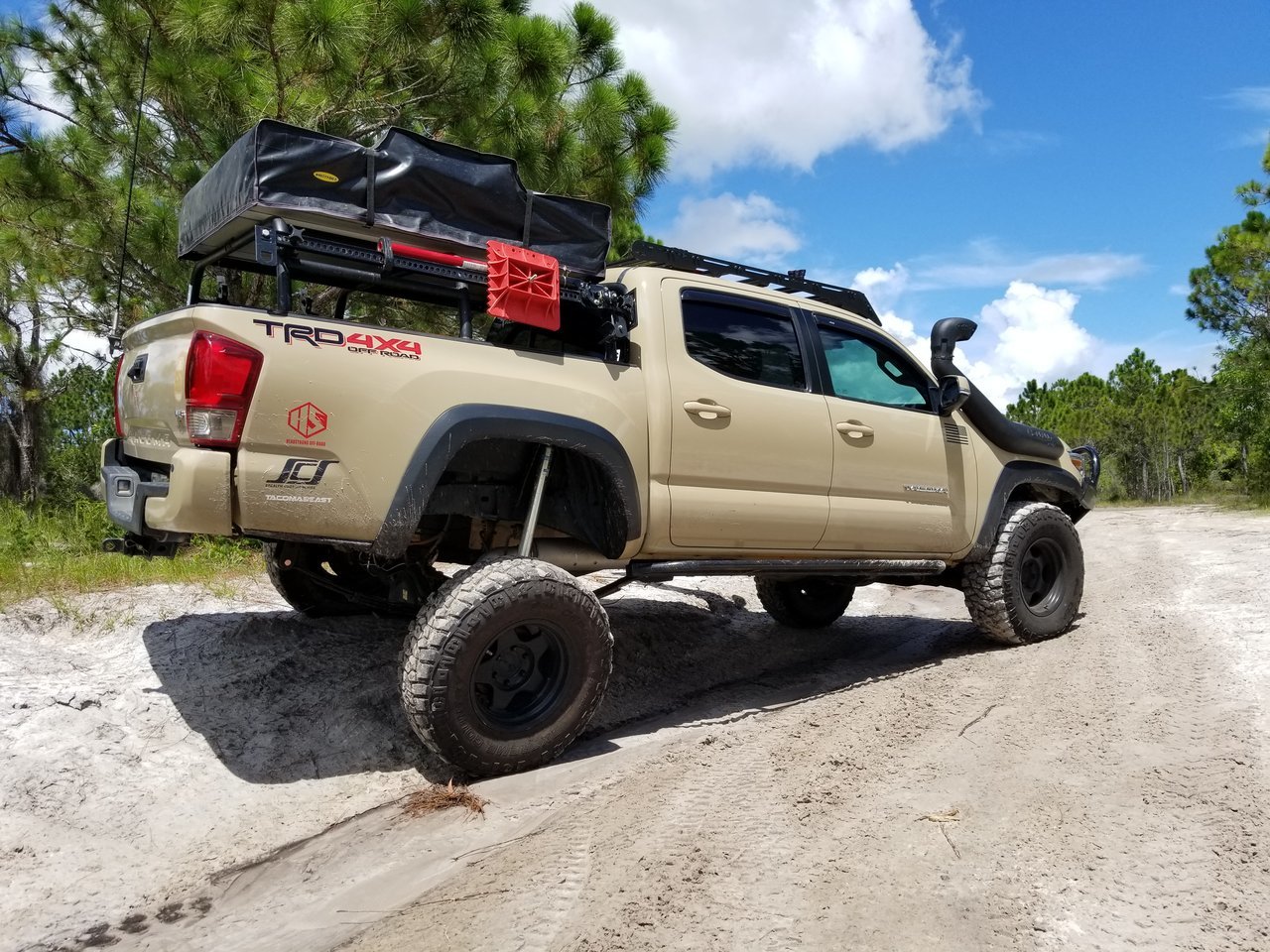

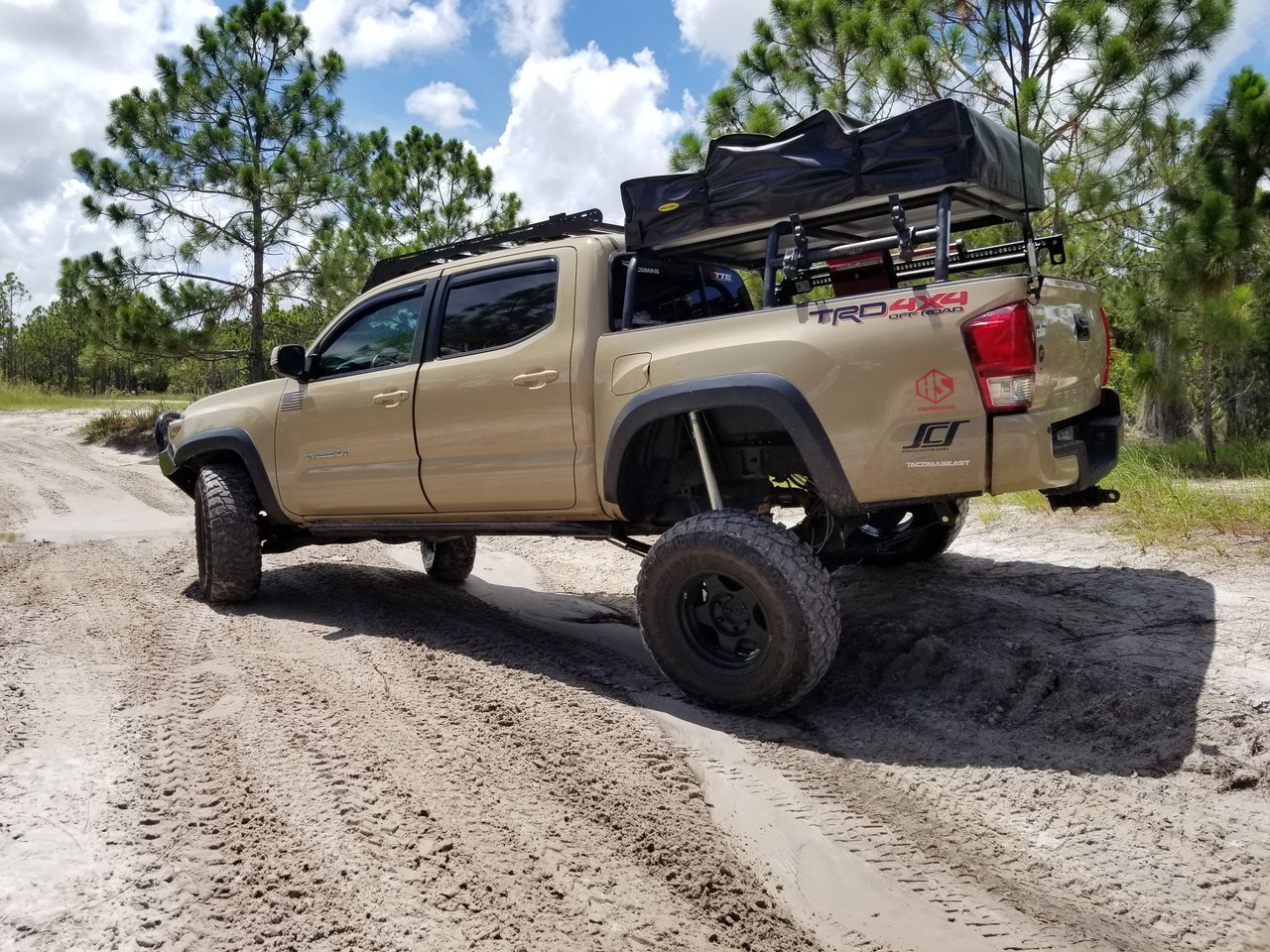

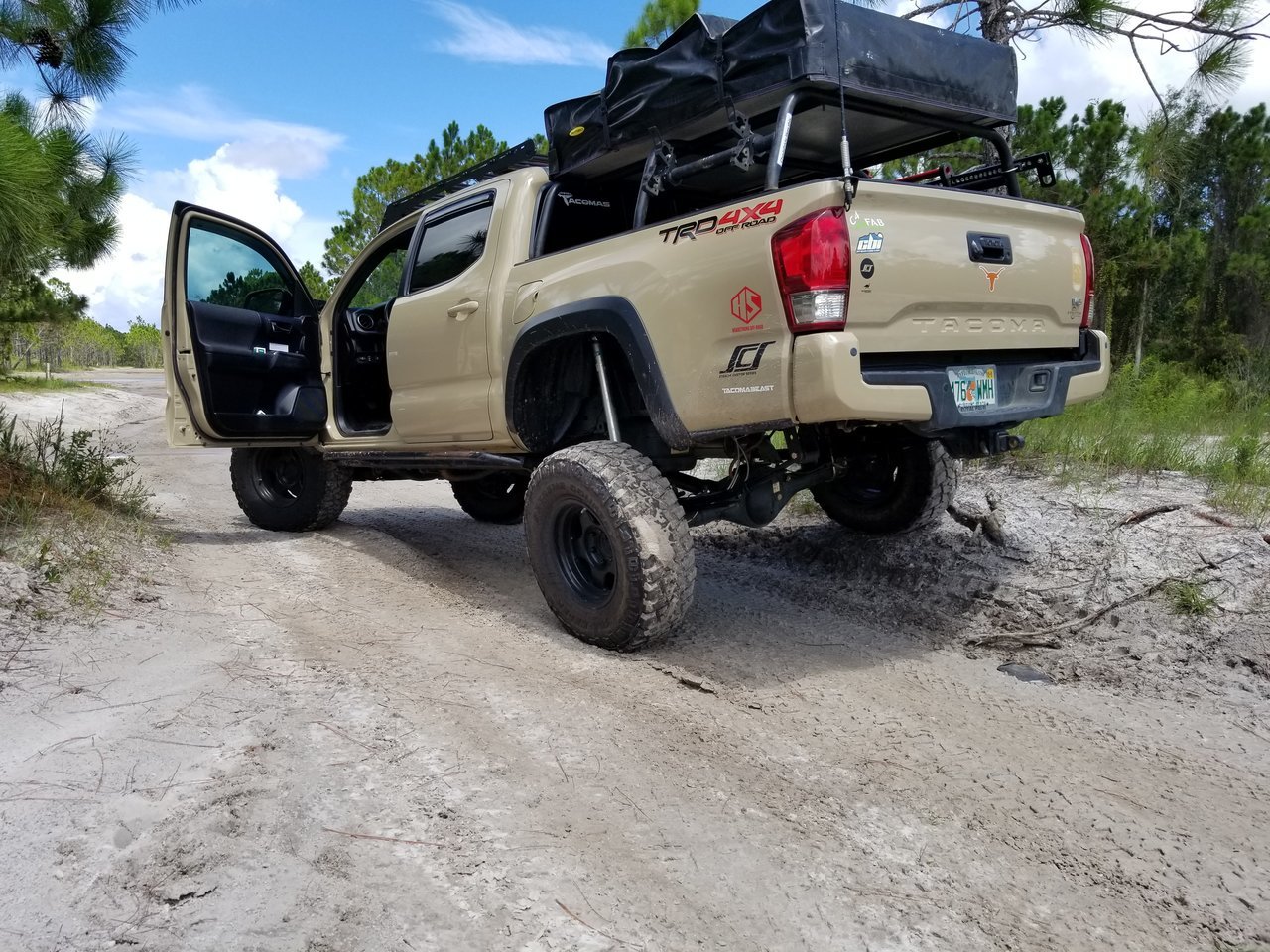

    Just a little flex. Need bigger hills down here. Loving the 63s so far.
    20170716_145702.jpg 20170716_145844.jpg 20170716_145956.jpg 20170716_150017.jpg

    Trident904, Jul 16, 2017
    #11
    Jowett, Manfred, boogie3478 and 25 others like this.
  12. Jul 16, 2017 at 12:52 PM
    #12
    DIRTT_Fish

    #12
    DIRTT_Fish Well-Known Member

    Joined:
    Oct 11, 2016
    Member:
    #199451
    Messages:
    130
    Gender:
    Male
    Vehicle:
    2017 TRD OR DCSB
    Cbi t3, 888, HD Dakar, b110, wheelers bumps,ubolt flip, spc uca, +4" rear brake lines.
    Need to find some fab shops in the panhandle area....shock relocation is so enticing.

    What rear shock did you end up with?

    DIRTT_Fish, Jul 16, 2017
    #12
    ChadsPride and Trident904[OP] like this.
  13. Jul 16, 2017 at 12:55 PM
    #13
    Trident904

    #13
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner

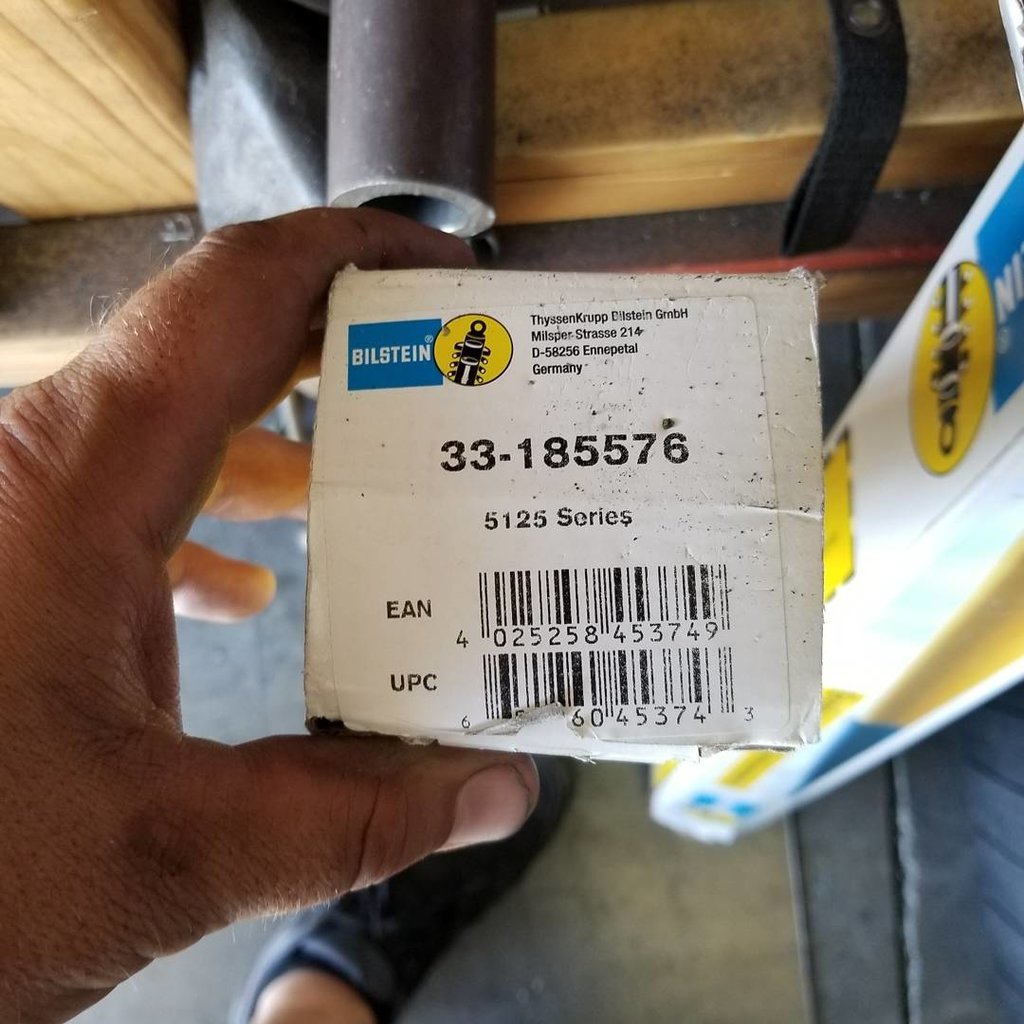

    Bilstein 5125s 14"

    Trident904, Jul 16, 2017
    #13
    mcharfauros, ARCOVT16, ChadsPride and 2 others like this.
  14. Jul 16, 2017 at 12:56 PM
    #14
    TireFire

    #14
    TireFire Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    7,623
    Olympic Peninsula
    Looks well done! ...but... what's the benefit of this over just getting a custom leaf pack from Deaver and relocate the shocks?

    TireFire, Jul 16, 2017
    #14
    ChadsPride and Trident904[OP] like this.
  15. Jul 16, 2017 at 12:59 PM
    #15
    Trident904

    #15
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner
    Longer leaf springs with shackles. Better ride quality and load bearing. These are a 3+1 leaf pack.

    Have ever looked closely at your stock spring hangers? There's not much holding them in place.

    Trident904, Jul 16, 2017
    #15
    boogie3478 and ChadsPride like this.
  16. Jul 16, 2017 at 1:00 PM
    #16
    TireFire

    #16
    TireFire Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    7,623
    Olympic Peninsula
    And what did you do for bump stops and limit straps?

    TireFire, Jul 16, 2017
    #16
    ChadsPride likes this.
  17. Jul 16, 2017 at 1:19 PM
    #17
    bullaculla

    #17
    bullaculla IKA fabrications

    Joined:
    Oct 14, 2012
    Member:
    #89002
    Messages:
    8,155
    Gender:
    Male
    Da big big island!
    Vehicle:
    2013 MGM DCSB Tacoma 4X4 TRD Off Road
    All pro 3 link SAS kit, Diamond axle, kings on 37" MTR/K
    Badass. Need to do this on my truck once the front end is complete.

    bullaculla, Jul 16, 2017
    #17
    omaguz, ChadsPride and Trident904[OP] like this.
  18. Jul 16, 2017 at 1:23 PM
    #18
    Trident904

    #18
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner
    No limit straps yet, don't think I will need them. My buddy that has them hasn't needed them yet as the springs seem to flex out before the shock bottoms.

    Bumps are wheelers super bumps.

    Trident904, Jul 16, 2017
    #18
    ChadsPride likes this.
  19. Jul 16, 2017 at 1:23 PM
    #19
    Trident904

    #19
    Trident904 [OP] Touching Drum Sets

    Joined:
    Jun 13, 2014
    Member:
    #131875
    Messages:
    5,089
    Gender:
    Male
    First Name:
    Brian
    Treasure Coast, Florida
    Vehicle:
    17 4Runner TRD OR
    Modded it so much it turned into a 4Runner
    Do it.

    Trident904, Jul 16, 2017
    #19
    ChadsPride likes this.
  20. Jul 16, 2017 at 4:01 PM
    #20
    TacoTRD78

    #20
    TacoTRD78 Well-Known Member

    Joined:
    Jul 27, 2015
    Member:
    #160390
    Messages:
    6,739
    Gender:
    Male
    First Name:
    John
    Stuart,fl
    Vehicle:
    15 tacoma trd off road
    4X Innovations Sliders Tech deck Bilstein 5100's OME 885 CB radio install Rear diff breather mod After market front bumper lights Redline hood struts Shorty antenna door seal protectors Glove box/ Center console motion light Trailer harness plug relocation mod/Edit SOS HC rear bumper Ditch mount Lights with CBI brackets morimoto fog lights
    Much love for build thread man. "@Timbo89 in my life" sounds like a pretty cool
    patch or sticker.

    TacoTRD78, Jul 16, 2017
    #20
    ChadsPride, Trident904[OP] and Timbo's Customs like this.
