  1. Dec 11, 2018 at 8:57 AM
    #21
    MY50cal

    #21
    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    4,246
    Gender:
    Male
    First Name:
    Mojo
    Camden County, NC
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.

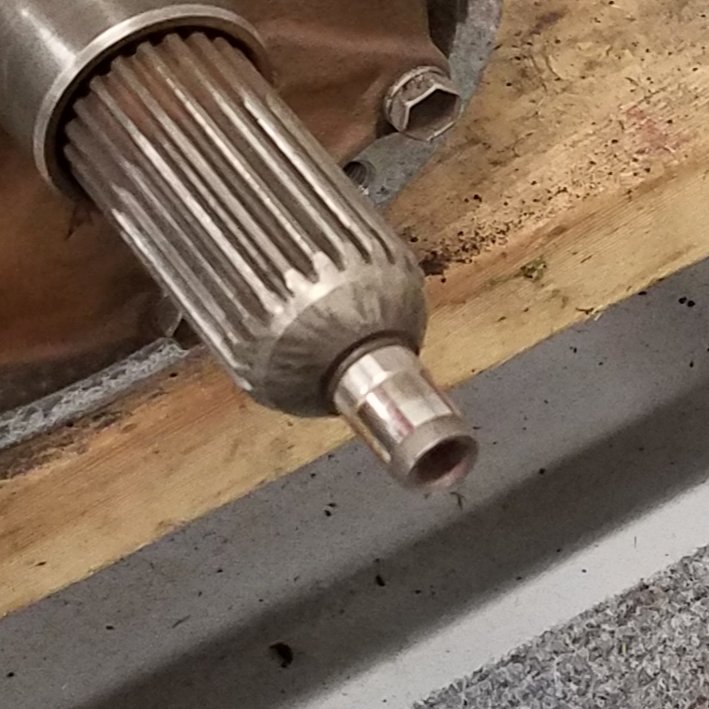

    Has anyone (@gearcruncher :boink:) come across a dimension for the R155F input shaft end, specifically where it mates the pilot bearing? Even the ID of the pilot bearing would work. Can't find anything in the FSM and my google fu is failing me.

    Mine has some obvious, but not terrible wear (@160k) and I'm concerned that it may need to be replaced or sleeved so it mates with the pilot bearing correctly. Should have noticed it earlier, but of course I didn't till after the clutch/flywheel was replaced.

    Best photo with me...

    MY50cal, Dec 11, 2018
    #21
    BassAckwards and whatstcp like this.
  2. Dec 11, 2018 at 12:08 PM
    #22
    MadTaco461

    #22
    MadTaco461 BRO runner

    Joined:
    Dec 30, 2009
    Member:
    #28470
    Messages:
    13,297
    Gender:
    Male
    First Name:
    Mike
    CA
    Vehicle:
    99 turbo 5 lug long travel
    Kinda stock

    It's all right on the first post. 0.1mm clearance. under:

    MadTaco461, Dec 11, 2018
    #22
    gearcruncher[QUOTED][OP] likes this.
  3. Dec 11, 2018 at 12:11 PM
    #23
    gearcruncher

    #23
    gearcruncher [OP] Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    7,170
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    Grab a new pilot bearing and try slipping it onto the input shaft . Does the pilot bearing wobble when you move it back and fourth ? If yes , the input shaft needs replacement . The only time the pilot bearing is in use is when you have your clutch pedal down . The spinning clutch disc is pulled away from the flywheeel and this is when the pilot bearing begins supporting the spinning clutch disc . You will hear noise when the clutch is pushed down .

    gearcruncher, Dec 11, 2018
    #23
    MY50cal likes this.
  4. Dec 12, 2018 at 5:40 AM
    #24
    MY50cal

    #24
    MY50cal ---- Tread Lightly ---- Leave No Trace

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    4,246
    Gender:
    Male
    First Name:
    Mojo
    Camden County, NC
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
    Thanks. You're close, but that's not it. I'm talking about the tip that mates with the pilot bearing. There's nothing about it in the FSM... that I see anyway.

    Good idea, thanks man. Ordered another pilot bearing, should be here Friday. In the meantime I'm going to swing by the local machine shop and see if it's possible to machine the shaft without yanking it out and fab up a little repair sleeve.

    If the shaft has to be replaced, it'll turn into a full rebuild haha... or I'll just find a low mileage one and swap it since the cost won't be much different.

    MY50cal, Dec 12, 2018
    #24
    gearcruncher[QUOTED][OP] likes this.
  5. Jan 7, 2019 at 1:19 PM
    #25
    jowybyo

    #25
    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    Can anyone confirm if a R156 will bolt up to replace a R155?

    jowybyo, Jan 7, 2019
    #25
    BassAckwards likes this.
  6. Jan 7, 2019 at 1:42 PM
    #26
    BassAckwards

    #26
    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    27,769
    Vehicle:
    2009 Tacoma AWD Turbo 2TR-FE
    BorgWarner EFR 6258
    Is the R156 what comes in the 3rd gen 4 bangers now?

    BassAckwards, Jan 7, 2019
    #26
    gearcruncher[OP] likes this.
  7. Jan 7, 2019 at 2:01 PM
    #27
    buyobuyo

    #27
    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,291
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    That was my understanding. The information on Wikipedia says that the R156 had different gearing than the R155. However, the information in the Product Information PDFs online that Toyota publishes list the same gear ratios as the R155, so they're either publishing incorrect data or they intended to change the transmission and then didn't. Wikipedia also lists an R156 and R156F, but the 3rd gen 4-cyl Tacoma is only in 4x4 with the manual.

    buyobuyo, Jan 7, 2019
    #27
  8. Jan 7, 2019 at 2:47 PM
    #28
    jowybyo

    #28
    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    Yup.

    jowybyo, Jan 7, 2019
    #28
    BassAckwards[QUOTED] likes this.
  9. Jan 7, 2019 at 4:46 PM
    #29
    weldo

    #29
    weldo Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140423
    Messages:
    1,337
    Gender:
    Male
    First Name:
    Mike
    Pittsburgh, pa
    Vehicle:
    2014 base ac 2.7 5-speed 4x4
    Isn't the R156 a 6 speed? If so does it have a deeper first or perhaps a second overdrive? I sometimes wish my R155 had a slightly deeper first but I don't think it has the power for a taller overdrive.

    weldo, Jan 7, 2019
    #29
  10. Jan 7, 2019 at 4:48 PM
    #30
    buyobuyo

    #30
    buyobuyo Read The Fucking Manual

    Joined:
    Jan 24, 2008
    Member:
    #4417
    Messages:
    6,291
    Gender:
    Male
    First Name:
    Jeremy
    Camden, AR
    Vehicle:
    08 PreRunner SR5, I4, Manual, Silver
    A thing or two...
    Still a 5 speed. Gear ratios are on wikipedia. Do a Google search for Toyota R Series Transmission.

    buyobuyo, Jan 7, 2019
    #30
  11. Jan 7, 2019 at 4:48 PM
    #31
    BassAckwards

    #31
    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    27,769
    Vehicle:
    2009 Tacoma AWD Turbo 2TR-FE
    BorgWarner EFR 6258
    The auto is a 6spd, but the manual is a 5spd still in 3rd gens.

    Same gearing ratios from what ive seen as well

    BassAckwards, Jan 7, 2019
    #31
  12. Jan 7, 2019 at 4:50 PM
    #32
    BassAckwards

    #32
    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    27,769
    Vehicle:
    2009 Tacoma AWD Turbo 2TR-FE
    BorgWarner EFR 6258
    I wonder if the wiring/plug for the speed sensor that goes on the trans is the same between the r155 and r156..

    BassAckwards, Jan 7, 2019
    #32
  13. Jan 7, 2019 at 5:06 PM
    #33
    jowybyo

    #33
    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    I’ve seen that the hearing is different.

    jowybyo, Jan 7, 2019
    #33
    BassAckwards[QUOTED] likes this.
  14. Jan 7, 2019 at 5:07 PM
    #34
    BassAckwards

    #34
    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    27,769
    Vehicle:
    2009 Tacoma AWD Turbo 2TR-FE
    BorgWarner EFR 6258
    Interesting.. is overdrive any taller?

    BassAckwards, Jan 7, 2019
    #34
  15. Jan 8, 2019 at 2:48 AM
    #35
    jowybyo

    #35
    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    From what I’ve seen it is taller by a bit. 1st is lower by a good amount too. Idk if the numbers on Wikipedia are accurate but they have the gear ratios listed.

    jowybyo, Jan 8, 2019
    #35
  16. Jan 8, 2019 at 6:44 AM
    #36
    jowybyo

    #36
    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    Anyone have references for a manual swap on a 2.7L? I'm just a sucker for punishment, so I'm going to swap my shitty 4-banger auto to a manual. Seems pretty straight forward, but any help is welcome.

    jowybyo, Jan 8, 2019
    #36
  17. Jan 8, 2019 at 10:58 AM
    #37
    gearcruncher

    #37
    gearcruncher [OP] Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    7,170
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    gearcruncher, Jan 8, 2019
    #37
  18. Jan 8, 2019 at 11:50 AM
    #38
    jowybyo

    #38
    jowybyo Well-Known Member

    Joined:
    Nov 19, 2013
    Member:
    #116863
    Messages:
    6,092
    Gender:
    Male
    First Name:
    Joe
    Baltimore, MD
    Vehicle:
    '14 MGM DCSB Postrunner 4wd Conversion, Debadged
    jowybyo, Jan 8, 2019
    #38
  19. Jul 7, 2019 at 12:26 PM
    #39
    gray223

    #39
    gray223 Well-Known Member

    Joined:
    Nov 6, 2013
    Member:
    #116062
    Messages:
    3,438
    Gender:
    Male
    SE Missouri
    Vehicle:
    2014 Tundra Limited
    Anyone on here actually actually done a rebuild on the r155f? Both the rebuild links arnt working for me.

    gray223, Jul 7, 2019
    #39
  20. Dec 24, 2019 at 6:20 AM
    #40
    GQ7227

    #40
    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    29,298
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...the good life
    Vehicle:
    '97 black SR5 0g ~ MT @ 176k ...
    black woolWax, green IFC, borlaCB, custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    why is this topic thread buried and hard to find
    now i have to spend the holidays looking through all of this :santa:

    GQ7227, Dec 24, 2019
    #40
