Transfer Case Actuator/4wd troubleshooting including how to manually shift the transfer case

Discussion in '2nd Gen. Tacomas (2005-2015)' started by WillTheThri11, Jan 14, 2021.

  1. Jan 14, 2021 at 11:28 AM
    #1
    WillTheThri11

    WillTheThri11 [OP] Well-Known Member

    Joined:
    Mar 19, 2019
    Member:
    #287199
    Messages:
    111
    Gender:
    Male
    First Name:
    Will
    Vehicle:
    2006 Tacoma Access Cab TRD 4x4
    Bilstein 5100s
    First off, if you are reading this and you are stuck by the side of the road because you can't shift the transfer case do this:
    1. Remove the 3 bolts circled in #6 below
    2. Rotate the brown plastic gear by hand (2nd photo in #8 below). There are 3 positions (2wd, 4wd and 4Lo). I believe 2H is fully counterclockwise with 4H in the middle position and 4Lo in the Full clockwise position.
    3. Put the housing back on and go about your merry way
    4. Note: this does not mention the ADD, if you are trying to get into 4wd, you also need to make sure the ADD is in the correct position. If you are trying to get out of 4wd (like I was), you can ignore the ADD and still safely get your truck home. I wrote this because I couldn't find this info when I was stuck in the mountains and couldn't find it, so hopefully it helps someone.

    Hi all, I thought I'd share my 4wd troubleshooting experience for future reference in case people have the same issue and it's not the ADD.

    What Happened (symptoms):I was going up to Big Bear and started sliding around a corner so I thought I'd put the truck in 4wd but the lights were just blinking. I got it in by turning the truck on and off a few times and was able to get it back in to 2WD the same way for the ride home luckily.

    Troubleshooting setps:

    1. I tried the OBDII scan tool and got no faults. I believe you need techstream to see the 4WD ECU codes, but I'm not positive.
    2. Since most of the literature on the boards focus on the ADD, I figured, oh this is an obvious problem and is likely my problem. I took that off and soldered the contacts including the contacts on the limit switch and verified the motor worked by jumping the motor power to battery power (make sure to do this without the actuator assembled since the limit switch won't cut power in this configuration.

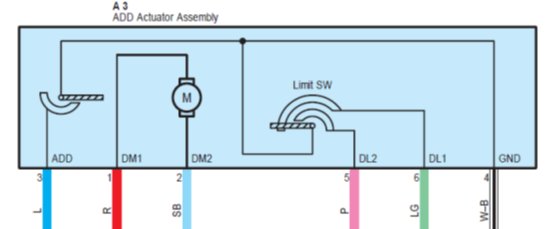

    3. I checked the resistances per the 3rd gen writeup which is great but only applies to the ADD on the 2nd gen and apparently is different for the transfer case actuator (https://www.tacomaworld.com/threads/4wd-actuator-troubleshooting-transfer-case-and-add.578262/) [​IMG][​IMG] [​IMG] (note that the connector image above is for the harness not the actuator so the numbers are flipped on the actuator side)
    4. Since I didn't check resistances before I took the ADD off (you can/should check before you remove it unless you want to do the solder mod preemptively), I just put it back in and tried the system out...still wasn't working as expected and was the same as before (t-case actuator made sound, but ADD never disengaged, lights kept blinking)

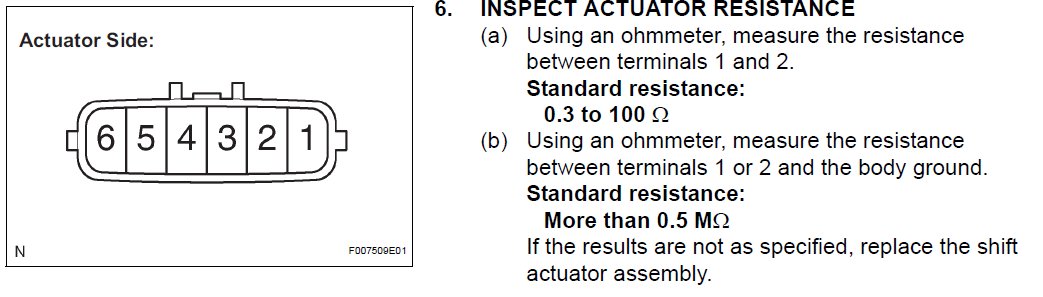

    5. I also noticed that when I flipped the 4wd selector switch the transfer case actuator was definitely spinning, this incorrectly led me to think that the problem wasn't there. OK, time to dig into the Transfer Case Actuator. I looked at the FSM and there are quite some diagnostics that I didn't find super useful. I would recommend the resistance measurements here as a quick sanity check though this doesn't seem to be a common failure mode:upload_2021-1-14_10-31-1.jpg between 1 and 2 is going to be your motor resistance so if that is open, you're motor either isn't connected or it's fried. (I didn't actually check this because I could hear my motor spinning when I changed the selector switch, but it's good to check this especially if you don't hear the actuator motor)

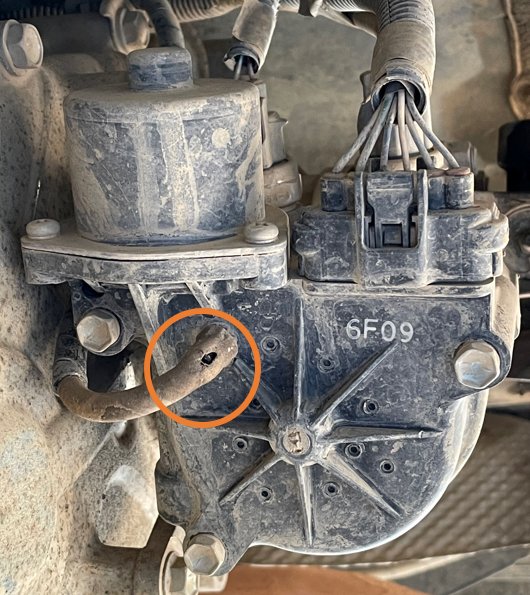

    6. The FSM has a heater relay test, but since I didn't have one, I didn't do that test. I should note that visually I saw the vent hose on the actuator housing was cracked. upload_2021-1-14_10-42-15.jpg

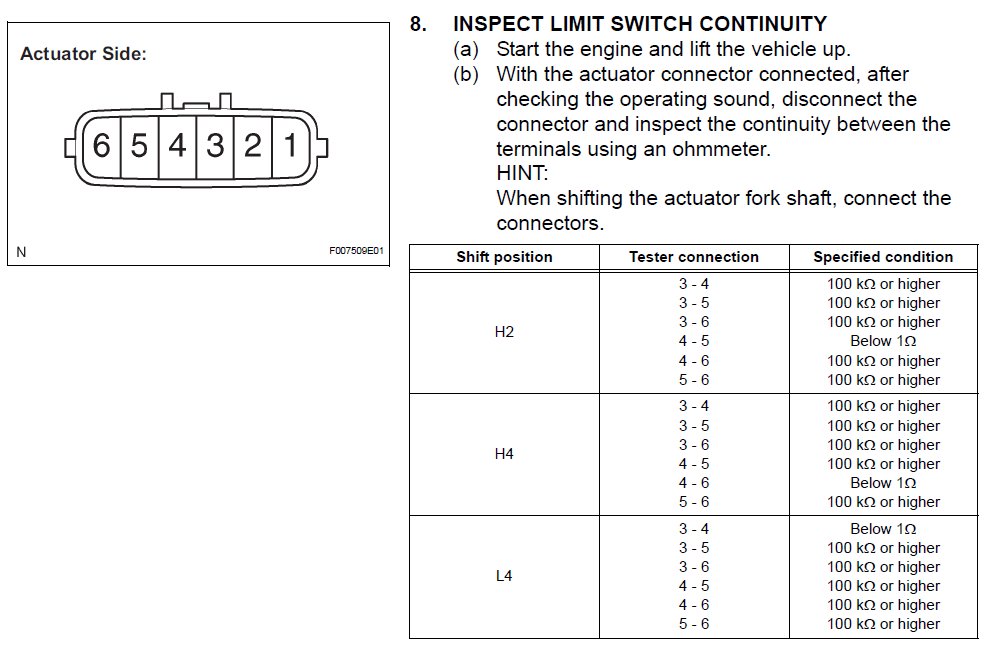

    7. I know I forded a river on my previous off road trip and the truck had been sitting for a few weeks since then. I did the following measurements next:upload_2021-1-14_11-4-16.jpg I don't remember exactly which shift position I was in but I did have about 17 Ohms instead of the <1 Ohm specified

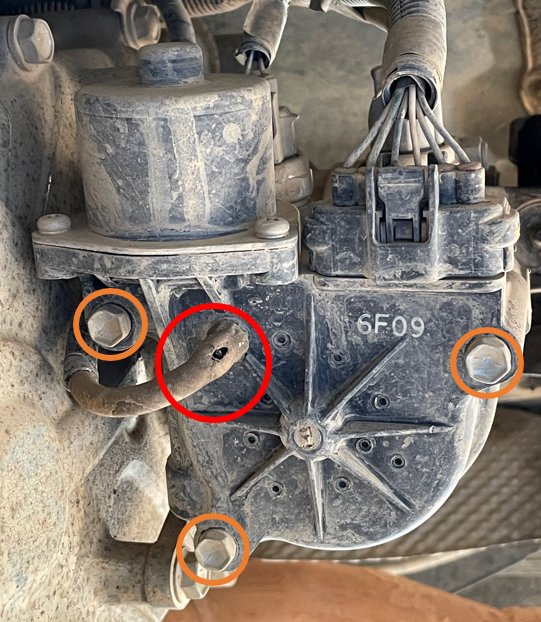

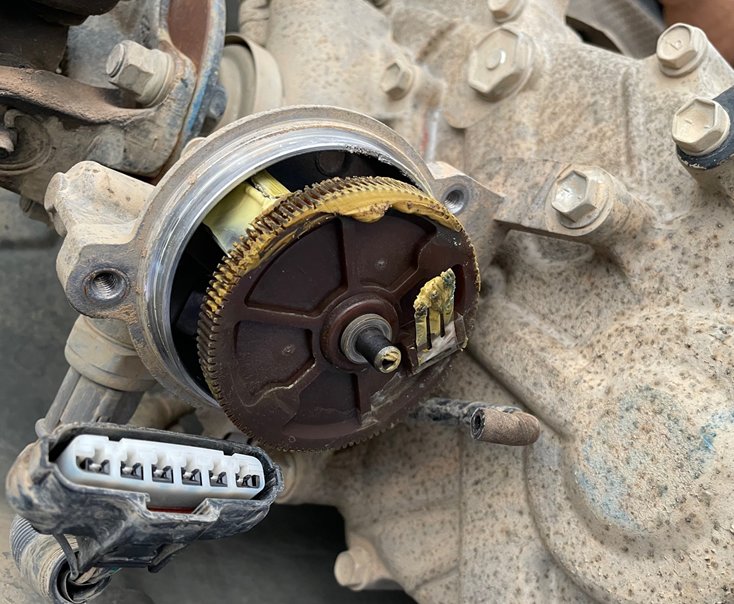

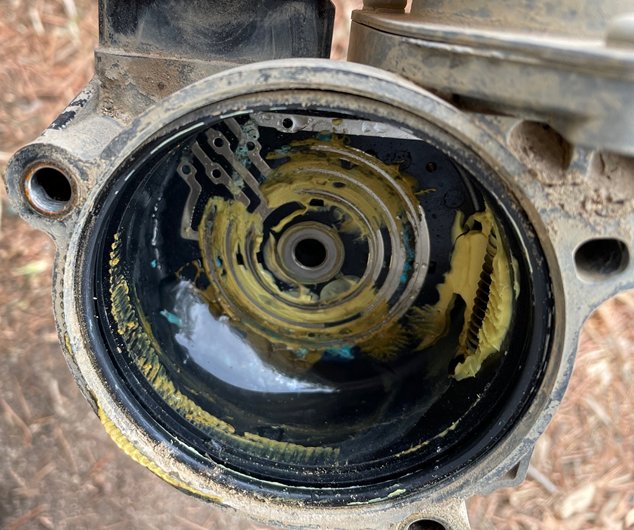

    8. So, I took off the 3 hex heads off that you see circled in the pic above (10mm socket or wrench). What I found was a housing full of water and corroded contacts: upload_2021-1-14_11-1-5.jpg (you shouldn't have any liquid or see any blue, that's the corrosion) The circular electrical contacts you see in the housing are the switch circuits listed above that tell the ECU what position the transfer case are in. They make contact with the wipers on the gear that's still on the transfer case: upload_2021-1-14_11-7-38.jpg
    9. What I should've done here is just wipe the grease and corrosion off the wipers that are on the gear and leave it in place because the wipers were not actually corroded, but I removed the gear from the housing and now I'm not 100% it went back clocked the right way.

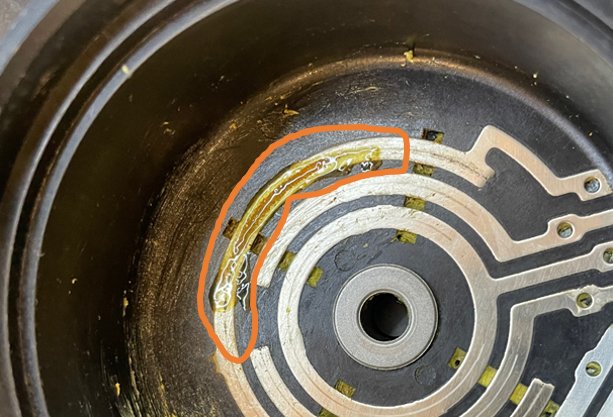

    10. Anyway, I dumped the water out of the housing and wiped the grease and corrosion out of the housing and found that there was pitting on the outer trace (not a great photo because there is flux on the trace): upload_2021-1-14_11-11-18.jpg

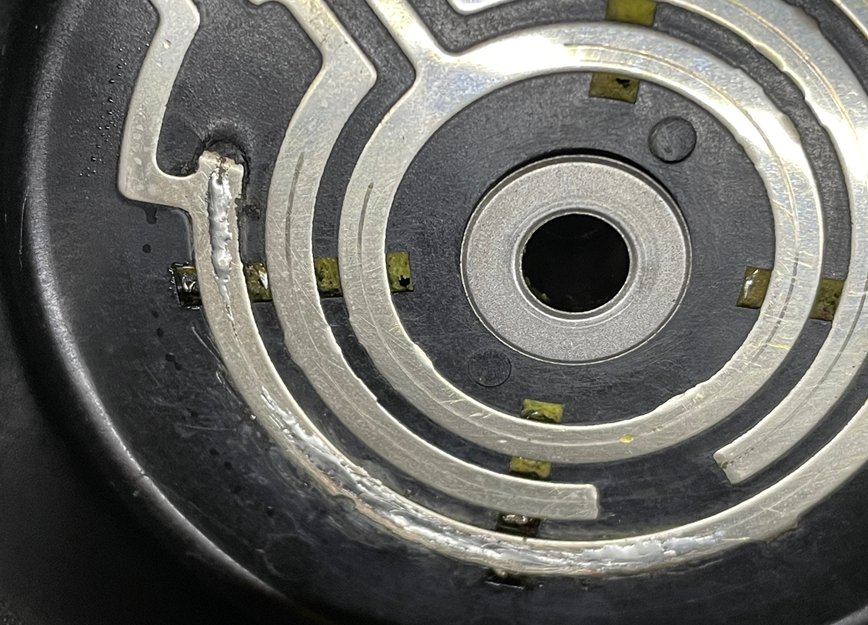

    11. Then I tinned the trace by applying flux and a thing layer of solder to avoid future corrosion. You may want to wick excess solder away to avoid damaging the wipers on the gear. Also, don't forget to clean away the flux as that can be corrosive as well:upload_2021-1-14_11-12-48.jpg
    12. I put some lithium grease in it and put it all back together. I put the gear back into the actuator as best I could based on my photos and I think it is working, but I haven't tested 4Lo yet. I may need to remove the housing again and reclock the brown plastic gear.
    Disclaimer: I don't have any miles on my fix yet and don't promise it to work, but it was worth it to me to avoid the cost of a new actuator or doing the FJ swap. For those considering the FJ swap, I recommend reading this to know how to manually shift the stock actuator/transfer case. Knowing this now makes me think the FJ swap is mostly for if your actuator is absolutely fried or for looks/feel.

    Ok there you go folks, feel free to let me know if you have questions or disagree with anything above or have any further insights to share.


    Last edited: Jan 14, 2021
    TacomaSalad, 02Duck, SR-71A and 3 others like this.
  2. Jan 14, 2021 at 4:34 PM
    #2
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,647
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    winkel likes this.
  3. Jan 15, 2021 at 7:26 AM
    #3
    WillTheThri11

    WillTheThri11 [OP] Well-Known Member

    Joined:
    Mar 19, 2019
    Member:
    #287199
    Messages:
    111
    Gender:
    Male
    First Name:
    Will
    Vehicle:
    2006 Tacoma Access Cab TRD 4x4
    Bilstein 5100s
    TnShooter[QUOTED] likes this.
  4. Jan 15, 2021 at 10:53 AM
    #4
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    19,647
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Your’s is definitely worthy of posting.
    Very well explained with good information.

    WillTheThri11[OP] likes this.
  5. Apr 26, 2022 at 5:22 AM
    #5
    pigbandit

    pigbandit New Member

    Joined:
    Apr 19, 2022
    Member:
    #395381
    Messages:
    2
    Gender:
    Male
    thanks fro posting this with photos, glad to se you can address the pitted contacts.

  6. May 31, 2023 at 6:27 PM
    #6
    Jyakel1

    Jyakel1 Member

    Joined:
    May 27, 2018
    Member:
    #254619
    Messages:
    11
    Gender:
    Male
    First Name:
    Jon
    Vehicle:
    2015 Toyota Tacoma TRD Sport 4x4
    3" icon stage 2 suspension lift C4 fabrications overland bumper w/12k lb openroad winch Vision wheels Alpharex LED headlights Tuwa pro bed rack

    Just to clarify, if you're stuck in 4wd and manually shift to 2wd, should you pull the ADD to make sure the diffential is disengaged if you are going to need to drive it a while before you can repair it?

  7. Jun 1, 2023 at 2:15 AM
    #7
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,662
    Deep South
    Herculiner Hootus
    no need to do that but you can if you want.

  8. Feb 14, 2024 at 6:09 AM
    #8
    BluntTaco

    BluntTaco Tight and Right

    Joined:
    Sep 25, 2011
    Member:
    #64091
    Messages:
    30
    Gender:
    Male
    First Name:
    Randy
    Centreville, MD
    Vehicle:
    09' Taco 4x4 TRD Sport
    Undercover, Pioneer AVIC Z130BT, Toyota Roof Rack, Drop in aFe. Camburg UCA's, Toytec Ultimate 5100 Kit, OME Dakar Rear Kit, Custom Mayhem Grill, Wicked Muff w/tip, Some Debadging.
    I had a flashing 4x4 and 4 lo light. I have found that the wires leaving the actuator are cracked and on is completely sheared. If I follow from the six prong connector to the first connection that is where the cracked wire is. Does anyone know what part number this wiring harness is?
