Tapping into parking lights

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Trick Deck, Feb 14, 2022.

  1. Feb 14, 2022 at 11:39 AM
    #1
    Trick Deck

    Trick Deck [OP] New Member

    Joined:
    Feb 14, 2022
    Member:
    #390134
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2022 TRD Sport
    So I got the new SS3 foglights by Diode Dynamic that come with a backlight that can connect to either my DRL or my parking lights via a T-Tap, I can't find any pictures online of which wire I need to tap into, and the instructions that came with it are basically non-existent.

    I know T-Taps are generally frowned upon but can anybody help me figure out which wires they would go to if I want to connect to my parking lights? I'm new to modding and don't feel comfortable soldering and don't want to add a fuse.

  2. Feb 14, 2022 at 12:13 PM
    #2
    Tacomike18

    Tacomike18 Well-Known Member

    Joined:
    Oct 28, 2018
    Member:
    #270886
    Messages:
    1,980
    First Name:
    J
    Vehicle:
    2018
    I bought a running light custom made taps that just plugs into the existing plugs here on tw.

    tcjacado and Key-Rei like this.
  3. Feb 14, 2022 at 1:50 PM
    #3
    Trick Deck

    Trick Deck [OP] New Member

    Joined:
    Feb 14, 2022
    Member:
    #390134
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2022 TRD Sport
    Bump. Anyone know which wire I'm meant to splice into?

    BrokeKayaker likes this.
  4. Feb 14, 2022 at 2:27 PM
    #4
    DeuceDeuceBravo

    DeuceDeuceBravo Well-Known Member

    Joined:
    Nov 29, 2021
    Member:
    #383403
    Messages:
    345
    Gender:
    Male
    New England
    Last edited: Mar 10, 2022
    2wheelnut and Bob1971 like this.
  5. Feb 14, 2022 at 3:36 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,275
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Do you have Halogen headlights?

    Last edited: Feb 14, 2022
    OffroadToy and tcjacado like this.
  6. Mar 10, 2022 at 2:16 PM
    #6
    BrokeKayaker

    BrokeKayaker Slava Ukrania!

    Joined:
    Jan 3, 2016
    Member:
    #173945
    Messages:
    277
    Gender:
    Male
    Ouachita Mountains
    Vehicle:
    2022 TRD OR DCLB Army Green
    Bump, I'm about to order some backlit SS3s and I'd love to know what the best way is to tap into the DRLs or maybe the parking lights. I'm not very handy with electrical wiring so if there's some harness I can buy I probably would go that route.

  7. Mar 10, 2022 at 2:18 PM
    #7
    pilfer

    pilfer Active Member

    Joined:
    May 17, 2021
    Member:
    #365965
    Messages:
    34
    Gender:
    Male
    I ordered back kit ones myself, mistakenly Lol. I just didn’t hook them up to be honest. Capped the wire and the lights still work. Interested to hear what you guys do.


    BrokeKayaker likes this.
  8. Mar 10, 2022 at 3:55 PM
    #8
    316sherm

    316sherm Well-Known Member

    Joined:
    Oct 9, 2020
    Member:
    #343309
    Messages:
    358
    Gender:
    Male
    South Louisiana
    Vehicle:
    2020 Tacoma SR TSS Package 4 Cyl
    So these just tap into the parking/drl lights without running a switch inside? I'm wanting to add fogs to my rig (which did not come with any) as easily as possible.

  9. Mar 10, 2022 at 4:28 PM
    #9
    Wicked_Taco

    Wicked_Taco Well-Known Member

    Joined:
    Aug 6, 2021
    Member:
    #373329
    Messages:
    56
    Gender:
    Male
    First Name:
    Wick
    PA
    Vehicle:
    ‘21 SR Utility 4x4
    Interested in this as well

  10. Mar 10, 2022 at 4:37 PM
    #10
    Key-Rei

    Key-Rei Well-Known Member

    Joined:
    Jun 20, 2017
    Member:
    #221942
    Messages:
    7,863
    First Name:
    Key
    Florida
    Vehicle:
    2010 TRD Off-Road 6Spd 4x4 209BSM
    Locker anytime Fog Lights anytime Full LED light conversion TRD cat back Rear cat delete Exaust Y reroute away from actuator Alloy Clutch master 2000 4Runner "Dog Leg" shift leaver Marlin shift seats and bushing Rear seat delete Rear diff breather extension Chrome grille swap Debadge Rear seat delete Honda blower motor beefy plug and wire mod Anytime 12v and USB with volt gauge in bed Blue Sea fuse box Hella AND 70's Caddy horns Low profile recessed hex drain plug swaps Alluminum battery strap 7pin relocated Backup cam on anytime Various other creature comfort and personal taste mods.
    Do you remember who or the vendor?

    BrokeKayaker likes this.
  11. Mar 10, 2022 at 6:30 PM
    #11
    Tacomike18

    Tacomike18 Well-Known Member

    Joined:
    Oct 28, 2018
    Member:
    #270886
    Messages:
    1,980
    First Name:
    J
    Vehicle:
    2018
    @Puppypunter

    tcjacado and Puppypunter like this.
  12. Mar 10, 2022 at 7:49 PM
    #12
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,485
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR

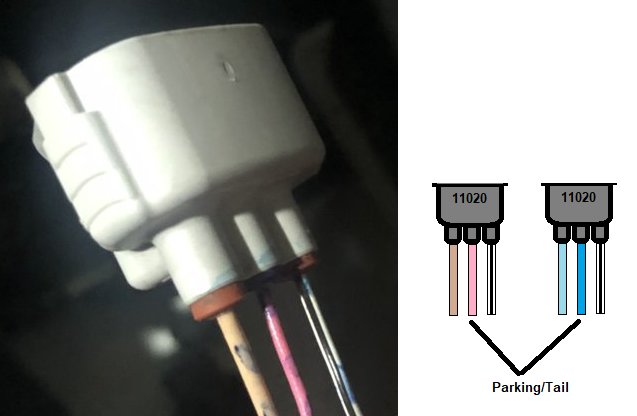

    Thanks @Tacomike18 I can make tees for both the SR and TRDs with halogen headlights, as well as the Full LED headlights. PM me if you need anything as that is the best way to get me. And if you are going the tap route, those Posi-Taps mentioned by @DeuceDeuceBravo are the way to go. If you have an SR, @caribe makaira diagram there is what you need to tap (pink on drivers side, blue on passengers side), if you have a TRD with halogen headlights, they are the same color for the parking lights, but it is a different plug. The plug will have a green as well as a white/black wire. If you want to tap the DRL, it will be that green one. And lastly, if you have OEM LEDs, the colors are still the same (pink/blue for parking, green for DRL). If you have LEDs though, be advised that the passengers side plug will have two blue wires. Make sure you tap the one that is in the same physical location as the pink on the drivers side.

  13. Mar 10, 2022 at 7:55 PM
    #13
    BrokeKayaker

    BrokeKayaker Slava Ukrania!

    Joined:
    Jan 3, 2016
    Member:
    #173945
    Messages:
    277
    Gender:
    Male
    Ouachita Mountains
    Vehicle:
    2022 TRD OR DCLB Army Green
    Forgive my ignorance, but what is a Tee? Would that still require me to cut and tap into my DRL wires?

  14. Mar 10, 2022 at 8:00 PM
    #14
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,485
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    When I refer to a tee, it is just a male and female connector with a short (3-4") piece of wire in between them, and a longer (really any length you want) wire coming off of it. So you would just unplug the exist plug from the head light, plug it into the tee, and plug the tee into the headlight where that plug came from. Let me see if I have a good picture.

    Here is an example for a taillight. Same concept, just different connectors :)

  15. Mar 10, 2022 at 8:14 PM
    #15
    BrokeKayaker

    BrokeKayaker Slava Ukrania!

    Joined:
    Jan 3, 2016
    Member:
    #173945
    Messages:
    277
    Gender:
    Male
    Ouachita Mountains
    Vehicle:
    2022 TRD OR DCLB Army Green
    cool, so for a DRL tee, the loose wire is tied to the DRL wire in the tee and then connects to the backlight power wire coming from the SS3 harness, right?

  16. Mar 10, 2022 at 8:34 PM
    #16
    Puppypunter

    Puppypunter Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    2,485
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Yeah, that would be the idea. If you give me a length, I can ever terminate the end going to the SS3 in a Deutsch terminal if you don’t want any splices at all. You’d have to depin the existing connector for the SS3, but that isn’t hard to do

    tcjacado likes this.
  17. Mar 10, 2022 at 8:58 PM
    #17
    BrokeKayaker

    BrokeKayaker Slava Ukrania!

    Joined:
    Jan 3, 2016
    Member:
    #173945
    Messages:
    277
    Gender:
    Male
    Ouachita Mountains
    Vehicle:
    2022 TRD OR DCLB Army Green
    I’m not very experienced with splicing wires so that is probably a good idea for me. I’m not sure yet of the length. I take delivery of my Tacoma next week. I think 5 feet would be a conservative estimate.

  18. Mar 15, 2022 at 12:10 PM
    #18
    therealodb

    therealodb Member

    Joined:
    Jul 31, 2021
    Member:
    #372750
    Messages:
    12
    Gender:
    Male
    First Name:
    Eddie
    Vehicle:
    2018 Tacoma SR

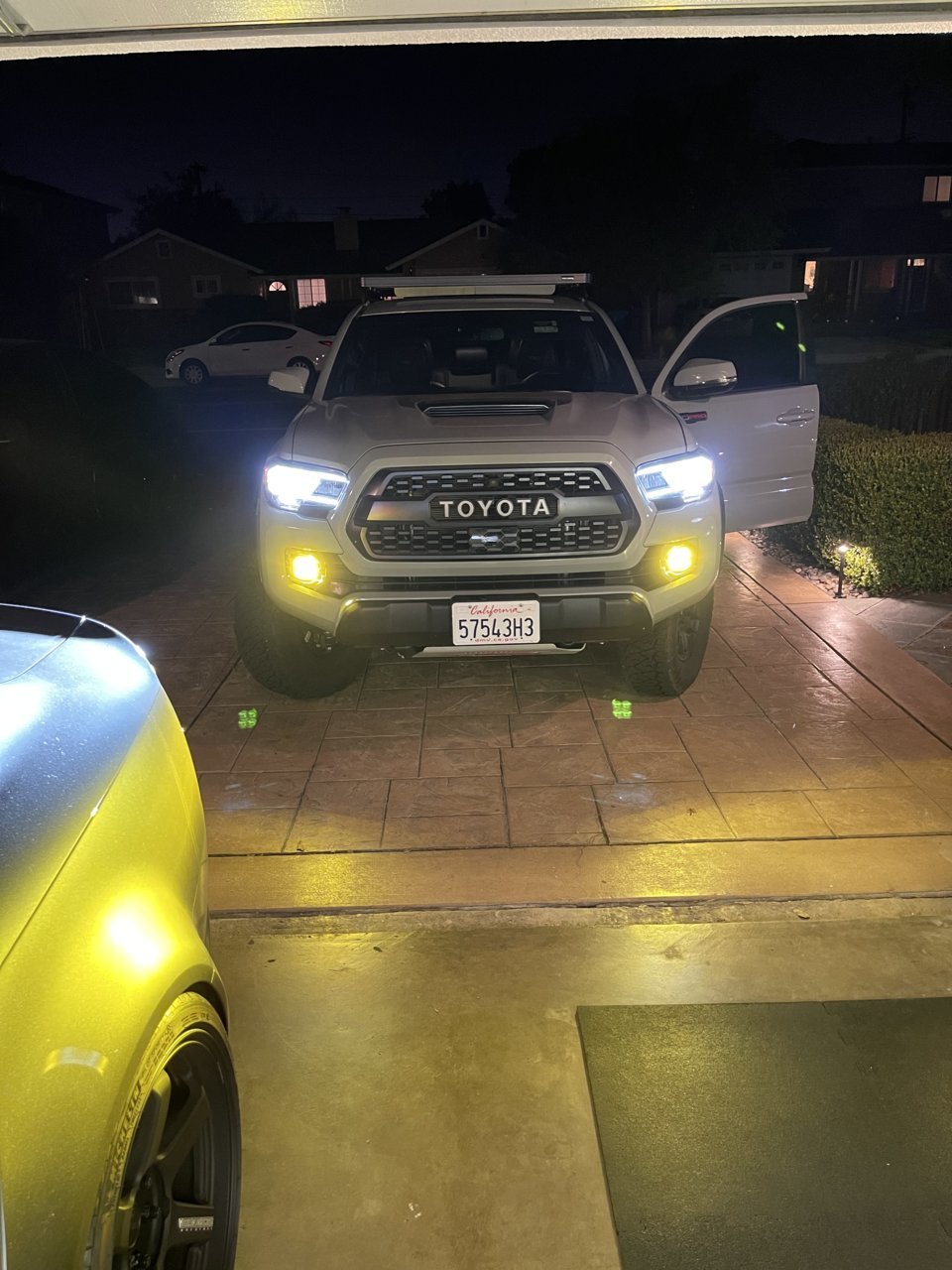

    Just got these. It was easy to tap into the headlight. You just clip the t tap into the blue and pink wire which is the middle wire on both.



    R0dzilla75 likes this.
  19. Mar 15, 2022 at 12:14 PM
    #19
    BrokeKayaker

    BrokeKayaker Slava Ukrania!

    Joined:
    Jan 3, 2016
    Member:
    #173945
    Messages:
    277
    Gender:
    Male
    Ouachita Mountains
    Vehicle:
    2022 TRD OR DCLB Army Green
    Looks good!

    I'm still waiting on R4T for my SS3s :popcorn:
