TAG fuse box

Discussion in '1st Gen. Tacomas (1995-2004)' started by Wrork, Sep 18, 2019.

  1. Sep 18, 2019 at 1:35 PM
    #1
    Wrork

    Wrork [OP] New Member

    Joined:
    Sep 13, 2019
    Member:
    #305200
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2002 Black xtra cab
    Does anyone have a wiring diagram for that TAG fuse box that comes with a Leer cap? I need to wire my brake light and my dome light and I don’t know what the six pins at the bottom of the fuse box are for.

  2. Sep 18, 2019 at 1:38 PM
    #2
    Bunk Moreland

    Bunk Moreland Well-Known Member

    Joined:
    Jun 16, 2019
    Member:
    #296509
    Messages:
    586
    Gender:
    Male
    First Name:
    Bunk
    It's complicated.
  3. Sep 18, 2019 at 1:59 PM
    #3
    Wrork

    Wrork [OP] New Member

    Joined:
    Sep 13, 2019
    Member:
    #305200
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2002 Black xtra cab
    Thanks Bunk, I appreciate your response, but I read that one already. I’m capable of wiring the third taillight and dome light by tapping into the driver side brake light, but my used Leer cap came with a TAG fuse box which has a 6 pin connector on the bottom. I can use female connectors to slide onto the correct 4 pins (sans the male connector), but I was hoping someone knew which pins did what.

  4. Sep 18, 2019 at 2:30 PM
    #4
    Bunk Moreland

    Bunk Moreland Well-Known Member

    Joined:
    Jun 16, 2019
    Member:
    #296509
    Messages:
    586
    Gender:
    Male
    First Name:
    Bunk
    It's complicated.
    The TW search option is janky.

    Google is your friend.

    Last edited: Sep 18, 2019
  5. Aug 16, 2021 at 6:36 PM
    #5
    daveeasa

    daveeasa FBC Harness Solutions

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    7,445
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4

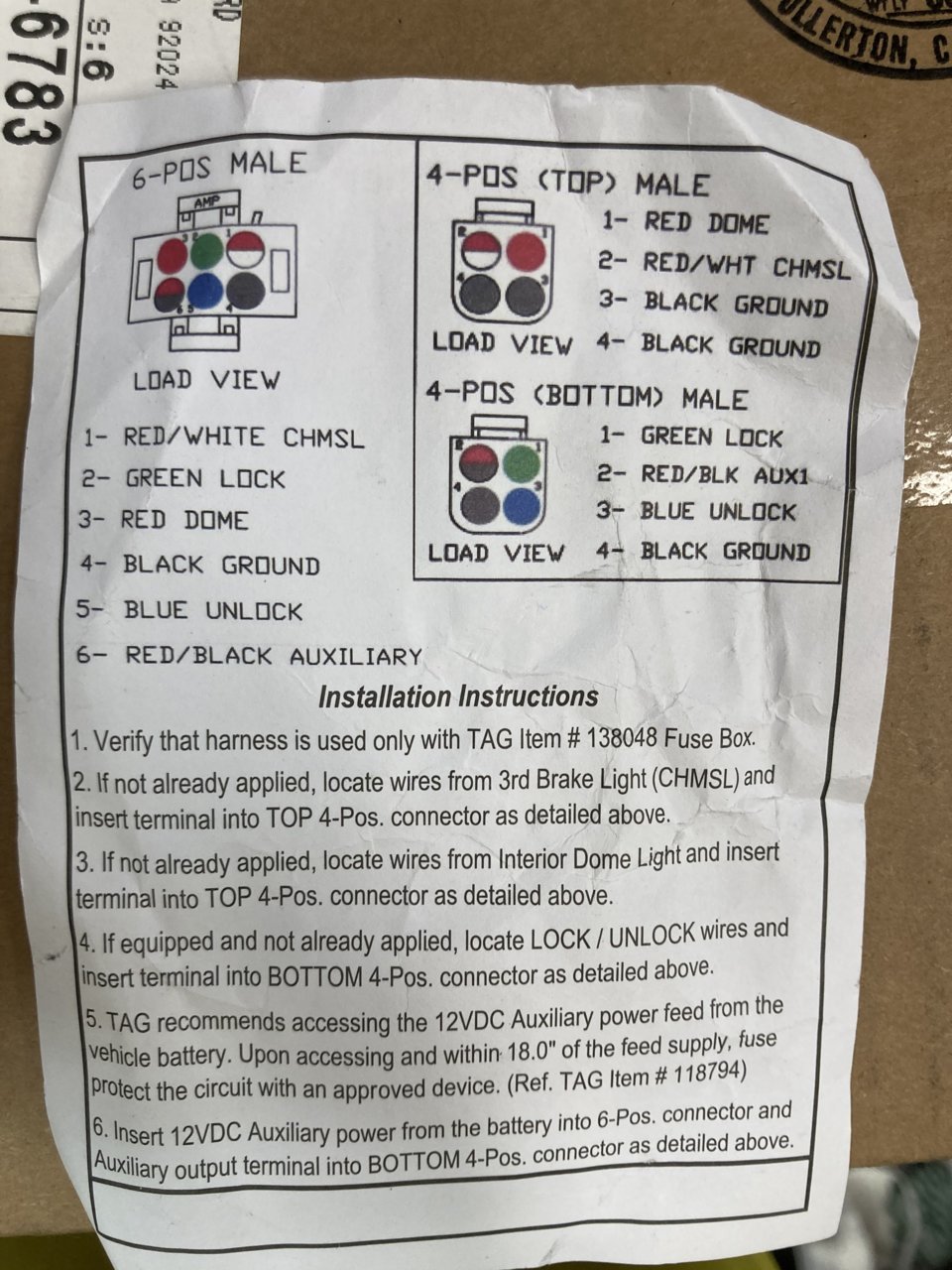

    Just in case it helps someone.


    TheMonarch likes this.
