Steering Column slop fix! Zip tie mod killer!!!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by BigHoss96, Jan 11, 2021.

  1. Jan 11, 2021 at 12:10 PM
    #1
    BigHoss96

    BigHoss96 [OP] Well-Known Member

    Joined:
    May 28, 2019
    Member:
    #294639
    Messages:
    92
    Gender:
    Male
    First Name:
    Matthew
    Boston MA
    Vehicle:
    2014 DCSB trd sport
    315/75/16 Geolandars on FZJ80 wheels Elka 2.5s RR Coilovers JBA UCA's Moog LCA's All-pro rock sliders All-Pro leaf pack w/ U-bolt flip kit ARB front bumper Badlands 12K winch Spyder Projector headlights\ BD fog lights Cowl air intake relocation
    To preface this write-up, I have been trying to chase this clunk in my steering column for 6 months give or take. It was mainly happening at slow speeds over bumps and turns. I have completely replaced the front end suspension (new Elka coilovers, JBA UCA's, MOOG LCA's), so the fact that my truck still drove with a clunk in the steering wheel was bugging me, to say the least.

    It was getting so bad, that I was able to grab my steering wheel at the 12 o'clock position and shake it back and forth (up/down) a good 1/8" or so. Not good!

    I thought I had struck gold with the zip tie mod (those forums can be found on here with a quick search). I cranked in the largest zip tie I could find, and the only thing that did was, of course, had me feeling every single little piece of feedback from the road. Expecting a quick fix did not work.

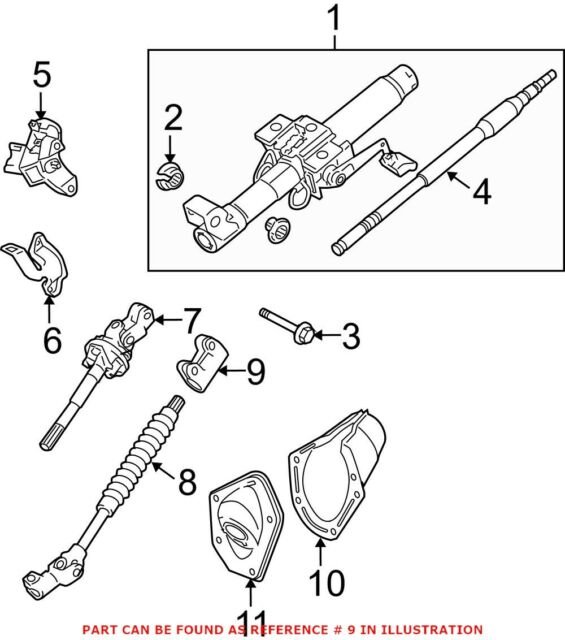

    The more and more I looked around at the steering column and the slip yoke (#9) that connects the intermediate shaft (#7) to the lower shaft (#8), which then connects to the steering rack (not pictured). I decided that's where the slop was coming from, as it is the only hard connection in the shaft!
    tacoma steering column.jpg

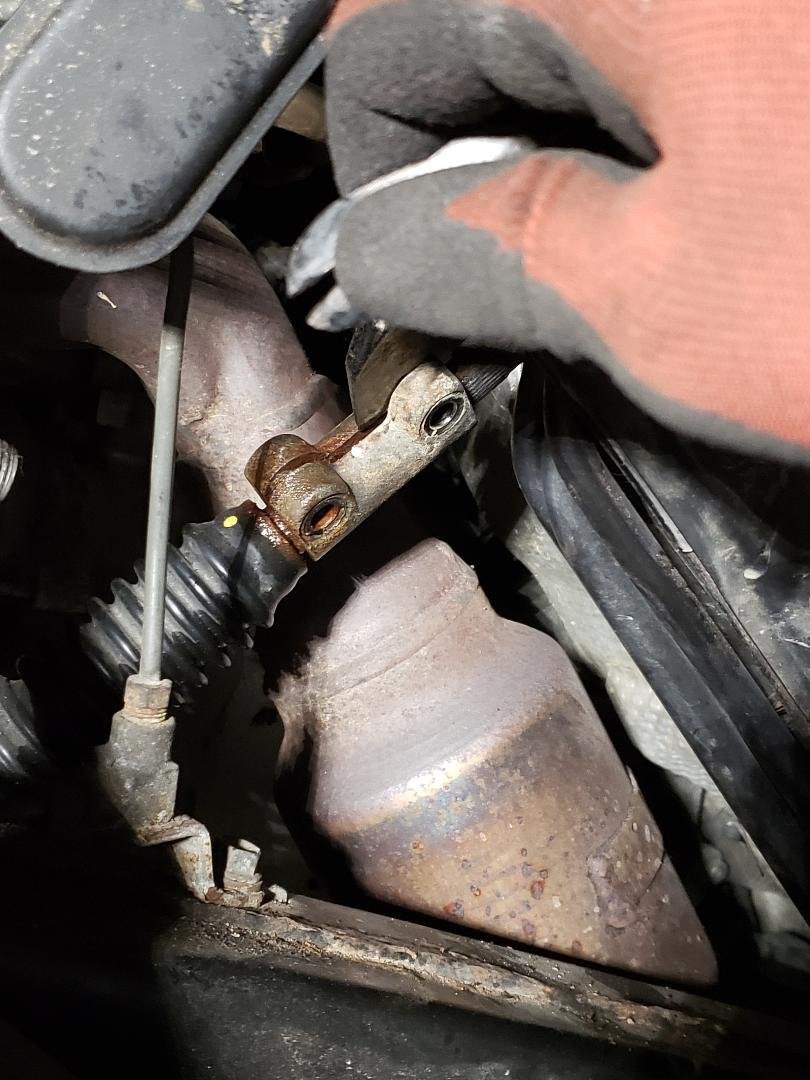

    The next step was to remove the bolts securing that slip yoke (#9)in place, only two 12 or 13mm bolts. Once I did that, I needed to pry the slip yoke open. used a small pry tool and slipped it open enough so some PB blaster and a torch to heat everything up to break loose.

    sliding yoke pry.jpg

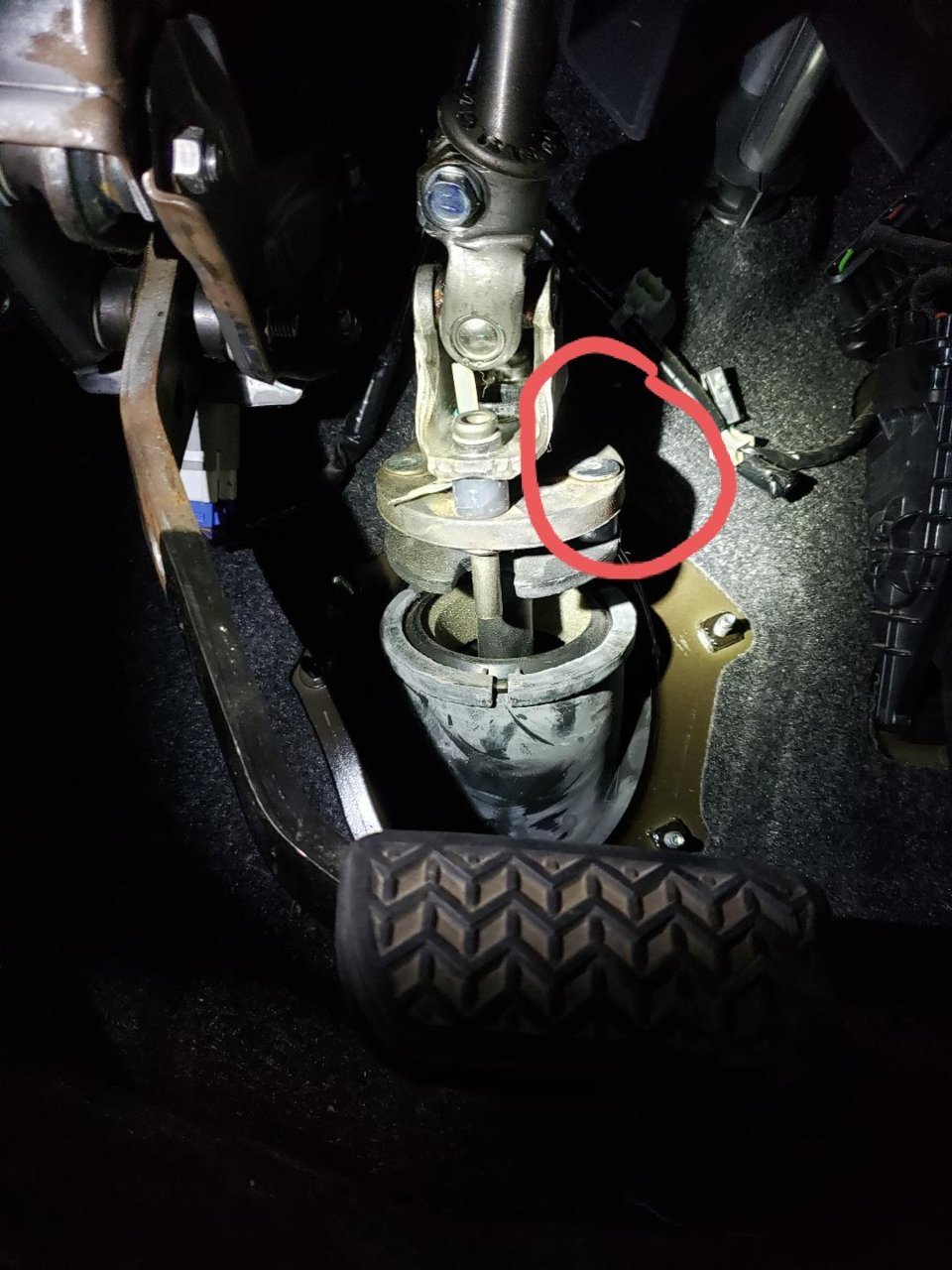

    Once the slip yoke was opened up a bit, you have to get back into the cab of the truck and start hammering on the intermediate shaft (#7), which can be accessed from under the steering wheel after removing the dark grey cover. Circled in red is where I was able to turn the wheel and get enough room to use a 3lb mallet and beat the sucker down.

    steering column hammer point.jpg

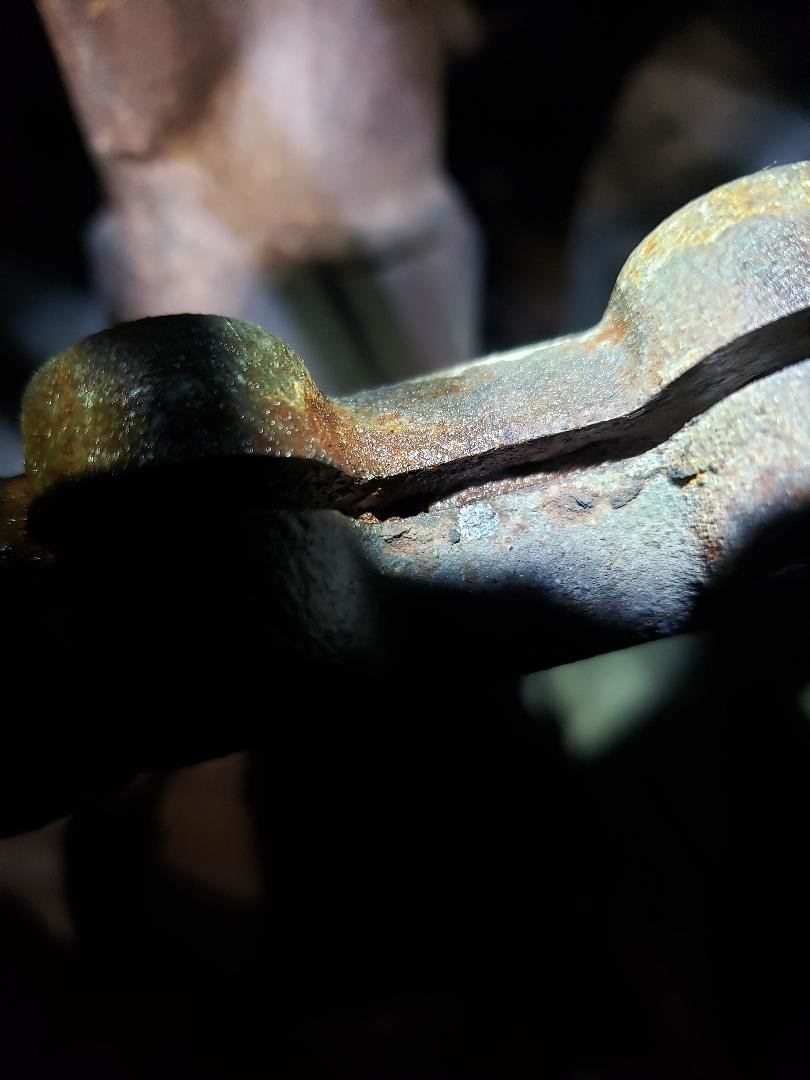

    I had placed a mark of silver sharpie where the tip of the intermediate shaft (#7) was before any work. by the end of my hammering I got it to move down a solid 1/8". (The 1/8" of slop I had in the steering wheel!!!!)

    sliding yoke finished.jpg
    *you can barely see the silver sharpie and the tip of the intermediate shaft sticking past it

    That 1/8" of slack I was able to hammer out has completely tightened my steering wheel, and has my truck driving as it should! Since then I have pulled the zip tie out and, of course, the road feedback is gone, and driving is enjoyable again!!!!

    I hope this helps anyone in this position of the zip tie mod not fixing anything!
    Open to any and all questions and criticism!
    I'm sure someone has done this before me, but damn I couldn't find any info on it so I hope this write-up helps!!

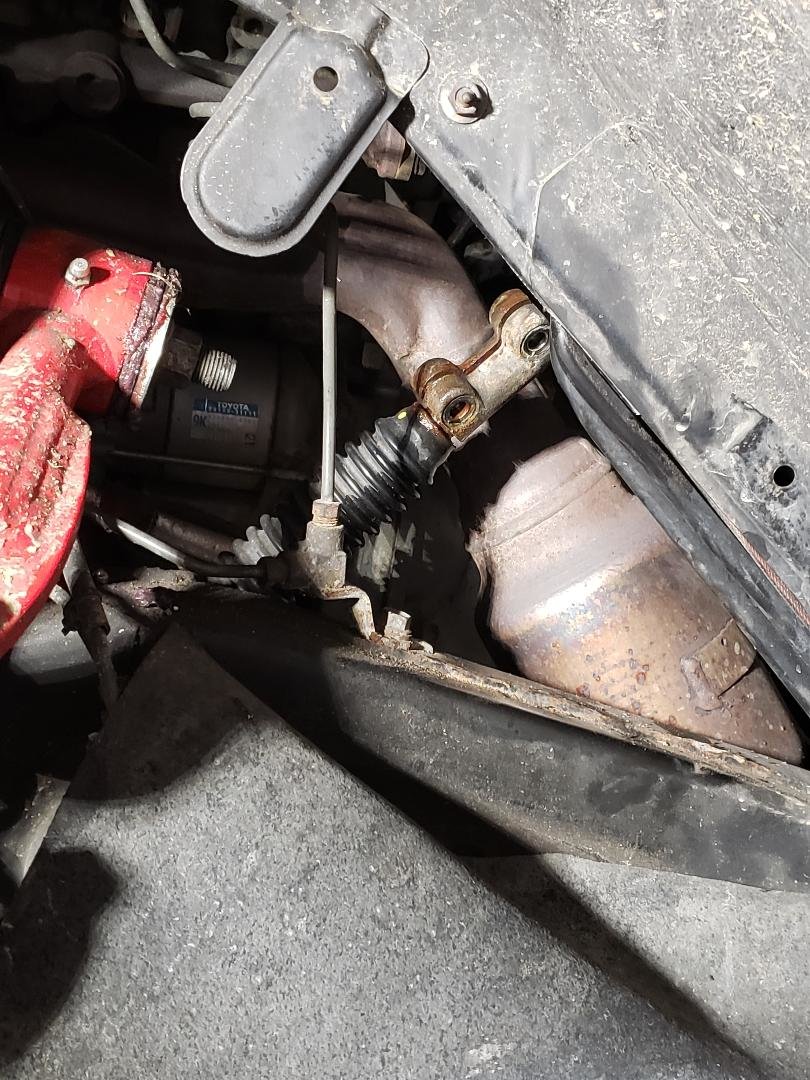

    sliding yoke 1.jpg

  2. Jan 11, 2021 at 1:56 PM
    #2
    ECE208

    ECE208 Active Member

    Joined:
    Jun 18, 2020
    Member:
    #331810
    Messages:
    26
    Gender:
    Male
    First Name:
    Evan
    Idaho
    Vehicle:
    2013 White Access Cab Tacoma SR5
    This has been driving me nuts. Thanks for the write up!

    BigHoss96[OP] likes this.
  3. Jan 11, 2021 at 2:03 PM
    #3
    Elikk

    Elikk Well-Known Member

    Joined:
    Oct 28, 2019
    Member:
    #309260
    Messages:
    90
    Gender:
    Male
    First Name:
    Eli
    Vehicle:
    Tacoma Trd sport crew cab 2011
    Nice! will try this soon, the slop is getting on my nerve especially on lanes where there's tracks left from heavy trucks...

    BigHoss96[OP] likes this.
  4. Jan 11, 2021 at 2:05 PM
    #4
    BigHoss96

    BigHoss96 [OP] Well-Known Member

    Joined:
    May 28, 2019
    Member:
    #294639
    Messages:
    92
    Gender:
    Male
    First Name:
    Matthew
    Boston MA
    Vehicle:
    2014 DCSB trd sport
    315/75/16 Geolandars on FZJ80 wheels Elka 2.5s RR Coilovers JBA UCA's Moog LCA's All-pro rock sliders All-Pro leaf pack w/ U-bolt flip kit ARB front bumper Badlands 12K winch Spyder Projector headlights\ BD fog lights Cowl air intake relocation
    My pleasure! Hope it helps!!

  5. Jan 11, 2021 at 2:09 PM
    #5
    doorsidedown

    doorsidedown Well-Known Member

    Joined:
    Jul 5, 2014
    Member:
    #133307
    Messages:
    3,810
    Gender:
    Male
    This is why I love this forum. Well done sir & thanks for sharing.

    BigHoss96[OP] likes this.
  6. Jan 11, 2021 at 2:58 PM
    #6
    BigHoss96

    BigHoss96 [OP] Well-Known Member

    Joined:
    May 28, 2019
    Member:
    #294639
    Messages:
    92
    Gender:
    Male
    First Name:
    Matthew
    Boston MA
    Vehicle:
    2014 DCSB trd sport
    315/75/16 Geolandars on FZJ80 wheels Elka 2.5s RR Coilovers JBA UCA's Moog LCA's All-pro rock sliders All-Pro leaf pack w/ U-bolt flip kit ARB front bumper Badlands 12K winch Spyder Projector headlights\ BD fog lights Cowl air intake relocation
    It had been pestering me for so long! and the lack of info for any real fix, besides spending over $500 on new shafts, was even worse!

    doorsidedown[QUOTED] likes this.
  7. Feb 7, 2021 at 10:30 PM
    #7
    Elikk

    Elikk Well-Known Member

    Joined:
    Oct 28, 2019
    Member:
    #309260
    Messages:
    90
    Gender:
    Male
    First Name:
    Eli
    Vehicle:
    Tacoma Trd sport crew cab 2011
    Did it yesterday, another happy customer!

  8. Feb 7, 2021 at 10:53 PM
    #8
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,049
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    So your telling me that Toyota fucked up on the initial install by an 1\8 on an inch and there has been all this crap because of it. Man I hate toyota sometimes!

  9. Feb 9, 2021 at 7:49 AM
    #9
    Caboose69

    Caboose69 Well-Known Member

    Joined:
    Dec 18, 2020
    Member:
    #350028
    Messages:
    70
    Gender:
    Male
    Vehicle:
    2011 Black DCSB Off Road
    So this was a FREE mod? All you did was open up the slip joint a bit, and reseat the intermediate shaft with a BFH? You my good sir are awesome!!

    BigHoss96[OP] likes this.
  10. Feb 9, 2021 at 12:08 PM
    #10
    Eastkat808

    Eastkat808 Well-Known Member

    Joined:
    Nov 21, 2020
    Member:
    #347371
    Messages:
    352
    Gender:
    Male
    First Name:
    Esket
    Vehicle:
    2012 DCLB 4x4 sr5
    bilstein 5100 cranked up
    Coming back for later use

    BigHoss96[OP] and TXpro4X4 like this.
  11. Feb 9, 2021 at 4:59 PM
    #11
    wmgeorge

    wmgeorge Well-Known Member

    Joined:
    Nov 26, 2020
    Member:
    #347898
    Messages:
    203
    So from what I can see the shafts have splines, and when you hammered the shaft/splines further back into the coupler the slop was gone. It below zero and dark here so I am not about to go look at mine right now.

    And with those splined shafts, that is not a slip coupler but a spline coupler. So when you hammered on it you drove the top splined shaft tighter into the coupler taking any play in the up/down movement out. I would have lubed up that rather rusty top splined shaft first. but its not my job.

    Last edited: Feb 10, 2021
    racerX969, BigHoss96[OP] and TXpro4X4 like this.
  12. Feb 9, 2021 at 8:59 PM
    #12
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,049
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    Bro!
    Fire is your friend:bananadead:


    No way I would go outside

  13. Feb 10, 2021 at 4:58 AM
    #13
    GP_spence

    GP_spence Well-Known Member

    Joined:
    Jan 2, 2018
    Member:
    #240025
    Messages:
    163
    Gender:
    Male
    AL
    Vehicle:
    2013 DCSB TRD Off-Road 4x4
    Before I do this myself, wanted to make sure - once the bolts are loose, you have to move the steering wheel a bit to find a good spot for the hammer....any danger in messing up steering wheel alignment when doing this?

    BigHoss96[OP] likes this.
  14. Feb 10, 2021 at 6:59 AM
    #14
    wmgeorge

    wmgeorge Well-Known Member

    Joined:
    Nov 26, 2020
    Member:
    #347898
    Messages:
    203
    So the OEM fix the wire tie fix is just a shim in that plastic bushing. So how does the hammer fix address that?

    BigHoss96[OP] likes this.
  15. Feb 11, 2021 at 8:13 PM
    #15
    azzwethinkweiz

    azzwethinkweiz Well-Known Member

    Joined:
    Sep 6, 2016
    Member:
    #196623
    Messages:
    966
    Tucson, AZ
    Vehicle:
    2013 4x4 DCSB V6 6-Spd, TRD OR, Tow Package
    It appears to press the splice between the two shafts further down onto themselves giving more spline contact area on the splice piece which appears to take away the slop. Will have to try this as the zip ty mod only lasts about a year or so till needing redone.

    Last edited: Feb 11, 2021
    BigHoss96[OP] likes this.
  16. Feb 12, 2021 at 4:57 AM
    #16
    wmgeorge

    wmgeorge Well-Known Member

    Joined:
    Nov 26, 2020
    Member:
    #347898
    Messages:
    203
    I appears what your really doing with the hammer is what you posted, and I posted earlier. That takes care of the Up / Down slop but the bushing left to right slop or play is still there.

    TXpro4X4 likes this.
  17. Feb 12, 2021 at 8:21 AM
    #17
    TXpro4X4

    TXpro4X4 Fuck Cancer!

    Joined:
    Oct 29, 2011
    Member:
    #66093
    Messages:
    28,049
    Gender:
    Male
    First Name:
    Bryan
    Costa Mesa, CA
    Vehicle:
    2011 TOY
    Toy Stuff..... Faktor Amber lights on in the grill. Under front bumper led rock lighting. Center counsel c.b mod with under the hood p.a. Anytime foglight mod. R.G.B tape light for inside toekick lighting. Front and back. Front weathertech floor mats. De-Baged except TOY on tailgate. FJ style 6 speed shifter knob. Rubber tacoma bed mat. Trd exhaust. Trd 16in beadlocker style wheels. Electrical a/c 115volt plug/usb mod next to passenger knee. Fox 2.5 coilovers. Icon 2.0's in the rear. Rear locker any-time mod. Abs kill switch mod. All Pro ISF front skid Pelfrey built front differential skid Baja design pro pods Rigid pods CBI pods brackets Mobtown tailgate guard RIP Mobtown Caliraised rear amber pod lights CJ Jumper- map, running, amber fog, reverse, and license plate led bulbs Pedal Commander
    So there is still slop when going over certain stuff?

  18. Feb 12, 2021 at 10:54 AM
    #18
    Steve_P

    Steve_P Well-Known Member

    Joined:
    Sep 16, 2009
    Member:
    #22854
    Messages:
    656
    Gender:
    Male
    TN
    Vehicle:
    09 Tacoma SR5 4WD 4cyl
    Logically this doesn't make any sense. The slip yoke (#9) clamps the shafts- whether they're engaged 20 or 23mm (making up numbers). The shaft diameters are constant, the female spline ID is constant...
    I'd love an explanation why this would work! :)

    BigHoss96[OP] likes this.
  19. Feb 12, 2021 at 1:19 PM
    #19
    wmgeorge

    wmgeorge Well-Known Member

    Joined:
    Nov 26, 2020
    Member:
    #347898
    Messages:
    203
    Ditto unless hammering the two splined shafts closer together makes it so hard to turn the steering wheel that nothing seems loose!

  20. Feb 12, 2021 at 2:33 PM
    #20
    dbbd1

    dbbd1 Well-Known Member

    Joined:
    Oct 16, 2007
    Member:
    #3088
    Messages:
    403
    Yeah. The only thing that comes to my mind is if the shafts had a slight "V" in them at the U-joint. Doing this then straightens it out,
