Show off your aux fuse panels.

Discussion in 'Lighting' started by Newlife, Dec 29, 2013.

  1. Jan 1, 2020 at 9:48 PM
    #1041
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,012
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
    Mount them facing down, I got plugs for mine. Then I coated the bottoms with dielectric grease. These applications are what it’s designed for. Otherwise, mount everything in a Otter box or other similar container.

    https://www.amazon.com/Permatex-220...ric+grease&qid=1577943937&sprefix=diel&sr=8-2

    https://www.amazon.com/uxcell-5-Pin...s=auto+relay+connector&qid=1577944020&sr=8-25

    Or get water resistant relays.
    https://www.amazon.com/gp/aw/d/B01MTQNJKM/ref=sspa_mw_detail_2?ie=UTF8&psc=1

  2. Jan 2, 2020 at 4:58 AM
    #1042
    littlefish

    littlefish Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    1,996
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    The one who dies with the most stuff wins.
    Thank you! Im going to order those water resistant relays. I had dialectic grease on my relays after they corroded, but it still didn’t feel it stopped water getting into the relay itself, just protected the connections.

    shane100700[QUOTED] likes this.
  3. Jan 2, 2020 at 10:59 AM
    #1043
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,071
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    I also put a sub panel under the cup holders along with my compressor relay so rather than push several #10 wires(sub panel main feed, seat heater feeds, compressor relay main feed, and sub panel ground buss feed) through the firewall grommet I ran them along the frame and installed a grommet next to the one under the driver's seat. I'm only pushing #18 wires through the firewall grommet. Daystar makes one that some have placed near the main grommet as well to push larger bundles and there's a 22-pin bulkhead connector you can get from DelCity but it's only good for low amp circuits.

  4. Jan 2, 2020 at 11:08 AM
    #1044
    kmorgan3

    kmorgan3 Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,945
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500
    Thanks! I'll make sure to look after them. I was contemplating making a plastic cover for the footprint of my panel, but for now I'll just let it ride.

  5. Jan 5, 2020 at 2:23 PM
    #1045
    CLVol1255

    CLVol1255 Well-Known Member

    Joined:
    Oct 16, 2018
    Member:
    #269644
    Messages:
    2,195
    Gender:
    Male
    First Name:
    Chris
    Tennessee
    Vehicle:
    2017 TRD Sport DCSB
    Bilstein 8112/8100 ICON RXT Stage 2 JBA UCAs Archive Garage HH w Shackles Archive Garage U Bolt Flip kit Nitto Ridge Grapplers 255/80/R17 TRD Front Skid and RCI Transmission Skid Kenwood DMX 1057XR Head Unit Focal Utopia WM 3 way plus WM10 Sub Mosconi 5/30 and Genesis Dual Mono Amp
    May be a bit off topic but I’ve searched “the big 3” cable change on the 3rd gen forum and couldn’t find anything about it. Is this something that most of you with the aux fuse boxes do? The more research I do on learning for my truck on YouTube the more videos and stuff I see they peaks my interest. Anybody done the big 3 on here? If so where is the engine block cable located? Thanks y’all

  6. Jan 5, 2020 at 4:39 PM
    #1046
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,071
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    I wouldn't say"most" but anyone with a winch or other really high amp draw items could benefit. The battery-chassis ground cable is a undersized if you add much of anything and ground your accessories to the chassis instead of B-. What most do for just an aux fuse box is run a separate cable for that along with a ground buss with a ground cable to B-. Do the upgrades you need for what you add.

  7. Jan 5, 2020 at 5:39 PM
    #1047
    Taco-Obsessed

    Taco-Obsessed Wildlife Peeping Tom

    Joined:
    Dec 23, 2018
    Member:
    #276756
    Messages:
    7,437
    Gender:
    Male
    I have, but I'm a second gen.

    CLVol1255[QUOTED] likes this.
  8. Jan 5, 2020 at 5:43 PM
    #1048
    CLVol1255

    CLVol1255 Well-Known Member

    Joined:
    Oct 16, 2018
    Member:
    #269644
    Messages:
    2,195
    Gender:
    Male
    First Name:
    Chris
    Tennessee
    Vehicle:
    2017 TRD Sport DCSB
    Bilstein 8112/8100 ICON RXT Stage 2 JBA UCAs Archive Garage HH w Shackles Archive Garage U Bolt Flip kit Nitto Ridge Grapplers 255/80/R17 TRD Front Skid and RCI Transmission Skid Kenwood DMX 1057XR Head Unit Focal Utopia WM 3 way plus WM10 Sub Mosconi 5/30 and Genesis Dual Mono Amp
    Yeah I’ve actually added the 100amp fuse box with 12 30amp circuits and I’ve got that grounded to the chassis ground the battery grounds to. I upgraded my positive and negative wires to my battery to 2/0. Was just wondering if I upgraded the other two if it’d help and if I were to do that where the engine block to chassis ground wire is on the 3rd gen V6s. I’m running several different items to my fuse box and I’ve got it attached to a 100amp circuit breaker as well. relayed Light bar 310watts ditch lights 30 watts. Non relayed 125 watt powered sub and a 180 watt power pack amp. Not sure if I’m really straining my 130amp alternator with these or not as I really only use the light bar and ditch lights on back country back roads without traffic which isn’t often. I’ve tried to make sure a use at least one size up when wiring my aux components and fuse each wire right before they’re connected to fuse box. I’m a little confused on what size battery fuse to get for my actual battery post since I’m running wire 2/0 that is capable of 250amps plus and I’m running a 100amp circuit breaker and fuse box

  9. Jan 5, 2020 at 7:55 PM
    #1049
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,071
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    130A at 12V is ~1500W so you should be fine.
    Fuse for the weakest link but generally we don't use a fuse and a breaker on the same cable, just keep the cable that goes to the breaker short like the oem cable that goes to the stock fuse box. Everything after the breaker is protected by it so your 100A fuse box is properly matched to the 100A breaker. The fuses in the fuse box protect the wires in each circuit so size those wires for the current drawn by each device (amps = watts/12V) and fuse to match the wire. Size up the wire for longer runs if you don't want to lose power in the wires.

  10. Jan 5, 2020 at 8:23 PM
    #1050
    CLVol1255

    CLVol1255 Well-Known Member

    Joined:
    Oct 16, 2018
    Member:
    #269644
    Messages:
    2,195
    Gender:
    Male
    First Name:
    Chris
    Tennessee
    Vehicle:
    2017 TRD Sport DCSB
    Bilstein 8112/8100 ICON RXT Stage 2 JBA UCAs Archive Garage HH w Shackles Archive Garage U Bolt Flip kit Nitto Ridge Grapplers 255/80/R17 TRD Front Skid and RCI Transmission Skid Kenwood DMX 1057XR Head Unit Focal Utopia WM 3 way plus WM10 Sub Mosconi 5/30 and Genesis Dual Mono Amp
    Thanks man! Appreciate the time and I feel better after reading bc I’ve pretty much followed what you’ve said to the T

    Area51Runner likes this.
  11. Jan 20, 2020 at 10:05 PM
    #1051
    kite

    kite Well-Known Member

    Joined:
    Oct 12, 2010
    Member:
    #44587
    Messages:
    328
    Gender:
    Male
    Squamish, BC
    Vehicle:
    Red Truck
    I have a Viair Compressor that I'd like to mount under the hood. States on the compressor body that it uses 30amps. The current inline fuse to the alligator clips is 40amps.

    Do you think it'd be safe to run a 35amp fuse off my Bluesea fuse block to the compressor? Or how ill advised would it be to run power from two posts with 20 amp fuses on each?

  12. Jan 20, 2020 at 11:20 PM
    #1052
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,071
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    No. If one fuse blows you end up Immediately blowing the other. It's also a No-No to use 2 wires unless each wire is rated for the full current. For accessories that are over the limit you need to run a dedicated fused wire direct from the battery or from it's own fuse/breaker next to your blue seas breaker. 30A is right at the limit so try it with a 30A fuse in a single circuit from the blue seas block. Whatever you do be sure the wire is rated at or above the fuse/breaker value.

  13. Jan 21, 2020 at 5:51 AM
    #1053
    11TRDTX

    11TRDTX bruh

    Joined:
    Mar 15, 2012
    Member:
    #74980
    Messages:
    7,817
    Gender:
    Male
    First Name:
    Mike
    Memphis, TN
    Vehicle:
    2011 TRD TX 4x4 MGM DCSB
    Lift, 285's, mud, and scratches
    stick a relay in the circuit. run some bigger gauge wire (10 or so) to relay power from the blue sea with a 40A fuse, and from the relay to the compressor. you can run smaller wire from a switch (can also be powered by the blue sea) in the cab to the relay with a separate fuse so that both sides are protected.

  14. Jan 22, 2020 at 12:18 PM
    #1054
    kite

    kite Well-Known Member

    Joined:
    Oct 12, 2010
    Member:
    #44587
    Messages:
    328
    Gender:
    Male
    Squamish, BC
    Vehicle:
    Red Truck
    Good call. I'll try the 30amp and see if it hold and run that through a relay and switch in the cab. Thanks for your help.

    11TRDTX[QUOTED] likes this.
  15. Jan 22, 2020 at 1:19 PM
    #1055
    littlefish

    littlefish Buzz, your girlfriend...

    Joined:
    Sep 13, 2018
    Member:
    #266147
    Messages:
    1,996
    Gender:
    Male
    Hudson Valley NY
    Vehicle:
    2016 TRD Off-Road DCSB
    The one who dies with the most stuff wins.
    Make sure you run it under a load to see if the 30A fuse blows.

    kite[QUOTED] likes this.
  16. Jan 25, 2020 at 2:55 PM
    #1056
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,418
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    Cool switch with remote can be found here! (not bad for $50 compared to $550 for the switch pro, and the best part is you don't need to run wires through the firewall)

    It seems to have the relays built in. You can do ditch lights, bed lights, light bar and backup lights as long as they're below the amp rating, 60A total. The unit is not waterproof, so you might want to install it in a WP box like this. Remote is rated for 100', but may lose distance if installed in said box...



    Found here

  17. Jan 26, 2020 at 4:21 AM
    #1057
    pRey23

    pRey23 Member

    Joined:
    Dec 22, 2019
    Member:
    #313951
    Messages:
    16
    Gender:
    Male
    MD/DE
    Vehicle:
    TRD Pro ‘19 6MT

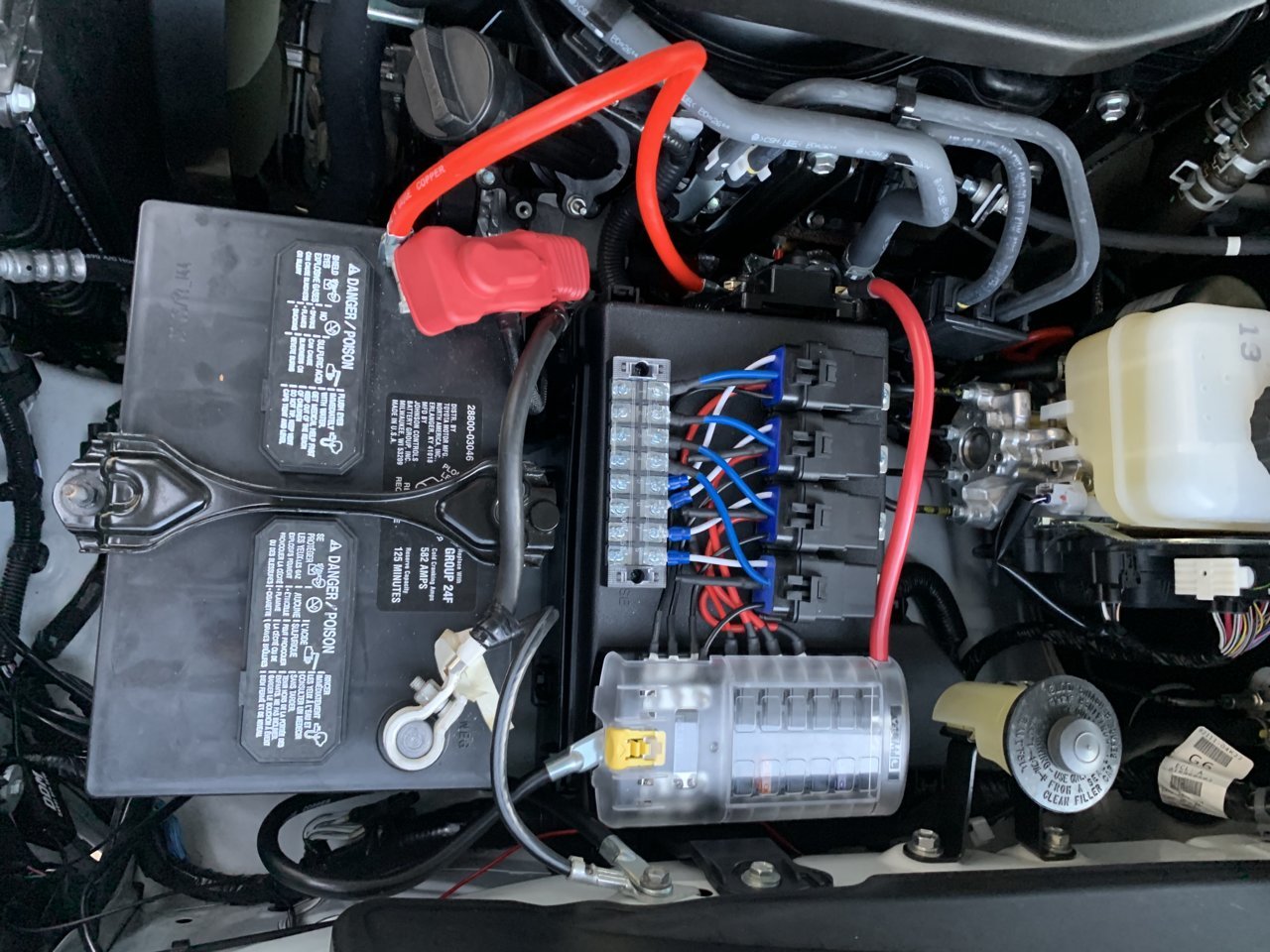

    Simple setup, ready to accessorize..


    RyanDCLB, shane100700 and E-Paz 732NJ like this.
  18. Feb 5, 2020 at 10:30 AM
    #1058
    bonifacio

    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    1,005
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4

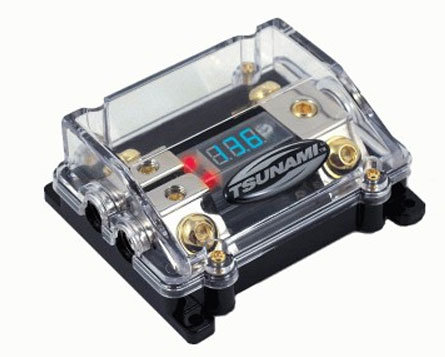

    With the Fuse Blocks and breakers are inline fuses still used in addition to?

    q2yV9A2H1vQMZuiZPzsRHNjvWPQVV2bNiABB7edh_9e140e372d9d2866bb6f32d293d699547fdf40ab.jpg

    Juice Weasel likes this.
  19. Feb 5, 2020 at 10:43 AM
    #1059
    shane100700

    shane100700 Bed, Bath & Beyond Crawler

    Joined:
    Jun 1, 2011
    Member:
    #57578
    Messages:
    7,012
    Gender:
    Male
    Montana
    Vehicle:
    2019 DCSB, OR
    Rocket Boosters
    Typically either a breaker OR inline, followed by a fuse box or fuse on each power wire. If it makes sense how I’m saying it.

  20. Feb 6, 2020 at 4:52 AM
    #1060
    bonifacio

    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    1,005
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    So both is not needed? Any benefit to have both?
