Show off your aux fuse panels.

Discussion in 'Lighting' started by Newlife, Dec 29, 2013.

  1. Sep 29, 2019 at 6:22 AM
    #921
    motofish84

    motofish84 Well-Known Member

    Joined:
    Jun 26, 2019
    Member:
    #297482
    Messages:
    145
    First Name:
    Tyler

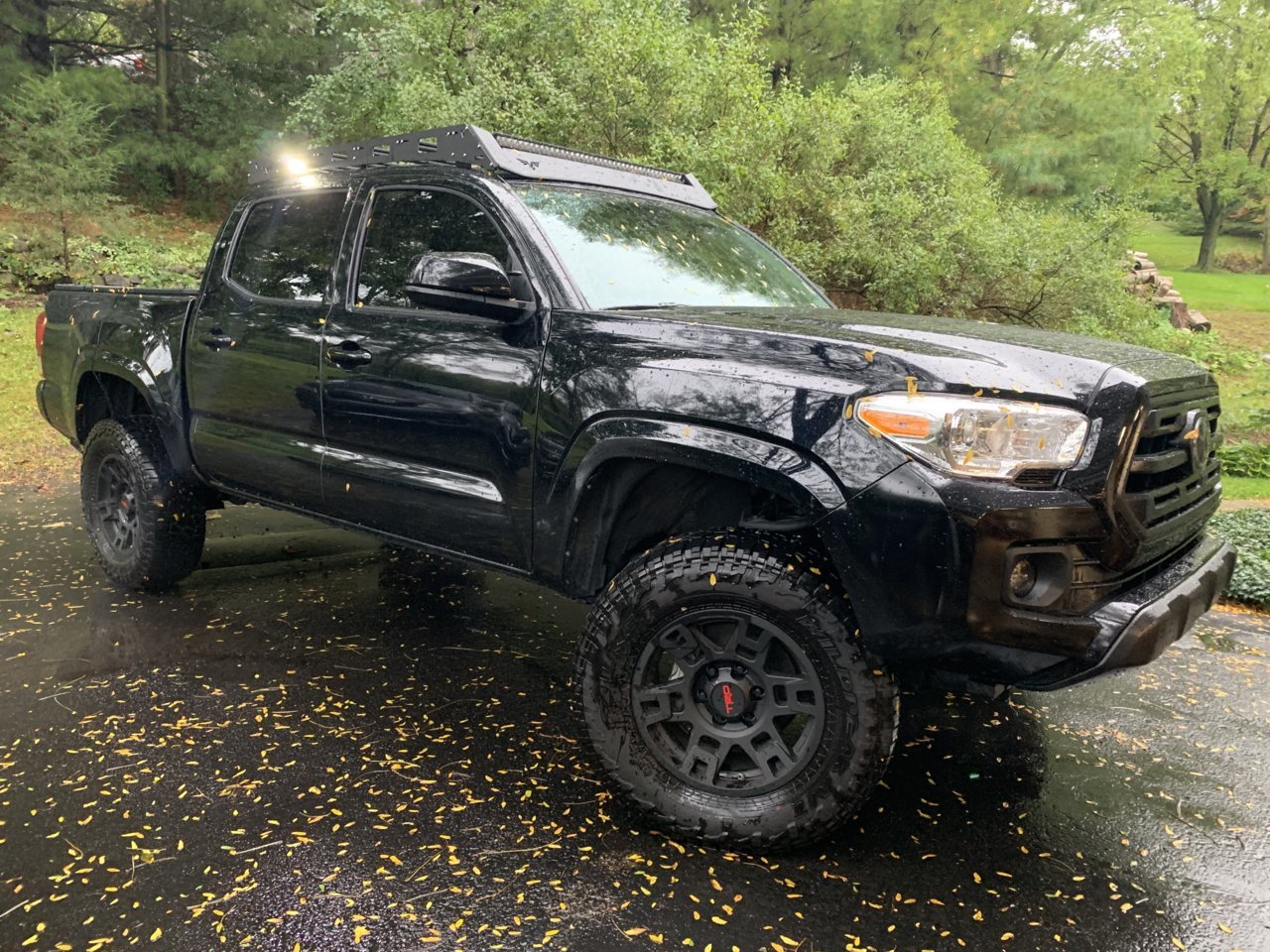

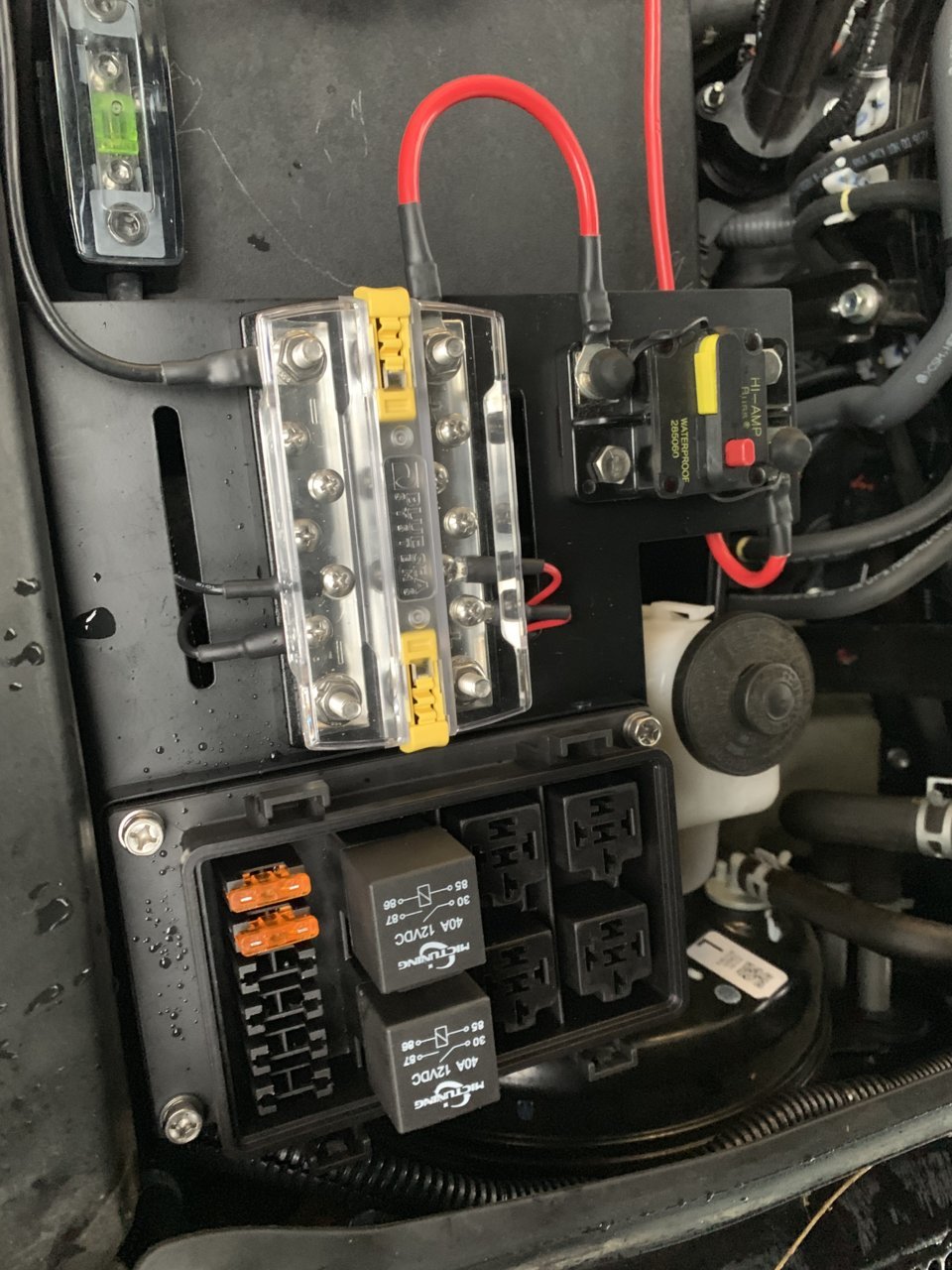

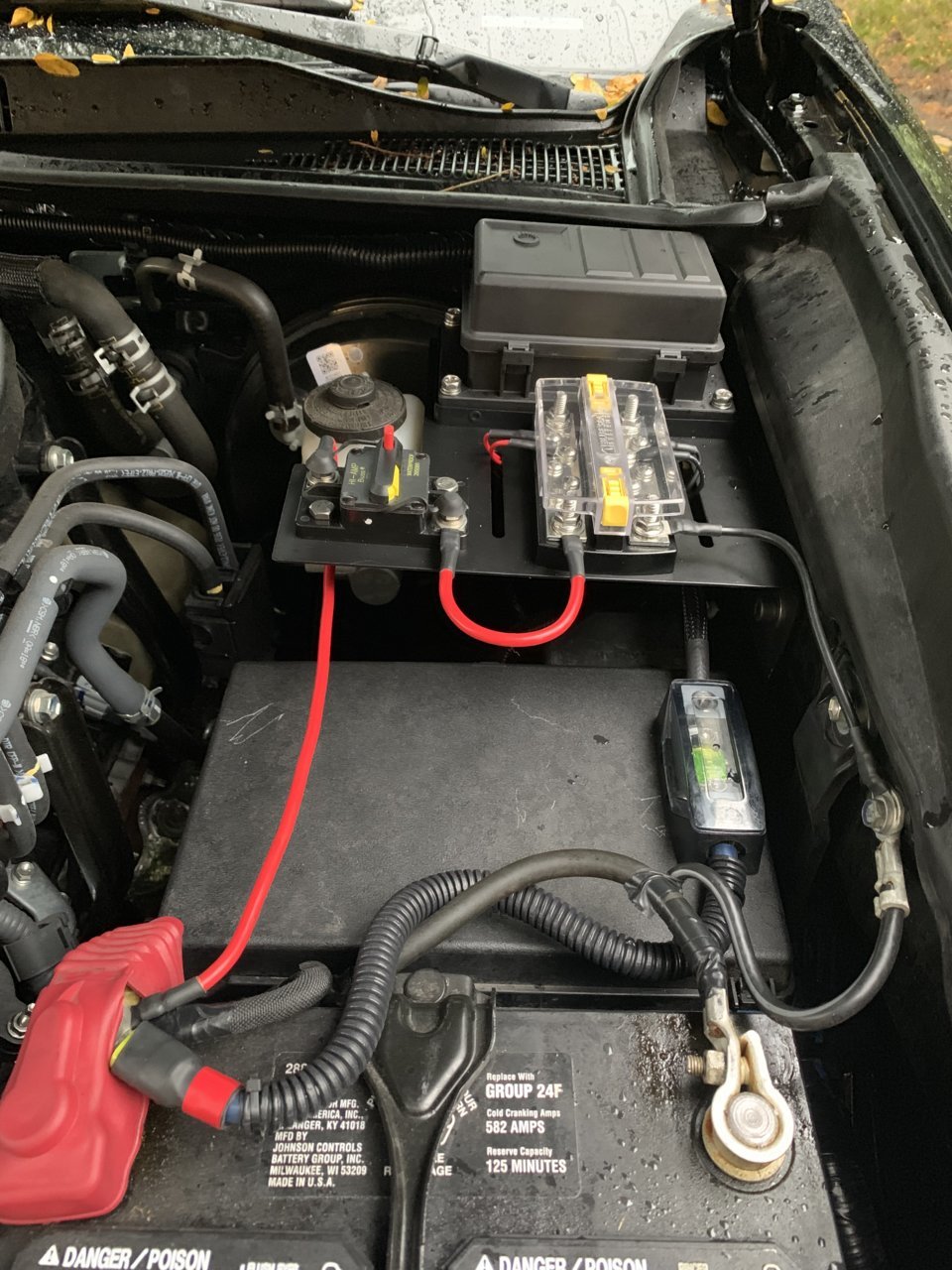

    The panel I’ve been working on is finished and installed. I cut the panel out of 16G steel then milled out the necessary holes and openings and bent it 90 degrees. Currently it supports a light bar on my roof rack and some scene lights. The bar isn’t able to be used yet because my switch has yet to arrive. Scene lights are tied to the cargo light switch. I also plan to add a circuit for bed lights and possibly a 12v circuit in the bed.


    I’d like to get some battery terminals that will allow some additional posts.


  2. Sep 29, 2019 at 9:23 AM
    #922
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,071
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Just this morning seeing this post. There are two main benefits, if there's a short you just find it, fix it, and reset the breaker, instead of having to buy a new fuse. The other is it acts as a switch so you can de-energize the panel.

    Taco-Obsessed likes this.
  3. Sep 29, 2019 at 9:39 AM
    #923
    badkids

    badkids Well-Known Member

    Joined:
    Jun 19, 2019
    Member:
    #296794
    Messages:
    566
    Vehicle:
    ‘83 Hilux with a 2JZ
    Still have it? Pm me

  4. Sep 29, 2019 at 12:42 PM
    #924
    yodataco

    yodataco Well-Known Member

    Joined:
    Jun 9, 2013
    Member:
    #105921
    Messages:
    703
    Gender:
    Male
    First Name:
    Alex
    Orange County, CA
    Vehicle:
    2000 4Runner
    MCM fab 3.5" LT front, OME 861 rear
    These are what i used.
    https://www.amazon.com/Military-Spe...ocphy=9031582&hvtargid=pla-777032180552&psc=1

  5. Sep 29, 2019 at 1:29 PM
    #925
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    11,728
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
    Still have it. Still waiting on my other box to be made. I can let you know when it comes in if you'd like. Or I can give you the link to the rtmr thread too. All about options

  6. Sep 29, 2019 at 1:30 PM
    #926
    Area51Runner

    Area51Runner Well-Known Member

    Joined:
    Jun 26, 2014
    Member:
    #132748
    Messages:
    11,766
    Gender:
    Male
    First Name:
    Mike
    Northern California, Bay Area
    Vehicle:
    02 3.4 DC TRD PreRunner 4WD SWAP

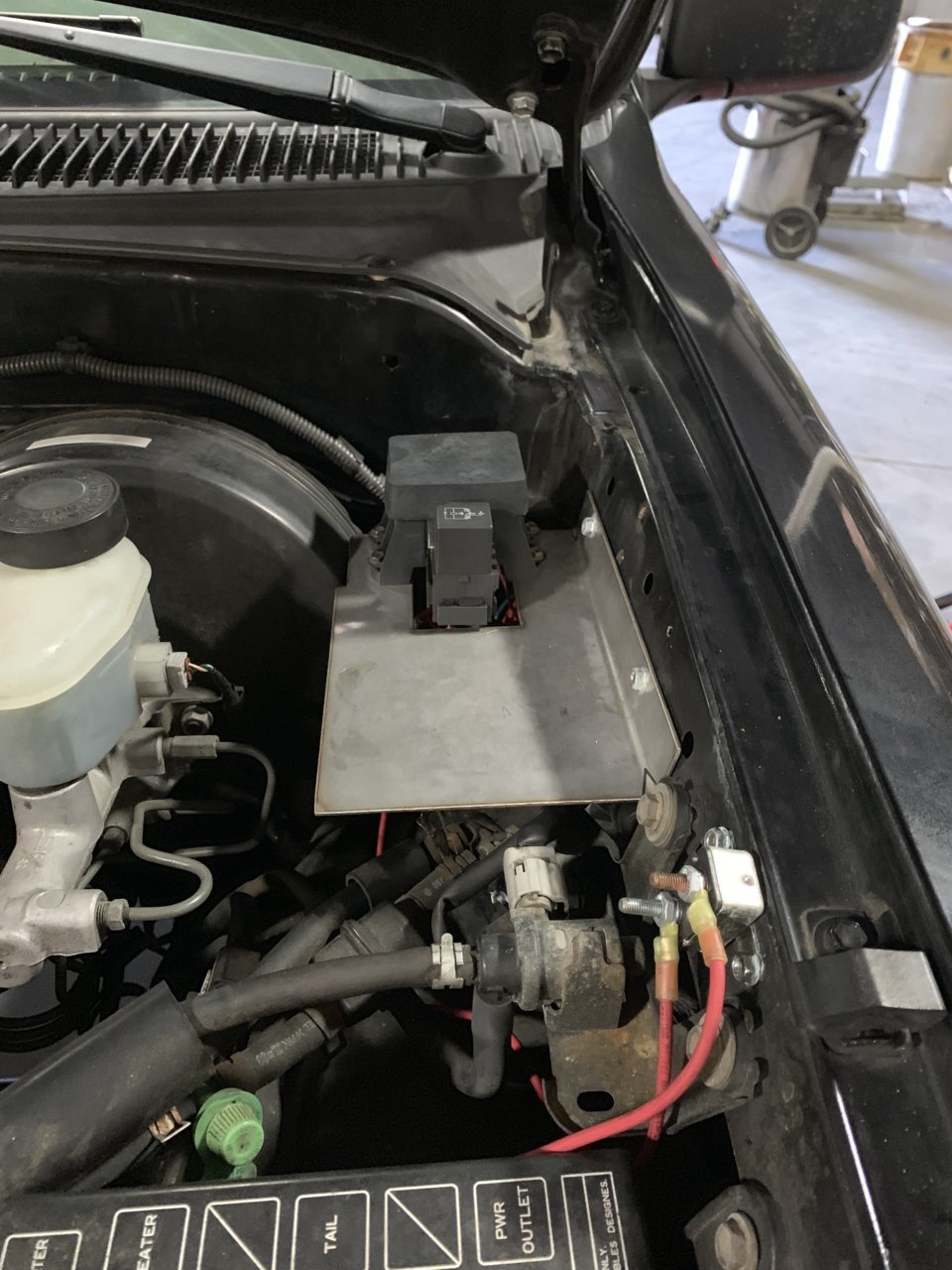

    Panel is from Paranoid... Don't think there is another one out there for the 1st gen. I still need to assemble everything (have all the parts, just need to find the time to do it) but here is a shot of the panel in the engine bay. From the bottom, there is enough space. We'll see.

    [​IMG]

    (ignore that long screw to the left of the RTMR :rofl:)

    Taco-Obsessed likes this.
  7. Sep 29, 2019 at 1:40 PM
    #927
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,071
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Area51Runner likes this.
  8. Sep 29, 2019 at 2:10 PM
    #928
    badkids

    badkids Well-Known Member

    Joined:
    Jun 19, 2019
    Member:
    #296794
    Messages:
    566
    Vehicle:
    ‘83 Hilux with a 2JZ
    Both, thanks

  9. Sep 29, 2019 at 3:00 PM
    #929
    m603holden

    m603holden @Koditten Pirate Radio member #063

    Joined:
    Oct 18, 2014
    Member:
    #140581
    Messages:
    11,728
    Gender:
    Male
    First Name:
    Marteeen
    New England
    Vehicle:
    2017 Tacoma DCSB OR MT
    Lots of sail boat fuel
  10. Sep 29, 2019 at 5:23 PM
    #930
    Stryker420

    Stryker420 Well-Known Member

    Joined:
    Apr 6, 2017
    Member:
    #215523
    Messages:
    673
    Gender:
    Male
    First Name:
    Benedict
    Mooresville IN
    Vehicle:
    2012 Tacoma DCLB

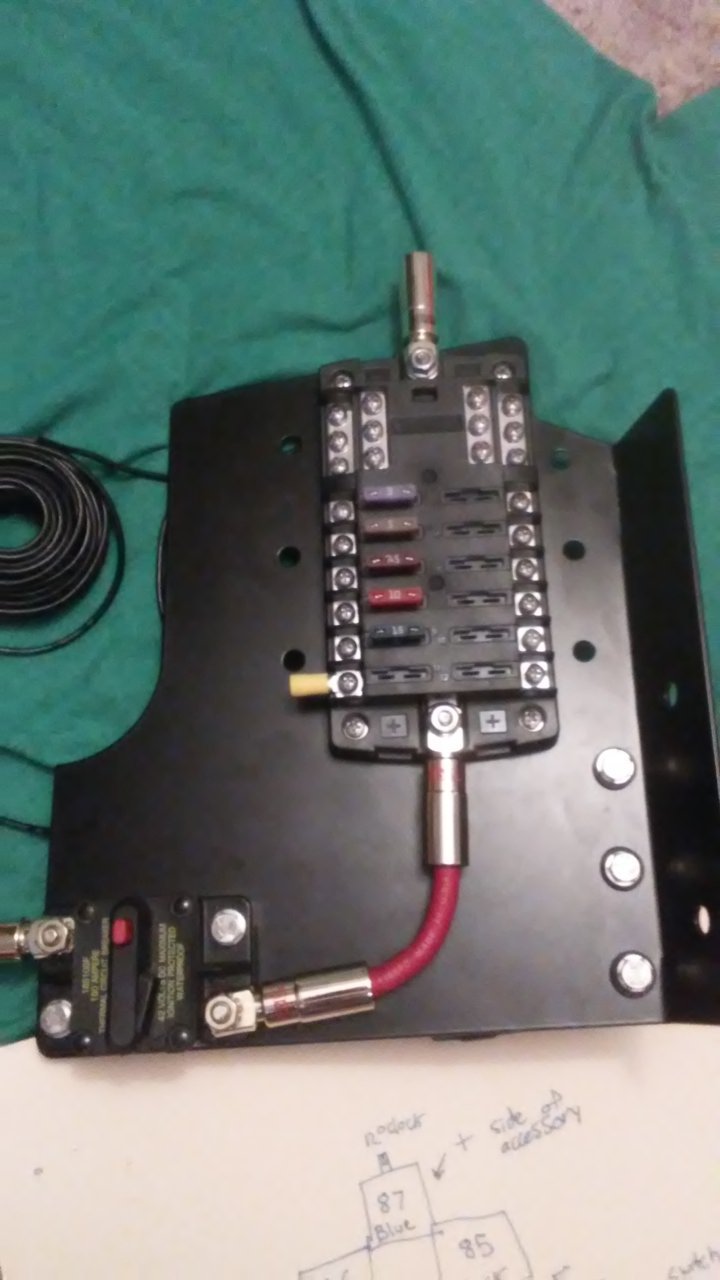

    Is this looking correct?


    Area51Runner likes this.
  11. Sep 30, 2019 at 11:43 AM
    #931
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,418
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR


    I have a general question for anyone with knowledge...

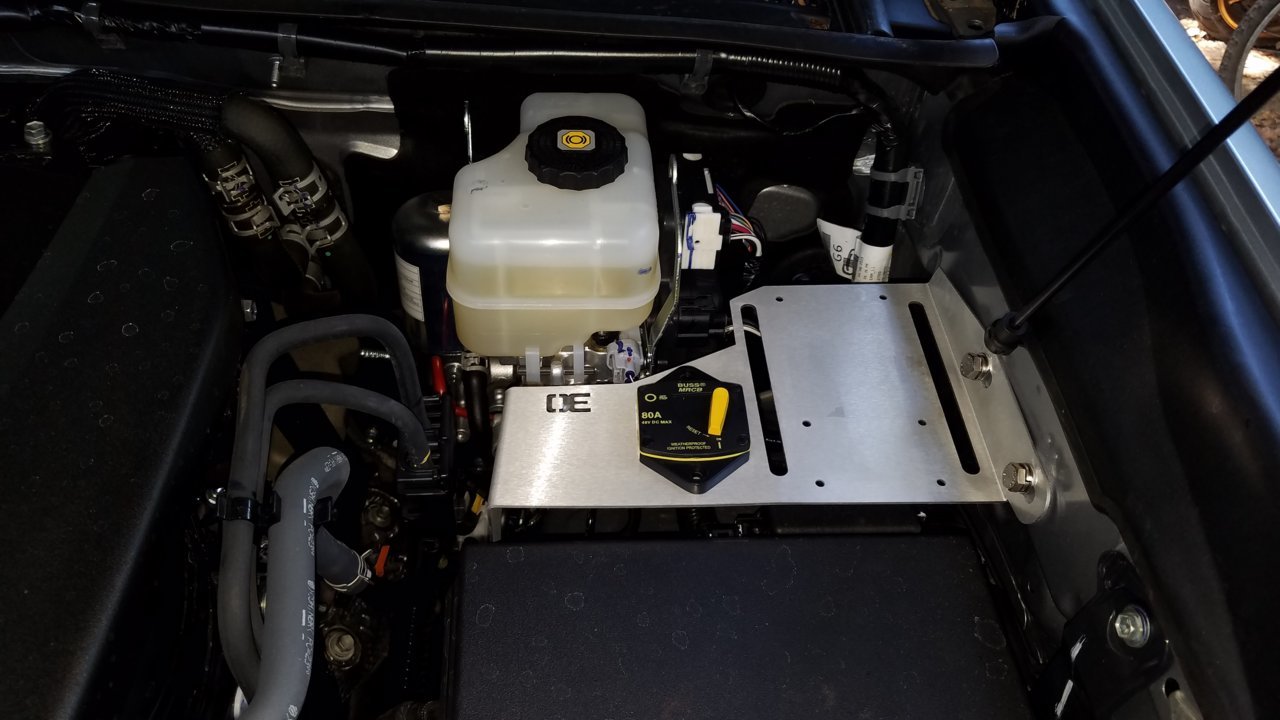

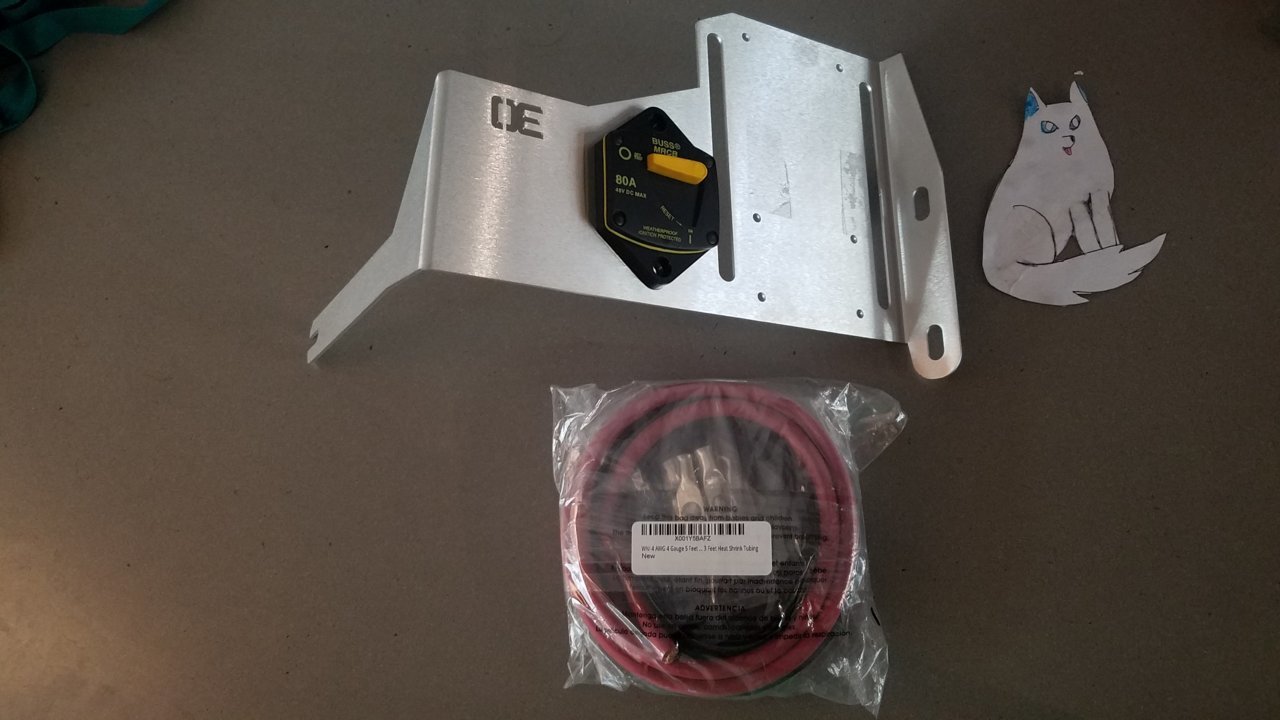

    For the above, so far I have a 6 circuit Blue Sea with an 80 amp breaker the bracket is from Overland Equip. I have "minor" accessories planned. My ARB 40 amp dual compressor, I'm assuming, should be wired direct to the battery because it exceeds the 30 amp limit. Honestly, I doubt I'll get up to 40 amps total with all my planned accessories.

    I've been looking at the Blue Sea Low Voltage Disconnect from here. Does anyone see a problem installing this before the breaker? Thanks...

    Last edited: Sep 30, 2019
    Stryker420 likes this.
  12. Sep 30, 2019 at 4:32 PM
    #932
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,071
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...
    Nope, should work fine there.

    Stryker420 likes this.
  13. Sep 30, 2019 at 4:51 PM
    #933
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,418
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    Great, thanks! :hattip: I just ordered it. :thumbsup:

    Stryker420 likes this.
  14. Sep 30, 2019 at 7:55 PM
    #934
    Stryker420

    Stryker420 Well-Known Member

    Joined:
    Apr 6, 2017
    Member:
    #215523
    Messages:
    673
    Gender:
    Male
    First Name:
    Benedict
    Mooresville IN
    Vehicle:
    2012 Tacoma DCLB
    Dude you are squared away... Good plan

    RyanDCLB[QUOTED] likes this.
  15. Sep 30, 2019 at 9:35 PM
    #935
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,418
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    Thanks. I didn’t like the idea of the panel always being hot and draining my battery. The low voltage disconnect will be perfect for shutting down the fuse panel. The one thing about the disconnect is that it has a continuous rating of 65 amps. For those with more accessories, they may want two disconnects with the Blue Sea Split Panel to "spread the load". :thumbsup:

    Stryker420[QUOTED] likes this.
  16. Oct 1, 2019 at 3:43 AM
    #936
    bagleboy

    bagleboy Well-Known Member

    Joined:
    Aug 5, 2017
    Member:
    #226018
    Messages:
    7,071
    Gender:
    Male
    First Name:
    Scott
    Norcal, Santa Rosa
    Vehicle:
    2014 5-lug AC 2.7L VVTI
    Snug top Rebel, Thule tracks, ditch tracks, Bagged rear suspension, F/R anytime camera, intermittent wiper switch...

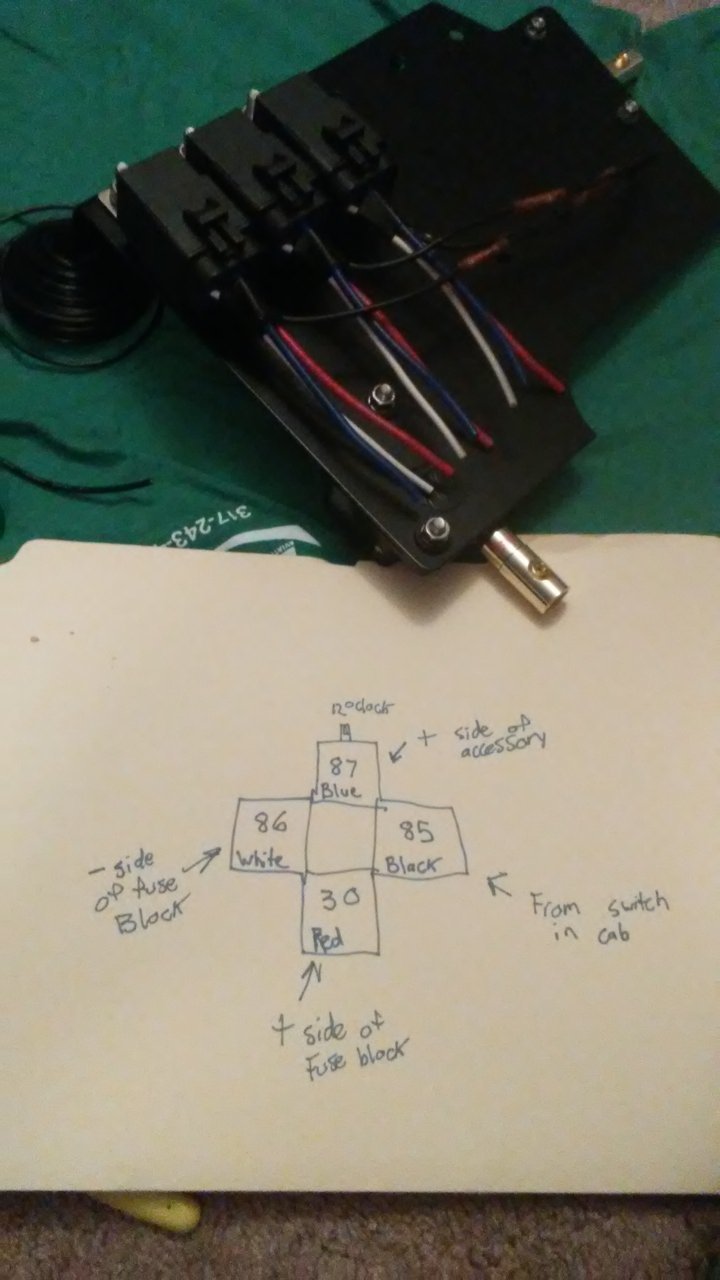

    Yes, polarity isn't important on relays, only getting the coil connections and high current connections to the right components.
    Switch is 85/86
    Accessory 30/85
    And you have those correct.
    maybe angle the plus cable away from the engine block a little(more toward the grill).

    Last edited: Oct 1, 2019
    Stryker420[QUOTED] likes this.
  17. Oct 1, 2019 at 4:52 AM
    #937
    Stryker420

    Stryker420 Well-Known Member

    Joined:
    Apr 6, 2017
    Member:
    #215523
    Messages:
    673
    Gender:
    Male
    First Name:
    Benedict
    Mooresville IN
    Vehicle:
    2012 Tacoma DCLB
    Thanks! Time to get splicing

  18. Oct 1, 2019 at 5:05 AM
    #938
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,756
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    So where are you installing the LVD? Under the hood or in the cabin?

  19. Oct 6, 2019 at 10:05 AM
    #939
    Hyland33

    Hyland33 Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226316
    Messages:
    581
    Gender:
    Male
    First Name:
    Andrew
    Leicester, MA
    Vehicle:
    2015 Tacoma TRD Offroad

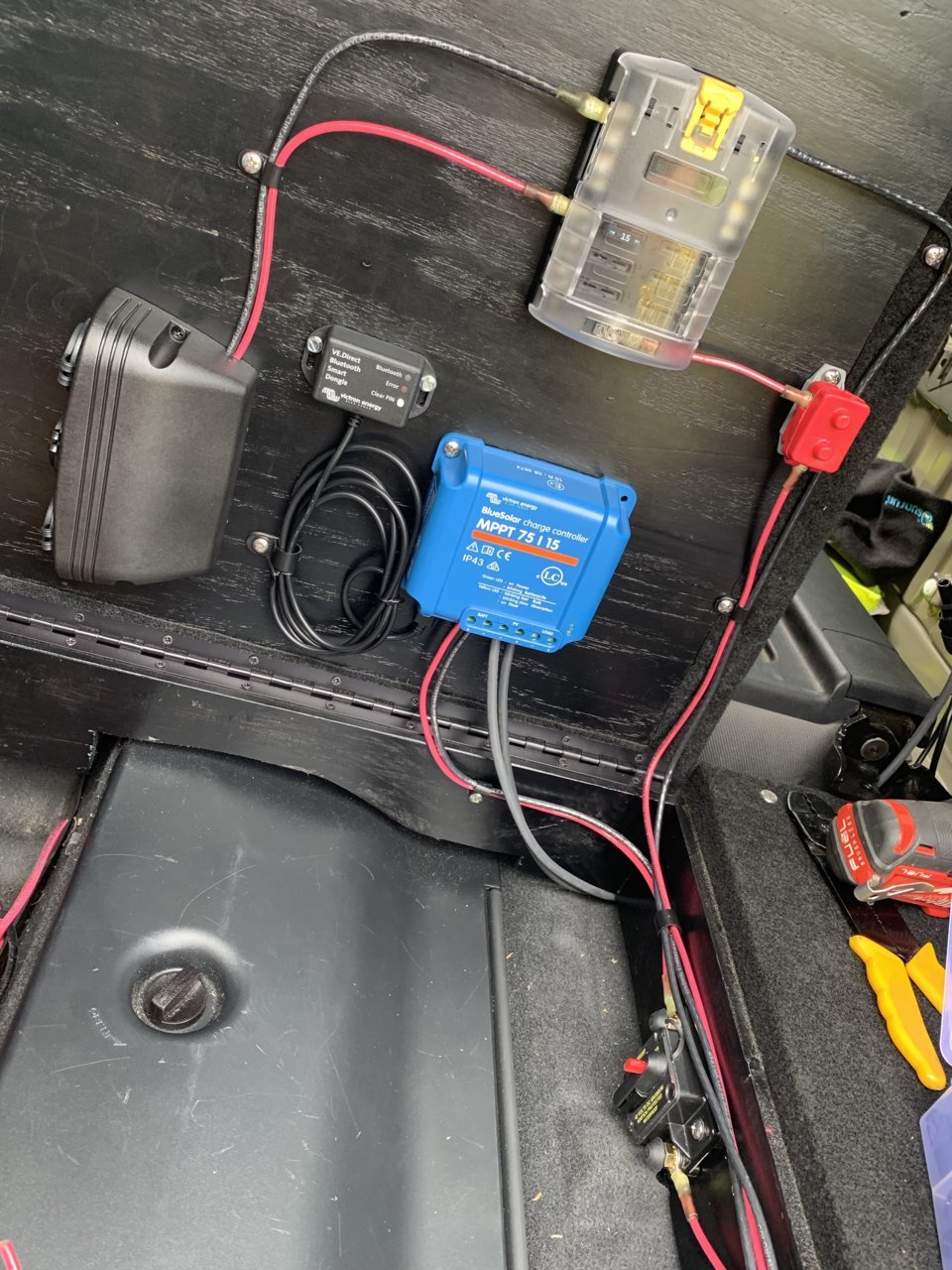

    Powering mine with my solar setup. Only using it for some 12v ports at the moment. I run my dometic, a charger for my macbook, and a phone/ipad charger off the ports now.

  20. Oct 6, 2019 at 10:19 AM
    #940
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,418
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    I haven't decided yet. The LVD unit itself will be flush mounted on the aux fuse bracket next to the breaker, while the switch can be mounted inside the cab or inside the engine bay. I don't have any extra slots ATM inside the cab, so my current plan is to mount the switch in the engine bay below the 6 blade aux fuse panel.

    JustinL[QUOTED] likes this.
