Reverse lighting

Discussion in 'Lighting' started by jknc, Jul 10, 2014.

Page 2 of 3
  1. Jul 18, 2014 at 9:11 AM
    #21
    StAndrew

    #21
    StAndrew Wait for it...

    Joined:
    Feb 8, 2010
    Member:
    #30950
    Messages:
    8,310
    Gender:
    Male
    First Name:
    Chris
    Hampton Roads, Va
    Vehicle:
    SR5 4x4TRD
    Intake, exhaust, lift. Typical stuff.
    The issue with mounting lights in your bed (vice your bumper) is your tail gate does two things:

    -Reflects the light back to you, slightly blinding you when looking back
    -Blocks a good amount of light, creating a blind zone behind the truck

    Droping the tail gate helps, but mounting the flat lights on your bumper (unless you offroad) is your best bet.

    StAndrew, Jul 18, 2014
    #21
  2. Jul 18, 2014 at 9:14 AM
    #22
    jknc

    #22
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock
    Well I'm thinking of backing the boat in the lake and the truck being on an incline they could help light the area.

    Also if I do that I'll be keeping the bumper lights on too.

    Last edited: Jul 18, 2014
    jknc, Jul 18, 2014
    #22
  3. Jul 18, 2014 at 7:05 PM
    #23
    jknc

    #23
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock

    $25 Walmart Lights aren't half bad. The mount is kinda flimsy, but it actually helped to aim them. I definitely wouldn't want to mount them where they take much beating. They're pretty well protected by the towing package and bumper where they are though.

    jknc, Jul 18, 2014
    #23
  4. Jul 18, 2014 at 7:17 PM
    #24
    MARSHBUSTER

    #24
    MARSHBUSTER Well-Known Member

    Joined:
    Sep 24, 2011
    Member:
    #64054
    Messages:
    1,757
    Gender:
    Male
    First Name:
    Jim
    Alamogordo NM
    Vehicle:
    2005 SR5 4X4 Tacoma TRD
    Grill Gaurd/ Winch Bumper, Mile Marker 9000 LBS Winch, Custom Head Ache Rack, Custom Rear Bumper, Marathon Camo Max 4 Seat Covers
    You should check out Raxman80 on here he sells the lights your looking for.

    MARSHBUSTER, Jul 18, 2014
    #24
  5. Jul 19, 2014 at 2:10 PM
    #25
    jknc

    #25
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock
    I took them of the reverse light circuit, and wiring in a toggle.

    Last edited: Jul 19, 2014
    jknc, Jul 19, 2014
    #25
  6. Jul 19, 2014 at 11:44 PM
    #26
    jknc

    #26
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock

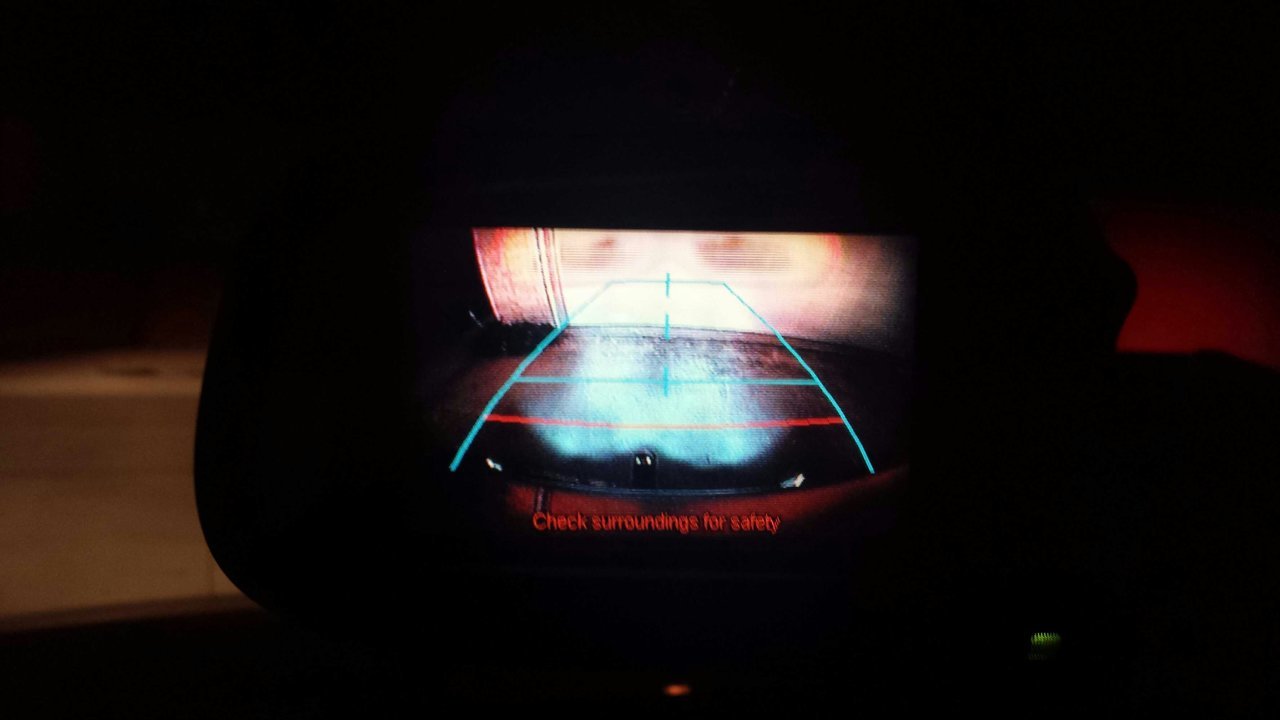

    So I wired in the toggle, then got curious. I wired the toggle into the reverse light circuit, with some disconnects to be safe, and was able to toggle reverse lights plus the added LEDs. It also kicked on the backup camera, which I really liked. I noticed that it threw a code when I got in the truck again so I disconnected the toggle from the reverse light circuit, and took the negative terminal off the battery for a few and cleared the code. Anyone know if maybe I just accidentally grounded something or if that is going to throw a code every time?


    Edit: Nevermind, going to get a couple of relays to achieve the result and isolate the circuits.

    Last edited: Jul 20, 2014
    jknc, Jul 19, 2014
    #26
  7. Jul 21, 2014 at 6:17 PM
    #27
    jknc

    #27
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock

    Ditched the Walmart ones got these for $20 way brighter. May use the Walmart ones for bed lights or something.

    jknc, Jul 21, 2014
    #27
  8. Jul 24, 2014 at 12:23 PM
    #28
    Yotabilly

    #28
    Yotabilly Well-Known Member

    Joined:
    Oct 28, 2012
    Member:
    #89984
    Messages:
    3,127
    Gender:
    Male
    The Bluegrass
    Vehicle:
    2013 4cyl,5spd.4x4 Reg Cab
    UWS low profile toolbox, tint, rainguards, color matched grill surround 265/75r16 Goodyear Duratracs Ultra-Guage XB fogs, Weathertech Floor Liners, OME 884s, 2"AAL, Bilstein 5100s, FJ Trail Team wheels, Matt123 skid plate, 30" light bar, Rigid Duallys, Bed extender
    I just got a set of the 18w led 6" bars. I have other lights up front and have no more switch space left. Would it be ok to splice into the reverse lights since they're only 18 watts? If so would I just splice hot to hot and ground to ground? Or should I ground to the frame?

    Yotabilly, Jul 24, 2014
    #28
  9. Jul 24, 2014 at 12:48 PM
    #29
    jknc

    #29
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock
    I had the others spliced into the reverse lights. Hot to hot and ground to ground. Works fine, I wouldn't go to a frame ground, low voltage systems don't like extra grounds sometimes. Only time I had any issues was trying to wire in a toggle as well. I wasn't thinking and sent voltage down the reverse circuit while the truck wasn't in reverse and it threw a code. It cleared with pulling the battery, but it scared me. I have a solution for that if it's the setup you want. You'd need a relay though.

    jknc, Jul 24, 2014
    #29
  10. Jul 24, 2014 at 12:59 PM
    #30
    Yotabilly

    #30
    Yotabilly Well-Known Member

    Joined:
    Oct 28, 2012
    Member:
    #89984
    Messages:
    3,127
    Gender:
    Male
    The Bluegrass
    Vehicle:
    2013 4cyl,5spd.4x4 Reg Cab
    UWS low profile toolbox, tint, rainguards, color matched grill surround 265/75r16 Goodyear Duratracs Ultra-Guage XB fogs, Weathertech Floor Liners, OME 884s, 2"AAL, Bilstein 5100s, FJ Trail Team wheels, Matt123 skid plate, 30" light bar, Rigid Duallys, Bed extender
    Ok thanks. That what I wanted to hear. Not interested in another relay, just wanna keep it simple.

    Yotabilly, Jul 24, 2014
    #30
  11. Jul 24, 2014 at 7:49 PM
    #31
    jknc

    #31
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock
    Yeah just splice that bad boy in. It works great. I've set my dad's truck up that way, I just wanted to be able to toggle mine on if some ass hat bright lights me.

    jknc, Jul 24, 2014
    #31
  12. Jul 27, 2014 at 12:31 PM
    #32
    Yotabilly

    #32
    Yotabilly Well-Known Member

    Joined:
    Oct 28, 2012
    Member:
    #89984
    Messages:
    3,127
    Gender:
    Male
    The Bluegrass
    Vehicle:
    2013 4cyl,5spd.4x4 Reg Cab
    UWS low profile toolbox, tint, rainguards, color matched grill surround 265/75r16 Goodyear Duratracs Ultra-Guage XB fogs, Weathertech Floor Liners, OME 884s, 2"AAL, Bilstein 5100s, FJ Trail Team wheels, Matt123 skid plate, 30" light bar, Rigid Duallys, Bed extender
    I installed mine today.

    Last edited: Jul 27, 2014
    Yotabilly, Jul 27, 2014
    #32
  13. Jul 27, 2014 at 12:43 PM
    #33
    jknc

    #33
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock
    Very nice.

    jknc, Jul 27, 2014
    #33
  14. Jul 29, 2014 at 7:39 AM
    #34
    jknc

    #34
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock
    How's the output?

    jknc, Jul 29, 2014
    #34
  15. Jul 29, 2014 at 8:36 AM
    #35
    DirtJumper14

    #35
    DirtJumper14 Well-Known Member

    Joined:
    Jun 26, 2007
    Member:
    #1918
    Messages:
    1,089
    Gender:
    Male
    SoCal
    Vehicle:
    2005 TRD OR
    5100's, BDF grills and light bracket, big 3 upgrade, ATH bed braces, snugtop xtra vision shell, (bed, shell, hood, rock, front, rear, footwell, glove box, center console led lighting), MESO Gasshole, MESO dome and map lights, Flyeyez center console light, custom fuse panel, TRD CAI, toyota bed mat, 2013 black carpet, 2015 side mirrors, BedRug, AJT key fob, ultraguage, 8 cadillac horns acdf, pop n lock tailgate lock, energy suspension bushings, spicer greasable ujoints, Rigid lights everywhere, kenwood stereo, led tube taillights (red), 2018 T4R trail wheels, rokblok mud flaps, TRD skid plate, RCi gas tank skid plate
    Looks good. For the money they are perfect and brighter than most Chinese cubes I have seen. Really happy with my set.

    Last edited: Aug 7, 2014
    DirtJumper14, Jul 29, 2014
    #35
  16. Jul 29, 2014 at 8:44 AM
    #36
    DeltaSteve

    #36
    DeltaSteve Social Critic

    Joined:
    Dec 6, 2013
    Member:
    #118051
    Messages:
    554
    Gender:
    Male
    First Name:
    Steve
    FW,TX near TCU
    Vehicle:
    '09 White TRD access
    KING 2.0" PERFORMANCE SERIES REMOTE RESERVOIR COILOVER SHOCK W COILOVERS, TC UCA, OME DAKAR SPRINGS, RELENTLESS PLATE R BUMPER and MORE :)

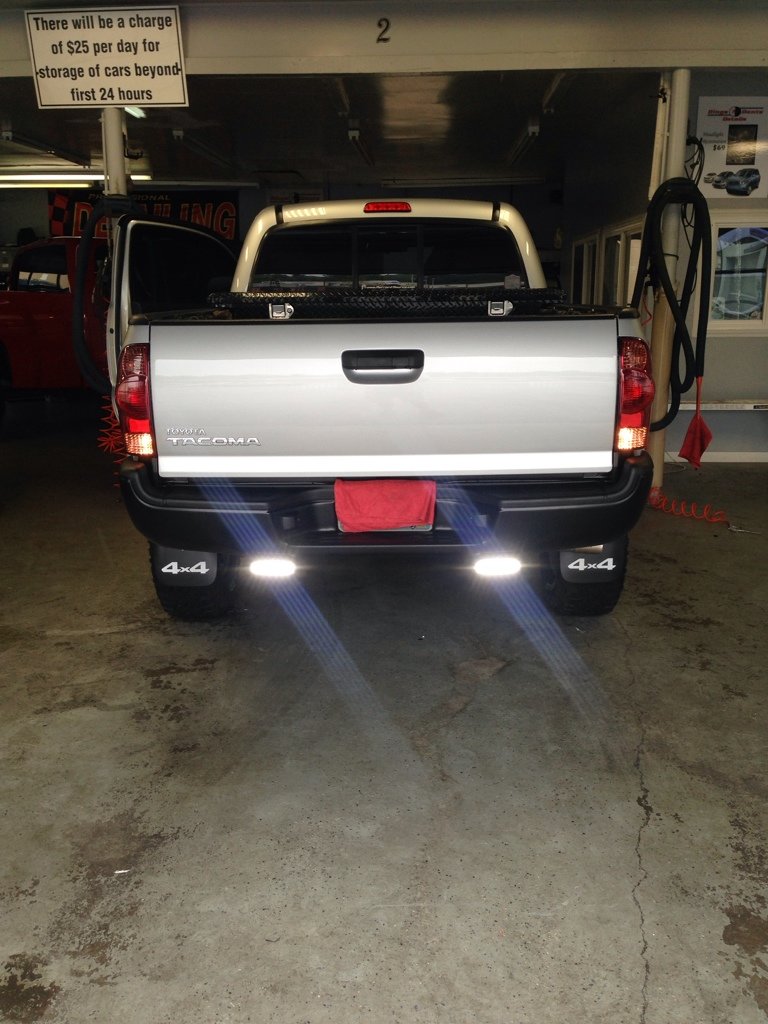

    6 emitter Cree flood from Raxman80, cost like $45 super quality. When my rear plate bumper gets here I'll mount two flush ones (same size as D2). BTW Ray's a great guy :)

    Looks like a good deal on your Amazon find !

    [​IMG]

    Last edited: Jul 29, 2014
    DeltaSteve, Jul 29, 2014
    #36
  17. Jul 29, 2014 at 8:57 AM
    #37
    Yotabilly

    #37
    Yotabilly Well-Known Member

    Joined:
    Oct 28, 2012
    Member:
    #89984
    Messages:
    3,127
    Gender:
    Male
    The Bluegrass
    Vehicle:
    2013 4cyl,5spd.4x4 Reg Cab
    UWS low profile toolbox, tint, rainguards, color matched grill surround 265/75r16 Goodyear Duratracs Ultra-Guage XB fogs, Weathertech Floor Liners, OME 884s, 2"AAL, Bilstein 5100s, FJ Trail Team wheels, Matt123 skid plate, 30" light bar, Rigid Duallys, Bed extender

    The output is good for what they are. I'd guess they are about three times brighter than the stock reverse lights. For under $30. It's a great deal.

    Yotabilly, Jul 29, 2014
    #37
  18. Jul 29, 2014 at 9:57 AM
    #38
    jknc

    #38
    jknc [OP] Well-Known Member

    Joined:
    Jun 29, 2014
    Member:
    #132939
    Messages:
    138
    Gender:
    Male
    First Name:
    Josh
    Dallas Texas
    Vehicle:
    2012 Texas Edition PreRunner SR5
    Stock

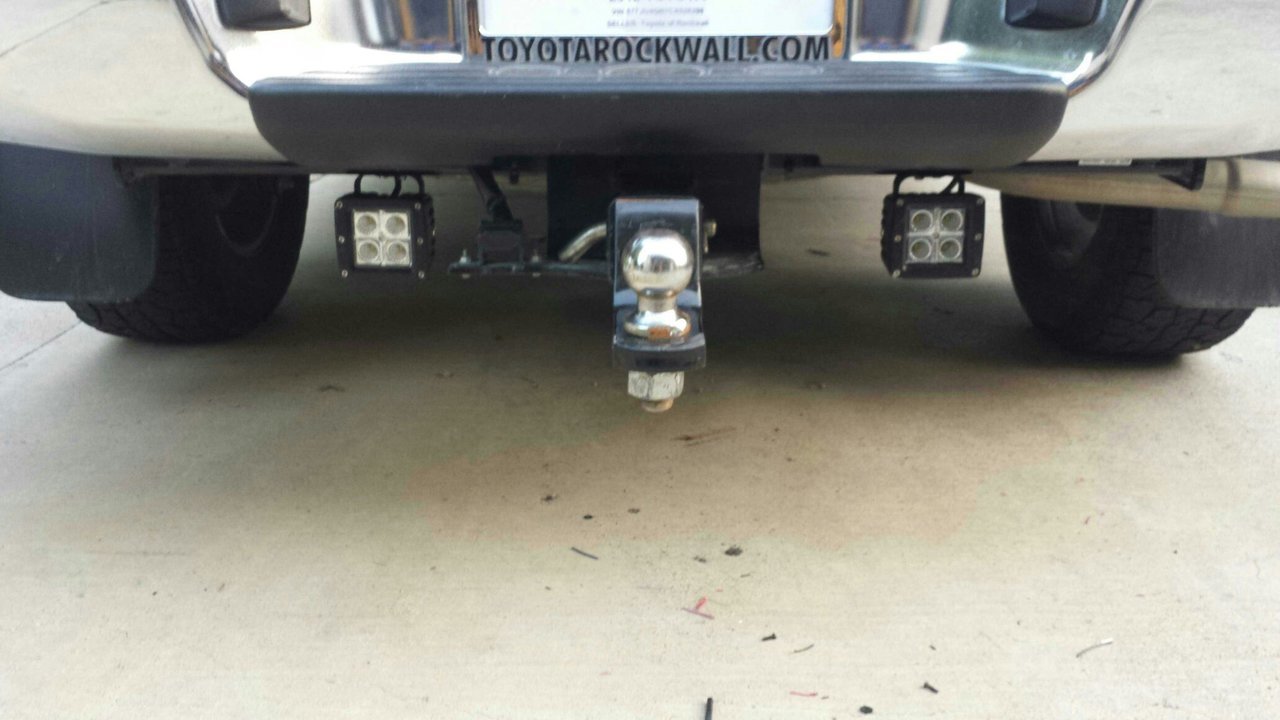

    These are the 4 LED cubes I'm using now.

    jknc, Jul 29, 2014
    #38
  19. Aug 7, 2014 at 2:19 AM
    #39
    Forster46

    #39
    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,362
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    I have currently had the setup you have for several years. I had some cheapo napa fogs and spliced into the reverse wire. But they stopped working about a year ago and I have mad no effort to fix them. My main revers lights work fine so the wire must have came loose. I have been wanting to fix them but this time around I would really like to throw a toggle switch in cab that can override the reverse circuit. Problem is I have no idea how to run a circuit llke that. I assume I would need a relay but have zero experience with them. If you or someone has a diagram or something that would be amazing. Feel free to PM me, I am unlikely to remember to check this thread again lol

    Forster46, Aug 7, 2014
    #39
  20. Aug 7, 2014 at 8:37 AM
    #40
    wake100

    #40
    wake100 Well-Known Member

    Joined:
    Jul 22, 2013
    Member:
    #108784
    Messages:
    1,118
    Gender:
    Male
    First Name:
    Chris
    Syracuse, NY
    Vehicle:
    2021 AG DCLB off road 4x4
    Uptop roof rack, cali raised light bar, diamondback tonneau
    what ones did you use?

    wake100, Aug 7, 2014
    #40
