Rear Brake Replacement Tips

Discussion in '2nd Gen. Tacomas (2005-2015)' started by muddog321, Sep 13, 2022.

  1. Sep 13, 2022 at 7:06 AM
    #1
    muddog321

    muddog321 [OP] Well-Known Member

    Joined:
    Dec 22, 2009
    Member:
    #27973
    Messages:
    1,137
    Gender:
    Male
    FL
    Vehicle:
    09 Tacoma DCSB 4wd TRD Off-Road w/e-locker Pyrite Mica
    TW 1-piece driveshaft with 1310 u-joints All Pro and Budbuilt skid plates OME Dakar rear springs 3" with 5100 5100 front set at 1.75" (3rd groove up) with stock springs Falken Wildpeak A/T3W 265/70R16 2018 TRD Offroad wheels 16x7J with +25mm offset Powerstop rotors with Z36 pads and rebuilt with OEM caliper kit Complete rebuilt rear brakes drums, shoes, springs, wheel cylinders Rebuilt rear diff with Yukon 3.73 ring/pinion Denso 130A rebuilt alternator AGM 24F Battery New OEM idlers and tensioner assembly New AC compressor New PS hose and flushed Walker SS Quiet Flow muffler Denso Iridium long life plugs #3421 (SK20HR11) OEM coolant, cap, and thermostat NAPA CV axles and new seals ECGS bushing Rhino front guard Shortened mud flaps Alziria Black Tail Lights Nilight Headlights X-Bull Traction Boards Maaco full single stage paint job 2023 Nat CV to Knuckle seals 710573 New SKF wheel bearings/hubs BR930978 New Moog stabilizer links K80946 & 948 New MOOG K80819 Suspension Stabilizer Bar Bushing 28mm New Dorman rear wheel bearings using complete axles 926-139 & 140 New Radiator support bushings Dorman 924-267 (front body mounts)
    Just did a complete rear brake replacement including new drums, shoes, spring kit, and wheel cylinders. Had to remember my early vehicles doing drums again! Remember to do 1 side at a time no matter how smart or experienced you think you are because you will get confused at some point as to where the hell does that go or how does it go back on. Tacoma had 190k on it and these are the second shoes but first full replacement of all.
    1. After you remove the shoes and springs on one side then replace the wheel cylinder - bleed after you get done with drums on.
    2. Front and rear shoes have different fixed pivot studs on them so match up to old ones or as you go you will find out. Don't squeeze any C-clips on until you look and determine.

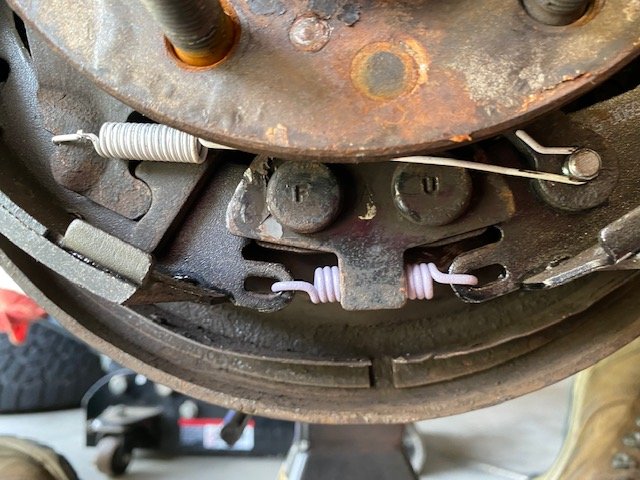

    3. The parking brake shoe strut lower arm on both sides at the pivot hole were frozen/rusted on and did not pivot as they should. Pry them off and 3m pad and grease resolved that issue - they are only held on by a return spring see the pic long white spring. On reassembly that arm and spring were the last things put on.
    4. The rear shoe with the parking brake shoe lever went on first behind the shoe and the parking brake adjuster with the spring must be on before you put the brake shoe reaction lever on top of the shoe followed by the C-clip. If you do this first all else goes on easily.
    5. As always I find even with a brake spring tool the hold down springs are a pain as you hold the rod from the back and try to get the cup on.
    6. The automatic adjuster arm fits under the edge of the parking brake shoe strut top set in the groove. Pass side adjuster bolt is regular thread so screws in right hand and the adjuster arm pushes down on the outside edge of it and it expands or screws out (see pic of pass side. Grease the threads and inside the front pivot of the strut. Drivers side is reverse thread or screws in left hand. To expand/adjust either side when the drums are on use the rear access hole and point the screwdriver or brake tool pointed in and down and rotate the adjuster wheel up - simply as that on both sides. To adjust in or unlock the shoes use a second tool to push the adjuster arm in as you rotate the wheel down (top to bottom).
    7. I adjust them close enough as I assemble by turning the drum only and when I feel it contact the shoes slight drag I'm done. Not by the book and 15 clicks from locked.
    8. Bleeding. With lines on and tight and bleeder closed turn the key to ON and pressurize the system (you will hear it). I turn the key off and have someone depress the brake pedal and hold and then open the bleeder and it flows out fast so open slowly into a cup or use a hose section. Book says you can leave the key on but if you bleed too much you could trigger the ABS so I do a few key on pressurize the key off and bleed. If you never pressurize the system you will not be able to bled it.

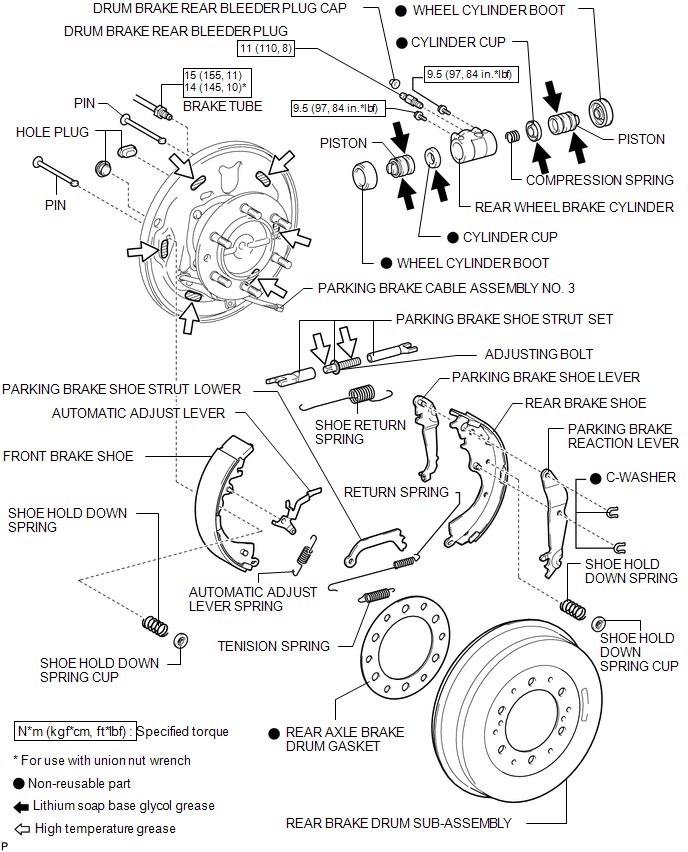

    Note: Pics are pass side and diagram is drivers side.


    Rear wheel cyl and top adj IMG_6573.jpg
    Rear bottom parking brake strut IMG_6575.jpg

    Rear brake diagram.jpg

    Last edited: Sep 13, 2022
  2. Sep 13, 2022 at 11:05 AM
    #2
    Chuy

    Chuy Well-Known Member

    Joined:
    Aug 4, 2008
    Member:
    #8328
    Messages:
    3,741
    Gender:
    Male
    Lakeside, CA
    Vehicle:
    07 V6 DCLB 4X4 Sport
    Silver Taco
    Nice writeup, I like the diagram. I am on my second set of shoes and original hardware. I used my camera to take pics as I disassembled the shoes. The tricky part are the parts under the wheel cylinder. I replaced the c-clips with e-clips, something I always do when replacing shoes as I find them easier to work with.

  3. Nov 13, 2022 at 10:36 AM
    #3
    TreeFortRichard

    TreeFortRichard Barcelona Red is the best red...

    Joined:
    Jan 18, 2013
    Member:
    #95515
    Messages:
    16,232
    Gender:
    Male
    First Name:
    Brian
    42.3115167,-71.6638516
    Vehicle:
    '23 SR5 DCSB 4x4 Barcelona Red
    Question if you know the answer which I believe is yes...
    Toyota lists TWO part numbers for the rear cylinders, left and right 47550 and 47570 but I think they are actually identical right? I'm doing a full rear break job and the RockAuto $12 OEM's have no directionality listed.
    Also how bad were the bolts that hold the cylinders? They're only $1 so I'm getting some just in case...
    Also, any parts you came across that were in need of replacement that I might forget?
    I have full rear kit, Cylinders AND I'm doing my brake cable...

    All prompted by my parking brake sticking and I can see the aluminum connectors on the back of the hub broke and the cable is free moving...


    [​IMG]

    Last edited: Nov 13, 2022
  4. Nov 13, 2022 at 11:25 AM
    #4
    muddog321

    muddog321 [OP] Well-Known Member

    Joined:
    Dec 22, 2009
    Member:
    #27973
    Messages:
    1,137
    Gender:
    Male
    FL
    Vehicle:
    09 Tacoma DCSB 4wd TRD Off-Road w/e-locker Pyrite Mica
    TW 1-piece driveshaft with 1310 u-joints All Pro and Budbuilt skid plates OME Dakar rear springs 3" with 5100 5100 front set at 1.75" (3rd groove up) with stock springs Falken Wildpeak A/T3W 265/70R16 2018 TRD Offroad wheels 16x7J with +25mm offset Powerstop rotors with Z36 pads and rebuilt with OEM caliper kit Complete rebuilt rear brakes drums, shoes, springs, wheel cylinders Rebuilt rear diff with Yukon 3.73 ring/pinion Denso 130A rebuilt alternator AGM 24F Battery New OEM idlers and tensioner assembly New AC compressor New PS hose and flushed Walker SS Quiet Flow muffler Denso Iridium long life plugs #3421 (SK20HR11) OEM coolant, cap, and thermostat NAPA CV axles and new seals ECGS bushing Rhino front guard Shortened mud flaps Alziria Black Tail Lights Nilight Headlights X-Bull Traction Boards Maaco full single stage paint job 2023 Nat CV to Knuckle seals 710573 New SKF wheel bearings/hubs BR930978 New Moog stabilizer links K80946 & 948 New MOOG K80819 Suspension Stabilizer Bar Bushing 28mm New Dorman rear wheel bearings using complete axles 926-139 & 140 New Radiator support bushings Dorman 924-267 (front body mounts)
    Mine were bore size 15/16 so both same and I looked part #s at McGeorge and 47550-04030 for both.
    Put your VIN # in their site and do a search and see if yours come up the same.
    2005-2021 Toyota Tacoma Drum Brake Wheel Cylinder (Left, Right, Front, Rear, Upper) 47550-04030 | Toyota Parts (mcgeorgetoyota.com)
    Wheel cylinder bolts came right out on mine. You should use a brake wrench for the bleeders so you don't round the sides off.

    Believe other size is 7/8 bore and the Toyota ones on mine were stamped on as 15/16. Got mine from Advance # WCA 131480

    TreeFortRichard likes this.
  5. Nov 13, 2022 at 2:44 PM
    #5
    winkel

    winkel Well-Known Member

    Joined:
    Dec 24, 2015
    Member:
    #173039
    Messages:
    2,386
    Gender:
    Male
    Corydon, IN
    Vehicle:
    2014 Spruce Mica, TRD Off-Road, 6 Spd Manual
    Sliders, Tailgate Liner
    Only do one side at a time so you have the other side for reference when reassembling.
    AND don't press the brake pedal with the drums off!!

    CTSpruceMica and TnShooter like this.
  6. Nov 14, 2022 at 8:14 AM
    #6
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,726
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    A ratcheting wrench is a huge help for the parking brake cable bracket on top of the frame, directly below the cab :thumbsup:

  7. Nov 14, 2022 at 12:50 PM
    #7
    TreeFortRichard

    TreeFortRichard Barcelona Red is the best red...

    Joined:
    Jan 18, 2013
    Member:
    #95515
    Messages:
    16,232
    Gender:
    Male
    First Name:
    Brian
    42.3115167,-71.6638516
    Vehicle:
    '23 SR5 DCSB 4x4 Barcelona Red
    I am borrowing an air ratchet from a friend..I watched a great youtube video on it...
    Things I learned..Connect to the center console adjuster before running the brake lines back to the wheels...

  8. Nov 15, 2022 at 5:10 AM
    #8
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,726
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    I couldn't even get a regular ratchet to fit that bolt, let a lone an air ratchet. ymmv
