Pictures of your truck bed with battery and inverter setup please!

I'm going to be installing a 100 ah lithium battery, a 700 W inverter and a solar controller in the back of my 2017 DCLB. I'm also going to put a half sleeping platform in it.

Anyone have pictures of a similar setup (even without a platform)?

Thanks!



I would just get a Bluetti or some other mobile version to be honest. I have a 100 watt panel on my roof and a group 31 AGM with a victron controller under the hood for years now and if I was going solar now I would just go the all in one with a foldable 200 watt panel.

This
https://www.bluettipower.com/collections/solar-panels

and this
https://www.bluettipower.com/produc...ower-station-best-solar-generator-for-camping

and be done with it.



I've already got all the components for my planned setup. More bang for your buck if you build it!

I spent a lot of time looking at portable solar generators. Definitely a good option for quick and clean!



Here's my setup. 100Ah Renogy battery, Renogy DC-DC charger with MPPT controller (charges from both alternator and solar), and 1200W inverter. 2 x 100W Renogy solar panels up top. I'd go with 1200 or 1500W inverter. Soon as you buy 700W you'll want to plug something in that uses more : ).

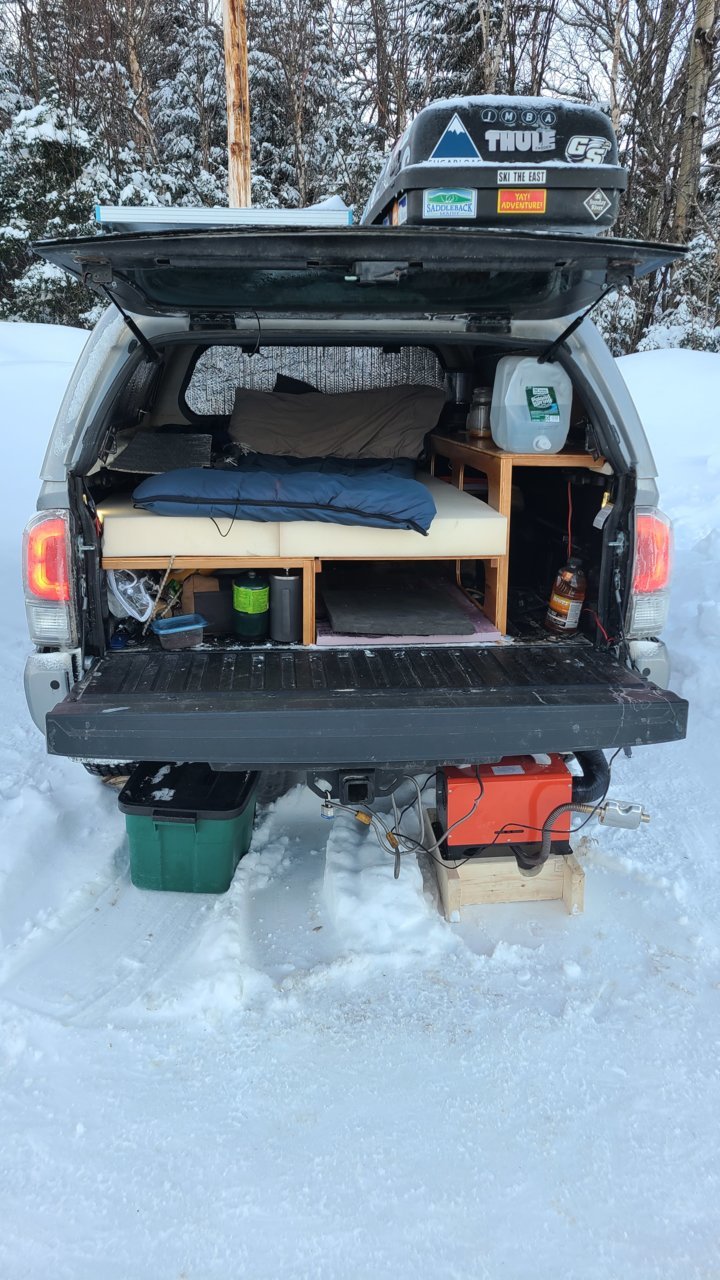

The fridge is flush with the cabinet top making for a stealth sleeping platform in case I'm somewhere I can't pop up the camper top. If it were my primary sleeping platform the fridge would go elsewhere and I'd make the sleeping surface low enough I could comfortably sit up and hang out without hitting my head.



What type of fridge is that and model? I like how low and flush it sits. Mine sticks up pretty high over the shelf which is
even with the back window and sides like yours.



Check out the following threads:
https://www.tacomaworld.com/threads...eping-platform-drawer-storage-systems.424709/

https://www.tacomaworld.com/threads/truck-camping-photo-thread.407866/

https://www.tacomaworld.com/threads/car-camping-trip-reports-photos-buildouts-“overland”-expedition-rigs-area-homeless.220278/

I have a 200w panel & a 100aH Li-Fe w/ self heating function. Panel is a little overkill but in northern NE w/ low light angle & inconsistent weather I wanted the confidence that I'd be able to offset use.



(Ignore the actuator covers--dealer's choice and I'm replacing w/ custom ones)

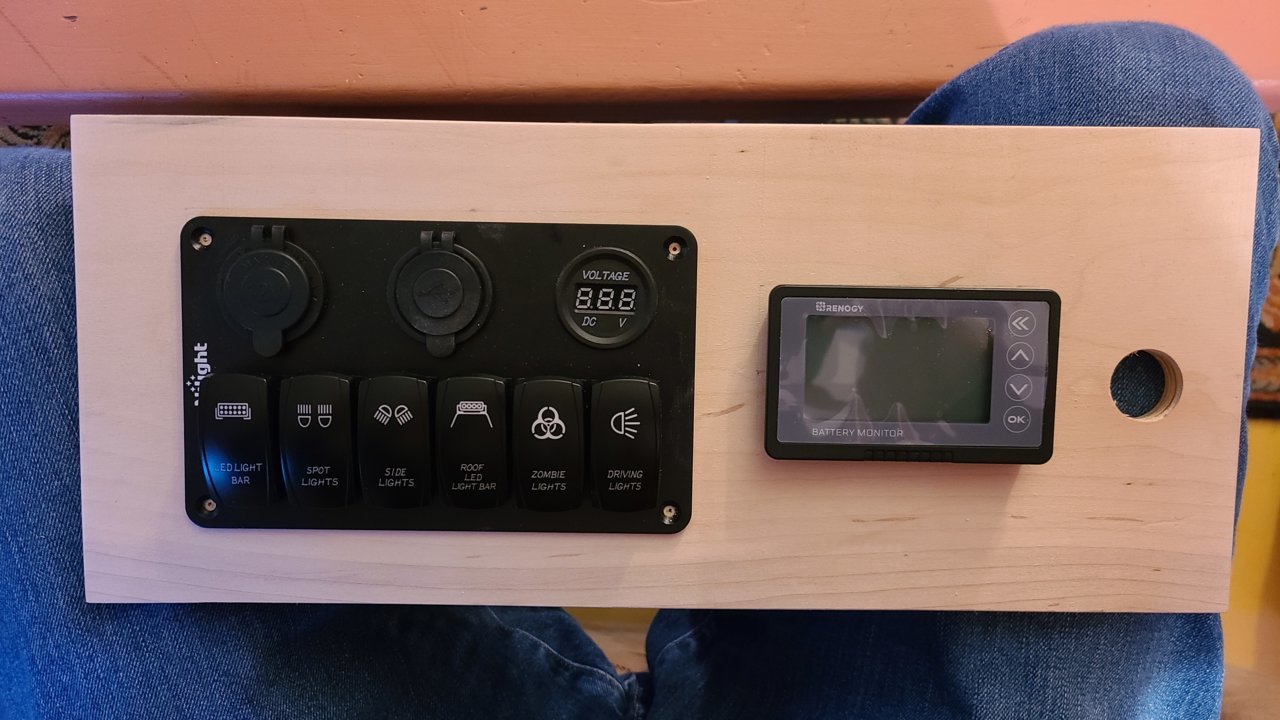

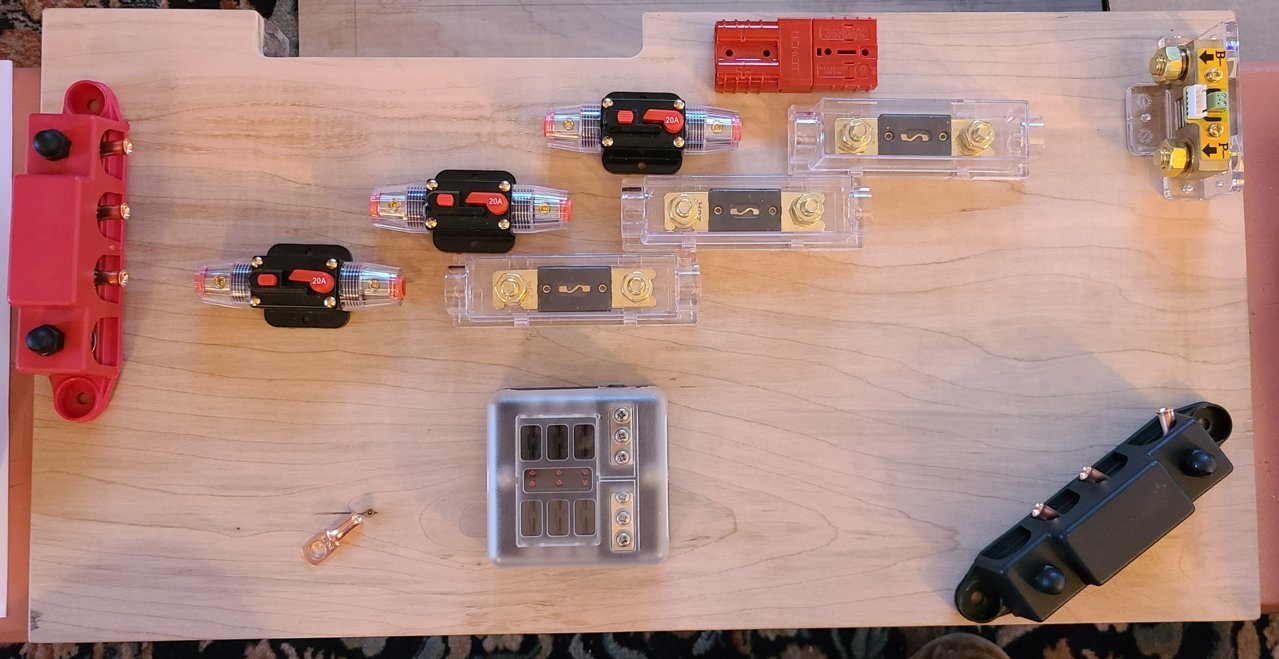

Initial electrical set up before connecting everything.


Mounted the panel so I can angle for better efficiency.



It's a Dometic CFX 45. I have it mounted direct to the shelf rather than use sliders, which allows it to sit a bit lower. Those fridges have bolt holes underneath so you can direct mount them to a shelf like I did using M5 (I think) bolts.
