Overhead Garage Door Opener Button

Discussion in '3rd Gen. Tacomas (2016-2023)' started by BassFisher887, Apr 16, 2023.

  1. Apr 16, 2023 at 6:00 PM
    #1
    BassFisher887

    BassFisher887 [OP] Well-Known Member

    Joined:
    Feb 20, 2023
    Member:
    #418439
    Messages:
    86
    Gender:
    Male
    First Name:
    Chris
    Near Chadds Ford PA
    Vehicle:
    2023 Tacoma TRD OR AC

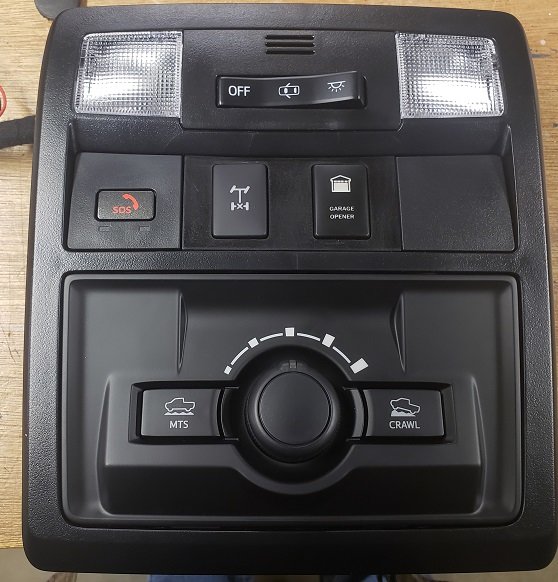

    Inspired by the threads on installing an overhead garage door button, I decided to give it a go for my 2023 Tacoma OR.

    I used the following parts for the install.

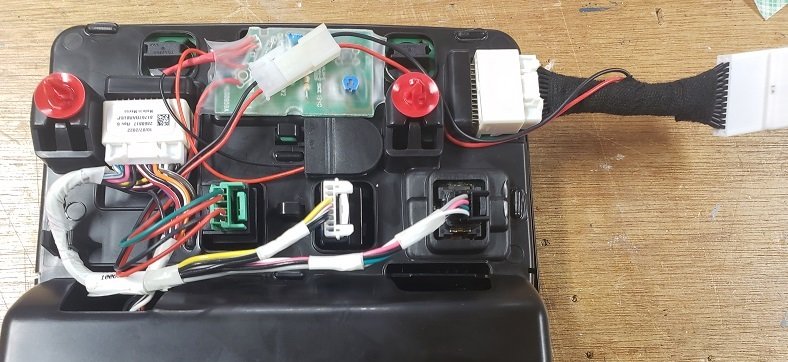

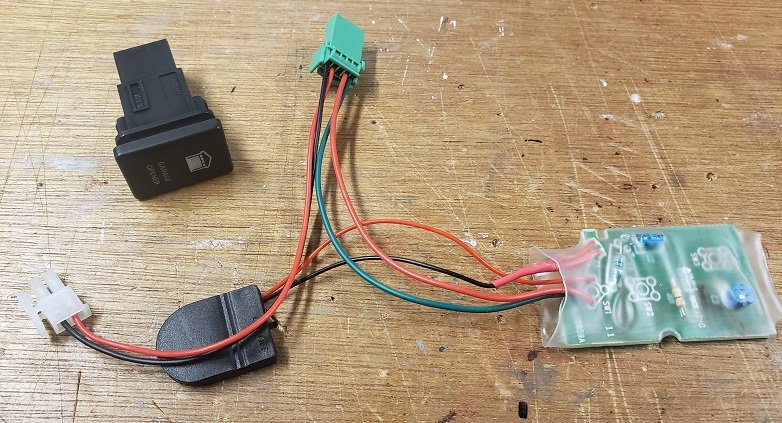

    After removing the overhead console from the truck, the next step was to create the electrical assembly. First the FOB was disassembled. Using a soldering iron and solder sucker, I removed the three push buttons and battery connections from the PCB. The wiring harness from the AOB button was solder in the #1 button spot and the battery holder was soldered to the PCB. For my FOB, the negative lead from the battery had to be soldered onto the PCB in two places as the original battery terminal I had removed had created a bridge between two different contacts on the PCB.

    I used large clear shrink tubing to wrap the FOB, installed the battery, and connected the AOB switch using the connector I had soldered to the PCB. The assembly was taken to the garage and paired with the opener. At first the + and - battery leads were swapped, so after a quick fix with the soldering iron, back out to the garage and success. The green connector is for the button, and the white connector goes with the overhead harness to provide the illumination voltage for the button.

    The locker button and single button panel was removed. The two button panel was installed in the overhead unit, the locker button reinstalled, the FOB and battery holder were mounted with doubled sided tape to the top side of the console, the harness was connected, and the cables were routed as neatly as I could achieve. I secured the two wire connector from the harness with some doubled sided tape to avoid it rattling sometime down the road. The unit was now ready to be reinstalled in the truck.

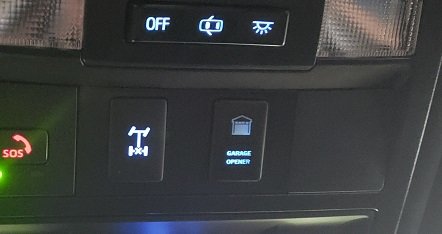

    The button operates the garage door and illuminates with the rest of the buttons. The only downside is that when the battery dies, I'll need to pull the overhead unit down to replace it. But considering that the battery typically lasts 2 years or more, I don't expect that to happen too often.


    I'm happy with the final result and the fact that there is no longer a visor mounted FOB.
