Overhead Compass/Temp Fix

Discussion in '2nd Gen. Tacomas (2005-2015)' started by misc, Nov 9, 2008.

  1. Oct 13, 2019 at 7:27 AM
    #2181
    tweety

    tweety Member

    Joined:
    May 3, 2016
    Member:
    #185996
    Messages:
    6
    Vehicle:
    2006 TRD OffRoad
    After 13 years, my temp display would go in and out. I mashed down on the 510 resistors and just heated up the existing solder and so far all is well.

    Many thanks to Tacoma World and to misc for this thread.

    robssol and TrailRayted like this.
  2. Oct 28, 2019 at 12:45 PM
    #2182
    Badderup

    Badderup Well-Known Member

    Joined:
    Nov 24, 2017
    Member:
    #236771
    Messages:
    218
    Gender:
    Male
    First Name:
    Colby
    Utah
    Vehicle:
    2006 SWB TRD sport DCLB
    Just did this fix over the weekend. Never done any soldering before but this turned out to be a very easy fix.

    WestCoastBestCoast and robssol like this.
  3. Nov 24, 2019 at 5:03 PM
    #2183
    Hoppio

    Hoppio New Member

    Joined:
    Nov 10, 2012
    Member:
    #90824
    Messages:
    2
    Gender:
    Male
    Vehicle:
    4wd sport
    Thanks so much for the tip. Just what was required to fix my compass. Greatly appreciate the post!

    Muddinfun likes this.
  4. Dec 14, 2019 at 5:15 PM
    #2184
    Tacochan

    Tacochan Well-Known Member

    Joined:
    Nov 16, 2019
    Member:
    #310915
    Messages:
    135
    Gender:
    Male
    Alaska
    Vehicle:
    23 TRD OR
    I went to take down my console and noticed the screw above the sunglass holder is missing. Any idea what type of screw I can replace it with without damaging the threads?

  5. Jan 3, 2020 at 8:19 PM
    #2185
    battlecreek

    battlecreek New Member

    Joined:
    Dec 30, 2019
    Member:
    #314698
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2005 Tacoma TRD OffRd
    I just did this fix on a new-to-me '05. One of the 510's was rattling around loose in the console when I took it off. A little solder and it worked like a charm.
    @Tacochan I didn't look that close at the screw but I think it was pretty coarse on the threads. My console snaps in pretty snug—maybe you're ok without it?

  6. Jan 8, 2020 at 12:36 PM
    #2186
    EdgemanVA

    EdgemanVA Well-Known Member

    Joined:
    Nov 18, 2013
    Member:
    #116820
    Messages:
    1,202
    Gender:
    Male
    Virginia Beach
    Vehicle:
    2008 X-Runner
    Several
    4WDTrout and Fitz235 like this.
  7. Jan 10, 2020 at 11:59 PM
    #2187
    Badderup

    Badderup Well-Known Member

    Joined:
    Nov 24, 2017
    Member:
    #236771
    Messages:
    218
    Gender:
    Male
    First Name:
    Colby
    Utah
    Vehicle:
    2006 SWB TRD sport DCLB
  8. Jan 11, 2020 at 6:43 AM
    #2188
    EdgemanVA

    EdgemanVA Well-Known Member

    Joined:
    Nov 18, 2013
    Member:
    #116820
    Messages:
    1,202
    Gender:
    Male
    Virginia Beach
    Vehicle:
    2008 X-Runner
    Several
    I fixed mine a few times, but the circuit board was getting a little worn out. (Guess I'm not the best with a solder gun...lol) I thought there must be a better solution, and this was it. Best of all, it's a very reasonably priced Toyota product.

    I bought my overhead console off Ebay because Toyota didn't offer that in the 2008 X-Runners. I knew about the problem before I bought it, and also saw descriptions of home repairs. There were other repair options, such as buying a new overhead console from Toyota (~$1,000?), or shipping it off to someone to do another "temp" repair, but they would end up being more than the Toyota replacement module in the long run. In the end there was only two options, keep fixing it myself or buy the Toyota module.

    Lets just say I haven't been the least bit disappointed in my decision.

    This site contains affiliate links for which the site may be compensated.
  9. Feb 26, 2020 at 6:30 PM
    #2189
    Millerrj9

    Millerrj9 Active Member

    Joined:
    Apr 4, 2017
    Member:
    #215347
    Messages:
    32
    Gender:
    Male
    First Name:
    Richard
    Bozeman, MT
    Vehicle:
    '08 Radiant Red TRD Sport
    Stage 2 Icon Suspension + Dakar Leaf pack.
    I purchased from this exact link a month ago and the part I received already had a burnt screen and would not turn on. Dealing with Amazon returns for a replacement now. Your mileage will hopefully vary.

  10. Feb 29, 2020 at 5:24 PM
    #2190
    outershell

    outershell Well-Known Member

    Joined:
    Feb 29, 2020
    Member:
    #320711
    Messages:
    66
    First Name:
    Kyle
    Vehicle:
    2006 Tacoma TRD OR 4x4
    New truck, first post. Thanks for this fix TW.

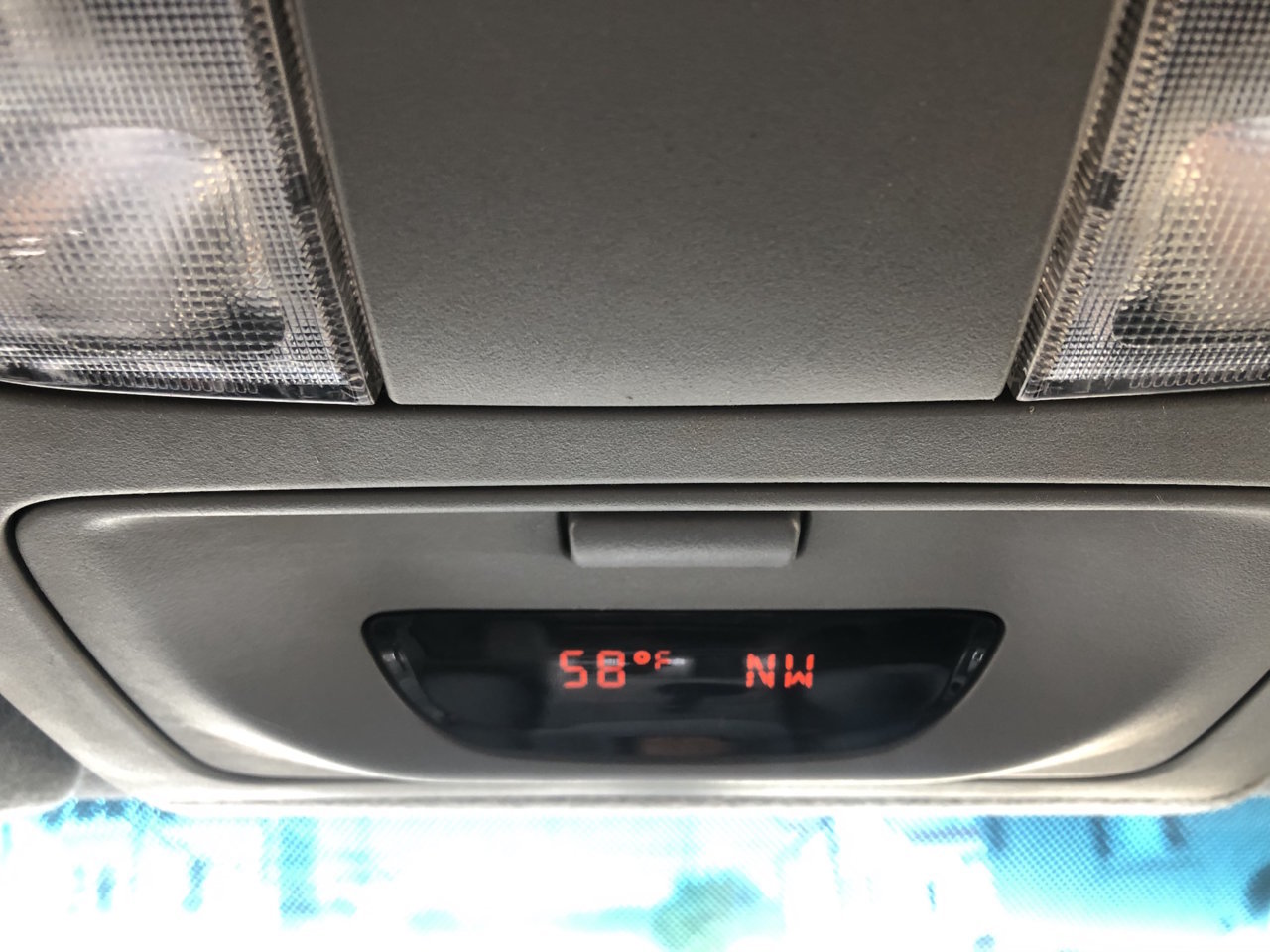

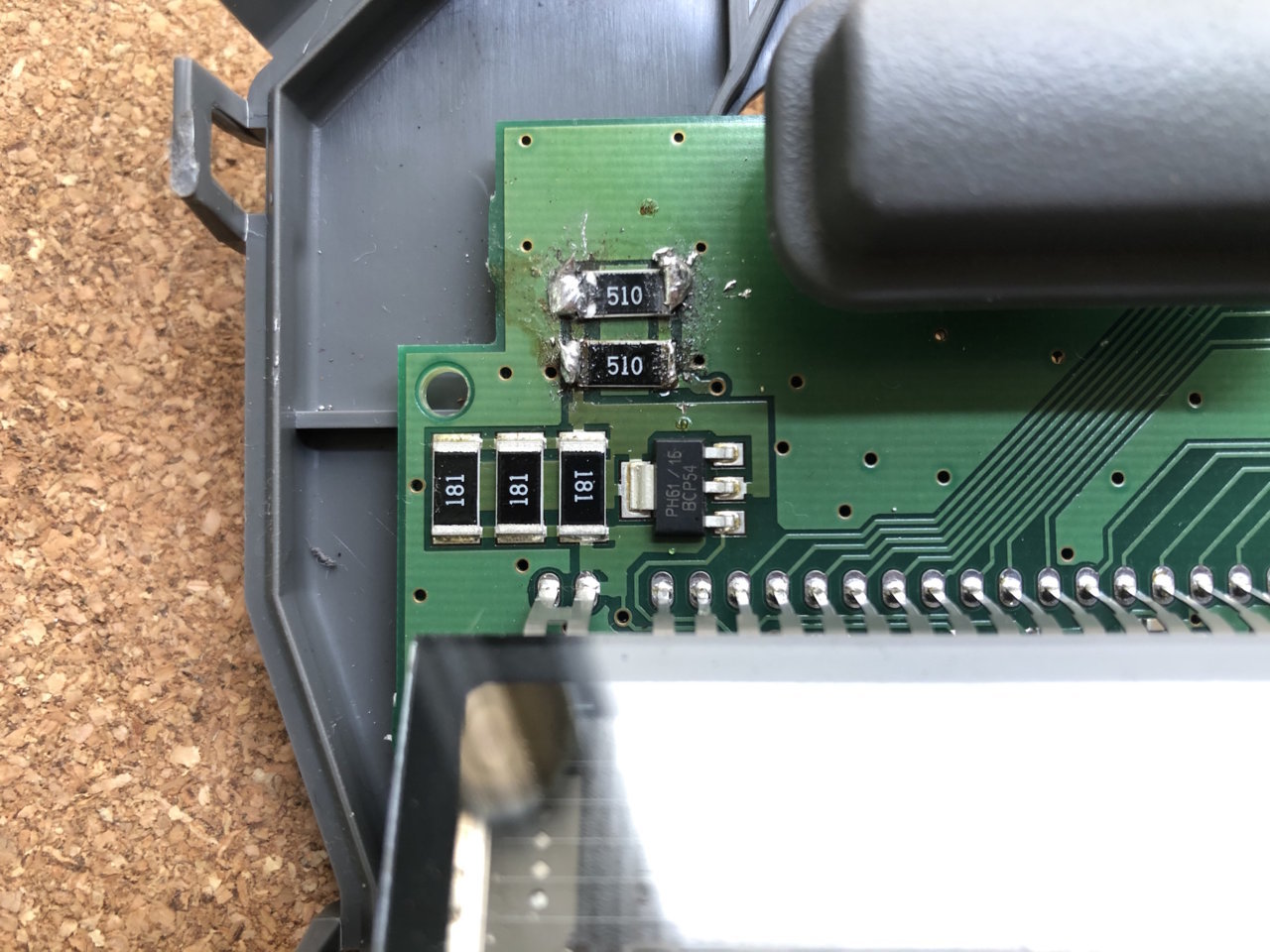

    Photo Feb 28, 11 43 30 AM.jpg
    Photo Feb 28, 11 49 04 AM.jpg

    Fitz235 and EdgemanVA like this.
  11. Mar 12, 2020 at 4:52 PM
    #2191
    Trunkmonkey

    Trunkmonkey Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28263
    Messages:
    152
    Gender:
    Male
    Kennesaw GA
    Vehicle:
    2009 Tacoma
    Compass has never worked on my '09.

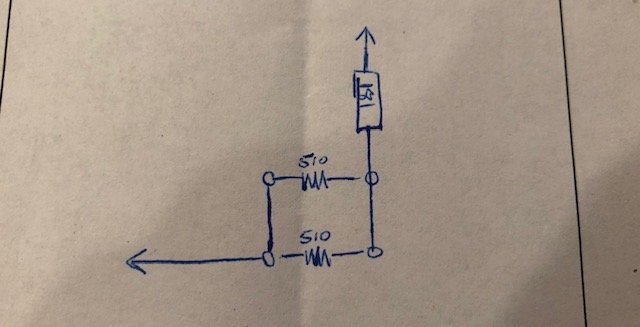

    I popped it out today, but hastily I had my soldering gun to hot and burnt the board. I am going to replace the resistors, but help me understand the layout.


    That correct?

  12. Mar 12, 2020 at 5:01 PM
    #2192
    Badderup

    Badderup Well-Known Member

    Joined:
    Nov 24, 2017
    Member:
    #236771
    Messages:
    218
    Gender:
    Male
    First Name:
    Colby
    Utah
    Vehicle:
    2006 SWB TRD sport DCLB
    See the post right above yours for layout

  13. Mar 12, 2020 at 5:06 PM
    #2193
    Trunkmonkey

    Trunkmonkey Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28263
    Messages:
    152
    Gender:
    Male
    Kennesaw GA
    Vehicle:
    2009 Tacoma
    I saw the post. My board is a tad different than his and want to confirm.

  14. Mar 12, 2020 at 5:17 PM
    #2194
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,489
    Not sure on the layout, but you know those are 51 ohm resistors, right? It won’t work if you put 510 ohm resistors in there.

  15. Mar 12, 2020 at 5:28 PM
    #2195
    Trunkmonkey

    Trunkmonkey Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28263
    Messages:
    152
    Gender:
    Male
    Kennesaw GA
    Vehicle:
    2009 Tacoma
    Yes, correct. I just labeled them as shown on the board. I miss not having a radio shack anymore. I went to order some resistors, but they ship from China and I don't think that's the way to go these days.

    4WDTrout likes this.
  16. Mar 12, 2020 at 6:01 PM
    #2196
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,489

    https://www.mouser.com/

    https://www.digikey.com/

    4WDTrout and Jimmyh like this.
  17. Mar 16, 2020 at 9:17 AM
    #2197
    pipsqueek

    pipsqueek Member

    Joined:
    Aug 12, 2018
    Member:
    #262562
    Messages:
    9
    First Name:
    Alf
    Sask Canada
    Vehicle:
    2008 Tacoma TRD DCLB
    2015 Bilstein shocks, Coilovers

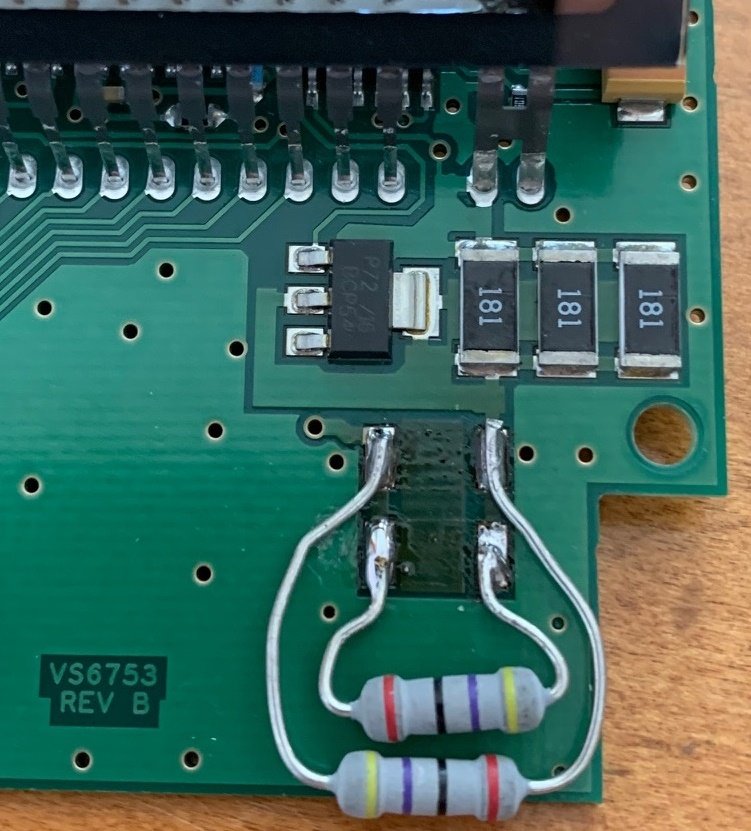

    Decided to take the plunge and try my soldering skills. Made sure to use 40/60 electronic solder with flux/rosin core. Also was able to scratch the old 510 smd resistors off with no effort, one was standing at an angle.

    Made sure to touch the soldering iron on the old solder traces on the board until they turned bright. Forgot to take pics. Then take the solder wire and solder iron to melt a drop of solder on to the old solder traces. Then bend the new resistor leads to fit the position of the old solder traces. Hold the resistor lead on the old solder traces with the tip of the solder iron until the solder flows. Makes for a neater solder job.

    Was able to find and use 47 ohm resistors at TriTek Electronic in Phoenix, also found 51 ohm at Circuit Specialists in Phx, but was leery that they didn't have the correct colour bands.

    https://www.tritekelectronics.com/

    https://www.circuitspecialists.com/

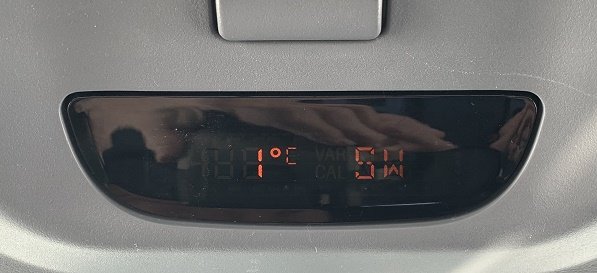

    Tada, success. Thx OP. Ooops just noticed the resistors are swapped opposite, still working tho.


    Last edited: Mar 16, 2020
    Badderup and Muddinfun like this.
  18. Mar 16, 2020 at 10:08 AM
    #2198
    Fitz235

    Fitz235 Well-Known Member

    Joined:
    Mar 17, 2015
    Member:
    #151142
    Messages:
    2,140
    Gender:
    Male
    First Name:
    Rob
    New Hampshire
    Vehicle:
    Black '22 DCSB TRD Offroad 4WD
    - TRD T4R Pro Wheels - TRD Lift Kit - TRD Skid Plate - 265/70/17 Toyo Open Country 3's - OEM Bed Lights - OEM Bed mat - Alpharex Tail Lights - TacomaBeast LED Interior Lights - Green Lane Offroad Aluminum Sliders - Place Holder for More Bad Financial Decisions...
    Resistors aren't polarity sensitive, so the only thing affected would be a sense of OCD. Nice neat soldering job though.

    pipsqueek[QUOTED] likes this.
  19. Mar 16, 2020 at 12:38 PM
    #2199
    Badderup

    Badderup Well-Known Member

    Joined:
    Nov 24, 2017
    Member:
    #236771
    Messages:
    218
    Gender:
    Male
    First Name:
    Colby
    Utah
    Vehicle:
    2006 SWB TRD sport DCLB
    Very clean. Good job.

    pipsqueek[QUOTED] likes this.
  20. Mar 24, 2020 at 10:58 AM
    #2200
    FJ40guy

    FJ40guy New Member

    Joined:
    Mar 23, 2020
    Member:
    #322834
    Messages:
    1
    Gender:
    Male
    First Name:
    Ed
    Vehicle:
    2008 Tacoma TRD silver
    Thanks for the post, The pics didn't come up but the verbiage was perfect. Took me longer to find the right Torx bit then it did to do the whole repair.
