OEM Camera Connection below Dash

Discussion in 'Audio & Video' started by DNahas, Mar 19, 2009.

  1. Mar 20, 2020 at 11:36 AM
    #281
    TRD2010SpeedwayBlue

    TRD2010SpeedwayBlue Well-Known Member

    Joined:
    Sep 12, 2015
    Member:
    #164039
    Messages:
    1,790
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2010 Speedway Blue TRD Offroad

    let me know what you do. i currently have a 2010. i put in a 2014 entune and i got a harness made by a member on ebay to relocate the backup cam from the rear view to the radio works fine.
    I cut the wire that sends feed to the rearview but can just re connect it. but i want to get a car play radio and getting the backup cam to the new radio is the 1 thing i have no clue how to do

    This site contains affiliate links for which the site may be compensated.
    ace96 and miketyler like this.
  2. Mar 20, 2020 at 11:52 AM
    #282
    DES2009

    DES2009 Minister of Truth

    Joined:
    Jul 22, 2014
    Member:
    #134426
    Messages:
    1,000,509
    Gender:
    Male
    Southeast Louisiana
    Vehicle:
    2017 MGM Limited
    I'm a Millionaire! One Million Posts!!
    There are links in this post that I used when I did my 2009.

    This site contains affiliate links for which the site may be compensated.
  3. Mar 20, 2020 at 11:53 AM
    #283
    TRD2010SpeedwayBlue

    TRD2010SpeedwayBlue Well-Known Member

    Joined:
    Sep 12, 2015
    Member:
    #164039
    Messages:
    1,790
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2010 Speedway Blue TRD Offroad
    sweet thanks!

  4. Mar 21, 2020 at 10:00 AM
    #284
    gunny1402

    gunny1402 Member

    Joined:
    May 30, 2017
    Member:
    #220290
    Messages:
    11
    Gender:
    Male
    First Name:
    Elliot
    Vehicle:
    Gray Tacoma
    Hey guys! Quck note to say thanks for the information and great tutorial. It's a lot more than entertainment! Just did this mod exactly as described, only 4 wires to mess with:
    1. Signal+
    2. Signal -
    3. Camera trigger to radio
    4. RCA to radio

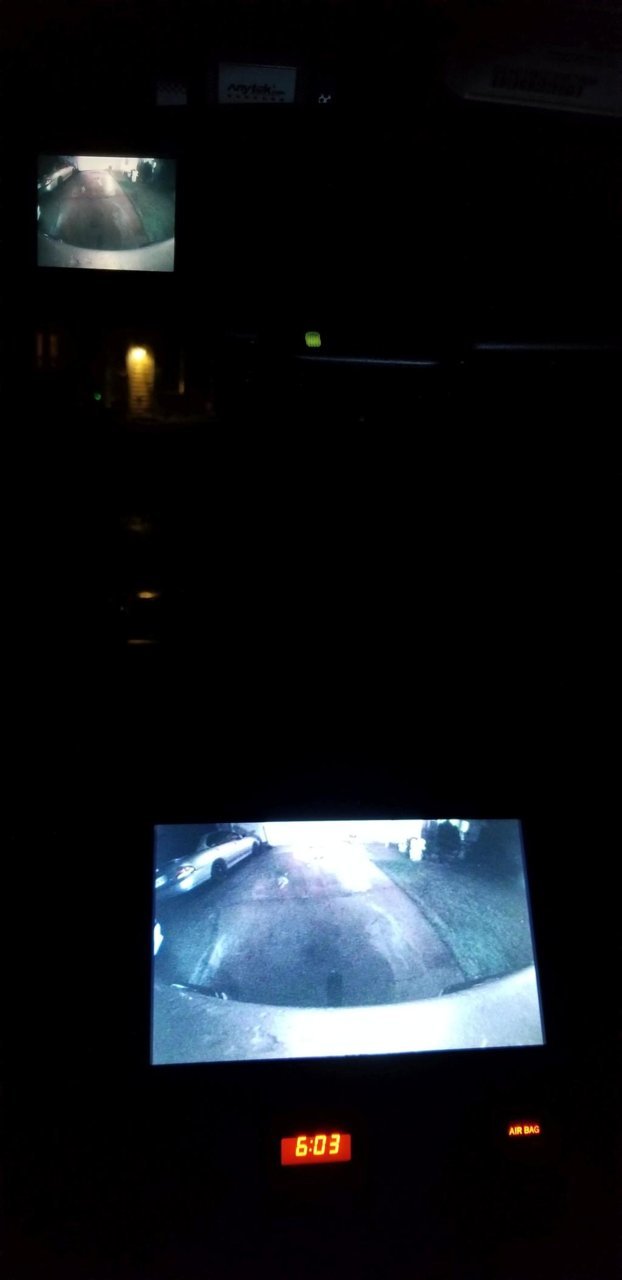

    Install took about 30 mins tops taking my time and routing wires with zip ties. I did use a good quality RCA cable with a gold tip that I had laying around from an old dvd and I get no interruptions or black lines as some members reported. I also used some 24AWG ferrules as terminals for all wires and flattened the ti; they worked like a champ. (Used that option because I had bunch of those from a kit I bought at Amazon for about 5 bucks; Search Amazon for "TOUHIA Wire Ferrules Insulated crimp pin terminal kit" if interested)tacocam1.jpg tacocam2.jpg . The quality of the video is good on your big screen, you will get a good image but with some pixelation because you can tell that this camera was definitely made for a small screen. It is still very convenient and especially the fact that no bundles of wires will have to be run from the back of the truck, etc. Thank you again and keep up the good work!

    SuriouslyFoReal likes this.
  5. Mar 22, 2020 at 4:41 AM
    #285
    SuriouslyFoReal

    SuriouslyFoReal New Member

    Joined:
    Mar 20, 2020
    Member:
    #322551
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2011 Tacoma TRD Sport
    Pioneer AVH-W4400NEX
    Looking good! Tell me about this ferrul thing. You flattened the tip and jammed them in the D Sub connectors?
    Did you use 24g wire for reverse or something less?
    Did you use a a 3ft RCA for the camera?

  6. Mar 22, 2020 at 4:05 PM
    #286
    gunny1402

    gunny1402 Member

    Joined:
    May 30, 2017
    Member:
    #220290
    Messages:
    11
    Gender:
    Male
    First Name:
    Elliot
    Vehicle:
    Gray Tacoma
    I did squeeze the tips flat (sorry I missed that detail). I used about 4ft. of the RCA cable because I wanted the radio assembly to be flexible enough for next time I have to remove it to add an add-on to the radio. I already added a front cam/DVR for it, but I still have an available RCA video and audio input on the back of the radio radio for either a TV tuner or an andoid box later on...

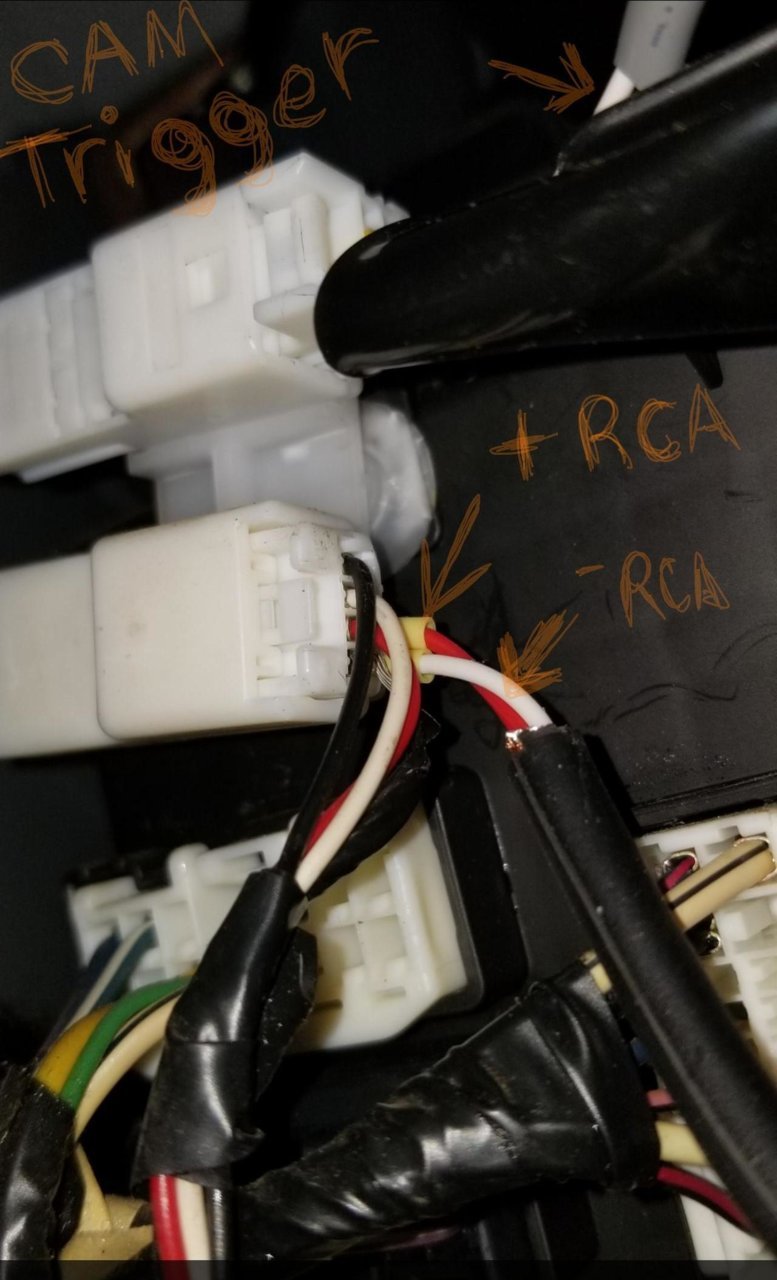

    Rear CAM trigger and CAM RCA output connections to radio...
    cam plugs.jpg

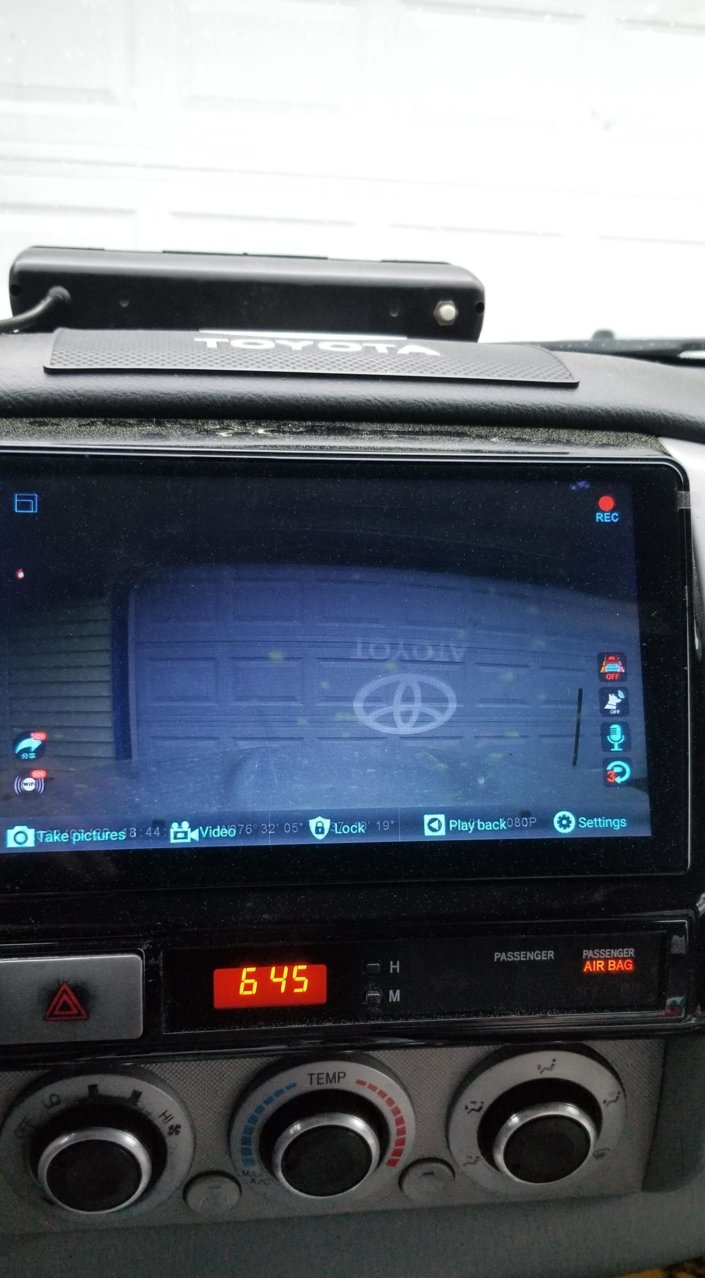

    Front CAM/DVR...
    front cam.jpg

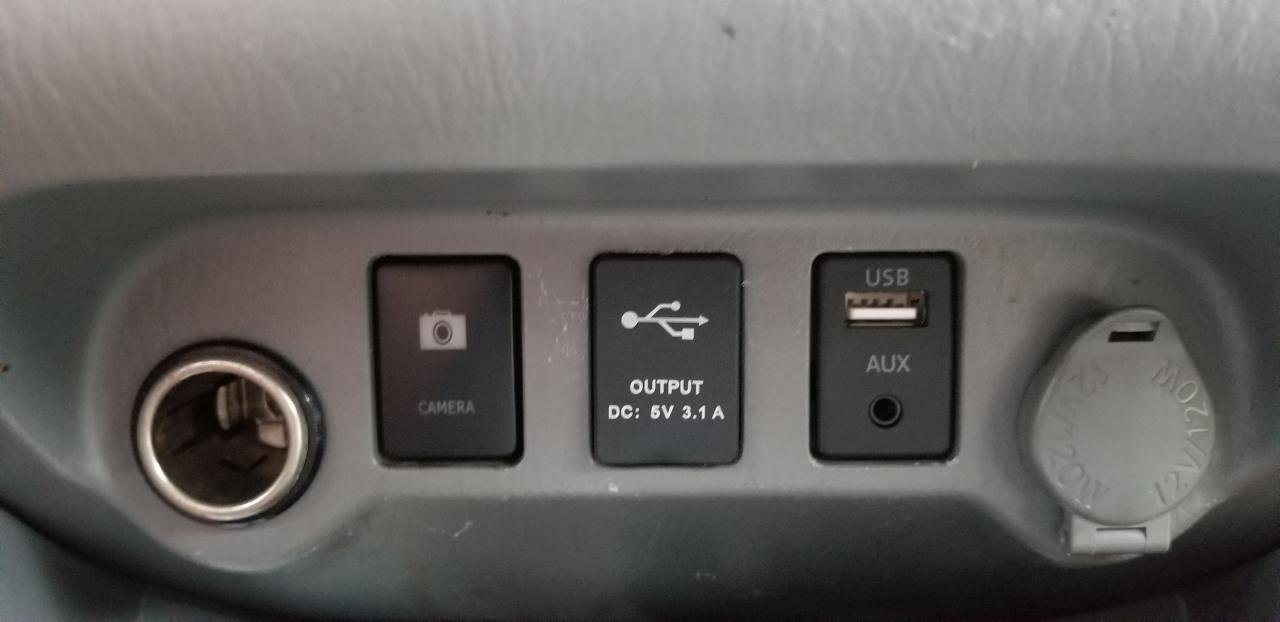

    Front CAM/DVR switch ON-OFF... (not needed, but my personal preference; I didn't want this CAM on everytime I used my truck)
    cam switch.jpg

  7. Mar 23, 2020 at 7:26 AM
    #287
    SuriouslyFoReal

    SuriouslyFoReal New Member

    Joined:
    Mar 20, 2020
    Member:
    #322551
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2011 Tacoma TRD Sport
    Pioneer AVH-W4400NEX
    Smart move on the button, I like it. And a nice clean look on the USB plug!
    So what gauge wire for the reverse signal?
    Did your truck come with that USB/Aux combo? I have to add USB to mine and I don't love this one I have picked out :/

  8. Mar 23, 2020 at 2:35 PM
    #288
    gunny1402

    gunny1402 Member

    Joined:
    May 30, 2017
    Member:
    #220290
    Messages:
    11
    Gender:
    Male
    First Name:
    Elliot
    Vehicle:
    Gray Tacoma
    For the reverse signal I used a wago connector (But you can use solder or any other crimped terminal) to join the head unit radio's trigger wire to a short piece of 22 gauge wire. (I already had a roll of wire that I also use for other projects) I did trim a few strands on the wire to make it fit the same "ferrule" terminal size to the sidekick panel OEM trigger plug.
    Now, as far as the USB plugs and the camera switch... My truck is a 2010 and it originally came with a 5cd changer. The truck also came with the normal aux input for headphone plug on the same panel under the AC controls from the factory. The port plug that I removed from my truck is this one:

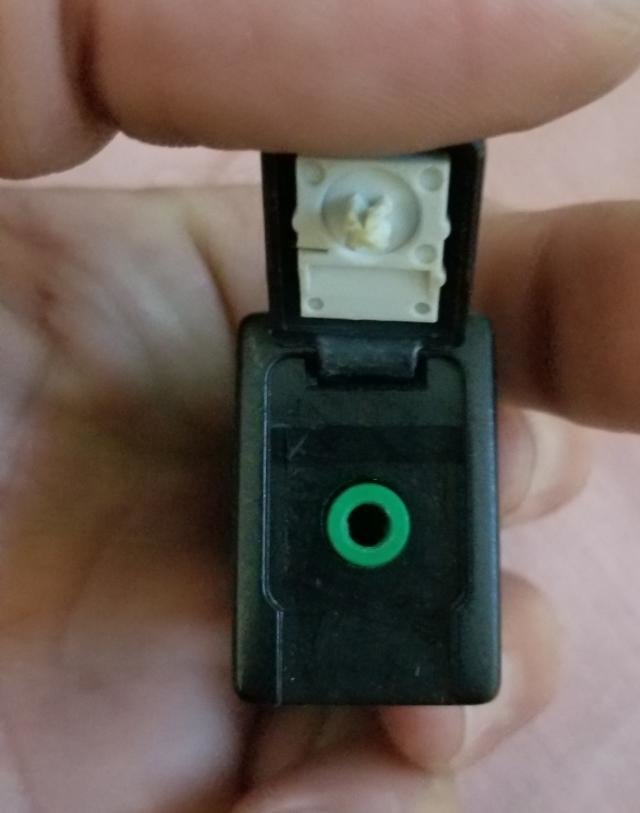

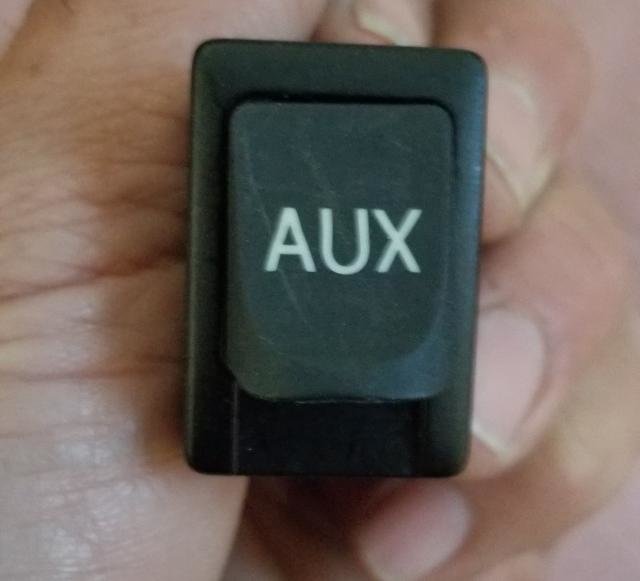

    auxplug1.jpg auxplug2.jpg

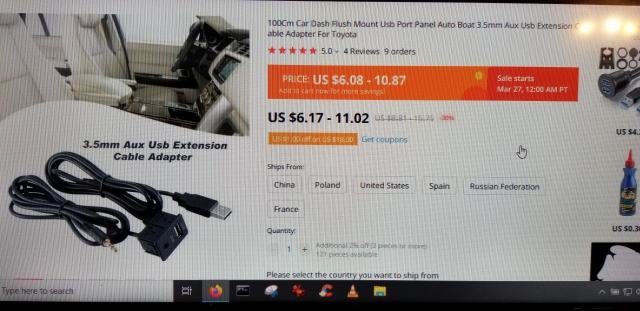

    Since the new radio came with a bunch of USB's and RCA inputs, I added an extension/cable adapter port to combine the headphone and USB inputs. With this little gadget I can listen to any music coming from an MP3 player, a cell phone or just about anything via audio cable and I can do the same via USB and charge it at the same time, or use it just to charge, etc... you get the point...
    I bought the items online on Ali express. (I don't work for them or get any royalties, but you can certainly find some cool stuff at crazy prices straight from China if you don't mind the wait for the shipping, it does take a long time to ship. If you are ready to pull the trigger on your new radio, I'm sure you can get this stuff on other US online stores with fast shipping. Anyways... the port plug/extension you see in my dash is this one:

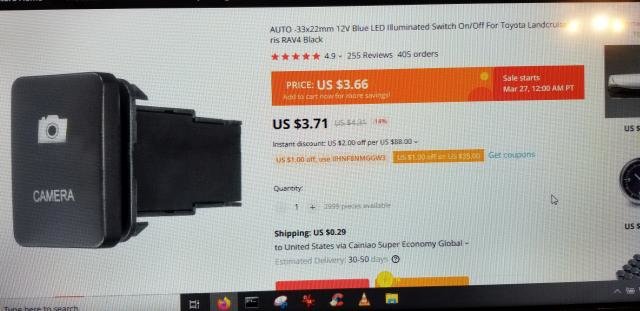

    the front camera switch I used is this one:

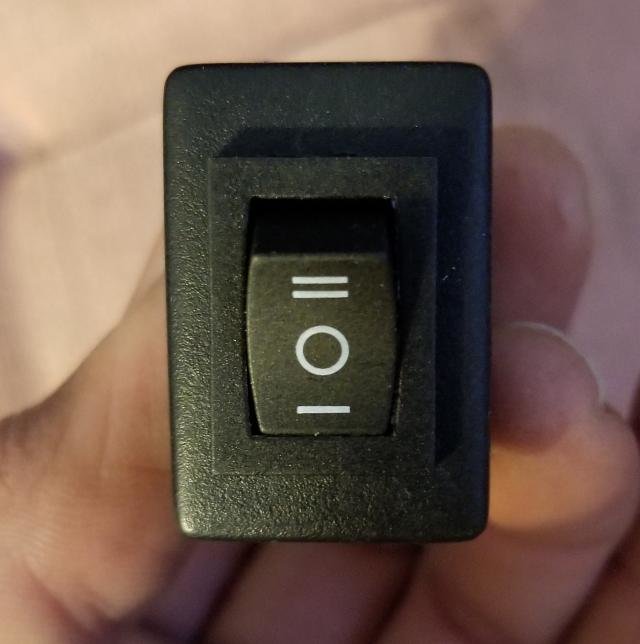

    Or if you don't want to spend the money, you can basically use about any small on-off switch that fits your existing blanks in your truck dash, like my old DIY front camera on-off switch here:

    Bottom line: If your radio has available USB or RCA inputs for a front and rear DVR/Camera, you can be creative and get really good CAMS for reasonable prices. They are indeed required in some countries, and they are in fact a great cheap investment if you ever get in some type of accident. I use mine for my own peace of mind liability/insurance protection.
    And again, do some research about your radio install here on this website, there's an amazing amount of excellent information at this forum, not to mention an abundance of creative club member minds!. Good luck with your install and I hope my two senses helps you or perhaps some other club/forum members. Thank you moderator and the original creator of this post, he deserves all the credit!!!.

    SuriouslyFoReal likes this.
  9. Mar 24, 2020 at 11:19 AM
    #289
    SuriouslyFoReal

    SuriouslyFoReal New Member

    Joined:
    Mar 20, 2020
    Member:
    #322551
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2011 Tacoma TRD Sport
    Pioneer AVH-W4400NEX
    Thanks again for another VERY helpful post! I have the AUX jack in the same place but no USB. Just learned my HU has 2x USB ports in the back, so I'm gonna get a dual receptacle to go in the blank next to the AUX.
    Trying to get everything together for this weekend.

    gunny1402[QUOTED] likes this.
  10. May 23, 2020 at 1:31 PM
    #290
    TRD2010SpeedwayBlue

    TRD2010SpeedwayBlue Well-Known Member

    Joined:
    Sep 12, 2015
    Member:
    #164039
    Messages:
    1,790
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2010 Speedway Blue TRD Offroad
    ok so i’m back again for info.
    I’m now getting a kenwood double din. i want the backup cam on the radio. But i don’t want it on the rearview anymore.

    for my 14 i swapped i cut that red wire on the camera input but this is telling me to use the contacts for that red wire for signal

    Who can help me? is this the basic way to do it? or is there another way? been searching for hours

  11. May 26, 2020 at 4:11 PM
    #291
    TRD2010SpeedwayBlue

    TRD2010SpeedwayBlue Well-Known Member

    Joined:
    Sep 12, 2015
    Member:
    #164039
    Messages:
    1,790
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2010 Speedway Blue TRD Offroad
  12. Aug 12, 2020 at 6:51 PM
    #292
    ace96

    ace96 Well-Known Member

    Joined:
    Sep 1, 2010
    Member:
    #42591
    Messages:
    3,811
    Gender:
    Male
    Western KY
    Vehicle:
    '11 SWB DC TRD SPORT
    AVS bug deflector, Weathertech digital fit floor mats, TRD skid plate w/ Sockmonkey decal, SOS Cocept sliders w/ Line-x, Pioneer 3500, Hybrid Audio Technology Mirus 6X9s & 6.5s, back up cam mod, Wet Okoles-front & rear, TRD exhaust, 17X9 XD Spy w/ Falken Wildpeaks, Avid light bar
    Hey everyone. I have my backup camera playing showing up on my Pioneer head unit. I bought a harness off eBay about 6 years ago. Anyways I took truck in to replace evap core now my backup camera is a black screen. It still triggers when I put it in reverse. I pulled everything out and checked connections....I think. Still getting a black screen. Any suggestions???

    This site contains affiliate links for which the site may be compensated.
  13. Aug 12, 2020 at 8:28 PM
    #293
    elclem21

    elclem21 Quebeker

    Joined:
    Aug 26, 2012
    Member:
    #85551
    Messages:
    287
    Gender:
    Male
    First Name:
    Clément
    Alberta, Canada
    Vehicle:
    2009 Tacoma TRD DCLB
    OME 885x front, TC UCAs, OME Dakars rear, 4.30 gears, Eaton Detroit Truetrac (rear diff), HomerTaco Raptor Style satoshi grill
    Are you getting a picture in your rear view camera still?

    It could help to fighure out which part of the connections to check first.

    This site contains affiliate links for which the site may be compensated.
  14. Aug 13, 2020 at 5:45 AM
    #294
    ace96

    ace96 Well-Known Member

    Joined:
    Sep 1, 2010
    Member:
    #42591
    Messages:
    3,811
    Gender:
    Male
    Western KY
    Vehicle:
    '11 SWB DC TRD SPORT
    AVS bug deflector, Weathertech digital fit floor mats, TRD skid plate w/ Sockmonkey decal, SOS Cocept sliders w/ Line-x, Pioneer 3500, Hybrid Audio Technology Mirus 6X9s & 6.5s, back up cam mod, Wet Okoles-front & rear, TRD exhaust, 17X9 XD Spy w/ Falken Wildpeaks, Avid light bar
    No I disconnected it when I did install. Black screen on head unit.

  15. Aug 13, 2020 at 7:18 AM
    #295
    elclem21

    elclem21 Quebeker

    Joined:
    Aug 26, 2012
    Member:
    #85551
    Messages:
    287
    Gender:
    Male
    First Name:
    Clément
    Alberta, Canada
    Vehicle:
    2009 Tacoma TRD DCLB
    OME 885x front, TC UCAs, OME Dakars rear, 4.30 gears, Eaton Detroit Truetrac (rear diff), HomerTaco Raptor Style satoshi grill
    As a diagnostic, I would suggest to reconnect it to see what happen, while keeping the headunit disconnected (back to original configuration). If the picture is also blank into that screen, this would mean that the factory video signal from the vehicle does not go through.

  16. Aug 13, 2020 at 7:28 AM
    #296
    ace96

    ace96 Well-Known Member

    Joined:
    Sep 1, 2010
    Member:
    #42591
    Messages:
    3,811
    Gender:
    Male
    Western KY
    Vehicle:
    '11 SWB DC TRD SPORT
    AVS bug deflector, Weathertech digital fit floor mats, TRD skid plate w/ Sockmonkey decal, SOS Cocept sliders w/ Line-x, Pioneer 3500, Hybrid Audio Technology Mirus 6X9s & 6.5s, back up cam mod, Wet Okoles-front & rear, TRD exhaust, 17X9 XD Spy w/ Falken Wildpeaks, Avid light bar
    I thought about that. When I did the install I cut that wire and connected new harness to it. I don't think it was the camera as it was working when I took it in for the repairs. Unfortunately the evap core is behind the dash, so they pretty much had to remove all the dash. o_O I will have to see if I can find the wire to hook it back up.

  17. Aug 23, 2020 at 5:52 AM
    #297
    GRNT4R

    GRNT4R Well-Known Member

    Joined:
    Feb 24, 2020
    Member:
    #320266
    Messages:
    1,009
    Gender:
    Male
    NC - Triad
    Vehicle:
    2010 TRD Sport DCLB 4WD Silver
    TBD
    SUB’d for a 2010 DV

  18. Aug 31, 2020 at 10:08 AM
    #298
    Funkyninja23

    Funkyninja23 Well-Known Member

    Joined:
    Apr 19, 2017
    Member:
    #216669
    Messages:
    61
    Gender:
    Male
    First Name:
    Don
    Denver
    Vehicle:
    Super White 2011 TRD Off Road
    Money pit with OME 3inch lift with Dakars, color matched rear bumper, Method NV Wheels, 285/75/16 Falken Wildpeak Rubber. RCI sliders, ARB bumper, Smitty Winch, Flippac and Wet Okoles
    Anyone done a t-tap for the rca vs the soldered pins?

  19. Aug 31, 2020 at 10:28 AM
    #299
    TRD2010SpeedwayBlue

    TRD2010SpeedwayBlue Well-Known Member

    Joined:
    Sep 12, 2015
    Member:
    #164039
    Messages:
    1,790
    Gender:
    Male
    First Name:
    Brandon
    Vehicle:
    2010 Speedway Blue TRD Offroad
    will work fine.

    I ordered pins from this website. whopping 50¢ and change shipped. and they didn’t work.
    so i rigged up a connector i think like a spade or something and bent it. and jammed it in the connector and it works fine.

  20. Oct 22, 2020 at 2:08 PM
    #300
    miketyler

    miketyler Well-Known Member

    Joined:
    Jul 27, 2007
    Member:
    #2232
    Messages:
    133
    Do you still have that members info? I have a 2015 radio in my non-wired 2007 and want to connect the radio to my OEM tailgate camera.

    This site contains affiliate links for which the site may be compensated.
