OEM Camera Connection below Dash

Discussion in 'Audio & Video' started by DNahas, Mar 19, 2009.

  1. Dec 13, 2015 at 5:22 PM
    #181
    happy77m

    happy77m Member

    Joined:
    Oct 10, 2015
    Member:
    #166348
    Messages:
    19
    Gender:
    Male
    First Name:
    Donald
    Vehicle:
    2011 Tacoma MGMSB 4x4
    that's all you had to do to get the rear view camera to show up on the after market head unit display? Also the purple with white wire you speak of is the one on the head unit itself, correct?

    Last edited: Dec 13, 2015
  2. Dec 29, 2015 at 3:50 PM
    #182
    STOCKTRD

    STOCKTRD Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62752
    Messages:
    1,312
    Gender:
    Male
    In Traffic
    Vehicle:
    CustomTacos Mafia!
    Nachos, Lemon Heads, My Truck Is Stock!
    So Im trying to get the same info and I would also like to have a definite answer on this question.

    When wiring up an aftermarket head unit to a 2009-2013 that has the OEM camera mirror all you have to do is the video cable mod as explained by the OP AND you have to tap into the reverse signal wire that is posted in #175 by Ls1. Is this correct?

    Kndgrtn likes this.
  3. Dec 29, 2015 at 7:30 PM
    #183
    happy77m

    happy77m Member

    Joined:
    Oct 10, 2015
    Member:
    #166348
    Messages:
    19
    Gender:
    Male
    First Name:
    Donald
    Vehicle:
    2011 Tacoma MGMSB 4x4
    I tried it and it did not work for me. The screen goes black and says no signal. I am going to try the original write up with the RCA cable this weekend.

  4. Jan 1, 2016 at 2:24 PM
    #184
    happy77m

    happy77m Member

    Joined:
    Oct 10, 2015
    Member:
    #166348
    Messages:
    19
    Gender:
    Male
    First Name:
    Donald
    Vehicle:
    2011 Tacoma MGMSB 4x4
    Thank you sir! Just completed this today...works like a charm.

  5. Jan 1, 2016 at 2:31 PM
    #185
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    3,031
    Gender:
    Male
    North eastern Ohio
    Vehicle:
    09 SR5 4.0L 4x4
    I still haven't found an answer, how can I wire things so I have continuous power to the camera? In other words, how can I switch the rear camera on when driving down the road?

  6. Jan 27, 2016 at 5:37 AM
    #186
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,006
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    kingston73[QUOTED] likes this.
  7. Jan 27, 2016 at 5:39 AM
    #187
    kingston73

    kingston73 Well-Known Member

    Joined:
    Aug 8, 2009
    Member:
    #20845
    Messages:
    3,031
    Gender:
    Male
    North eastern Ohio
    Vehicle:
    09 SR5 4.0L 4x4
    Thank you sir, I remember reading that thread and then completely forgot about it.

  8. Feb 29, 2016 at 9:36 AM
    #188
    depechek

    depechek Well-Known Member

    Joined:
    Jun 30, 2011
    Member:
    #59116
    Messages:
    135
    Gender:
    Male
    Houston, TX
    Vehicle:
    07 Prerunner SR5 DC
    Anyone know where these wires are for a 2007 Taco? I have a 2013 Entune non JBL and a generic camera installed. Thanks in advance for your help. Been so long without a backup camera on the taco.

  9. Apr 21, 2016 at 11:09 PM
    #189
    jamiec

    jamiec Man who keep hands in pockets feel cocky all day

    Joined:
    Feb 2, 2015
    Member:
    #147753
    Messages:
    2,728
    Gender:
    Male
    First Name:
    Jamie
    Chillicothe, Ohio
    Vehicle:
    2017 Prius three touring. Sold the Taco
    Last edited: Apr 21, 2016
    Kndgrtn likes this.
  10. May 8, 2016 at 9:41 PM
    #190
    12TRDTacoma

    12TRDTacoma Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    16,624
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    This has been a bitch to decipher. A serious thorn in my side and is quite literally the final connection I need to hook up to on my AVIC8000NEX to make everything fully functional once again. Everything from the actual connector for my 2012 double cab with JBL which turns out to be behind the kick panel at a black 4 pin connector, colors black, red, white and bare wire, which turn out to be camera + which is black in color. (BLACK OUT OF ALL COLORS, ARE YOU FUCKING KIDDING ME TOYOTA?!) Red, which is video +. White, which turns out to be video -. and camera ground which is no color and comes as bare wire.

    We are supposed to be hooking into ONLY the V+ and V- which once again will be red for + and white for - in order to get a video signal to our aftermarket head unit. Theoretically.

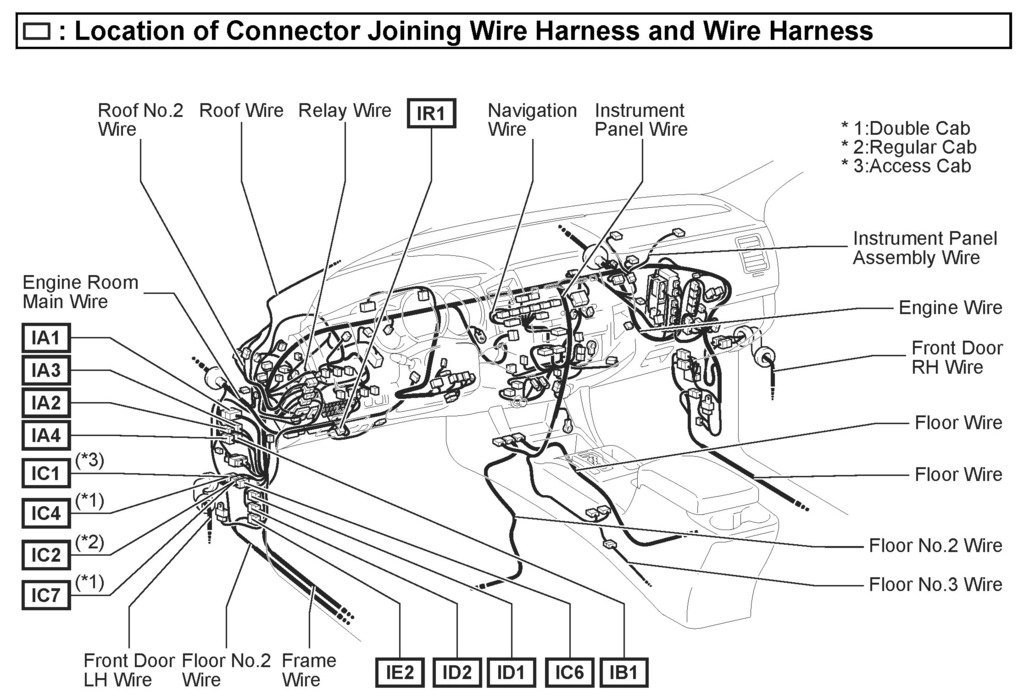

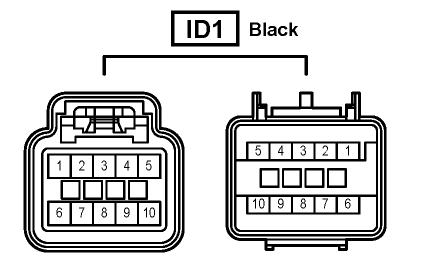

    Still haven't been able to hook it up. I am not sure I want to go and try it AGAIN at this very moment, but now, knowing exactly where connector ID1 is on my model and my year, as well as knowing the correct camera wiring configuration, this SHOULD work. Should being the keyword here. I have low hopes for the mod however.

    BTW, to anyone who is just as clueless as I was as to how Coaxial video cable works up until today when I managed to finally hook up my XM radio using the OE shark fin, there are three layers to the wire. Peel away the insulation and you will see braided sleeving. Ignore this, it has nothing to do with anything that you will want to hook up with, into, or onto. There is what is basically the equal to aluminum foil, which is considered the shield. This part is considered ground, and it is imperative that you do not tear it off and attempt to use the braiding as circuitry! Finally, there is an inner core which uses solid gauge wire, you must peel away the insulation off the wiring in order to be able to use it and this inner core is considered the positive, or power wire of the RCA cable.

    Hope this helps people. Here is a publication of 2012's with Entune (May apply to the trucks which don't too, maybe?) and all the connectors and diagrams you need, just in case you are more of a visual learner, rather than a reader. I know sometimes I am.




    Happy hunting :thumbsup:

    Last edited: May 8, 2016
  11. May 8, 2016 at 10:37 PM
    #191
    12TRDTacoma

    12TRDTacoma Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    16,624
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    And… no go. I finally worked up enough will power to try this once more, and sure enough, no signal. Just black picture upon "reverse" command… It seems as if some of these models will require a 12 volt to 6 volt dc/dc converter. It sounds like more trouble than it is worth and I may end up just ripping it all out and starting fresh with a regular backup cam which uses 12 volts.

  12. Jul 14, 2016 at 11:47 AM
    #192
    foxfire235

    foxfire235 Well-Known Member

    Joined:
    Sep 3, 2009
    Member:
    #22207
    Messages:
    86
    Gender:
    Male
    First Name:
    Stephen
    C-Ville
    Vehicle:
    ?
    Here's a how to for a 2014 non-JBL.

    scouterjan likes this.
  13. Nov 21, 2016 at 2:59 PM
    #193
    tractng

    tractng Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42969
    Messages:
    624
    Gender:
    Male
    Does this work for a 2008 regular cab?

  14. Jan 5, 2017 at 8:25 AM
    #194
    SuperWhite05

    SuperWhite05 Well-Known Member

    Joined:
    Feb 11, 2014
    Member:
    #122876
    Messages:
    120
    Gender:
    Male
    First Name:
    Stephen
    Mississippi
    Vehicle:
    '14 Super White TRD Off-Road 4x4
    255/80/17 Cooper ST/Maxx 885 OME Coils 5100 Billies Ironman Replacement Leaf Pack Wet Okole Seat Covers Pop n' Lock Tailgate Lock csjumper Map, dome, DTRLs, and license plate LED's Flyzeye V2W-1215 and 3VP-RS LED's Colormatched Door handles, side mirrors w/ turn signals, and grille 17x8.5 Matte Dark Bronze Stealth Custom Series Wheels Shorty Antenna Differential Breather Rear Fox 2.0 Shocks Adam's Polishes Products Black WeatherTechs Front and Rear Redline Hood Struts Pioneer AVH-4100NEX Bestop Supertop
    This seems to be the way to wire it if you have Homelink and the camera in the rearview mirror. Does anyone know how to wire it to an aftermarket HU if you had the camera originally on the factory HU?

  15. Jan 5, 2017 at 10:40 AM
    #195
    SuperWhite05

    SuperWhite05 Well-Known Member

    Joined:
    Feb 11, 2014
    Member:
    #122876
    Messages:
    120
    Gender:
    Male
    First Name:
    Stephen
    Mississippi
    Vehicle:
    '14 Super White TRD Off-Road 4x4
    255/80/17 Cooper ST/Maxx 885 OME Coils 5100 Billies Ironman Replacement Leaf Pack Wet Okole Seat Covers Pop n' Lock Tailgate Lock csjumper Map, dome, DTRLs, and license plate LED's Flyzeye V2W-1215 and 3VP-RS LED's Colormatched Door handles, side mirrors w/ turn signals, and grille 17x8.5 Matte Dark Bronze Stealth Custom Series Wheels Shorty Antenna Differential Breather Rear Fox 2.0 Shocks Adam's Polishes Products Black WeatherTechs Front and Rear Redline Hood Struts Pioneer AVH-4100NEX Bestop Supertop
    Bump for any info?

  16. Jan 6, 2017 at 6:37 PM
    #196
    tamer

    tamer hamerworx.com

    Joined:
    Aug 21, 2008
    Member:
    #8674
    Messages:
    847
    Gender:
    Male
    NorCal
    Vehicle:
    2015 TRD OR AC, MGM, 4x4, 6spd MT
    I did this on my 2009 with Joying headunit today, worked beautifully. Thanks again OP for sharing this.

    My end result: New Joying Android Unit

  17. Mar 19, 2017 at 3:35 PM
    #197
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Ordered a new Kenwood hu and plan to try this mod soon on my 2011 with JBL. Has anyone done this on a JBL successfully? I read through the whole thread and don't remember anyone with the JBL doing this. Thanks.

  18. Mar 25, 2017 at 9:57 AM
    #198
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Just installed a Kenwood DDX374BT and did the video feed mod and it works. I do get the black lines scrolling down the screen but it is very weak, not bad at all. Started out worse and kept playing with different wires and got it down some. Luckily for me this hu has a cam button on the face and it gives me control to turn it on and off manually. I have the idatalink maestro so idk if that plays into this set or not but it works.

    I haven't ran the power from the reverse line so it doesn't come on automatically when I shift to reverse. This brings up the question of the voltage. I know it's said that the rear view mirror uses 6v and I need to covert to 6v. My question is why? How do I know the hu needs only 6v rather than 12? Is this the normal for video? Or could that just be the mirror and the hu could run off 12v? Just trying to sort this out before going any farther and I'm in the middle of the install so I'm hoping for a quick answer. Although I may leave my power wire hooked only at the hu and if needed put the voltage adapter under the dash later so I won't have to pull the hu again. Thanks.

  19. Mar 25, 2017 at 10:36 AM
    #199
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Never mind about the power wire and voltage. Changed a setting in the hu and it's working!

    On another note, the lines in the screen disappeared when I turned the rear view display off.

  20. Mar 25, 2017 at 12:59 PM
    #200
    TacoDawgfan

    TacoDawgfan Hunker Down You Hairy Dawg!

    Joined:
    Jan 30, 2011
    Member:
    #50214
    Messages:
    16,853
    Gender:
    Male
    First Name:
    Mike
    Georgia
    Vehicle:
    2011 Silver 4x4 TRD Sport w/JBL
    5100's at 1.75, Rear leaf TSB, Moto Metal 951 16x8, BFG TKO2 265/75/16, AFe Stage 2 CAI w/pro dry filter, Kenwood DDX374BT installed with Idatalink Maestro kit, Access Loredo tonneau cover, N-Fab steps, Tinted windows, EGR in channel vent visors, UGA drink coasters in the front cup holders, and a Graco car seat in the back seat
    Well shit, first time on the road and the manual camera doesn't work. Apparently it knows when moving. It works parked. And the damn rear view keeps turning itself back on.
