I need a 1st gen front hub/bearing assembly

Discussion in '1st Gen. Tacomas (1995-2004)' started by ivan ny, Oct 22, 2020.

Page 1 of 4
  1. Oct 22, 2020 at 3:32 PM
    #1
    ivan ny

    #1
    ivan ny [OP] Well-Known Member

    Joined:
    Feb 28, 2020
    Member:
    #320582
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2003 2.7 manual ext.cab
    I need a front hub assembly for my 2004 4 x 4 3.4 5vz-fe
    tried to order it from Toyota but they only sell it in parts
    trying to see if anyone on here sells oem already press hubs/bearing assembly
    reached out to @05Taco4x4 but no response yet
    can anyone help
    thank you

    ivan ny, Oct 22, 2020
    #1
    Poncate likes this.
  2. Oct 22, 2020 at 3:35 PM
    #2
    Kwikvette

    #2
    Kwikvette Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    79,700
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    What's wrong with buying the individual parts?

    You'd have to press the old one out of the spindle before pressing in the new ones.

    Kwikvette, Oct 22, 2020
    #2
    Wyoming09 and ivan ny[QUOTED][OP] like this.
  3. Oct 22, 2020 at 3:40 PM
    #3
    1stgen_fanatic

    #3
    1stgen_fanatic Member

    Joined:
    Oct 22, 2020
    Member:
    #344591
    Messages:
    5
    Vehicle:
    2002 Tacoma TRD
    I think that's exactly what they're trying to avoid.

    1stgen_fanatic, Oct 22, 2020
    #3
    ivan ny[OP] likes this.
  4. Oct 22, 2020 at 3:51 PM
    #4
    ivan ny

    #4
    ivan ny [OP] Well-Known Member

    Joined:
    Feb 28, 2020
    Member:
    #320582
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2003 2.7 manual ext.cab
    Yeah I’m not so experience so trying to avoid that also was thinking if I have to pay someone to do it or buy a press then take a chance and hopefully don’t damage anything figure just try to find one already pressed

    ivan ny, Oct 22, 2020
    #4
  5. Oct 22, 2020 at 3:57 PM
    #5
    LoveableWerewolf

    #5
    LoveableWerewolf Well-Known Member

    Joined:
    Feb 3, 2019
    Member:
    #281708
    Messages:
    730
    Nashville
    Vehicle:
    2014 5 lug, 1989 mighty max
    4 runner seats, storage cubbies
    LoveableWerewolf, Oct 22, 2020
    #5
  6. Oct 22, 2020 at 4:08 PM
    #6
    ivan ny

    #6
    ivan ny [OP] Well-Known Member

    Joined:
    Feb 28, 2020
    Member:
    #320582
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2003 2.7 manual ext.cab
    Do you think rock auto will have hub assembly for a 1stGEN

    ivan ny, Oct 22, 2020
    #6
  7. Oct 22, 2020 at 4:08 PM
    #7
    LoveableWerewolf

    #7
    LoveableWerewolf Well-Known Member

    Joined:
    Feb 3, 2019
    Member:
    #281708
    Messages:
    730
    Nashville
    Vehicle:
    2014 5 lug, 1989 mighty max
    4 runner seats, storage cubbies
    Wouldn't hurt to check, probably cheaper too. Look up the tacomaworld discount for 5 percent off all orders

    LoveableWerewolf, Oct 22, 2020
    #7
  8. Oct 22, 2020 at 4:12 PM
    #8
    ivan ny

    #8
    ivan ny [OP] Well-Known Member

    Joined:
    Feb 28, 2020
    Member:
    #320582
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2003 2.7 manual ext.cab
    Cool will check that out Keep you posted thank you

    ivan ny, Oct 22, 2020
    #8
  9. Oct 22, 2020 at 4:16 PM
    #9
    LoveableWerewolf

    #9
    LoveableWerewolf Well-Known Member

    Joined:
    Feb 3, 2019
    Member:
    #281708
    Messages:
    730
    Nashville
    Vehicle:
    2014 5 lug, 1989 mighty max
    4 runner seats, storage cubbies
    F649BA1DE4388E

    Expires Nov 12

    LoveableWerewolf, Oct 22, 2020
    #9
  10. Oct 22, 2020 at 4:27 PM
    #10
    cruxofthebisquit

    #10
    cruxofthebisquit Well-Known Member

    Joined:
    Jun 26, 2009
    Member:
    #18936
    Messages:
    5,307
    Gender:
    Male
    First Name:
    John
    Orange Texas
    Vehicle:
    2000 TRD
    OME and worth every penny.
    The only way to get one premade is to buy a complete spindle from someone who has already done all the pressing. Since first gens had a few different ways to have gotten a front wheel. (ABS or no, ADD or no) it would have been very hard to someone to have undertaken the risk to do it at home and make a few bucks, not to mention shipping spindles all over America gets expensive.


    Pull off your spindles and bring all your stuff to a machine shop. Most do it. I made the mistake of using a 4WD place here and all they did was complain how hard it was for them. (And they buggered one) The machine shop just did it without batting an eye.

    BTW, Timmah from this site has a video on YouTube how to do it yourself that you can use to disassemble the front.

    cruxofthebisquit, Oct 22, 2020
    #10
    Snowman and Wyoming09 like this.
  11. Oct 22, 2020 at 4:52 PM
    #11
    ivan ny

    #11
    ivan ny [OP] Well-Known Member

    Joined:
    Feb 28, 2020
    Member:
    #320582
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2003 2.7 manual ext.cab
    LoveableWerewolf not sure what your message means

    ivan ny, Oct 22, 2020
    #11
  12. Oct 22, 2020 at 4:55 PM
    #12
    Empty_Lord

    #12
    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,286
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    The hub and bearing is pressed INTO the spindle. It is not like the second gens. If you want the thing pre assembled you need to buy a whole used spindle

    Empty_Lord, Oct 22, 2020
    #12
    Squeaky Penguin and Jeff Lange like this.
  13. Oct 22, 2020 at 4:56 PM
    #13
    ivan ny

    #13
    ivan ny [OP] Well-Known Member

    Joined:
    Feb 28, 2020
    Member:
    #320582
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2003 2.7 manual ext.cab
    cruxofthebisquit thanks for the info Timmah

    ivan ny, Oct 22, 2020
    #13
  14. Oct 22, 2020 at 5:00 PM
    #14
    ivan ny

    #14
    ivan ny [OP] Well-Known Member

    Joined:
    Feb 28, 2020
    Member:
    #320582
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2003 2.7 manual ext.cab
    @Timmah! how’s it going heard you might have a vid of 1st gen front bearing replacement can you help thanks

    ivan ny, Oct 22, 2020
    #14
  15. Oct 22, 2020 at 5:02 PM
    #15
    ivan ny

    #15
    ivan ny [OP] Well-Known Member

    Joined:
    Feb 28, 2020
    Member:
    #320582
    Messages:
    71
    Gender:
    Male
    Vehicle:
    2003 2.7 manual ext.cab
    @Empty_Lord do you know where I might be able to find a used spindle

    ivan ny, Oct 22, 2020
    #15
  16. Oct 22, 2020 at 5:03 PM
    #16
    Empty_Lord

    #16
    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,286
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    Local junk yards, but honestly your better off removing the spindle and having a machine shop
    Do the pressing

    Empty_Lord, Oct 22, 2020
    #16
  17. Oct 22, 2020 at 5:05 PM
    #17
    Parkvisitor

    #17
    Parkvisitor Do you know midnight?

    Joined:
    May 27, 2019
    Member:
    #294502
    Messages:
    2,280
    Gender:
    Male
    First Name:
    Juan
    So Cal
    Vehicle:
    It’s a truck
    stuff

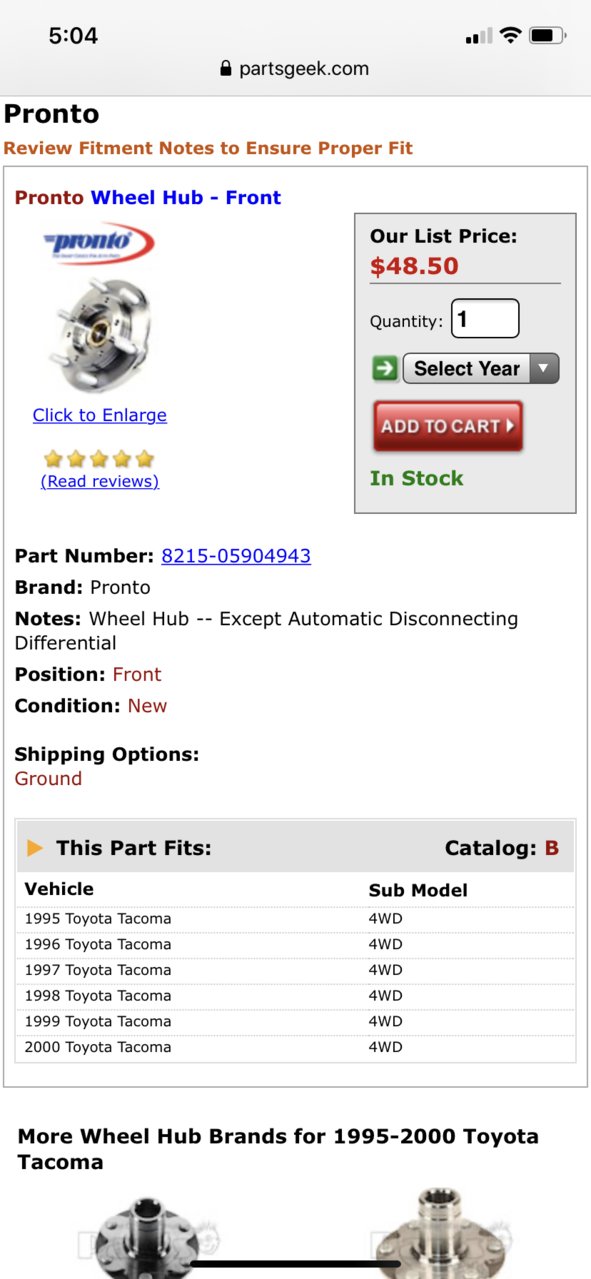

    B1B401CA-B649-4738-93C7-1D8D24DA94A8.jpg The Toyota FSM shows a puller to remove the hub and a press to remove the bearing
    If the op only needs a hub, he should be able to use a puller to remove the old and press in the new one

    Parkvisitor, Oct 22, 2020
    #17
  18. Oct 22, 2020 at 5:05 PM
    #18
    Empty_Lord

    #18
    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,286
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    Removing the old hub always damages the inner race..

    Empty_Lord, Oct 22, 2020
    #18
  19. Oct 22, 2020 at 5:09 PM
    #19
    Parkvisitor

    #19
    Parkvisitor Do you know midnight?

    Joined:
    May 27, 2019
    Member:
    #294502
    Messages:
    2,280
    Gender:
    Male
    First Name:
    Juan
    So Cal
    Vehicle:
    It’s a truck
    stuff
    With a press or a puller?

    Parkvisitor, Oct 22, 2020
    #19
  20. Oct 22, 2020 at 5:13 PM
    #20
    Empty_Lord

    #20
    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,286
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    Either. The race is split in the middle. The side closest to the hub face always comes off with the hub

    Empty_Lord, Oct 22, 2020
    #20
