help with getting the right switch to fit.

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Djfresh35, Oct 7, 2019.

  1. Oct 7, 2019 at 3:41 PM
    #1
    Djfresh35

    #1
    Djfresh35 [OP] Member

    Joined:
    Sep 20, 2016
    Member:
    #197819
    Messages:
    23
    Gender:
    Male
    First Name:
    D
    Vehicle:
    2017 Tacoma Off Road
    window tint, 3" lift/level, tires, wheels, nerf bars
    (Sorry if already covered, tried searching forum).
    2017 TRD Off road

    Over the weekend I installed my onboard air and light bar (pics to come).

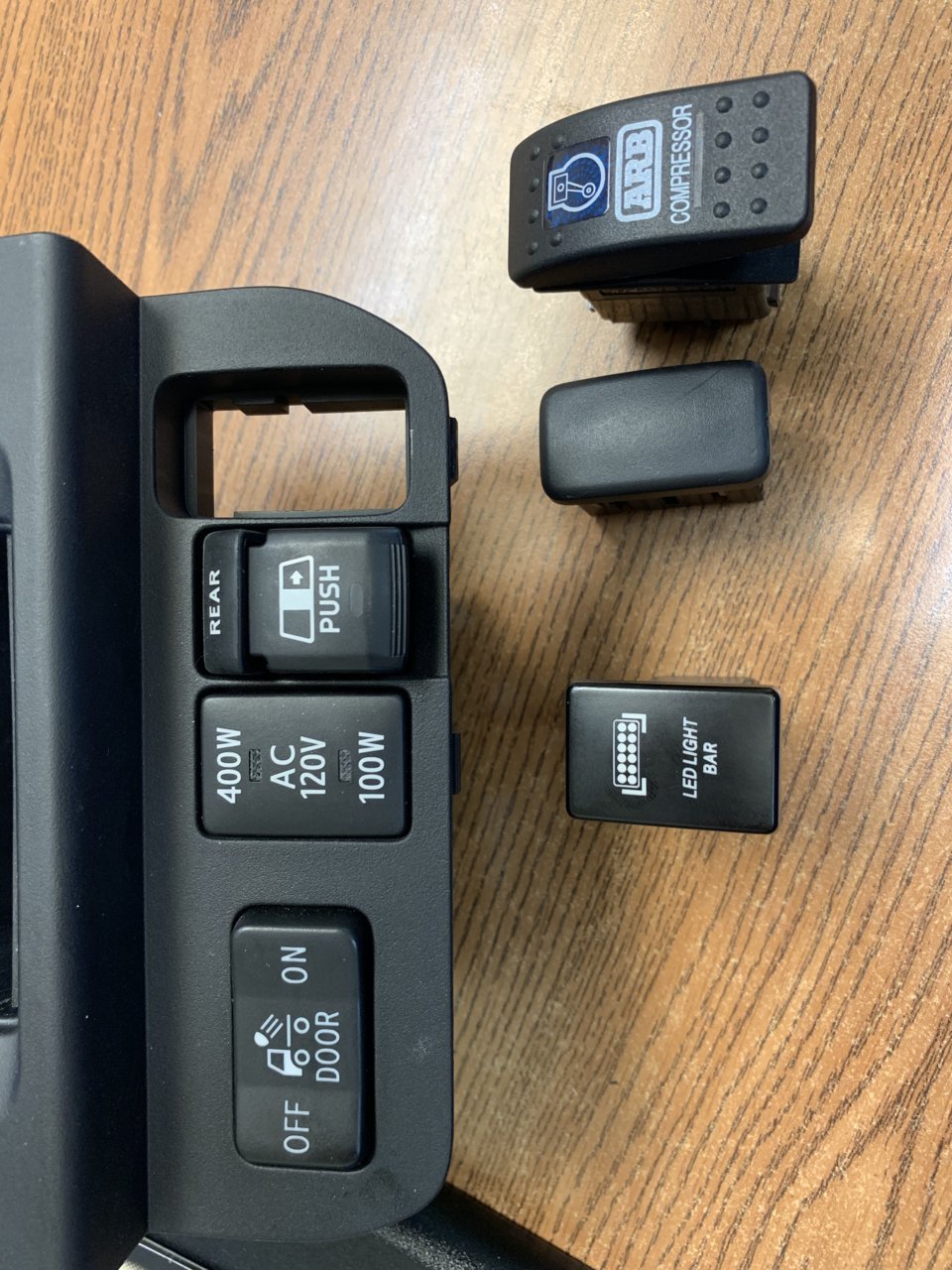

    I noticed a future spare KO blank next to my rear window toggle in the dash (SEE PIC FOR REF) It is the only spare switch KO available that I see. So I ordered an oem lightbar switch from Tacoma beast thinking it would fit, but the light switch they sent me is the smaller switch size (power converter switch size) SEE PIC FOR REFERENCE. The ARB came with a carling style rocker switch but it’s too big for the opening. Any ideas of a link to a switch that fits in that spare opening?

    Thanks for your help!


    Djfresh35, Oct 7, 2019
    #1
  2. Oct 7, 2019 at 4:12 PM
    #2
    HoppyTaco

    #2
    HoppyTaco Well-Known Member

    Joined:
    Jul 21, 2012
    Member:
    #83097
    Messages:
    207
    Gender:
    Male
    CLT, NC
    Vehicle:
    2023 Off Road MT
    HoppyTaco, Oct 7, 2019
    #2
    Djfresh35[OP] likes this.
  3. Oct 7, 2019 at 4:21 PM
    #3
    Djfresh35

    #3
    Djfresh35 [OP] Member

    Joined:
    Sep 20, 2016
    Member:
    #197819
    Messages:
    23
    Gender:
    Male
    First Name:
    D
    Vehicle:
    2017 Tacoma Off Road
    window tint, 3" lift/level, tires, wheels, nerf bars
    How do I tell that is the correct size? it seems like there are 2 standard OEM sizes in the dash?
    In my picture above, the aftermarket OEM switch I ordered from tacoma beast "LED LIGHT BAR" will fit in the spot of the power converter and there are a bank of switches the same size in center console it will fit in, but theyre all being used (Qi charge, BSM, Aux, etc)

    Djfresh35, Oct 7, 2019
    #3
    str8xrunnin likes this.
  4. Oct 7, 2019 at 4:23 PM
    #4
    tcjacado

    #4
    tcjacado Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    41,586
    These guys will have both sizes
    https://www.ch4x4.com/

    tcjacado, Oct 7, 2019
    #4
    Djfresh35[QUOTED][OP] likes this.
  5. Oct 7, 2019 at 4:31 PM
    #5
    HoppyTaco

    #5
    HoppyTaco Well-Known Member

    Joined:
    Jul 21, 2012
    Member:
    #83097
    Messages:
    207
    Gender:
    Male
    CLT, NC
    Vehicle:
    2023 Off Road MT
    Sorry for being so short. MY truck hasn't arrived yet but what I would do is contact the vendor and ask for dimensions. The 2020 only has one slot without additional modifications. I will pop that blank out, measure and order after I speak with CaliRaised on the button/switch.

    HoppyTaco, Oct 7, 2019
    #5
    Djfresh35[QUOTED][OP] likes this.
  6. Oct 7, 2019 at 6:19 PM
    #6
    Stocklocker

    #6
    Stocklocker Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219125
    Messages:
    12,730
    Gender:
    Male
    Vehicle:
    17TRDORDCSBAT
    Toyota has two sizes. One is taller and thinner, the other wider and more squarish. The KO you are trying to use is the tall/thin switch dimension (at least in my truck), and you’ve purchased the more square wide-type button.

    Stocklocker, Oct 7, 2019
    #6
  7. Oct 7, 2019 at 6:20 PM
    #7
    Matmo215

    #7
    Matmo215 Well-Known Member

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    7,647
    Gender:
    Male
    First Name:
    Matthew
    Waco, TX
    Vehicle:
    2015 Sport DCSB
    Get out the dremel

    Matmo215, Oct 7, 2019
    #7
    TacoManOne likes this.
  8. Oct 7, 2019 at 6:35 PM
    #8
    KAOS_4X4

    #8
    KAOS_4X4 Well-Known Member

    Joined:
    Aug 4, 2019
    Member:
    #301210
    Messages:
    69
    High Desert SoCal
    Vehicle:
    95.5 Xtra Cab 08 FJ 18 TRD OR
    The taller switch you need is sized for 4runner/FJ Cruiser

    KAOS_4X4, Oct 7, 2019
    #8
  9. Oct 7, 2019 at 9:28 PM
    #9
    djacri

    #9
    djacri Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197935
    Messages:
    69
    Gender:
    Male
    djacri, Oct 7, 2019
    #9
    Rtylenda likes this.
  10. Oct 7, 2019 at 9:31 PM
    #10
    djacri

    #10
    djacri Well-Known Member

    Joined:
    Sep 21, 2016
    Member:
    #197935
    Messages:
    69
    Gender:
    Male
    djacri, Oct 7, 2019
    #10
  11. Oct 7, 2019 at 9:41 PM
    #11
    RyanDCLB

    #11
    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,488
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    RyanDCLB, Oct 7, 2019
    #11
  12. Jun 14, 2020 at 4:29 PM
    #12
    SmileyGuy

    #12
    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    497
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN

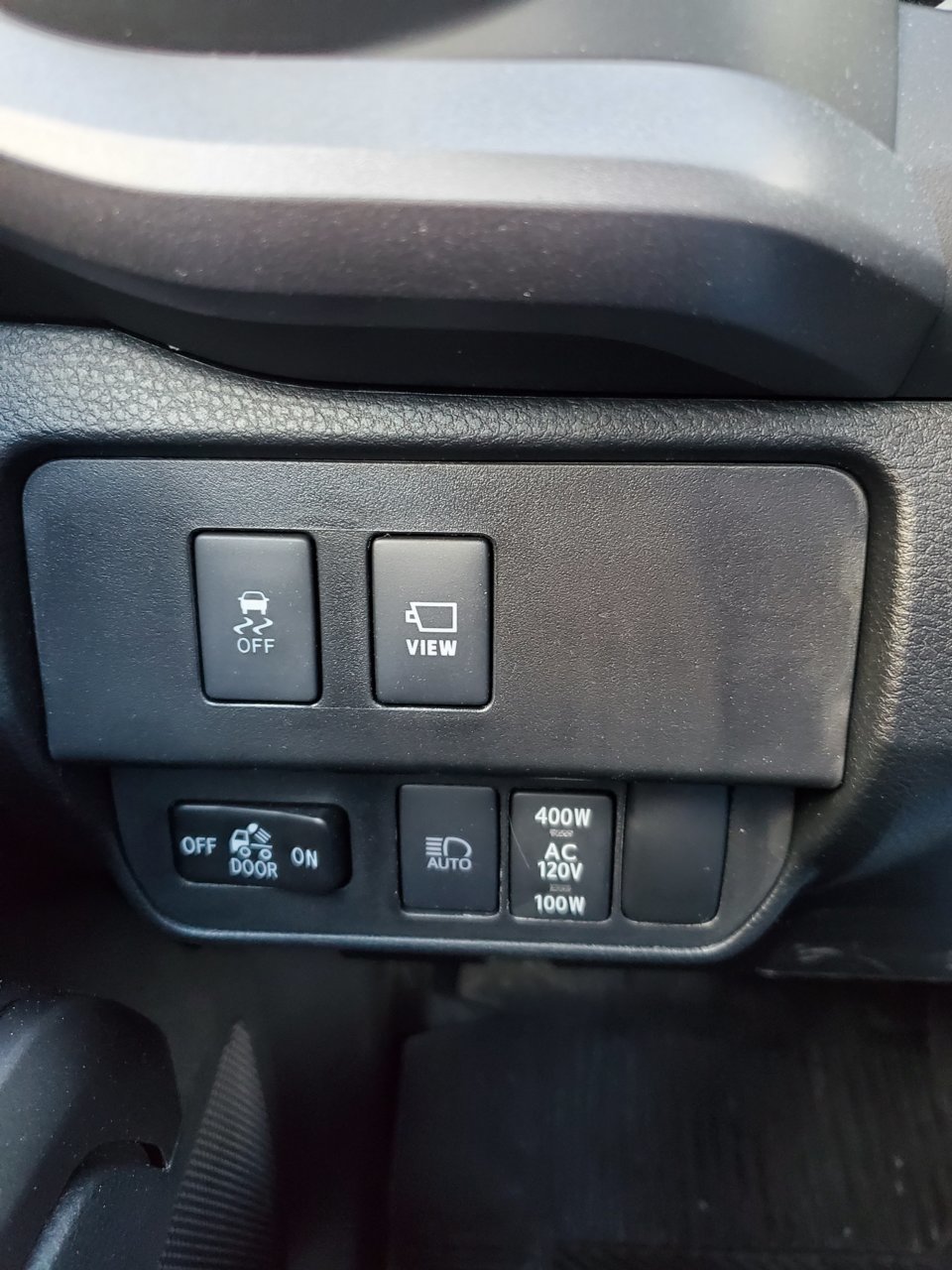

    I have the same panel on my 2020 OR Premium. Bought a standard rocker switch and it is too wide like your ARB switch. Did you find the proper size?

    Tacoma small switch definitely not an option.


    Bumper LED Light Bar Switch.jpg

    SmileyGuy, Jun 14, 2020
    #12
  13. Jun 14, 2020 at 5:30 PM
    #13
    jmauvais

    #13
    jmauvais Received 2 votes in a poll one time.

    Joined:
    Oct 13, 2016
    Member:
    #199716
    Messages:
    3,642
    Gender:
    Male
    First Name:
    Jason
    NorCal
    Vehicle:
    2018 TRD OR 4x4 DCSB
    ...stuff
    Meso customs sells replacement panels for that area of the truck so you can use the switch you have

    jmauvais, Jun 14, 2020
    #13
  14. Jun 14, 2020 at 5:57 PM
    #14
    SmileyGuy

    #14
    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    497
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN
    I only found "small switch" panels for the left side. A custom panel could be ordered but I only really need a skinny switch that fits. The blank looks comparable to Amazon.ca Toyota 55539-AE010-C0. I am thinking the switch I have is larger than Tacoma tall switches but the blank is only 35 mm tall by 15 mm wide. The tapered tall switch hole is 40.5 mm x 22.5 mm on the front side and 35.6 mm x 17.4 mm on the inside.


    $16 Toyota Genuine Spare Switch Hole Cover
    https://www.amazon.ca/Toyota-55539-AE010-C0-Switch-Hole-Cover/dp/B00J09FREQ

    Last edited: Jun 18, 2020
    SmileyGuy, Jun 14, 2020
    #14
  15. Jun 14, 2020 at 9:23 PM
    #15
    Captqc

    #15
    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    5,148
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road
    Air On Board has both size switch’s to fit our trucks.

    Captqc, Jun 14, 2020
    #15
  16. Jun 15, 2020 at 6:33 PM
    #16
    SmileyGuy

    #16
    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    497
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN
    Yes they sell Tacoma switches...

    Short 32 mm x 22 mm
    Tall 39 mm x 22 mm

    The blank is 39 mm x 15 mm
    Position 15 indicates a clutch start cancel switch would be installed if transmission was standard. Toyota could not offer a switch.

    Will have to cut to fit for the switch I have.

    Last edited: Jun 19, 2020
    SmileyGuy, Jun 15, 2020
    #16
  17. Jun 18, 2020 at 5:37 PM
    #17
    SmileyGuy

    #17
    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    497
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN
    After removing the panel and accurately measuring the front side hole and the inner hole I have determined that the "blank" is large enough for a standard Tacoma tall style push button switch. The face of the switch is 21.0 mm x 39.0 mm and the panel front side hole is 22.0 mm x 40.0 mm. Lastly, the panel back side hole size is 35.6 mm x 17.4 mm and the blank is 35 mm x 15 mm.

    The common aftermarket rocker switch has a front face of 49.0 mm x 26.0 mm. The rear of the aftermarket rocker switch is 37.0 mm x 21.0 mm. Finally there is not enough space to mount the aftermarket switch in the lower half of the panel in the blank position I hope to use. MESO custom panels only allow the small style 32.5 mm x 22.0 mm switches, cab light switch and rear window switch in the lower half of the left side panel.

    I decided to order a custom labeled switch from CH4x4.com vs having a custom left side panel from MESO Customs printed.

    SmileyGuy, Jun 18, 2020
    #17
    WiFiDoctor, ksJoe and Killawhalegun like this.
  18. Jun 19, 2021 at 5:50 PM
    #18
    Killawhalegun

    #18
    Killawhalegun Well-Known Member

    Joined:
    Apr 16, 2021
    Member:
    #362890
    Messages:
    54
    Gender:
    Male
    First Name:
    Gunner
    Vehicle:
    metallic Greg 2013 tacoma
    Great info

    Killawhalegun, Jun 19, 2021
    #18
  19. Aug 27, 2021 at 5:02 PM
    #19
    SmileyGuy

    #19
    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    497
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN

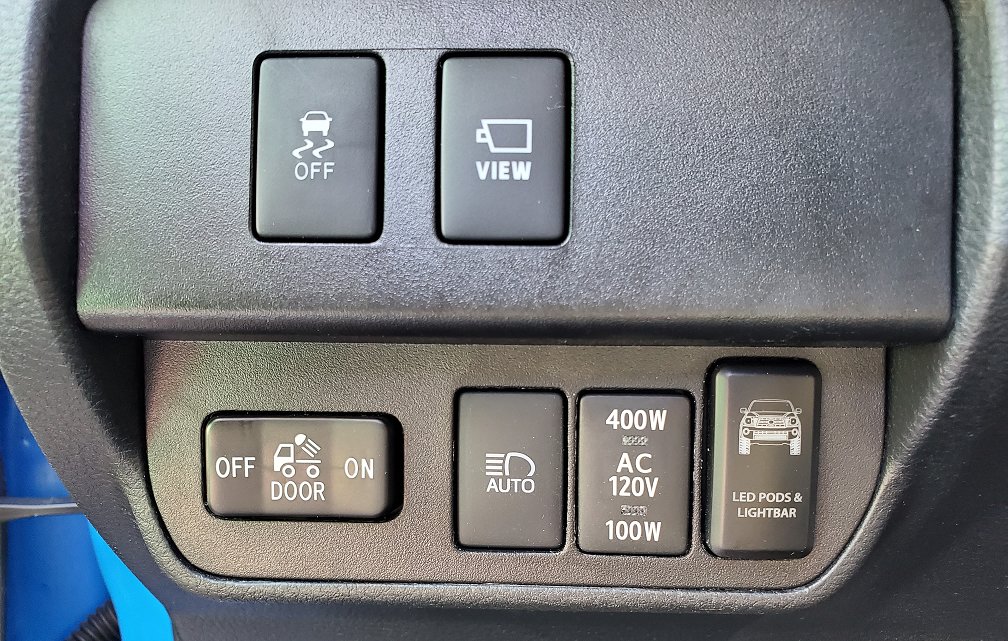

    I decided to use 1 switch to turn on the 30" LED light bar and Pod lights in the single blank spot I had.

    LED Switch.jpg

    LED Lights.jpg

    SmileyGuy, Aug 27, 2021
    #19
    Bravesfan1995 likes this.
