Heater blower wire melted

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Sarah1316, Jul 26, 2022.

  1. Jul 26, 2022 at 7:07 PM
    #1
    Sarah1316

    #1
    Sarah1316 [OP] New Member

    Joined:
    Jul 26, 2022
    Member:
    #402195
    Messages:
    3

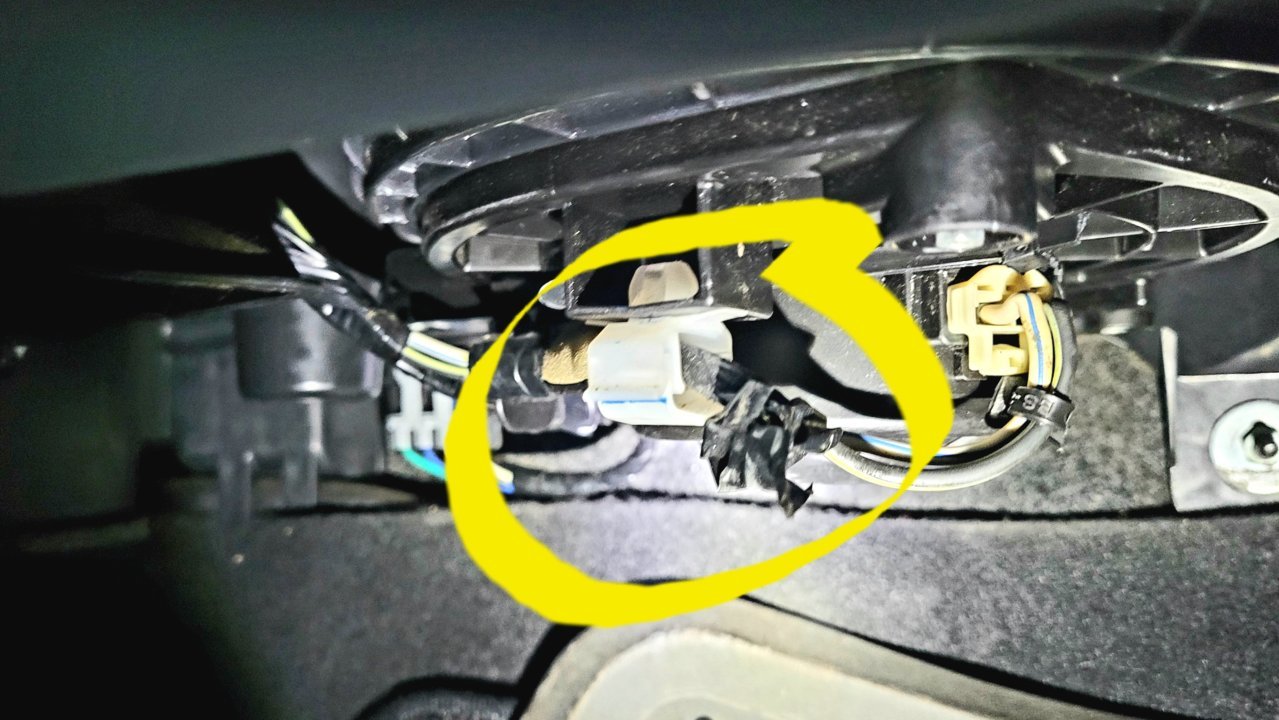

    Where this is circled my wires melted. Need to know what to get to fix it. Thanks!


    Sarah1316, Jul 26, 2022
    #1
  2. Jul 26, 2022 at 7:13 PM
    #2
    TnShooter

    #2
    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    20,850
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    TnShooter, Jul 26, 2022
    #2
    Jimmyh and Key-Rei like this.
  3. Jul 28, 2022 at 10:57 AM
    #3
    D2.

    #3
    D2. Well-Known Member

    Joined:
    Dec 1, 2016
    Member:
    #203759
    Messages:
    1,578
    Gender:
    Male
    First Name:
    Dan
    Nova Scotia, Canada
    Vehicle:
    2009 Tacoma - access cab 4x4 2TR-FE
    Cruise Control install. Intermittent wipers Hood lights Bed Lights Sliders 3" lift 886's on Billy 5100's Icon AAL 285/75 R16 Falken Wildpeak AT3W's
    While Jimmyh has a good write up,
    when I faced that same issue I ordered the doorman replacement resistor pack ( came with new connector ) and then cut the melted motor connector and wires, Soldered on some new wires, and used female spade connectors to connect the wires back up to the motor.

    Done.
    I will say this, since the motor terminals are close together I used one female spade connector that had a protective shield around it so that it could not accidently "touch" the other female spade connector

    D2., Jul 28, 2022
    #3
  4. Jul 28, 2022 at 3:01 PM
    #4
    Sarah1316

    #4
    Sarah1316 [OP] New Member

    Joined:
    Jul 26, 2022
    Member:
    #402195
    Messages:
    3
    Looking at it the next day its my connector that plugs into my blower. Did you get part from Toyota? I've looked at advance and they don't have the connector.

    Sarah1316, Jul 28, 2022
    #4
  5. Jul 28, 2022 at 3:06 PM
    #5
    Sarah1316

    #5
    Sarah1316 [OP] New Member

    Joined:
    Jul 26, 2022
    Member:
    #402195
    Messages:
    3

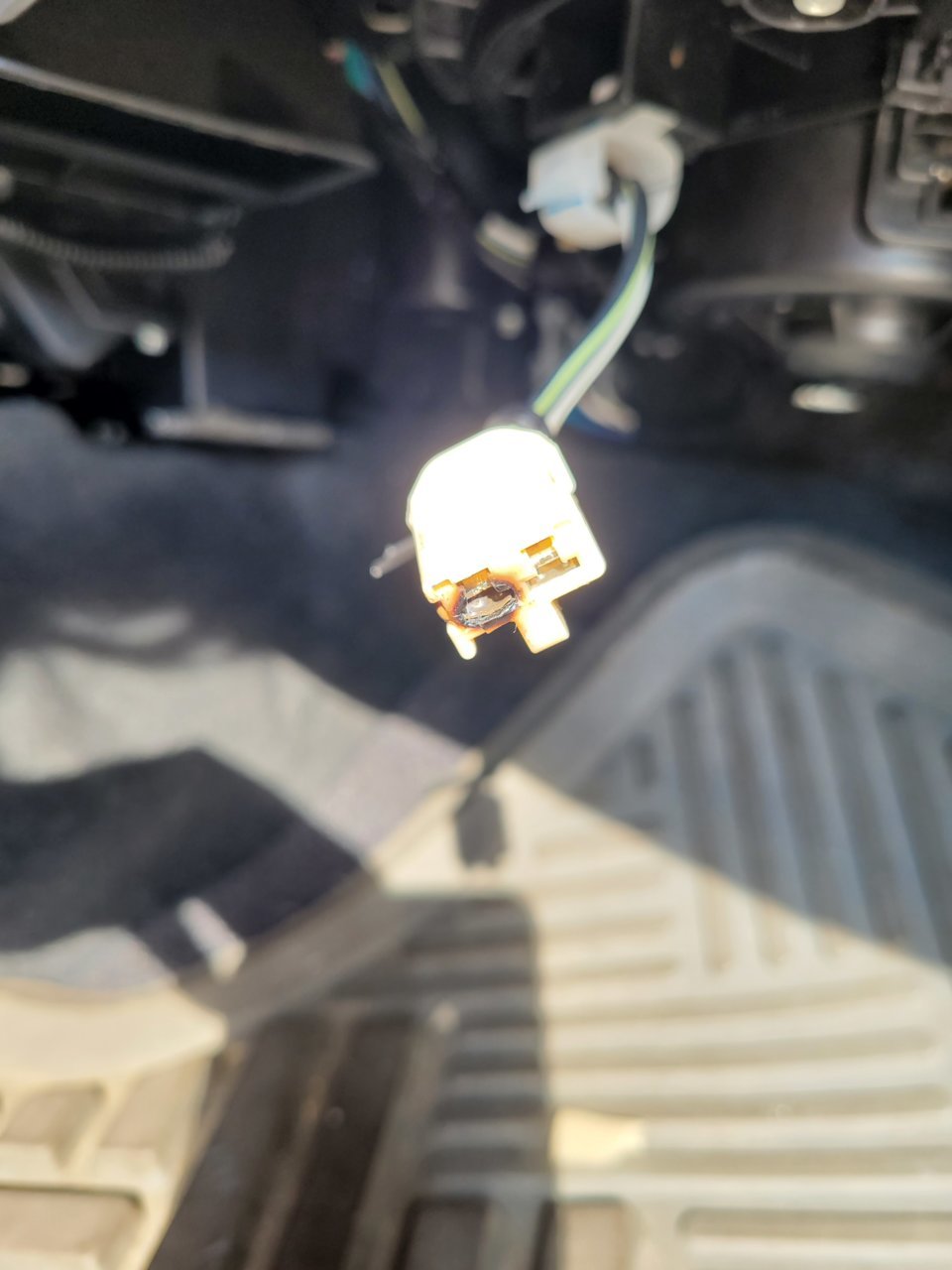

    This is the plug


    Sarah1316, Jul 28, 2022
    #5
  6. Jul 28, 2022 at 3:23 PM
    #6
    stocko taco

    #6
    stocko taco Well-Known Member

    Joined:
    Dec 13, 2016
    Member:
    #204744
    Messages:
    105
    Gender:
    Male
    Az
    Vehicle:
    19 Nissan Armada
    Honda Accord OBS Chevy
    The resistor and plug have been updated to a square design along with different wire gauge. New Part numbers are listed in the pictures. https://www.ebay.com/itm/2005-2018-...RESISTOR-WITH-CONNECTOR-PIGTAIL-/323788974234

    Connector to blower motor may have issue too.

    ALLMOST FOR Compatible with ToyotaTacoma 2005-2016 Blower MotorConnector 90980-10916 6" 12ga Harness NEW
    [​IMG]
    [​IMG]
    $16 ALLMOST FOR Compatible with Toyota Tacoma 2005-2016 Blower Motor Connector 90980-10916 6" 12ga Harness NEW
    $13 for Compatible with Toyota Tacoma 2005-2016 Blower Motor Connector 90980-10916 6" 12ga Harness New
    https://www.amazon.com/dp/B07YXLJP18. I would inspect any connection to and from the blower motor and replace what hassigns of overheating. This is a common issue on the tacomas. The resistor and wiring have been updated in the last few years. I have no affiliation with the sellers. But the part numbers you will need are listed for each item. Best of luck

    This site contains affiliate links for which the site may be compensated.
    stocko taco, Jul 28, 2022
    #6
    deanosaurus and Sarah1316[OP] like this.
  7. Jul 29, 2022 at 2:25 PM
    #7
    caribe makaira

    #7
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,711
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    caribe makaira, Jul 29, 2022
    #7
  8. Jul 29, 2022 at 2:30 PM
    #8
    saint277

    #8
    saint277 Vigilo Confido

    Joined:
    Apr 14, 2020
    Member:
    #324724
    Messages:
    2,291
    Pretty sure a melted connector like that means the ground isn't working right. I think it will melt the new connector if the ground is addressed.

    saint277, Jul 29, 2022
    #8
