Extruded Aluminum and Plywood Bed box

After 2+ years of planning, designing, purchasing, and plotting, I finally finished my TacoBox! This project was born out of dealing with my existing truck bed box I made out of 3/4" plywood. I loved that box, but it was INSANELY heavy. I had never heard of extruded aluminum until I started researching the Prinsu rack I ultimately went with for the truck. This opened up a whole realm of possibilities.

So, the deets:

I have become pretty adept at Sketchup in the last few years. So I started there. A user on TW supplied some (VERY ACCURATE) sketchup files of Tacoma beds for 3rd Gens. Shoutout to @taco_ace ! Thank you so very much, sir or mam! From there, I started formulating the layout.

I knew there were several must-haves:

1. I wanted the top panels to rest on top of the wheel wells
2. I wanted the ability to have cargo tie-down points
3. I really wanted the box to be as weather-resistant as possible.
4. Lighter = better

I wound up doing most of my research on 8020.net, downloading their CAD files into Sketchup, and then ordering the items needed off of www.tnutz.com or www.mcmaster.com. The extruded aluminum provided the strength, modularity, lightweight, AND cargo tie-down points. As far as a panel for the drawers and sides, I was torn between MDF, HDPE, and some other material I hadn't discovered yet. Actually asking around on this forum, I moved away from MDF for the lack of weatherproofness, and HDPE just sounded like a nightmare for cutting in a garage.. Ultimately I came across Okoume Marine-Grade plywood. Lightweight, strong, and relatively weather-resistant, this was the one! Expensive, but it was the perfect medium.

More pictures, fewer words:


Early mockup in Sketchup

Attached seat track to truck bed using plus nuts, this is what the box attaches to.

Found local shop in Nola that carries Marine-Grade Okoume. Wasn't cheap, but it's beautiful and lightweight. Shame I planned to paint it black!

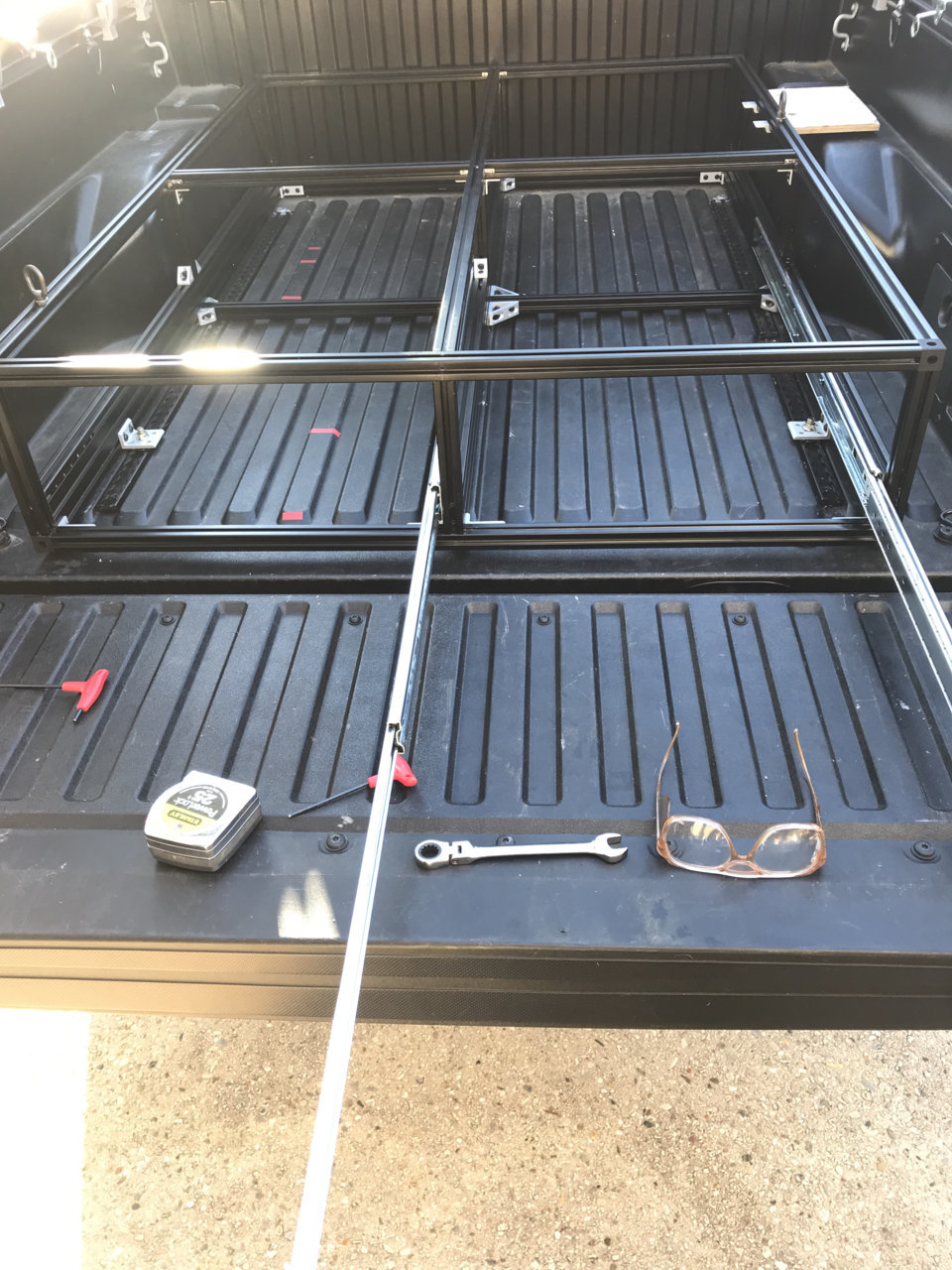

Lining up attachment points

Decided on Forstner bits for countersunk screws

More lining up. I actually like the aesthetic of the light-colored Okoume against the black extruded aluminum. Maybe I'll make a media console in the future with this dynamic.

Had to make rear hatches, since the longest drawer slides that released were only 44". This left 20+ inches of drawer that was hard to reach. Options were: shorter drawers, and forward hatches, or full-length drawers, and hatches towards the tail gate. We'll see how this works for now.

Getting into the groove!


Had to cut around the cabling for Softopper truck bed rack third brake light and rear-LED lights.

More hatching.

Hatching and latching.

Ultimately went with raptor liner for all surfaces, but this was probably a mistake, as the tops would all be covered by the rubber mat. This was by far the biggest and most unforeseen hit to my budget. $14-17/can, and I did two coats on all wood surfaces.. It added up.

Final Product.

Hatch in action this weekend on a camping trip.

Tie-down points



Few final thoughts: I tapped all of the ends myself, this took a lot more time than I budgeted. I also goofed on the vertical support measurements by about 3/8" so I had to re-tap all of the vertical pieces.. Pain.. I also wanted the wood panel pieces to be flush with the top extrusion pieces, but the only Okoume the local shop (New Orleans) had was 1/2" plus I wanted rubber mat on top.. Had to take a few things into consideration there. Wound up using contact cement (thanks, @Knute !) and it worked pretty well. Toughest part about that was that the holes for the panel retainers had to be exact, and it was more difficult to punch the holes and line up rubber to plywood than to simply adhere rubber to wood, and find the countersunk holes later. So I wound up using a hole punch to punch out the countersink holes for the panel retainer bolts AFTER gluing them down. I made a few mistakes here, but I won't go into detail on that unless asked.

Probably the other biggest PITA was I decided to use Dado joining for the drawers themselves, only problem is I've never done them before.. Ouch! Learned a lot along the way though!

Also shoutout to @mpatrick for a few pointers and ideas! I think all-in I was about $1800 for materials. Maybe $2000 with some tool purchases. I don't really count those though because they'll get used for other projects down the road. A similar box from Goose Gear would be upwards of $4500, and way more heavy since they necessitate a bottom plate of plywood, whereas I have the aluminum frame attaching to the seat track I installed.

Time was in the hundreds of hours, because I'm not really good at cutting aluminum, or wood, and I was basically working out of a 1/2 of a small garage in rainy southern Louisiana. Next big purchase will be a tablesaw. That would have made this a bit faster and easier.

Overall I'm quite pleased with the way it turned out. Mistakes were made, but I still got almost exactly what I wanted, for a little under half the price that some vendors charge (understandably.)

Next up: sort out some sexier drawer organization.. Lookin' at you, TrekPak
