Comprehensive engine bay diagram

Where can I find a comprehensive diagram for everything under the hood? Hopefully something 3D with the ability to zoom in and see more details? Google results were really crappy, I thought.



what are you trying to accomplish? PM me if you want the wiring diagrams for 2012+ trucks and full FSM for 05+



1. Knowing what everything is under the hood when looking at it
2. Knowing where to locate a component when someone talks about it.

Thanks



this could be very helpful



the FSM's are pretty darn good



I was looking around the other day and did see something on autozone or advance auto website that had a very detailed diagram but now I can't find the thing.



Not comprehensive, but lets you take a cross-sectional look at a 1GR-FE



bump



Here's some hyperlinks some PDF's of the 2006 Tacoma (should be applicable for all 2nd gens) provided by Toyota. Hope this helps. If you find anything in your engine bay or anywhere else not covered by the manual, PM me and I'd be happy to help identify what it is and it's function for you.

Section 1.1: Operation of instruments and controls
Section 7.1: Do-it-yourself maintenance -Introduction
Section 7.2: Do-it-yourself maintenance - Engine and Chassis
Section 7.3: Do-it-yourself maintenance - Electrical components
Section 8: Specifications
Where I obtained the PDF's

It's not a 3D diagram, but it's what I could give you. Hope you find what you're looking for



@TacoMan33 thanks for these. Can you repost 7.3 section with the electrical components. It's not working for me.



Electrical section has diagrams of "Brown Fuses"



If you want the repair and electrical manual - click on the URL:

http://web.archive.org/web/20080731033603/http://www.ncttora.com/fsm/

Make take a bit for the screen to fill in. Once that happens - scroll to the desired vehicle. Select DOWNLOADABLE version. Save to your hard drive.

Many of the ONLINE versions are broken.



Sorry for the late response. been busy, but here's the link to section 7.3:
http://www.toyota.com/t3Portal/document/om/OM35858U/pdf/06omsour/2006/06tacoma/73.pdf

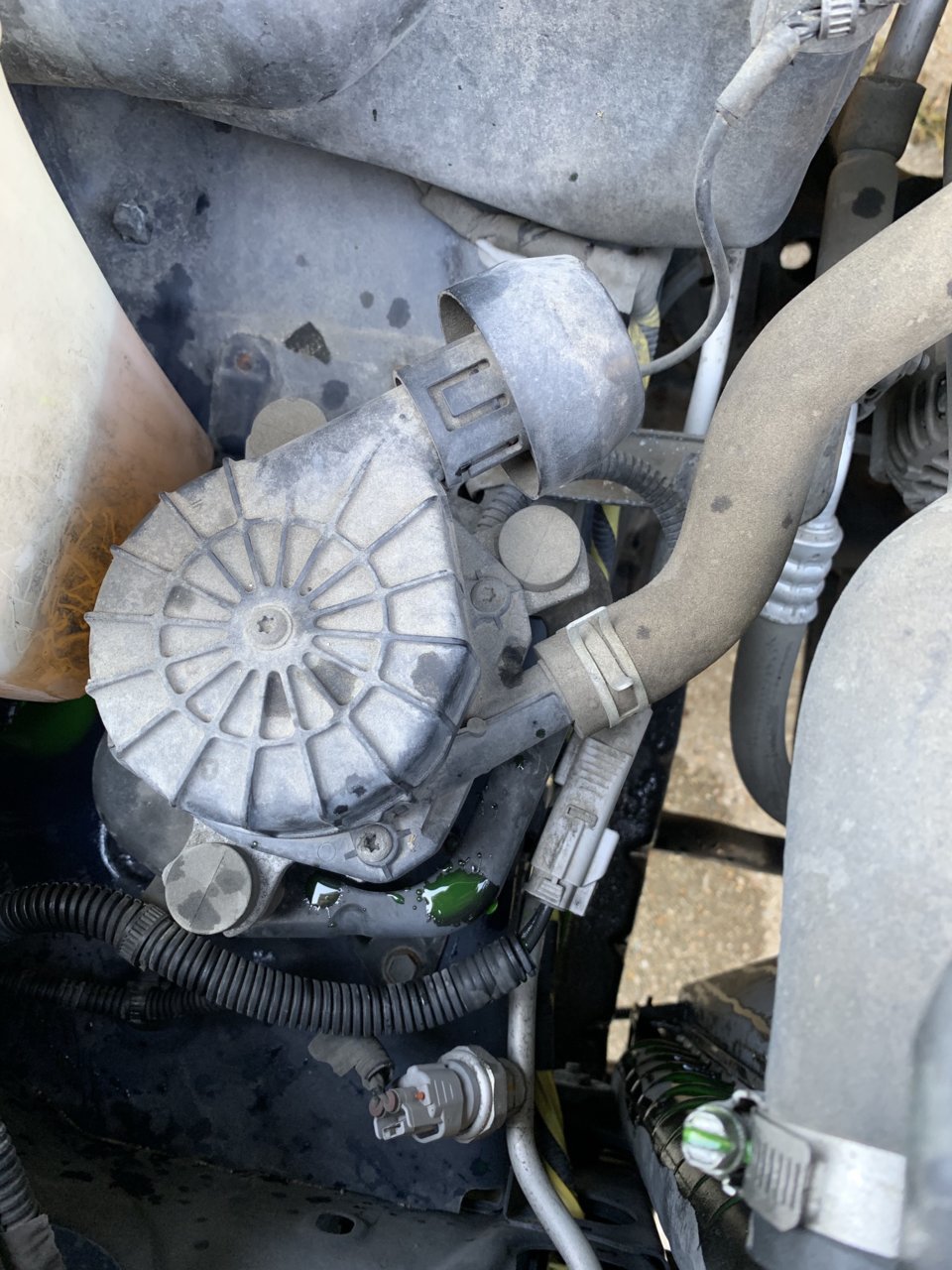

I’m looking to find out what a part is under the hood. any help would be appreciated



If you asking what that part is, it’s the secondary air injection pump.



https://www.youtube.com/watch?v=Lh1c93zych4



If you are trying to identify a part on your truck you could simply use the "Google" app on your phone.. they have something called Google lens on the app and you can point it at an object under the hood or of a photo you have taken and it should give you results that will allow you to pinpoint/identify what you are looking at.
