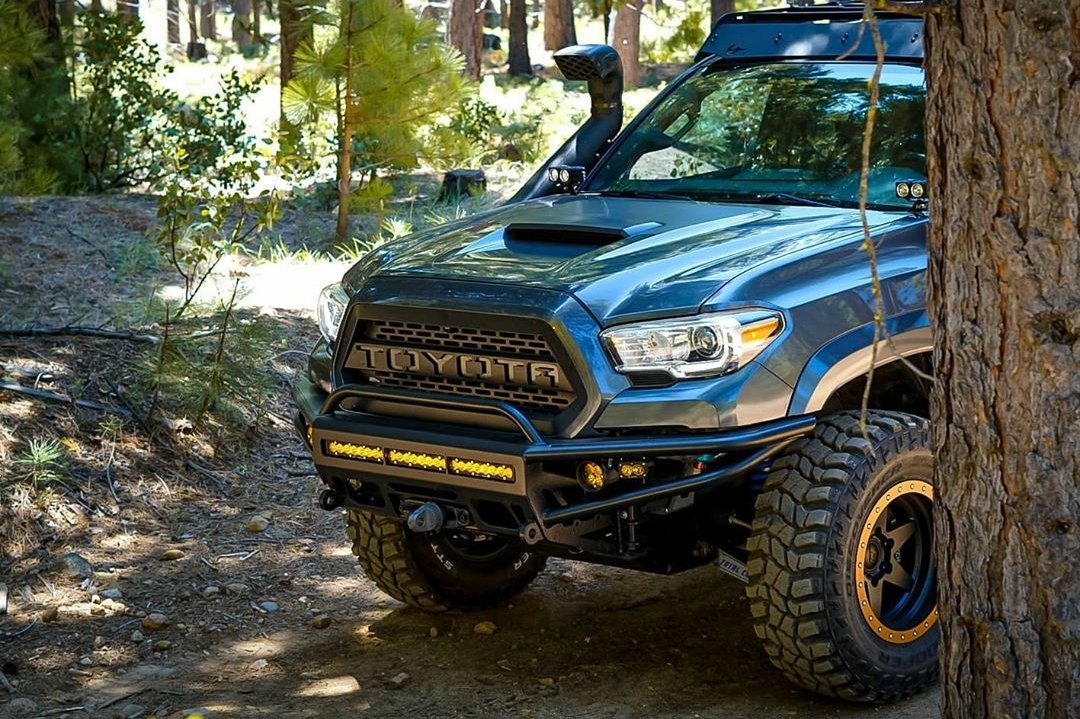

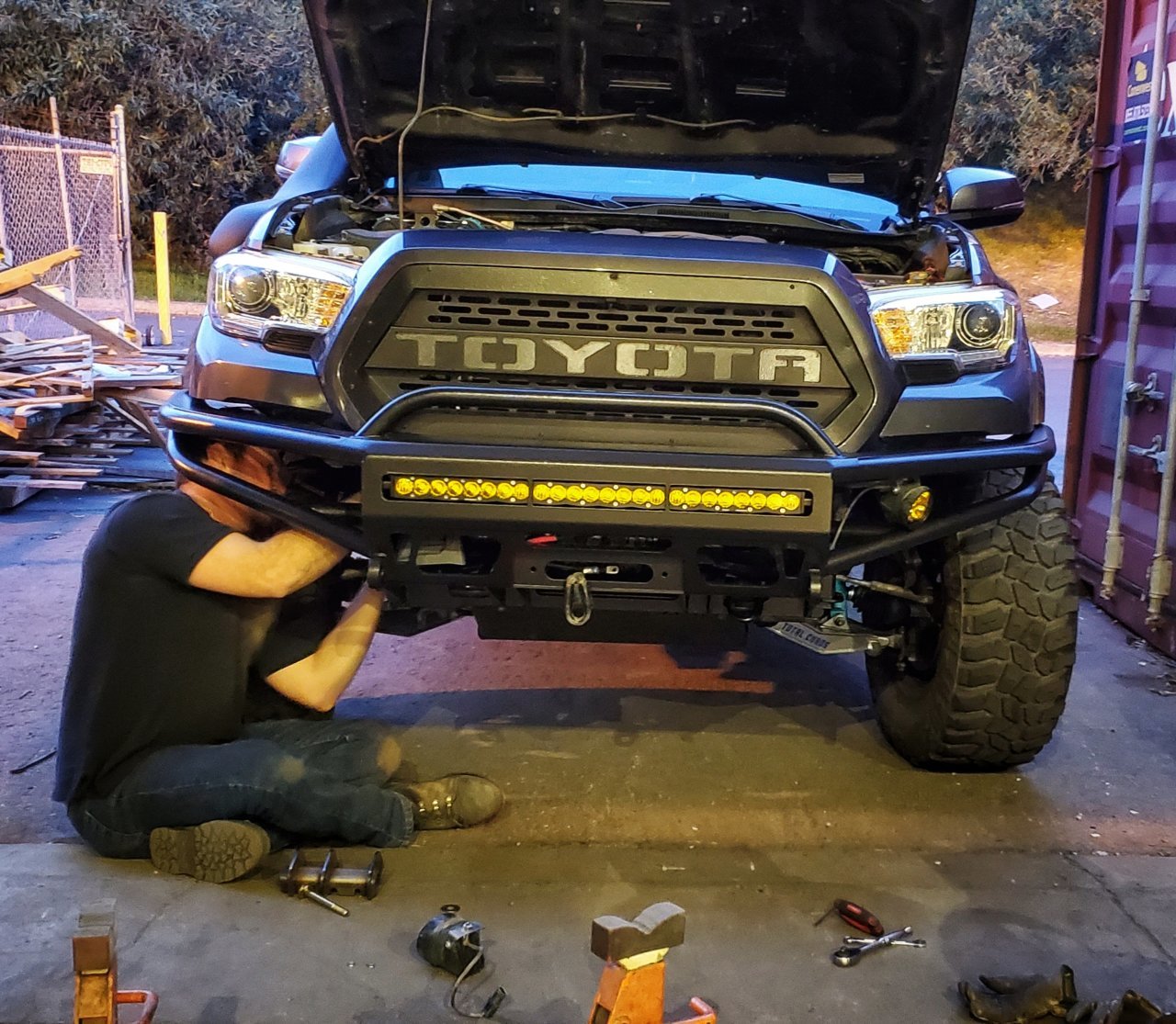

BAMF 3rd gen Hybrid bumper

With Hybrid bumpers being all the craze these days just about every company offers one, We felt it could be done better, stronger and cost you less all at the same time. We took the solid cradle design of our Alumisteel bumper modified it slightly with 1.75"x.120 wall DOM wings. I'm confidant to say this is one of the strongest Hybrid bumpers on the market. The winch cradle is constructed from .250" HRPO A36 steel Gusseted and keyed together for Superior rigidity this cradle is pure beef. It's clamped to the frame with our reinforcement brackets Locked down with six 1/2" grade 8 bolts. Coming in at just over 100lbs all in and rock solid at a price that that won't make you cry. Even with the extreamly low price we do not cut corners.


The wing tips and all the exposed welds on the skin are blended and palm sanded after welding for a seamless finish. The wing caps are .117" (11 gauge) HRPO welded from the under side hiding the welds and leaving you with a extreamly clean capped tube.


Fog light mounts are rock solid yet still light being 11 gauge, They are formed on the ends with copes to fit the tubes and the cap for a solid attachment point wrapping the tube these light mounts won't shake, They can accept 3 cube lights. two slots for 3" cubes and a .250" hole for small cornering lights.


The lower portion of the cradle has locations for removable bash plates they are add on items that can be added or swapped out as you destroy them. Offered in steel and aluminum two small pieces on each side or a full plate that covers the full span.


https://www.bayareametalfab.com/2016-plus-Hybrid-front-bumper_p_157.html
All bumpers come standard with:

_.188" Steel Welded Reinforcement Brackets for worry free winching.
_ 3/4" thick D-ring mounts.
_ 30" Single Row LED light bar and triple fog light mounts on the wings

100% made in the USA


Optional ad on items

_lower bash plates ( Bolt to the lower section on the bumper, They replaceable as they are the main part of the bumper that will contact the ground)

_Hoops( low center hoop or full height hoop with side gusset tubes)










High center hoop.



in there like swimwear......



In like 53 seconds lol.



you know i've been watching for this Jerry, you'll see my order almost as fast as I responded to this thread



Oh I know it! tomorrow you will be able to add them to the cart and order. The site has been getting a ton of traffic for the Hybrid this morning I'm sure people are waiting with their finger on the trigger.



I love this. Can’t wait. Does it come
With the reinforcement brackets? Or will I need to add those?



B E A utiful

Nice work!



All of our bumpers come with them.



Wow perfect tax return can’t get here fast enough.



I knew you would be watching your good to go Drew



That's a good looking bumper



#AB-9855



First!



Cool. Gettin one of these in the future!



https://www.youtube.com/watch?v=tna3B5zqHdk



Looks great!



Im in, lead time of 4-6 weeks works prefect to. Just wish i could find a comparison pic between the two center hoop options...Low and Full height.



We will have more pics of the tall hoop option as they get built, so far 99% of the orders are low hoops so until we build the full height orders we won't have installed pics of those. Also that lead time won't stay like that for long the order numbers are climbing every day. I say if your wanting it quick get the order in now while the lead time is lower it's most likely going to be 8 to 12 weeks once the spring rush happens. We only cut the first 40 bumpers in this run so that's the limit of the 4 to 6 week mark.



Ok, let me be the next full hoop! Placing order now
