Anyone Have a Detailed Pinout For A Non-JBL 2023 HU?

Discussion in 'Audio & Video' started by jboudreaux1965, Feb 20, 2024.

Post Reply

Feb 20, 2024 at 5:07 PM

#1

#1
jboudreaux1965 [OP] Ragin Cajun Fan

Joined:

Jun 2, 2014

Member:

#131162

Messages:

3,805

Gender:

Male

First Name:

Joseph

Hub City

Vehicle:

2023 TRD Sport

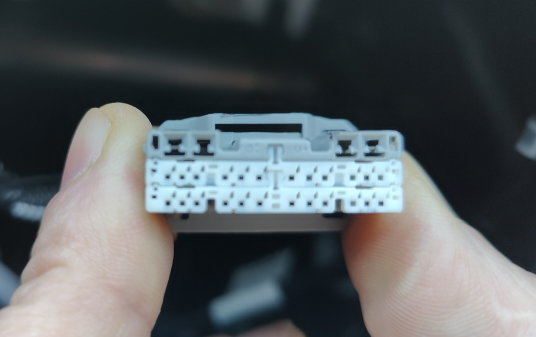

I'm trying to install an Eclipse Fujitsu Ten AVN726e HU. It has an input and the wires specifically for the backup camera and it was Toyota steering wheel control wires. I have pigtails that plug into the OEM wiring harnesses. I just need to know which OEM wires are for the backup camera and the steering wheel controls?

Also, which plug is for XM, which plug is for GPS and any additional info anyone can provide.

Much thanks in advance!

jboudreaux1965, Feb 20, 2024
