Adding additional reverse lights to backup light circuit

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Kurt_203, Apr 7, 2022.

  1. Apr 7, 2022 at 12:57 PM
    #1
    Kurt_203

    #1
    Kurt_203 [OP] New Member

    Joined:
    Apr 7, 2022
    Member:
    #394462
    Messages:
    4
    Gender:
    Male
    First Name:
    Kurt
    Vehicle:
    2022 Black Tacoma SR SX-package 4x4 ACLB 4cyl
    What I’m looking to do is add 2 LED flood lights under my rear bumper and have them come on when the truck is in reverse. I do not want to splice into the the existing wiring or add a circuit. I would prefer a plug and play approach. I will be changing the reverse light bulbs in the taillights to LED and want to power the newly added flood lights off the backup light circuit. The flood lights I purchase will be between 10-18 watts, I don’t believe I will have to worry about drawing too much current on the existing circuit. If anyone knows the connector to the tail light and connector to the vehicle wiring harness I would be fine to make 1 on my own except I haven’t had any luck with part numbers. Or where I could purchase an already made harness accomplishing what I want.

    Kurt_203, Apr 7, 2022
    #1
  2. Apr 7, 2022 at 1:07 PM
    #2
    Tacospike

    #2
    Tacospike Semi-Unknown Custodial Member

    Joined:
    Nov 19, 2018
    Member:
    #273198
    Messages:
    14,420
    Gender:
    Male
    512
    Vehicle:
    16 Tacoma TRD Sport DCSB / 17 Tundra 5.7L 4X4 CM
    Two Trucks

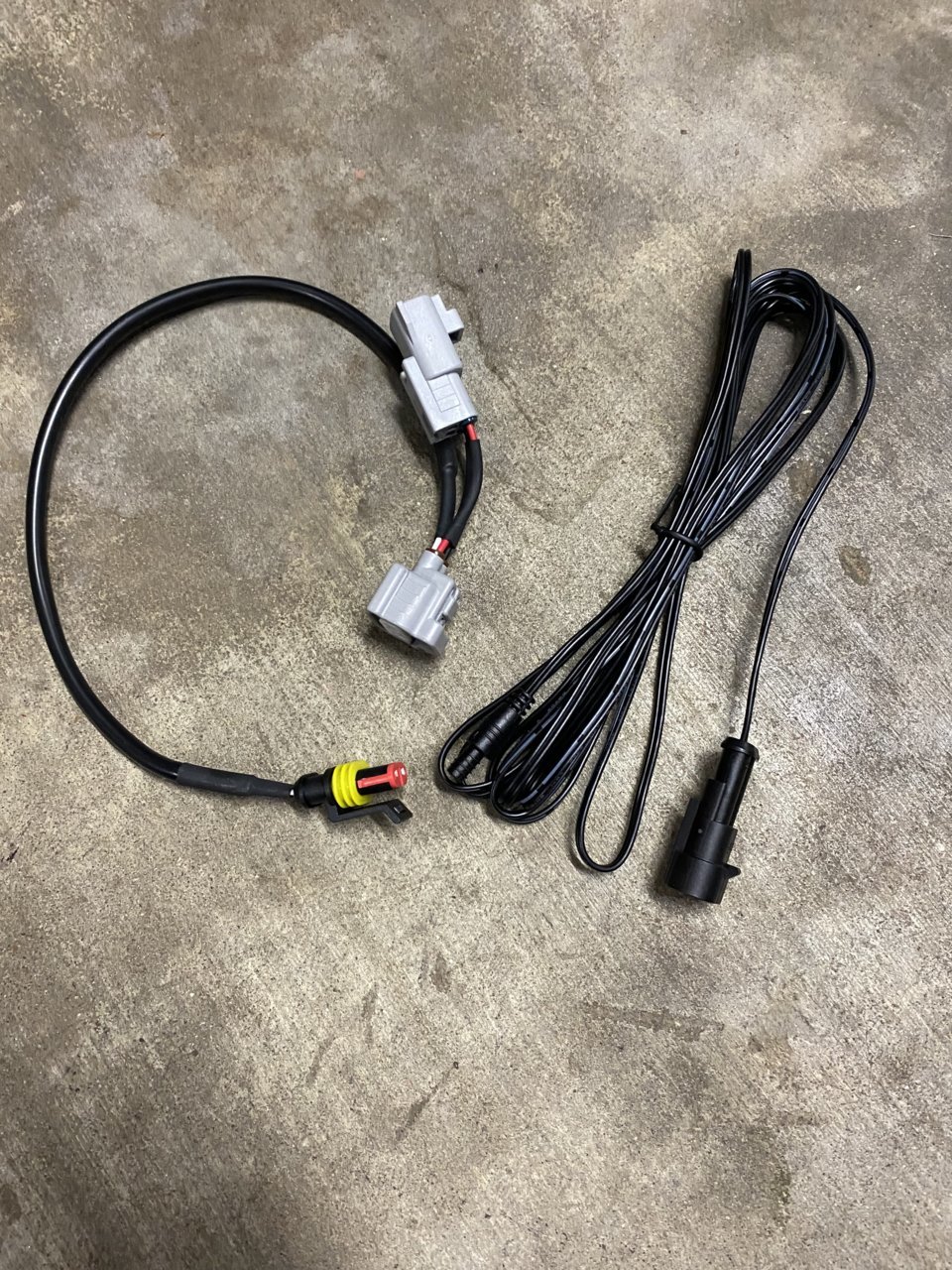

    I have plug and play harness for my Tacoma and tundra. One for a BDS1 and one for a VLED reverse bar, actually another one for a VLED brake bar


    adding @daveeasa / @Puppypunter that could possible assist in connector pn’s and or make you a harness. They would need to know the lights you plan to use and or the connector it uses

    Tacospike, Apr 7, 2022
    #2
    RustyGreen, Kurt_203[OP] and musicisevil like this.
  3. Apr 7, 2022 at 1:12 PM
    #3
    daveeasa

    #3
    daveeasa FBC Harness Solutions

    Joined:
    May 14, 2020
    Member:
    #328079
    Messages:
    7,445
    Gender:
    Male
    First Name:
    David
    PNW
    Vehicle:
    2016 Tacoma OR DCSB 6MT, 2005 RC 5MT PreRunner, 2002 Tundra SR5 RCLB 4x4
    DIY DIR thread has the connector specs. I have a ton of them. Closest product right now is the BD S1 hitchpod harness at hotshotoffroad. We can also do custom something if we know the connector to the light and the lengths. For dual lights I might go one T harness per side to avoid the need to daisy chain. I assume it’d be symmetrical.

    daveeasa, Apr 7, 2022
    #3
    RustyGreen, Kurt_203[OP], Tacospike and 1 other person like this.
  4. Apr 7, 2022 at 1:14 PM
    #4
    kmorgan3

    #4
    kmorgan3 Redside Electric, LLC | VLEDS

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    1,952
    Gender:
    Male
    First Name:
    Kyle
    PNW
    Vehicle:
    2020 4Runner SR5 Premium | RAM 1500
    https://www.vleds.com/replacement-parts/lp-series-parts/2pin-waterproof-plug-2016-up-tacoma-reverse-breakout-harness.html

    Cut the 2-pin off.

    kmorgan3, Apr 7, 2022
    #4
    Kurt_203[QUOTED][OP], Tacospike and daveeasa like this.
  5. Apr 7, 2022 at 1:48 PM
    #5
    Kurt_203

    #5
    Kurt_203 [OP] New Member

    Joined:
    Apr 7, 2022
    Member:
    #394462
    Messages:
    4
    Gender:
    Male
    First Name:
    Kurt
    Vehicle:
    2022 Black Tacoma SR SX-package 4x4 ACLB 4cyl
    Thank you all for the fast responses. I will go with 1 of the recommended harnesses and cut off the auxiliary light connectors. From that point I can solder my flood light connections, heat shrink, and wrap with wire loom

    Kurt_203, Apr 7, 2022
    #5
  6. Apr 7, 2022 at 1:55 PM
    #6
    Mister Grey

    #6
    Mister Grey The Viking of disapproval looks in your direction

    Joined:
    Jul 23, 2018
    Member:
    #260312
    Messages:
    1,744
    Gender:
    Male
    Hayward Ca
    Vehicle:
    2017 Tacoma DCLB Sport 4x4
    The Works.
    Any interest in getting an aftermarket rear bumper that already has cut outs for large lights?

    Mister Grey, Apr 7, 2022
    #6
  7. Apr 7, 2022 at 1:56 PM
    #7
    j45p3r

    #7
    j45p3r Well-Known Member

    Joined:
    Jun 25, 2016
    Member:
    #190515
    Messages:
    225
    Gender:
    Male
    First Name:
    Jason
    Downeast Maine
    Vehicle:
    2022 MBM TRD Pro 6MT
    j45p3r, Apr 7, 2022
    #7
    soundman98 and Kurt_203[OP] like this.
  8. Apr 7, 2022 at 5:37 PM
    #8
    Kurt_203

    #8
    Kurt_203 [OP] New Member

    Joined:
    Apr 7, 2022
    Member:
    #394462
    Messages:
    4
    Gender:
    Male
    First Name:
    Kurt
    Vehicle:
    2022 Black Tacoma SR SX-package 4x4 ACLB 4cyl
    Sounds nice but no thank you

    Kurt_203, Apr 7, 2022
    #8
