3rd gen Access Cab LIFTS!

Searched and searched but could not seem to find a dedicated thread to lifted 3rd gen Access Cabs. Plus I didn’t feel like going through 1000+ different threads!

It seems like the double cabs hog all the attention but we all know the access cabs look way more handsome.

Let’s see your lifted ACs! Please share lift/tire/wheel specs! Looking for inspiration & education



This morning in New hampsha !



My old 2016 I traded in on a double cab.
I prefer the access cab but needed more backseat room for the pups.

5100 setup with 888 coils, Medium Dakar Packs and SPC UCA’s. 285/70r17.
I hated the way it rode and wanted a fresh start with my current truck which I’m very happy with how the build turned out.



awesome setup! Any rubbing with the 285s? Regear? Also loving the decal on your hood! Tuff looking rig.

thanks for sharing



5100s, 887s, Icon AAL, T4R wheels with 255/75/17






Another one,

Winter setup is 265/75/16



Sick setup! What’s the offset on those wheels? Any rubbing with the 265/75/16 tires? Planning on getting that size. Thanks!

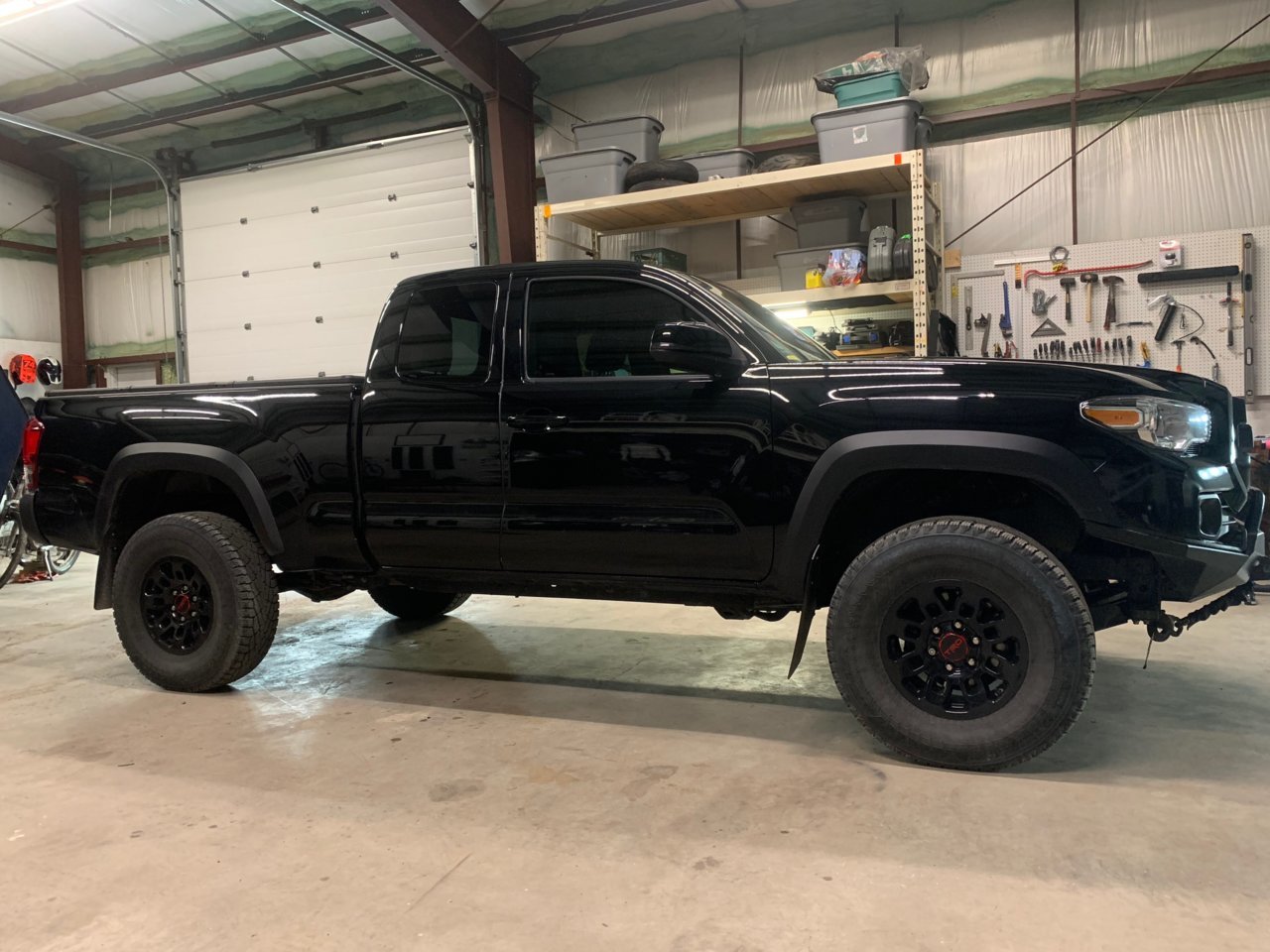

Just put a lift on mine, new tires are next, once the stockers are dead.

Bilstein 6112/5160, JBA UCA's, Icon RXT leaf pack



Update! Looks so different now but it’s still the same lift.



Both sets of wheels are just OEM Toyota wheels, not sure of the offsets. Also running Spidertrax 1.25 wheel spacers. I’ve never noticed on rubbing with the 265s, but it’s the wife’s ride. I don’t drive it much.

This is my ride of choice.



nice stance! How much lift did the 6112s give you up front?



I wanna see everyone’s stuff that’ll just wind up making me spend money I don’t have



I can I see more pics with those runner wheels



I used KING 2.5’s all around. ICON RXT leafs in the rear. 265 70 17 BFG KO2’s.



About 2.75” in the front, and about 2.5” in the rear.
-Fox 2.5 extended travel coilovers w/ adjusters
-SPC UCAs
-Fox 2.0 rear shocks
-Dakar leaf pack


Have the TRD pro 4Runner wheels like many others. 265/75/17 BFG KO2s.



2016 TRD OR Eibach Pro Lift with 265 75 16 Cooper STT PROS on Method NVs 2.5 up front set on second notch due to ordering a full bumper. rear 1.5 add overleft in.



Epic! What’s the offset on those methods?



Nice ride! What kind of headlights are those? Looks great



Dobinson's full lift kit. Method 312 17 x 8.5 0 offset, 265/70/17 Cooper Evolution MT. Washed yesterday.



Sure. Here’s a thread full of them.

https://www.tacomaworld.com/threads...ail-wheels-on-there-3rd-gen-post-pics.478131/



Kustom 54 Lighting’s AB6 retrofits. Would highly recommend if you’re budget is interested.
https://kustom54lighting.com/16-20-Toyota-Tacoma-AB6-Retrofit_p_397.html

https://www.tacomaworld.com/threads/ab6-retrofit-headlights.642711/



Bilstein 6112 set to 5/6 with 650lb coil
RCD/Bilstein 5100 Extended Rear Shocks
Medium Duty Dakars.
JBA Std High Caster Upper A-arms
Bay area metal fabrication shackle hanger with replacement shackles
LT 315/70 R17 Falken Wildpeak MT
Fn wheels Konig countersteer type x 17x8 -10 offset
