2023 trailer brake connector?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Beaver77, Jun 21, 2023.

  1. Jun 21, 2023 at 5:17 PM
    #1
    Beaver77

    #1
    Beaver77 [OP] New Member

    Joined:
    Jun 21, 2023
    Member:
    #427323
    Messages:
    2
    Gender:
    Male
    Hello so I have a 2023 Trd off road double cab long bed….I have a brake controller from my previous Tacoma I want to use….I ordered the harness that is supposed to fit but the plug is different from the one in the truck? Anybody else run into this? Thanks (see pics)


    Beaver77, Jun 21, 2023
    #1
  2. Jun 21, 2023 at 5:34 PM
    #2
    rblalliance

    #2
    rblalliance let the wookie win

    Joined:
    Apr 24, 2017
    Member:
    #217208
    Messages:
    2,687
    Gender:
    Male
    Vehicle:
    08 TRD OR DCSB 4X4
    That’s not the plug for the controller. The plug for the brake controller is by the kick panel on the driver’s side. You have to do a little digging to find it but it’s there somewhere.

    rblalliance, Jun 21, 2023
    #2
    RicerRabbit and Clinch Mountain Preacher like this.
  3. Jun 21, 2023 at 5:37 PM
    #3
    Beaver77

    #3
    Beaver77 [OP] New Member

    Joined:
    Jun 21, 2023
    Member:
    #427323
    Messages:
    2
    Gender:
    Male
    Ha! Nice….so that plug I had is what? Maybe to plug a diagnostic computer into? It was in a little metal bracket on the lower left side just under the lower plastic trim…thanks

    Beaver77, Jun 21, 2023
    #3
    Taco_mike73 and rblalliance like this.
  4. Jun 21, 2023 at 5:48 PM
    #4
    rblalliance

    #4
    rblalliance let the wookie win

    Joined:
    Apr 24, 2017
    Member:
    #217208
    Messages:
    2,687
    Gender:
    Male
    Vehicle:
    08 TRD OR DCSB 4X4
    Yes, pretty sure it’s for the diagnostics computer. Glad you found the pigtail for the beak controller :thumbsup:

    rblalliance, Jun 21, 2023
    #4
  5. Jun 21, 2023 at 6:17 PM
    #5
    landaemon

    #5
    landaemon Well-Known Member

    Joined:
    Jan 13, 2023
    Member:
    #415327
    Messages:
    66
    Gender:
    Male
    First Name:
    Dan
    Central PA
    Vehicle:
    2023 TRD OR DCLB
    So @Beaver77, were you able to find the plug under the dash that the brake controller pigtail plugs into? I'm in a similar boat to you in that I brought my brake controller from my 2011 Tacoma to my 2023 and ordered the

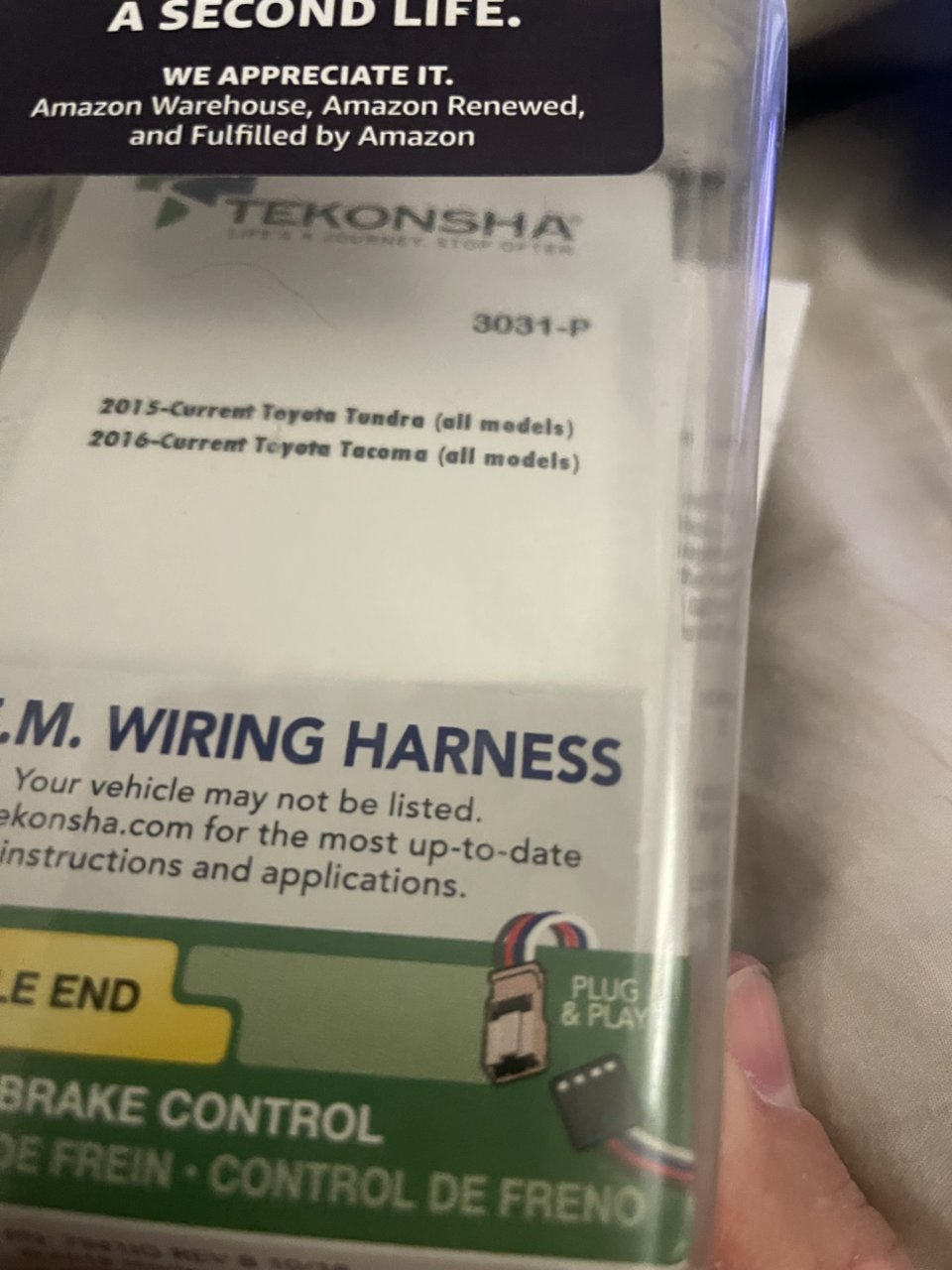

    $15 3031P Tekonsha Trailer Brake Controller Harness, Compatible with Select Toyota Tacoma, Tundra
    3031P pigtail, but I haven't yet installed it. I remember the connector I needed in the 2011 was a lot higher up under the dash that I expected...I really had to dig for it. Wondering if the 2023 is the similar.

    landaemon, Jun 21, 2023
    #5
  6. Jun 21, 2023 at 7:03 PM
    #6
    TXnativeson

    #6
    TXnativeson Mmmmm tacos

    Joined:
    Nov 12, 2015
    Member:
    #169431
    Messages:
    198
    Gender:
    Male
    Alabama
    Vehicle:
    2019 TRD Sport DCSB 4X4 MGM
    @Beaver77 The connector you want is behind the kick plate on the driver side. There is a YouTube video by redarc electronics that shows how to take the kick plate off and where the connector is located.
    https://youtu.be/aKsQQK-oqjc

    TXnativeson, Jun 21, 2023
    #6
  7. Jun 22, 2023 at 4:07 AM
    #7
    landaemon

    #7
    landaemon Well-Known Member

    Joined:
    Jan 13, 2023
    Member:
    #415327
    Messages:
    66
    Gender:
    Male
    First Name:
    Dan
    Central PA
    Vehicle:
    2023 TRD OR DCLB
    Thanks for sharing that video! And for introducing me to the Tow-Pro...very clean install and now I'm wondering if I want to maybe sell the Tekonsha to swap to the Tow-Pro...

    landaemon, Jun 22, 2023
    #7
    Taco_mike73, TXnativeson[QUOTED] and 33yrsoftoys like this.
  8. Jun 22, 2023 at 4:49 AM
    #8
    33yrsoftoys

    #8
    33yrsoftoys Over 40yrs now

    Joined:
    Dec 31, 2013
    Member:
    #119566
    Messages:
    856
    Gender:
    Male
    First Name:
    joel
    mid Michigan
    Vehicle:
    2021 dcsb off road 6 speed manual
    Bilstein 6112's 5th clip 1/4" spacer driver's side. Icon tubular UCA's with Delta joint, wheelers superbumps, ECGS bushing. Allpro standard leaf packs, 5160's, U bolt flip kit with wheelers super bump's, extended stainless steel brake lines, carrier bearing drop. Icon rebounds 17" with Nitto terra grappler G2's 285/70/17's.
    I installed the red-arc on my Tacoma around 8mo ago. It working perfectly and the only sign of it being there is the little dial in one of the blank spots in PXL_20221004_151603966.jpg my lower dash.


    Last edited: Jun 22, 2023
    33yrsoftoys, Jun 22, 2023
    #8
    landaemon[QUOTED] likes this.
  9. Jun 22, 2023 at 5:03 AM
    #9
    Dbarffish

    #9
    Dbarffish Well-Known Member

    Joined:
    Jan 30, 2019
    Member:
    #281279
    Messages:
    697
    Gender:
    Male
    First Name:
    Doug
    Montana
    Vehicle:
    2024 dcsb TRDOR blue crush
    Stock
    The tow pro works great and looks stock when you use the little plastic switch knockout piece.

    Dbarffish, Jun 22, 2023
    #9
    faawrenchbndr and 33yrsoftoys like this.
  10. Jun 22, 2023 at 5:47 AM
    #10
    StarryEyed416

    #10
    StarryEyed416 Member

    Joined:
    Feb 23, 2013
    Member:
    #98246
    Messages:
    17
    Gender:
    Female
    NY - Not the city
    I can also recommend the TowPro. Install was super easy and it's worked perfectly. I liked that I could just use a button blank for the control knob too. You barely know it's there.

    StarryEyed416, Jun 22, 2023
    #10
    33yrsoftoys and landaemon like this.
  11. Jun 22, 2023 at 5:48 AM
    #11
    landaemon

    #11
    landaemon Well-Known Member

    Joined:
    Jan 13, 2023
    Member:
    #415327
    Messages:
    66
    Gender:
    Male
    First Name:
    Dan
    Central PA
    Vehicle:
    2023 TRD OR DCLB
    So much better than the little bracket with the Tekonsha that I will need to find a place to mount. On my 2011, I simply attached it to the dash near the driver's knee...and then would routinely, somehow, kick it while exiting the truck. Decisions, decisions...

    landaemon, Jun 22, 2023
    #11
  12. Jun 22, 2023 at 6:49 AM
    #12
    33yrsoftoys

    #12
    33yrsoftoys Over 40yrs now

    Joined:
    Dec 31, 2013
    Member:
    #119566
    Messages:
    856
    Gender:
    Male
    First Name:
    joel
    mid Michigan
    Vehicle:
    2021 dcsb off road 6 speed manual
    Bilstein 6112's 5th clip 1/4" spacer driver's side. Icon tubular UCA's with Delta joint, wheelers superbumps, ECGS bushing. Allpro standard leaf packs, 5160's, U bolt flip kit with wheelers super bump's, extended stainless steel brake lines, carrier bearing drop. Icon rebounds 17" with Nitto terra grappler G2's 285/70/17's.
    With the truck hooked up to the camper the redarc has a little blue light that lights up at the top of the dial showing you that everything's hooked up right. When you apply the brakes it lights up red to show you that the trailer brakes are being applied. It's far and away the best trailer brake I've ever used.

    33yrsoftoys, Jun 22, 2023
    #12
    texbaz and landaemon like this.
  13. Jun 22, 2023 at 7:46 AM
    #13
    mic_sierra

    #13
    mic_sierra Toshiba HDDVD is the future

    Joined:
    Nov 30, 2021
    Member:
    #383480
    Messages:
    1,107
    Gender:
    Male
    Elsewhere
    Vehicle:
    '21 DCSB TRD Sport 4x4 Auto

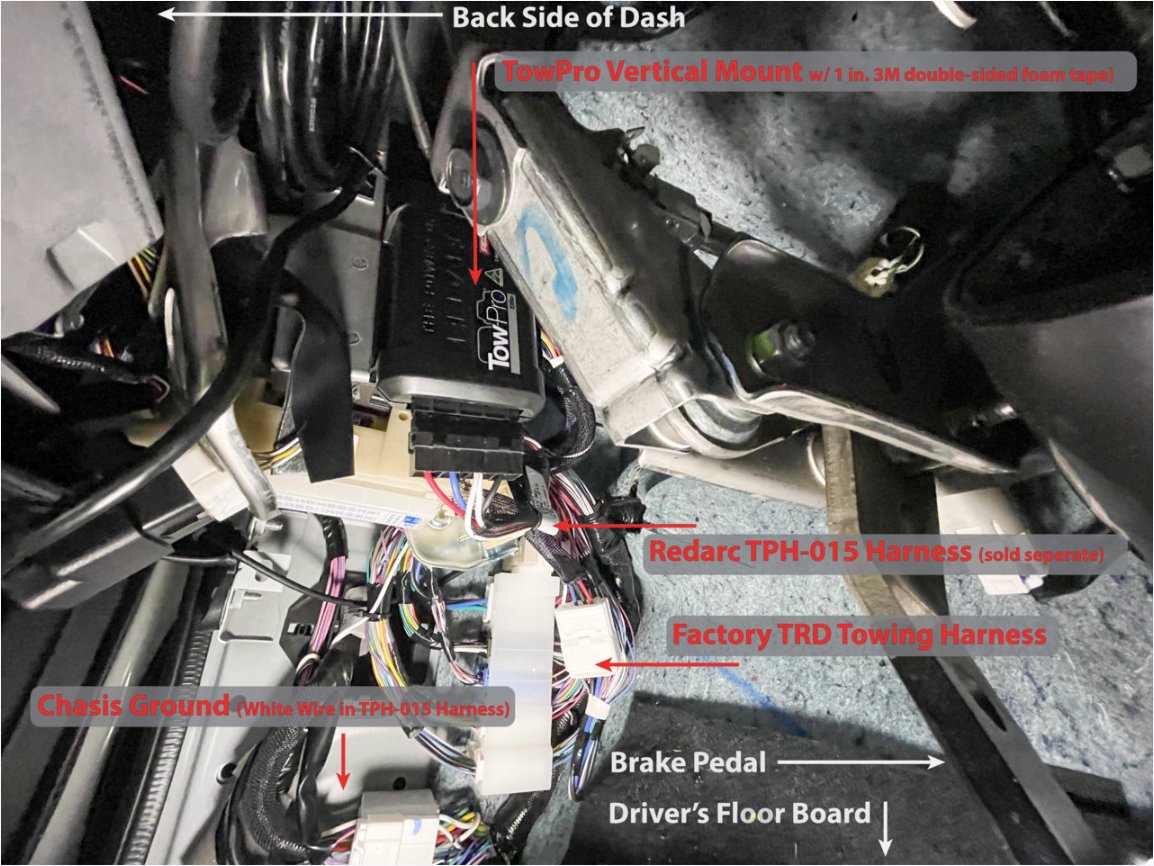

    Check out the second picture in this post (and below). For perspective, the camera is all the way down where the brake pedal is looking left at the driver's side kick panel. Check out the arrow for the Factory Towing Harness that you will plug into. I have a different controller than you so ignore the rest of the callouts in the pic... we both plug into the same TRD harness and chassis ground though.



    mic_sierra, Jun 22, 2023
    #13
  14. Jun 22, 2023 at 7:48 AM
    #14
    TXnativeson

    #14
    TXnativeson Mmmmm tacos

    Joined:
    Nov 12, 2015
    Member:
    #169431
    Messages:
    198
    Gender:
    Male
    Alabama
    Vehicle:
    2019 TRD Sport DCSB 4X4 MGM
    I have the Redarc Liberty never really used anything else so nothing to compare to. But I love that you can mount it in any orientation and that it is hidden except for the dial.

    TXnativeson, Jun 22, 2023
    #14
    faawrenchbndr and texbaz like this.
  15. Nov 3, 2023 at 12:01 PM
    #15
    mytruckfl

    #15
    mytruckfl New Member

    Joined:
    Aug 12, 2023
    Member:
    #431087
    Messages:
    1
    Gender:
    Female
    Yup The 2023 Tacoma manual says that white connector is for the computer and for the brake controller. Not happy about the incorrect manual. I'm seeing the Tow pro is the way to go. I had installed a brake controller on my 2013 Tacoma and yes it was a pain, it looks like form the posts that it is the same installaion. ( I had used a Tekonsha)

    Last edited: Nov 3, 2023
    mytruckfl, Nov 3, 2023
    #15
    mic_sierra likes this.
  16. Nov 3, 2023 at 12:17 PM
    #16
    faawrenchbndr

    #16
    faawrenchbndr Til Valhalla

    Joined:
    Jul 17, 2011
    Member:
    #60024
    Messages:
    2,591
    Gender:
    Male
    First Name:
    Greg
    Denver, Indiana
    Vehicle:
    ‘23 Sport 4x4 DCSB
    yes……you should!

    faawrenchbndr, Nov 3, 2023
    #16
  17. Nov 3, 2023 at 1:44 PM
    #17
    Taco_mike73

    #17
    Taco_mike73 Well-Known Member

    Joined:
    Nov 22, 2019
    Member:
    #311413
    Messages:
    3,161
    Gender:
    Male
    First Name:
    Mike
    York, PA
    Vehicle:
    2020 Cement SR5 DCSB 4x4
    Lomax tonneau cover, oem bed lights, AJT Design chrome delete, black out badges & tailgate letters, AVS hood deflector & vent visors, Solkie tech hood supports, interior LED lights, Tufskinz mud guards, RedArc TowPro Liberty, bed mat, kicker speaker upgrade, Hikari ultra H11 low beams, Diode Dynamics SS3 fogs in yellow, Meso customs total taillight stage 1. Coming soon: Compact powered sub install Future mods planned: bigger tires (265/75/16) BILLSTIEN 5100 lift
    I was in the same situation when I got my truck 3 years ago. I had a Tekonsha Primus IQ in my jeep Liberty CRD I was going to move over before I sold it. I could really find a spot I liked to mount it. Then I seen the Redarc tow pro Liberty here. I just bought that and let the Tekonsha go with the Jeep. Very happy with how it looks and works.

    Taco_mike73, Nov 3, 2023
    #17
  18. Apr 2, 2024 at 5:00 PM
    #18
    faawrenchbndr

    #18
    faawrenchbndr Til Valhalla

    Joined:
    Jul 17, 2011
    Member:
    #60024
    Messages:
    2,591
    Gender:
    Male
    First Name:
    Greg
    Denver, Indiana
    Vehicle:
    ‘23 Sport 4x4 DCSB
    What happened to those wires?

    faawrenchbndr, Apr 2, 2024
    #18
