2020 turn signal wiring question

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Tattooed_Hunter, Apr 25, 2022.

  1. Apr 25, 2022 at 4:52 AM
    #1
    Tattooed_Hunter

    Tattooed_Hunter [OP] New Member

    Joined:
    Oct 19, 2021
    Member:
    #379986
    Messages:
    2
    Gender:
    Male
    Pennsylvania
    Vehicle:
    2020 Red Tacoma SR
    I have a 2020 SR that I installed a custom grill. There are lights that are white DRL that can activate and flash amber when the turn signal is used. I need to find a source for both turn signals that is not hot when the parking lights are on. Does anyone have a suggestion where I can find a source for the turn signals? Any help is appreciated.

    2020 Taco.jpg

  2. Apr 25, 2022 at 5:42 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,711
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    For your white input you should use a fused ignition source. If you have the small relay box next to the main engine fuse/relay box the source is there.

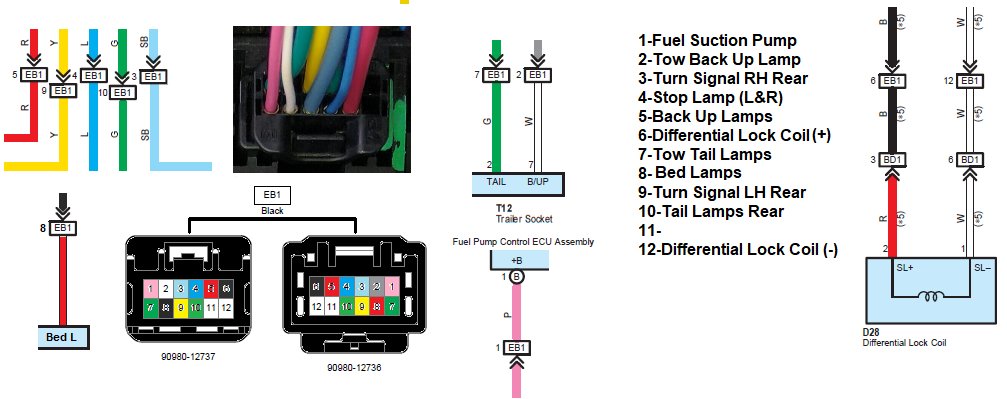

    For your turn input use the rear turn signal wires on connector EB1
    slots #3 RIGHT hand rear turn and #9 LEFT hand rear turn.
    @Puppypunter sells a T harness for EB1 so you don't cut the OEM wires.

    Last edited: Apr 26, 2022
  3. Apr 26, 2022 at 2:53 AM
    #3
    Tattooed_Hunter

    Tattooed_Hunter [OP] New Member

    Joined:
    Oct 19, 2021
    Member:
    #379986
    Messages:
    2
    Gender:
    Male
    Pennsylvania
    Vehicle:
    2020 Red Tacoma SR
    When the rain stops I will look into that. Thanks. I already have the white lights hooked up to a relay that works off a switch in the dash that is powered by a fused ignition source. Wanted to be able to turn them on and off whenever needed. I'll update after I check for the small relay box.
