Hello everyone,

I am yet again reaching out for some more advice. I am adding a tailgate light bar to my 2020 trd-offroad. The one I ordered comes with a 4 pin harness that can plug and play with my OEM set up. However, it also has a reverse light, but the wire for it is separately. I would like to just hard wire the entire thing to my towing harness.

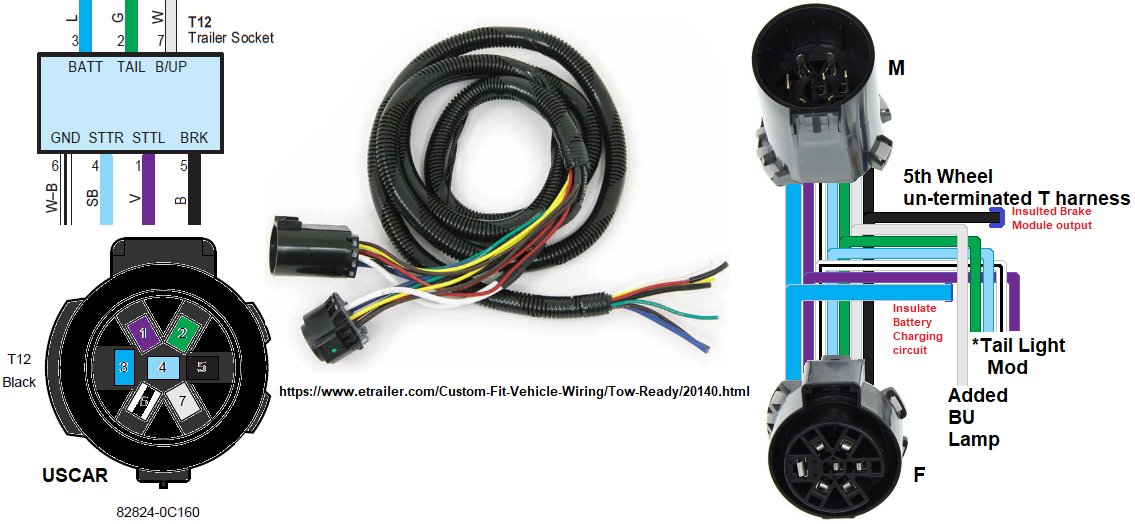

I have only been able to find two things. One is for a 2015 Tacoma so I don't want to necessarily rely on that. The other is an image that google pulled up that just says Tacoma truck diagram. Can any one confirm this photo to be correct, or shoot me link to the right diagram?

As always, I appreciate the help!!!



All 7 pin connectors are the same so you’re good!



Don't cut the OEM tow harness...
Goose neck harness has different colors, use multimeter to identify circuits.



OP, the cover on the plug at the rear of the truck has the info on it. It’s kinda hard to see but its there.



Thanks for the tips. I did find this video of a guy installing that light bar on his tundra. He also found a way to add reverse with tapping in to any factory wires. If any one else wants to put one of these on. I just had to order the 4 pin instead 5 pin adapter.

https://youtu.be/t7nnIu1GpJo



This you check this write-up?
https://www.tacomaworld.com/threads/tailgate-light-bar.644254/#post-24325599



I wish we could revisit this discussion



Follow the link : #1



There is a plight coming off the rear lighting harness on the passenger side,right side at the frame, is this the plug n play access point for the tow wiring? Any input(almost) would be helpful



Picture of your plight about would be very helpful



I'll post the piccture this evening, thanks, I'm doing this on my phone, "light" somehow got changed to "plight"



Ok, Got it all fixed up now,
