2.7 liter fuel pump relay location

Aloha folks,

Anyone know where the fuel pump relay is for the 2.7 liter 2nd Gen model?

The online manual I found and how to video on YouTube showed the fuel pump relay in a certain spot where there is no relay or metallic sockets to receive a relay. I think the information available pertains to V6 models.

I'm troubleshooting engine not starting. I have spark but no fuel. It starts when I add starter spray.

Checked the C/OPN, EFN, and Air/fuel sensor relays by replacing with functional relay borrowed from the horn relay.
No start.

I also tested those relays in the horn relay location and they all worked.

Tested IGN, EFN 1 & 2 fuses.

Once I know 100% where the fuel pump relay is I can check it.

I will replace the fuel filter and listen for the fuel pump operating when I try to start it.

OBD2 code said replace crankshaft position sensor which was done but still no start. I did test crankshaft position sensor wiring going to ECM (PCU).

I had extremely weak spark on one plug so I replaced them all and then was able to get truck to start with starter fluid... truck wouldn't start with starter fluid before the plug replacement.

Now looking for next steps to in the troubleshooting tree.

2nd gen relay and fuse map but doesn't seem to include the 2.7 liter.

https://fuse-box.info/toyota/toyota-tacoma-2005-2015-fuses-and-relay/amp

Mahalo for any help! I live far away shops and the few that are good reliable mechanics don't return phone calls since they are so busy.

Food forester

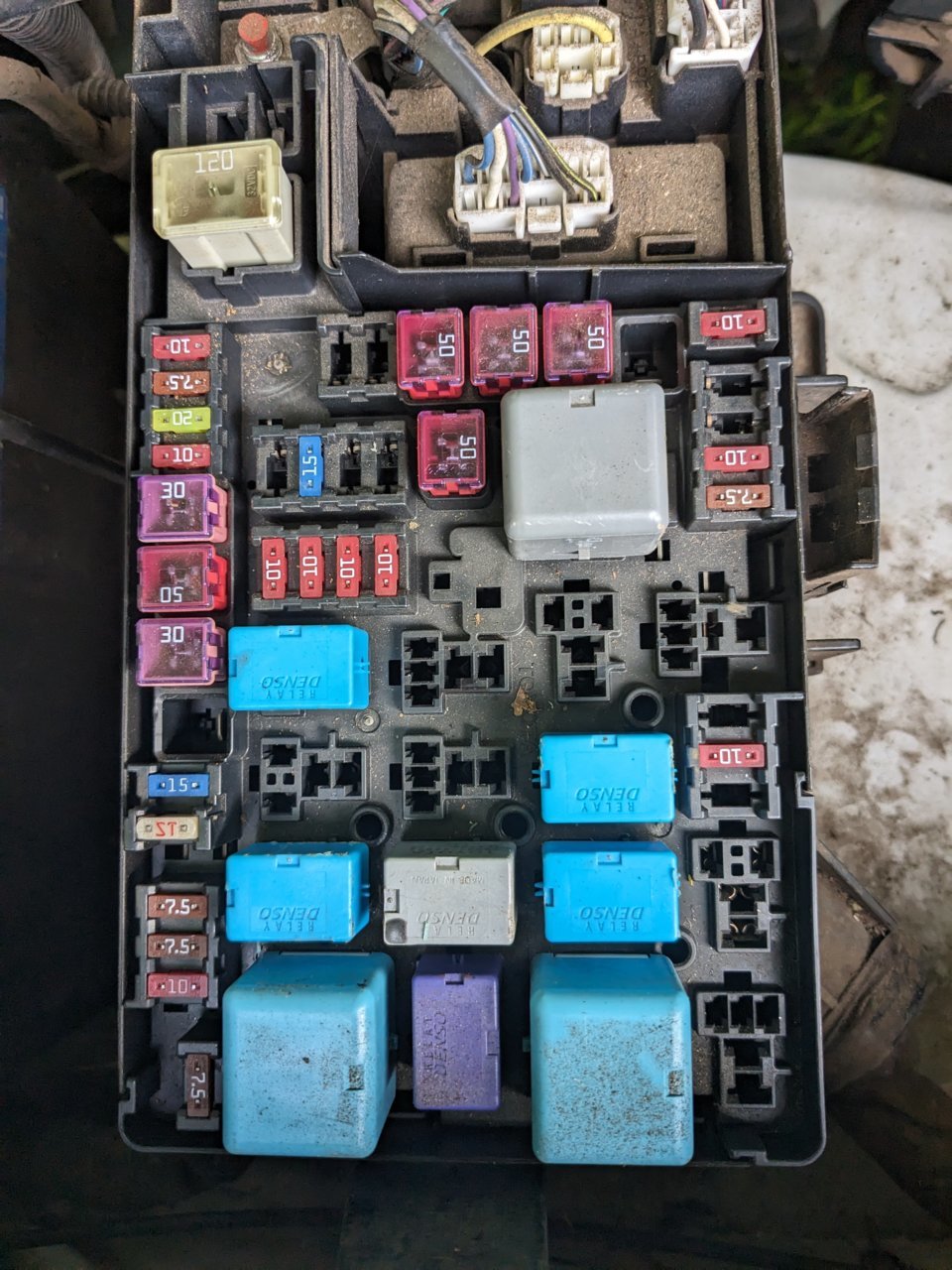

Fuel pump relay is the C/OPN Relay.
