1993 race truck/prerunner

Discussion in '1st Gen Tacomas For Sale (1995-2004)' started by TC yota, Feb 3, 2016.

Page 1 of 2
  1. Feb 3, 2016 at 1:11 PM
    #1
    TC yota

    #1
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha
    1993 pickup 4x4 chassis(2wd now)
    'Street legal' with plates

    Full 1 3/4 Dom cage front to back

    Custom Front end
    4.5" over 17" travel
    All 4130/Dom
    12" bypass and c/o valved for truck
    Custom lift spindles based off 4wd spindle
    Air bump off spindle

    Rear suspension
    4 link 2" 4130 main tube with cold rolled plating
    26" travel with 3.0 bypass 2.5 c/o and air bump
    Speedway 1 3/4" sway bar

    Speedway engineering full floater 9'
    35 spline
    2.5" snouts, .25" wall housing with full truss
    Toyota 4piston calipers and disk brakes in rear
    Strange case with spool and 6.0 gears
    Engine -
    3.4 swap that has been approved with a BAR sticker
    Supercharger with urd 7th injector and 2.1 pully
    The truck isn't smog legal at the moment because smog equip isn't Hooked up, but I have most of the stuff needed for it
    (truck will have a smog cert at time of sale)
    Misc
    32gallon Jaz fuel cell
    2yellow top optimas
    Rugged radios intercom with headsets
    Kenwood race radio
    The list goes on and on

    Not in a huge rush to sale, just exploring other options, also willing to trade for 4x4 4 door built rig

    $20,000 OBO

    Last edited: Jan 22, 2017
    TC yota, Feb 3, 2016
    #1
    ChadsPride, 06HAOLE and lembowski like this.
  2. Feb 3, 2016 at 1:12 PM
    #2
    TC yota

    #2
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha
    P

    Last edited: Feb 3, 2016
    TC yota, Feb 3, 2016
    #2
    ChadsPride, 5lugturtle, because_wumbo-truck and 2 others like this.
  3. Feb 3, 2016 at 1:14 PM
    #3
    TC yota

    #3
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha
    TC yota, Feb 3, 2016
    #3
    ChadsPride likes this.
  4. Feb 4, 2016 at 5:54 AM
    #4
    06HAOLE

    #4
    06HAOLE Well-Known Member

    Joined:
    Jan 4, 2008
    Member:
    #4102
    Messages:
    3,190
    Gender:
    Male
    Fort Worth, TX
    Vehicle:
    2019 Ford Raptor
    Wow. Do you have more pictures of truck and trailer?

    06HAOLE, Feb 4, 2016
    #4
  5. Feb 4, 2016 at 7:17 AM
    #5
    TC yota

    #5
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha
    I will try to get more up soon, Hard right now with the winter time, its dark when I leave for work and dark when I get home

    TC yota, Feb 4, 2016
    #5
  6. Feb 4, 2016 at 12:02 PM
    #6
    Clay_916

    #6
    Clay_916 Well-Known Member

    Joined:
    Jul 30, 2015
    Member:
    #160686
    Messages:
    1,501
    Gender:
    Male
    Fort Collins, CO
    Vehicle:
    2000 x-cab 4x4
    5100's, All Pro 3" Standard leafs, 32" KM 2's
    Dayum

    Clay_916, Feb 4, 2016
    #6
  7. Feb 17, 2016 at 7:08 AM
    #7
    TC yota

    #7
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha
    me vs dan.jpg

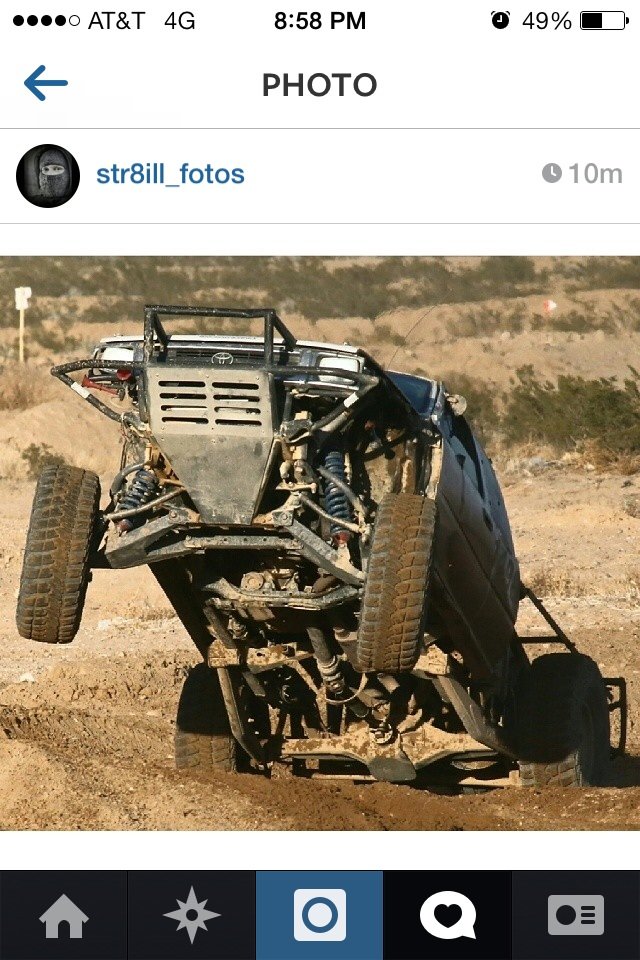

    A few years ago trying to keep up with Dan Vance

    TC yota, Feb 17, 2016
    #7
    ChadsPride likes this.
  8. Feb 17, 2016 at 7:09 AM
    #8
    TC yota

    #8
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha

    TC yota, Feb 17, 2016
    #8
    ChadsPride likes this.
  9. Feb 17, 2016 at 7:13 AM
    #9
    TC yota

    #9
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha

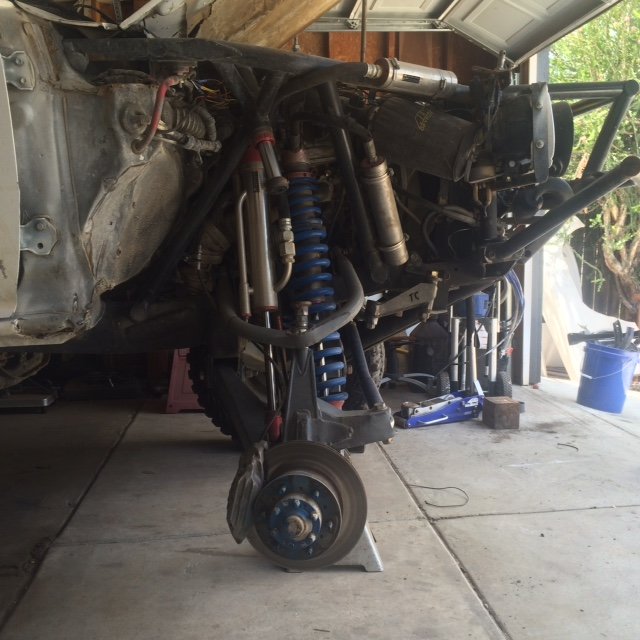

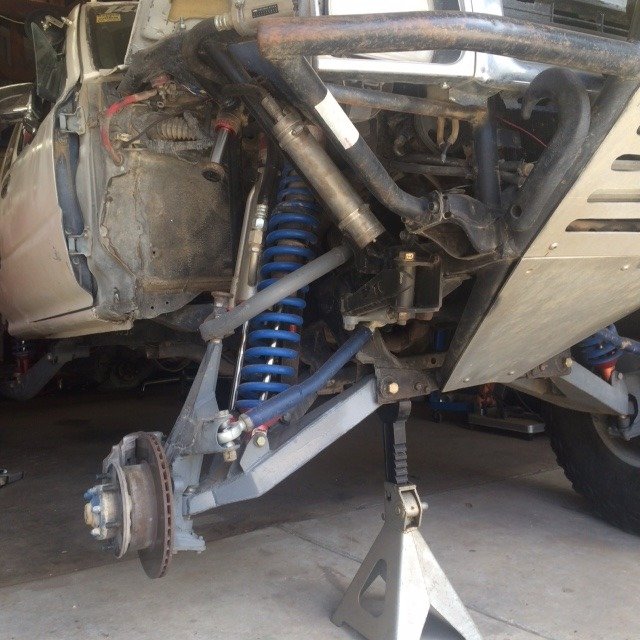

    In case you want to inspect the undercarriage


    TC yota, Feb 17, 2016
    #9
    ChadsPride and 06HAOLE like this.
  10. Feb 20, 2016 at 8:18 PM
    #10
    TC yota

    #10
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha
    truck rear.jpg

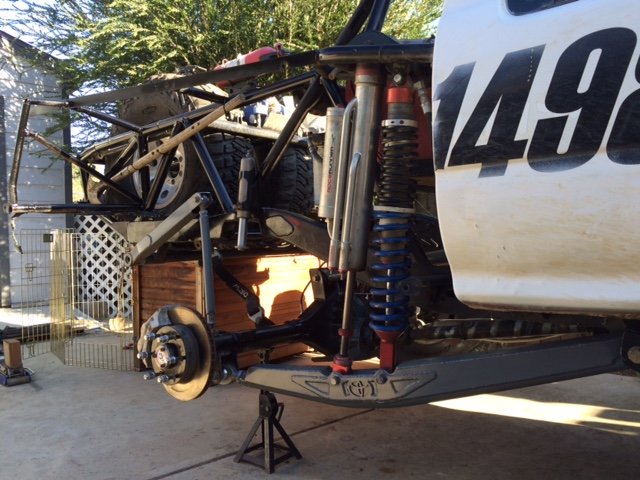

    truck side.jpg


    Attached Files:

    Last edited: May 5, 2017
    TC yota, Feb 20, 2016
    #10
    ChadsPride likes this.
  11. Feb 22, 2016 at 3:56 PM
    #11
    JWaldz

    #11
    JWaldz It puts the Joe Dirt in the hole

    Joined:
    May 23, 2012
    Member:
    #79405
    Messages:
    2,015
    Gender:
    Male
    First Name:
    Waldo
    Colo Springs
    Vehicle:
    99 4Runner LTD
    Freakin cool as hell.. GLWS

    JWaldz, Feb 22, 2016
    #11
  12. May 23, 2016 at 9:22 PM
    #12
    TC yota

    #12
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha

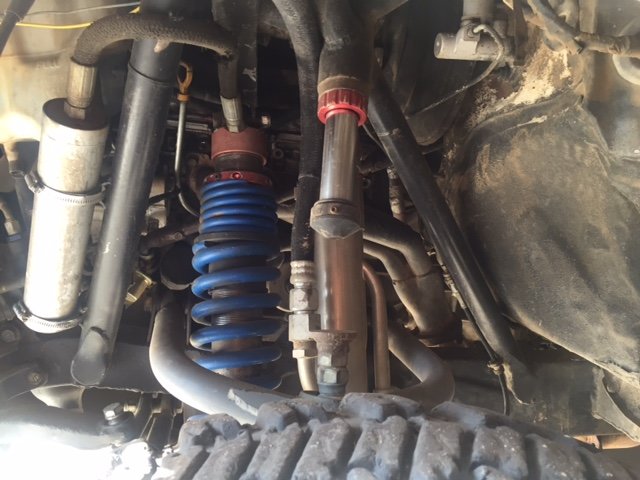

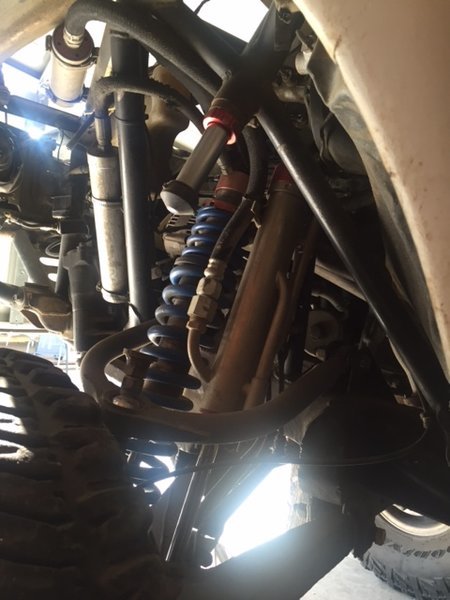

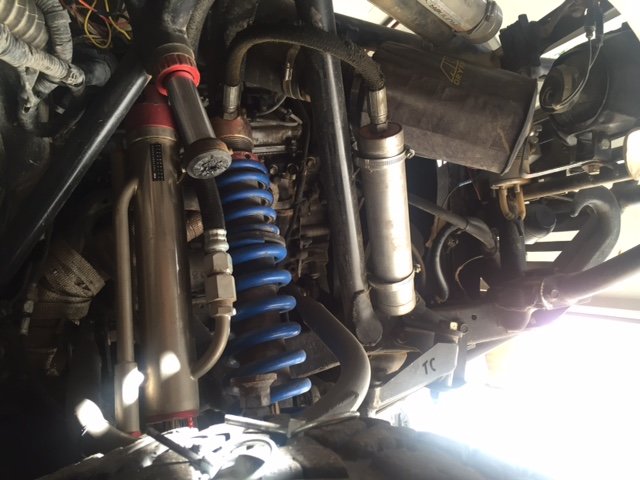

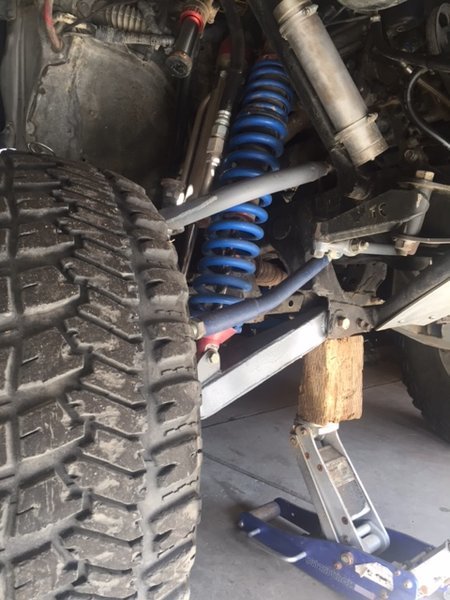

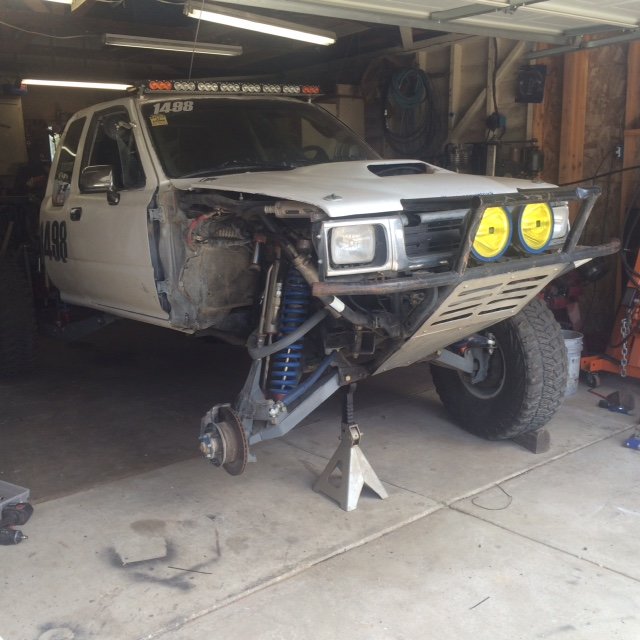

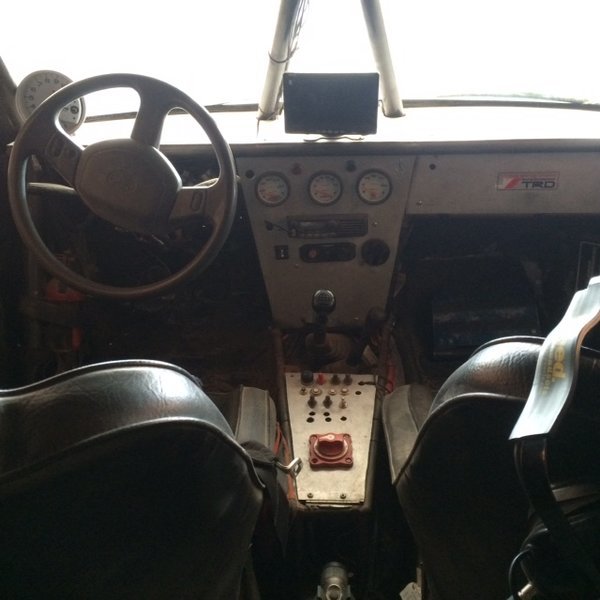

    interior center.jpg front susp driver angle.jpg front sups drivers.jpg enigne.jpg front pass.jpg front pass susp.jpg

    TC yota, May 23, 2016
    #12
    ChadsPride and 06HAOLE like this.
  13. Jun 18, 2016 at 11:54 AM
    #13
    TC yota

    #13
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha

    TC yota, Jun 18, 2016
    #13
    ChadsPride likes this.
  14. Jun 18, 2016 at 11:54 AM
    #14
    TC yota

    #14
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha

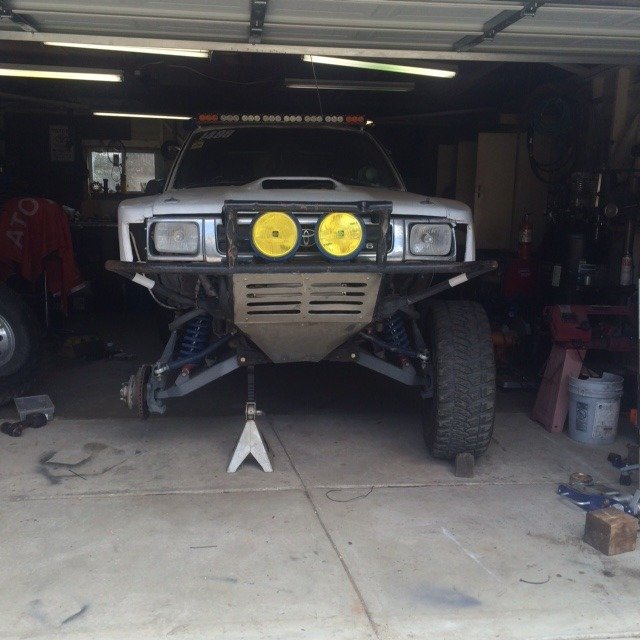

    Trucks getting prepped for Del Mar Tuff Trucks, Might as well have fun with it :D

    TC yota, Jun 18, 2016
    #14
  15. Jul 30, 2016 at 11:30 AM
    #15
    Tacofart

    #15
    Tacofart Well-Known Member

    Joined:
    Jan 8, 2014
    Member:
    #120217
    Messages:
    413
    Gender:
    Male
    First Name:
    Brennan
    San Diego
    Vehicle:
    04 3.4 4x4 Dual cases/ Lockers
    How much to rent for the day lol

    Tacofart, Jul 30, 2016
    #15
    Dalandser likes this.
  16. Aug 21, 2016 at 8:04 AM
    #16
    TC yota

    #16
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha
    Killer deal for a fast fun truck!


    TC yota, Aug 21, 2016
    #16
    ChadsPride and 06HAOLE like this.
  17. Aug 28, 2016 at 9:18 PM
    #17
    TC yota

    #17
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha

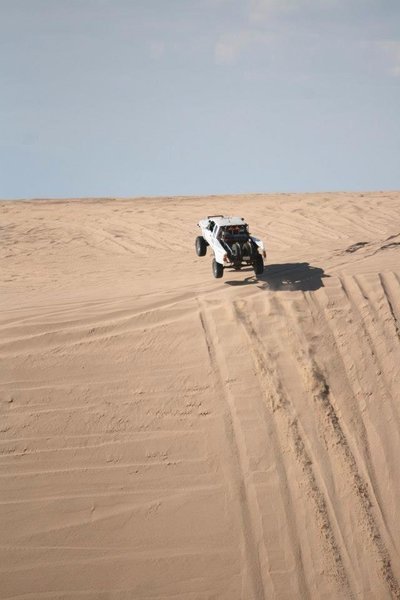

    Bump for some sand action image.jpg

    TC yota, Aug 28, 2016
    #17
    nfs257 likes this.
  18. Sep 6, 2016 at 5:54 PM
    #18
    5lugturtle

    #18
    5lugturtle Well-Known Member

    Joined:
    Jun 28, 2016
    Member:
    #190738
    Messages:
    348
    Gender:
    Male
    First Name:
    Conner
    San Diego
    Vehicle:
    2012 Silver Tacoma 5 lug regular cab 2x4
    Lift,31s
    :drool::drool::drool::drool:
    wish I had money

    5lugturtle, Sep 6, 2016
    #18
  19. Dec 2, 2016 at 5:46 PM
    #19
    BenJammn5

    #19
    BenJammn5 RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,528
    Gender:
    Male
    San Jose
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    What a machine... seen it before at DelMar

    BenJammn5, Dec 2, 2016
    #19
    ChadsPride and TC yota[OP] like this.
  20. Jan 22, 2017 at 7:15 PM
    #20
    TC yota

    #20
    TC yota [OP] Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30692
    Messages:
    2,127
    Gender:
    Male
    First Name:
    Tyler
    Escondido
    Ha
    Still got it, still having fun

    TC yota, Jan 22, 2017
    #20
    ChadsPride likes this.
